Flasher Module: Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

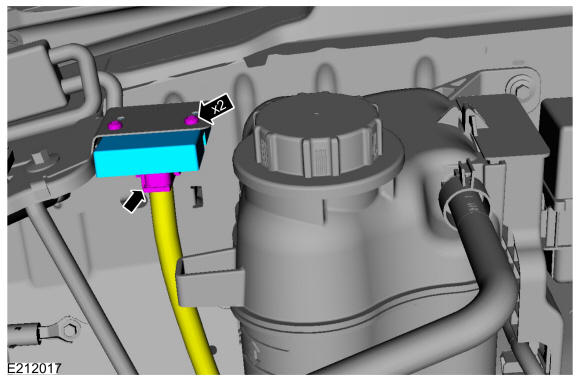

    Remove the screws, disconnect the electrical connector and remove the flasher (warn) module.

    Torque

    : 13 lb.in (1.5 Nm)

GFD126797Courtesy of FORD MOTOR COMPANY
