Removal And Installation: Liftgate: Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the liftgate trim panel. REFER to: Liftgate Trim Panel .

2.
1. 1.

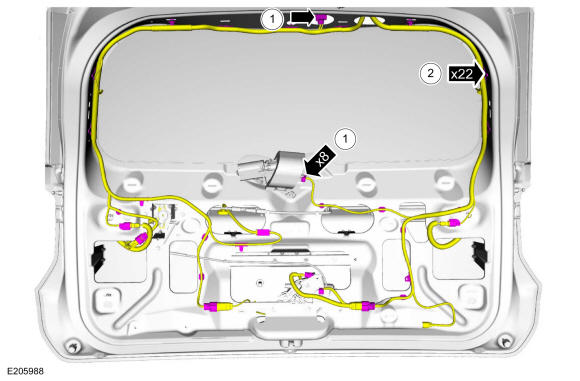

  Disconnect the liftgate electrical connectors.
1. 2.

  Disconnect the liftgate harness routing clips.

GFD125332

Courtesy of FORD MOTOR COMPANY

3.

Remove the rear spoiler. REFER to: Rear Spoiler .

4.

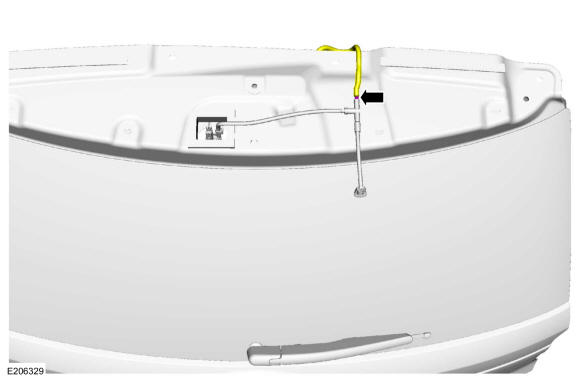

Disconnect the rear washer hose.

GFD125333

Courtesy of FORD MOTOR COMPANY

5.

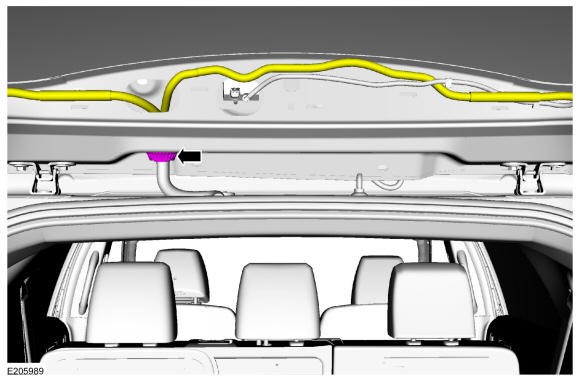

Remove the grommet and route the harness out of the liftgate.

GFD125334

Courtesy of FORD MOTOR COMPANY

6.

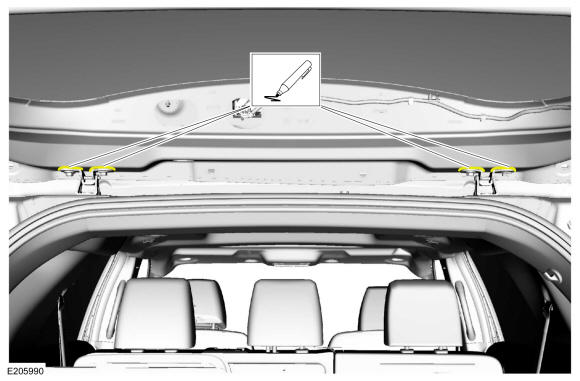

Mark the location of the liftgate hinge bolts.

GFD125335

Courtesy of FORD MOTOR COMPANY

7.

NOTE: This step requires the aid of another technician.

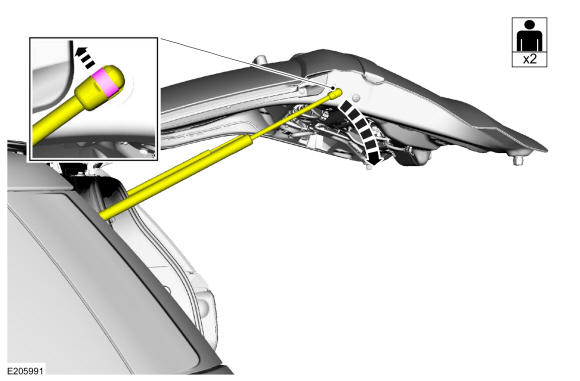

On both sides. Remove the clips holding the liftgate struts or the power liftgate motor and position aside.

GFD125336

Courtesy of FORD MOTOR COMPANY

8.

NOTE: This step requires the aid of another technician.

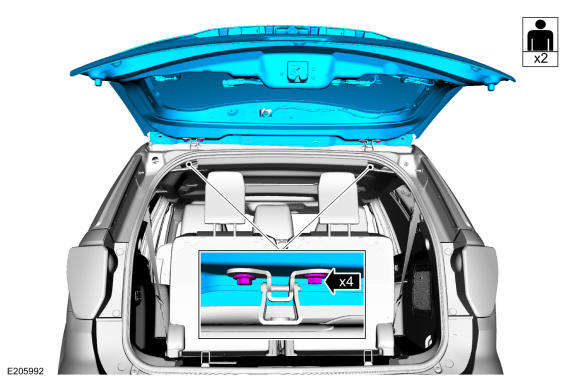

Remove the liftgate bolts and remove the liftgate from the vehicle.

Torque

: 22 lb.ft (30 Nm)

GFD125337

Courtesy of FORD MOTOR COMPANY
