Rear Door Alignment

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown in illustration, RH side similar.

  1. 1.

    Inspect the rear door-to-body dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

Adjustment

All alignments

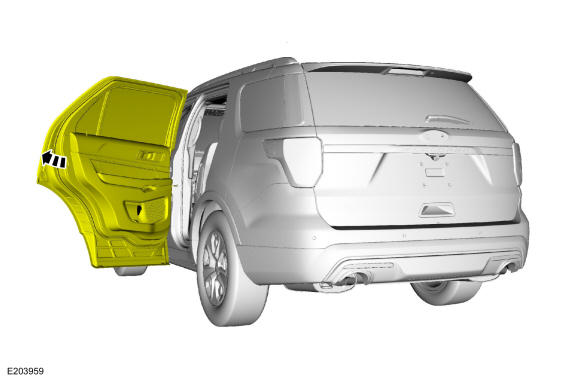

  1. 1.

    Open the rear door.
GFD127632Courtesy of FORD MOTOR COMPANY

  1. 2.

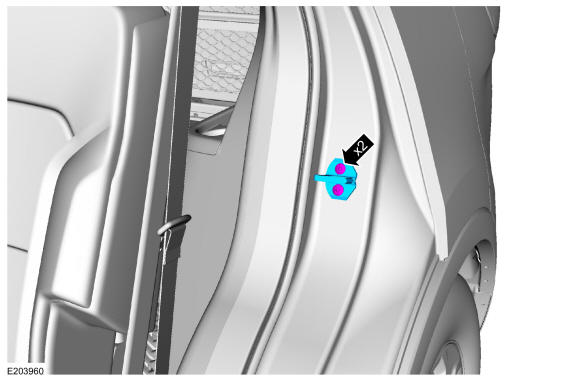

    Remove the bolts and the striker assembly.

    Torque

    : 17 lb.ft (22.5 Nm)

GFD127633Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

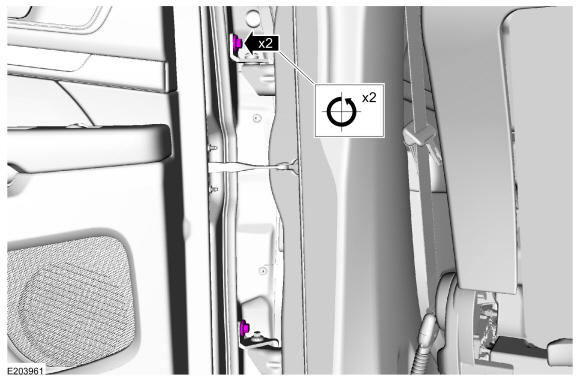

  1. 3.

    Loosen the bolts to permit movement of the door.

    Loosen: 2 turn(s)

GFD125301Courtesy of FORD MOTOR COMPANY

  1. 4.

    Adjust the door to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125302Courtesy of FORD MOTOR COMPANY

  1. 5.

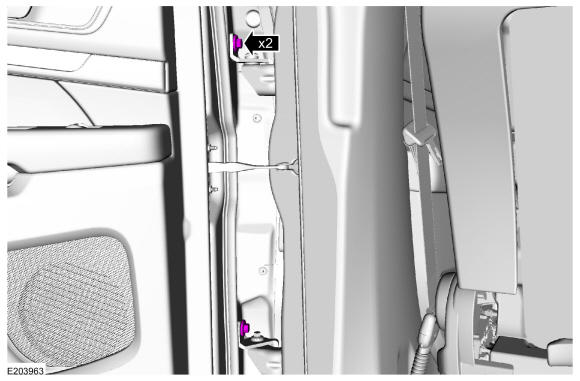

    Tighten the bolts.

    Torque

    : 41 lb.ft (55 Nm)

GFD125303Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment

  1. 6.

    Remove the B-pillar trim panel. REFER to: B-Pillar Trim Panel .

  1. 7.

    Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering and Repowering .

  1. 8.

    NOTE: This step applies to the LH door only.

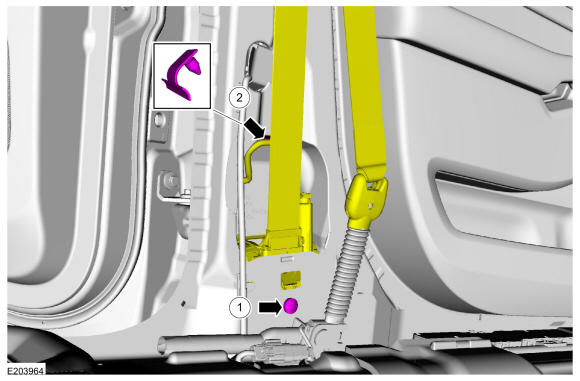

    Position aside the LH safety belt retractor.

    1. 1.

      Remove the screw.

      Torque

      : 30 lb.ft (40 Nm)

    1. 2.

      Detach the electrical wiring retainer and position aside the LH safety belt retractor.
GFD127634Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: This step applies to the RH door only.

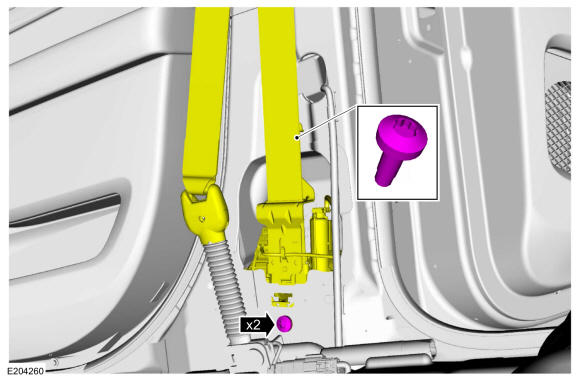

    Remove the screws and position aside the RH safety belt retractor.

    Torque

    : 30 lb.ft (40 Nm)

GFD127635Courtesy of FORD MOTOR COMPANY

  1. 10.

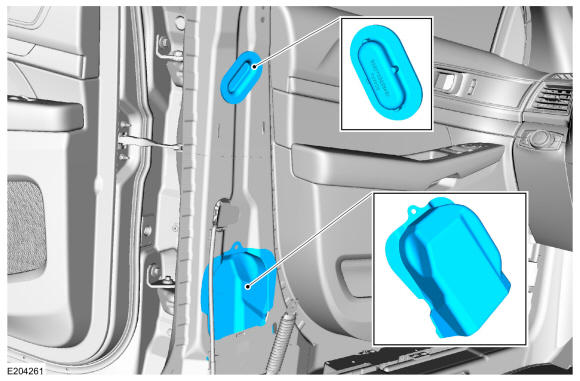

    Remove the body opening foam covers to access the door hinge nuts.
GFD125304Courtesy of FORD MOTOR COMPANY

  1. 11.

    Open the front door.
GFD125267Courtesy of FORD MOTOR COMPANY

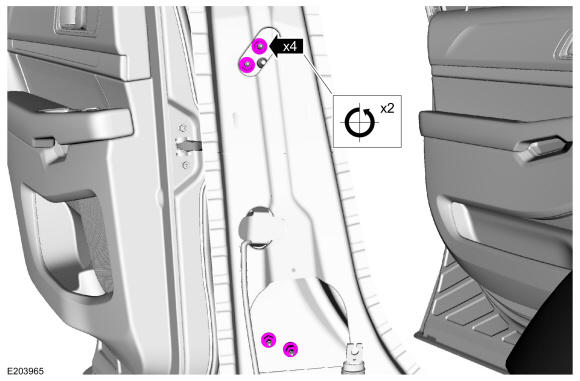

  1. 12.

    Loosen the nuts to permit movement of the door.

    Loosen: 2 turn(s)

GFD125305Courtesy of FORD MOTOR COMPANY

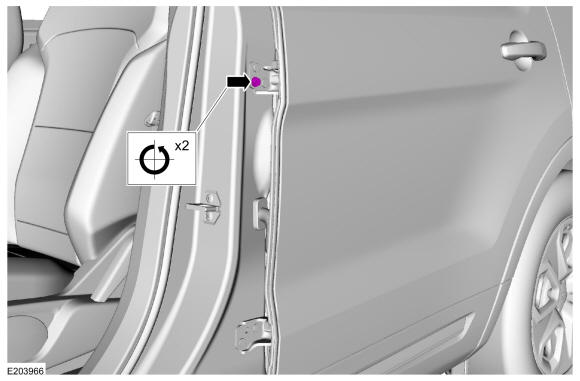

  1. 13.

    Loosen the bolt to permit movement of the door.

    Loosen: 2 turn(s)

GFD125306Courtesy of FORD MOTOR COMPANY

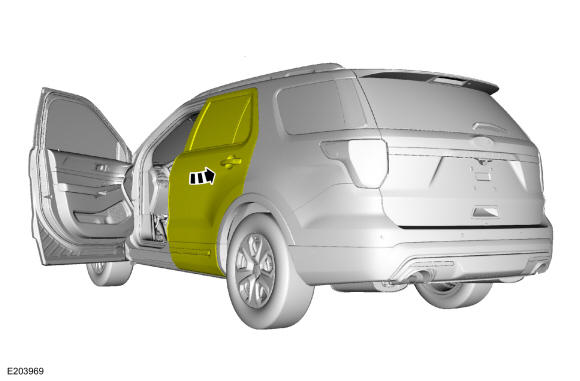

  1. 14.

    Carefully close the rear door.
GFD125307Courtesy of FORD MOTOR COMPANY

  1. 15.

    Carefully close the front door.
GFD125273Courtesy of FORD MOTOR COMPANY

  1. 16.

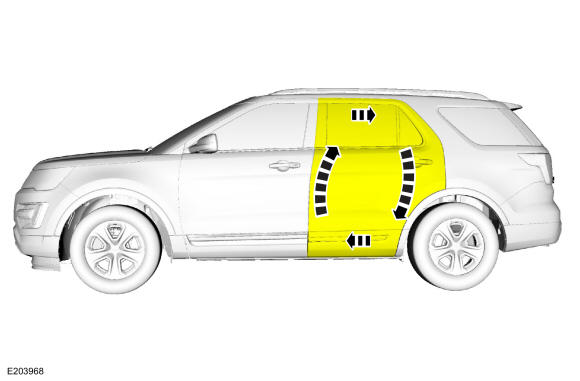

    Adjust the door to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125308Courtesy of FORD MOTOR COMPANY

  1. 17.

    Carefully open the front door.
GFD125267Courtesy of FORD MOTOR COMPANY

  1. 18.

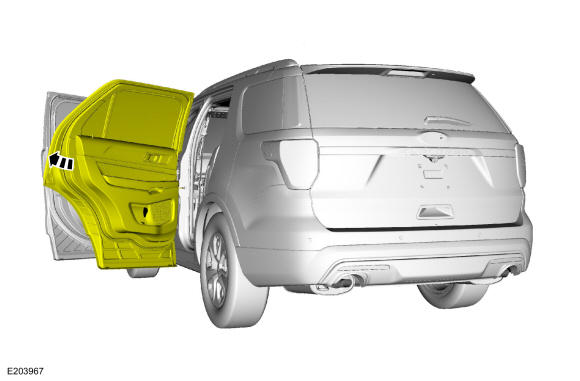

    Carefully open the rear door.
GFD125309Courtesy of FORD MOTOR COMPANY

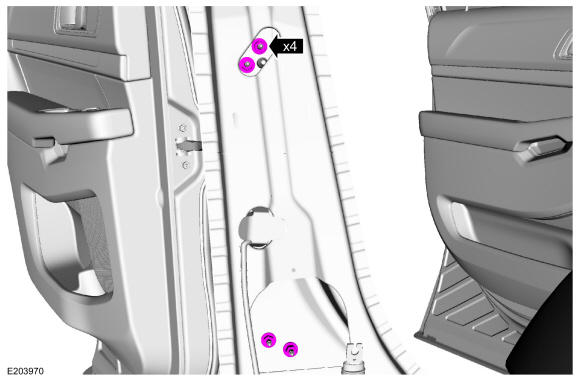

  1. 19.

    Tighten the nuts.

    Torque

    : 22 lb.ft (30 Nm)

GFD125310Courtesy of FORD MOTOR COMPANY

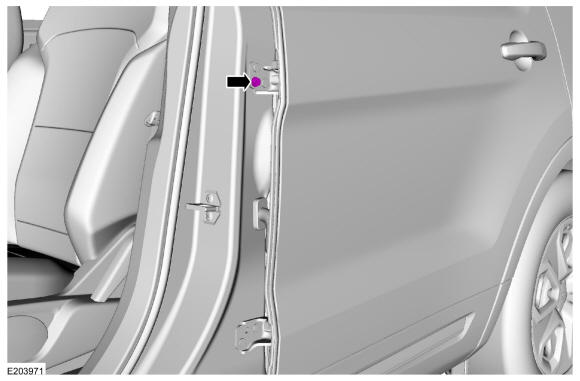

  1. 20.

    Tighten the bolt.

    Torque

    : 89 lb.in (10 Nm)

GFD125311Courtesy of FORD MOTOR COMPANY

  1. 21.

    Install the foam covers.
GFD125304Courtesy of FORD MOTOR COMPANY

  1. 22.

    NOTE: This step applies to the LH door only.

    Position the LH safety belt retractor.

    1. 1.

      Position the LH safety belt retractor and install the screw.

      Torque

      : 30 lb.ft (40 Nm)

    1. 2.

      Install the electrical wiring retainer.
GFD127634Courtesy of FORD MOTOR COMPANY

  1. 23.

    NOTE: This step applies to the RH door only.

    Position the RH safety belt retractor and install the screws.

    Torque

    : 30 lb.ft (40 Nm)

GFD127635Courtesy of FORD MOTOR COMPANY

  1. 24.

    Install the B-pillar trim panel. REFER to: B-Pillar Trim Panel .

  1. 25.

    Repower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering and Repowering .

  1. 26.

    Check the active restraint system for correct operation. REFER to: SAFETY BELT SYSTEMS .

All alignments

  1. 27.

    Install the striker assembly.

    Torque

    : 18 lb.ft (25 Nm)

GFD127633Courtesy of FORD MOTOR COMPANY

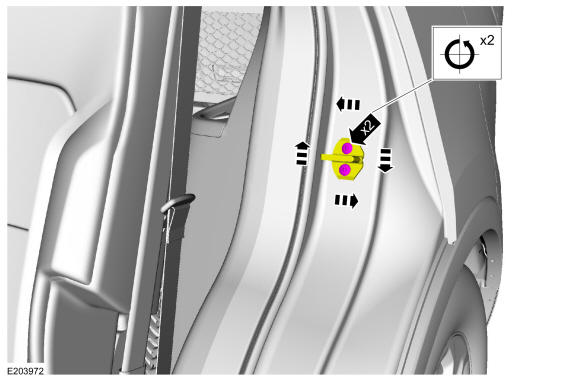

  1. 28.

    Loosen the bolts to permit movement of the striker assembly.

    Loosen: 2 turn(s)

GFD125312Courtesy of FORD MOTOR COMPANY

  1. 29.

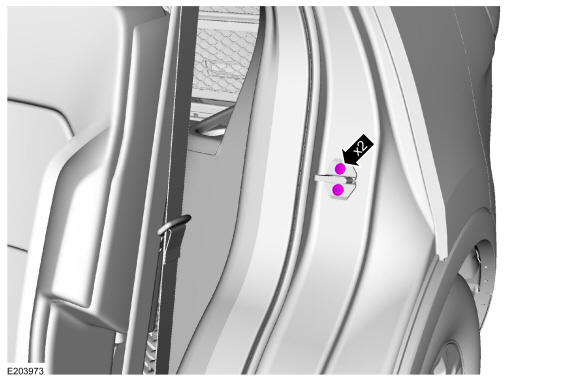

    Tighten the bolts.

    Torque

    : 18 lb.ft (25 Nm)

GFD125313Courtesy of FORD MOTOR COMPANY

  1. 30.

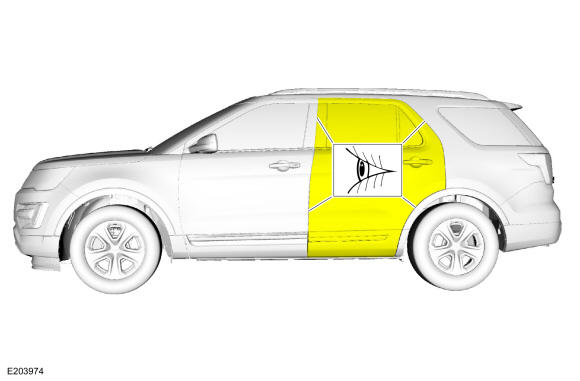

    Inspect the body-to-rear door dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.
GFD125314Courtesy of FORD MOTOR COMPANY
