Bearing Inspection

Inspection

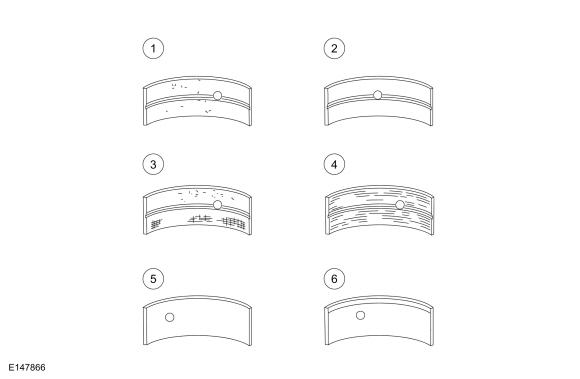

1. 1.



   1. 1.

      Cratering - fatigue failure

   1. 2.

      Spot glazing - incorrect seating

   1. 3.

      Scratching - dirty engine oil

   1. 4.

      Base exposed - poor lubrication

   1. 5.

      Both edges worn - journal damaged

   1. 6.

      One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
