Overhead Console: Removal

  1. 1.

    1. 1.

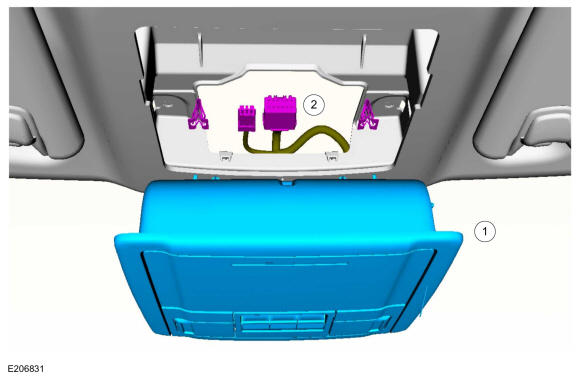

      Release the clips and lower the overhead console.

    1. 2.

      Disconnect the electrical connectors.
GFD125914Courtesy of FORD MOTOR COMPANY
