Home >> Ford >> 2017 >> Explorer Platinum >> Repair and Diagnosis >> Body & Frame >> Seats >> Seating System - Third Row >> Removal And Installation >> Power Fold Seat Control Switch >> Removal

Power Fold Seat Control Switch: Removal

  1. 1.

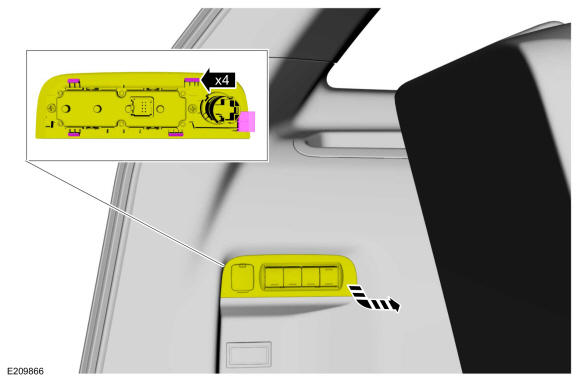

    Release the tabs and pull the seat control switch bezel out of the loadspace trim panel.
GFD125717Courtesy of FORD MOTOR COMPANY

  1. 2.

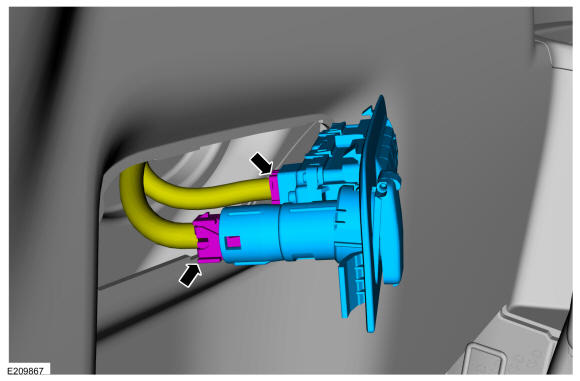

    Disconnect the electrical connectors and remove switch bezel.
GFD125718Courtesy of FORD MOTOR COMPANY

  1. 3.

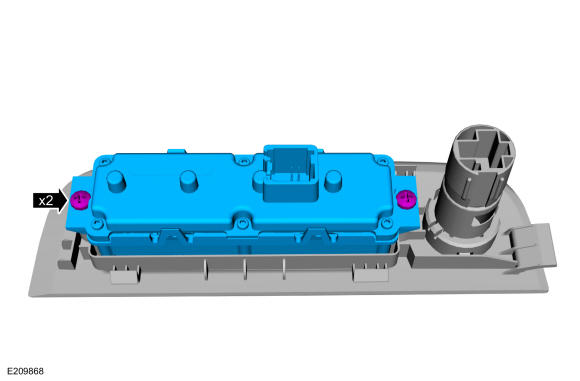

    Remove the screws and the seat control switch.
GFD125719Courtesy of FORD MOTOR COMPANY
