Door Lock Control Switch - Driver Side (With Memory)

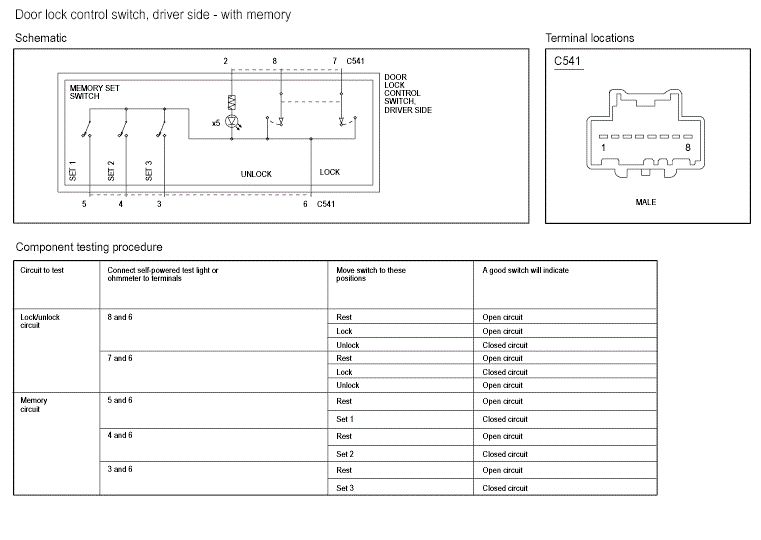

Fig 1: Door Lock Control Switch - Driver Side (With Memory)

GFDW55265

Courtesy of FORD MOTOR COMPANY
