Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH steering wheel multifunction switch. Refer to: Steering Wheel Multifunction Switch .

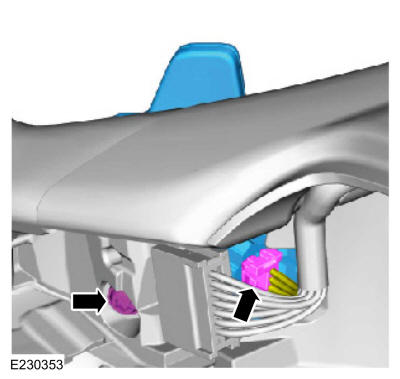

  2. Disconnect the electrical connector, remove the screw and remove the downshift paddle switch.
GFD184369Courtesy of FORD MOTOR COMPANY
