Component Testing: Relays

Fig 1: Relay - Power Mini ISO (1 of 3)
GFDW76637Courtesy of FORD MOTOR COMPANY
Fig 2: Relay - Power Mini ISO (2 of 3)
GFDW76638Courtesy of FORD MOTOR COMPANY

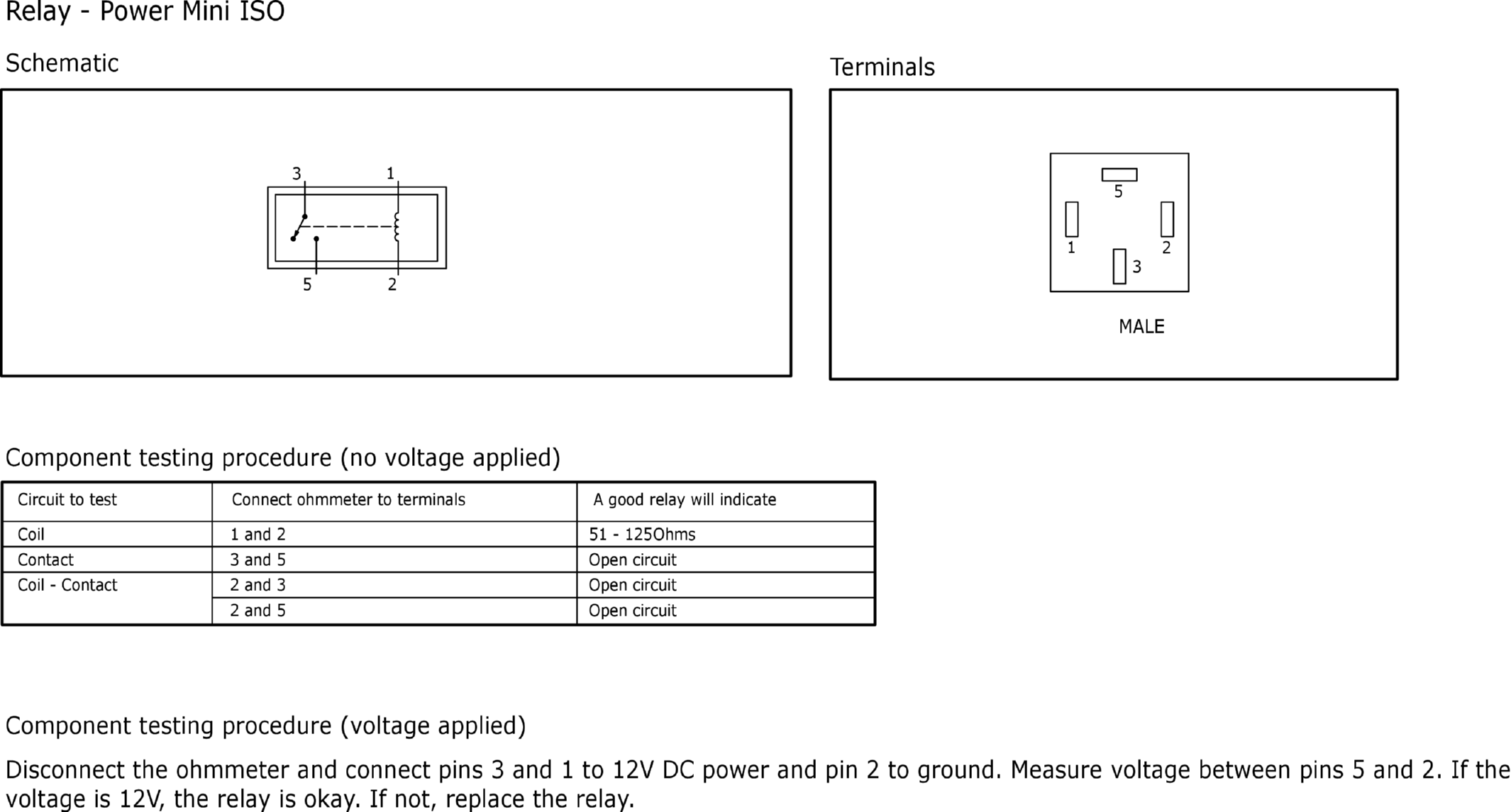

Fig 3: Relay - Power Mini ISO (3 of 3)
GFDW76639Courtesy of FORD MOTOR COMPANY
