OEM Ground Distribution: Grounds

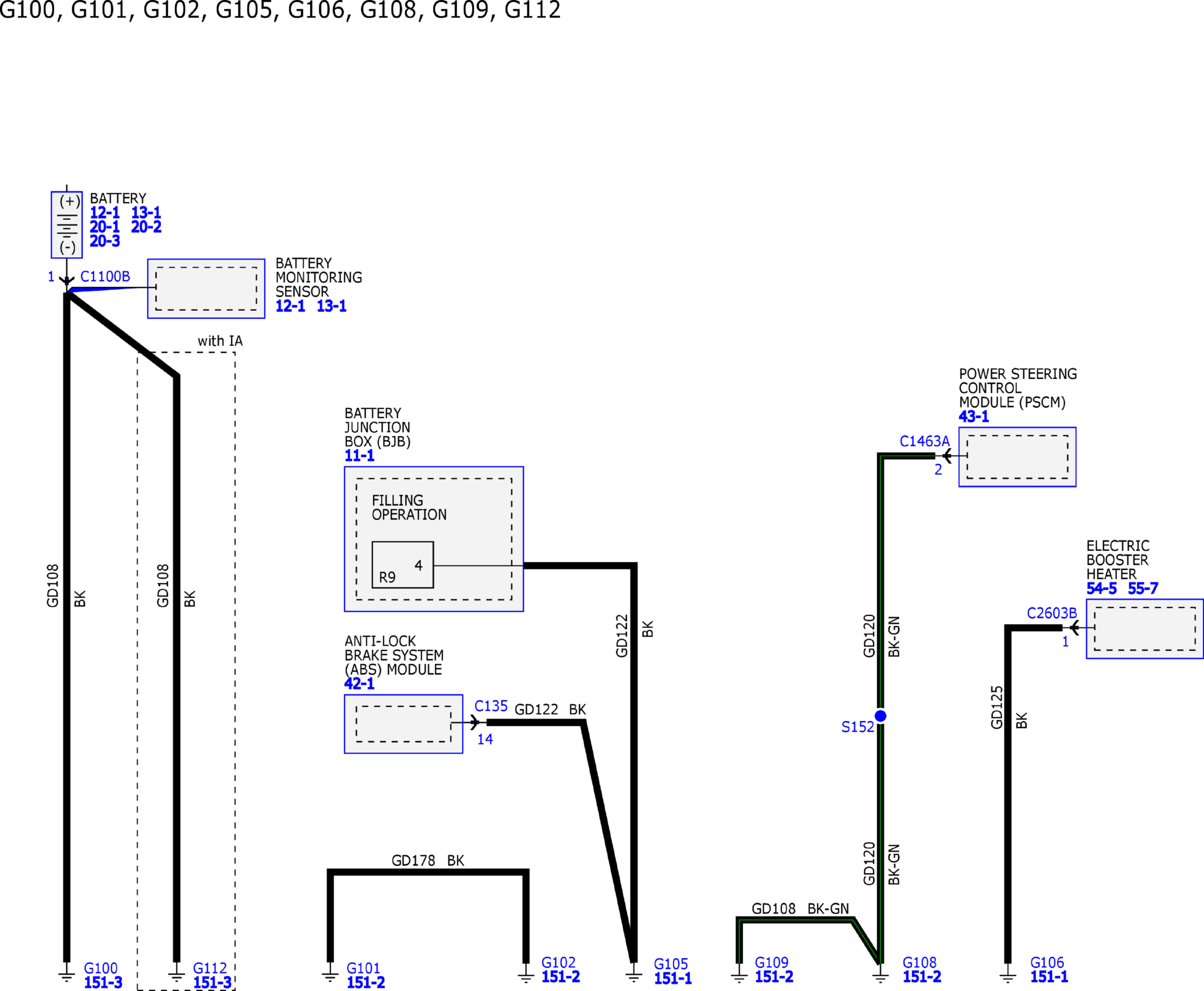

GFDW76391Courtesy of FORD MOTOR COMPANY

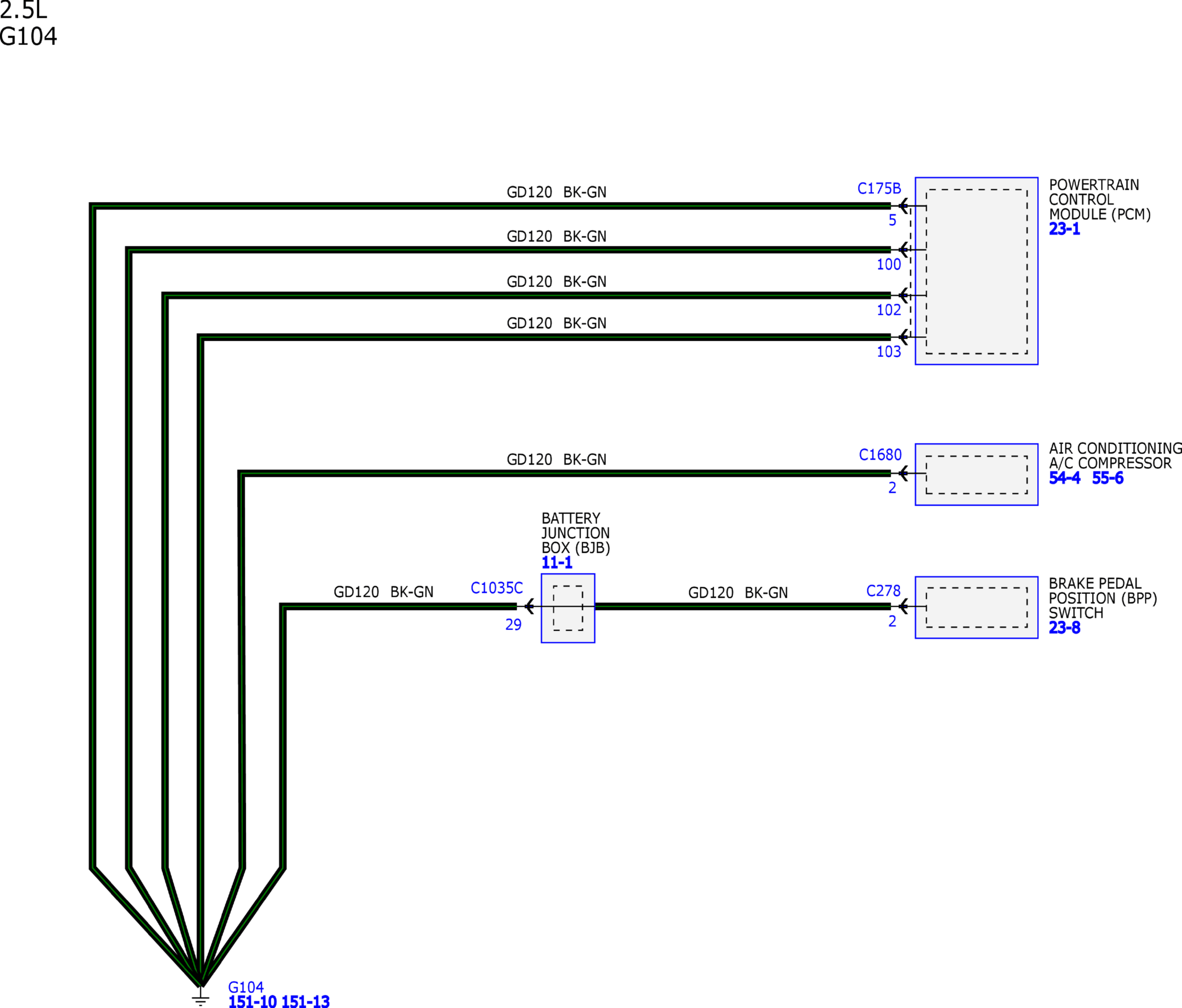

GFDW76392Courtesy of FORD MOTOR COMPANY

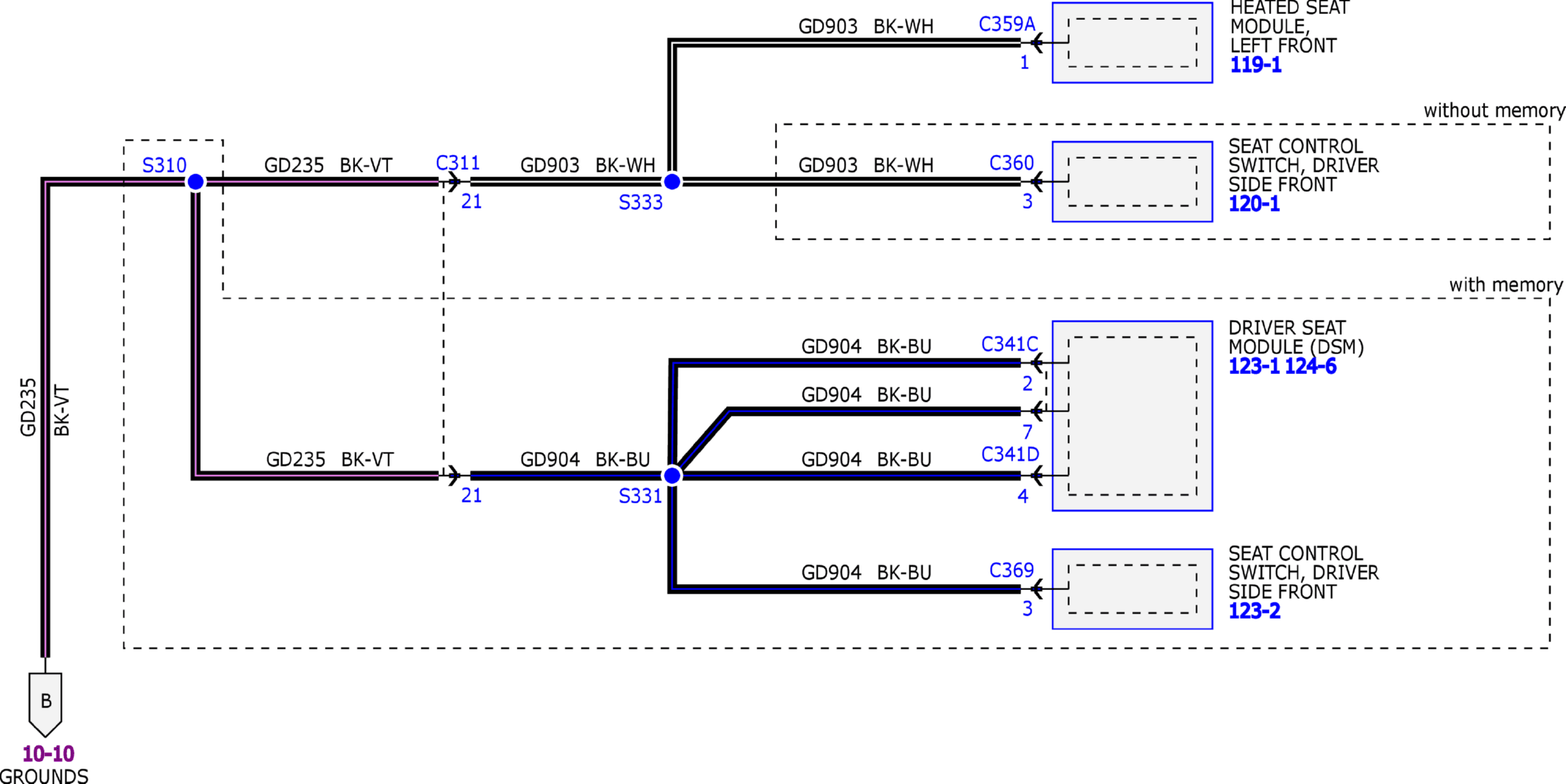

GFDW76393Courtesy of FORD MOTOR COMPANY

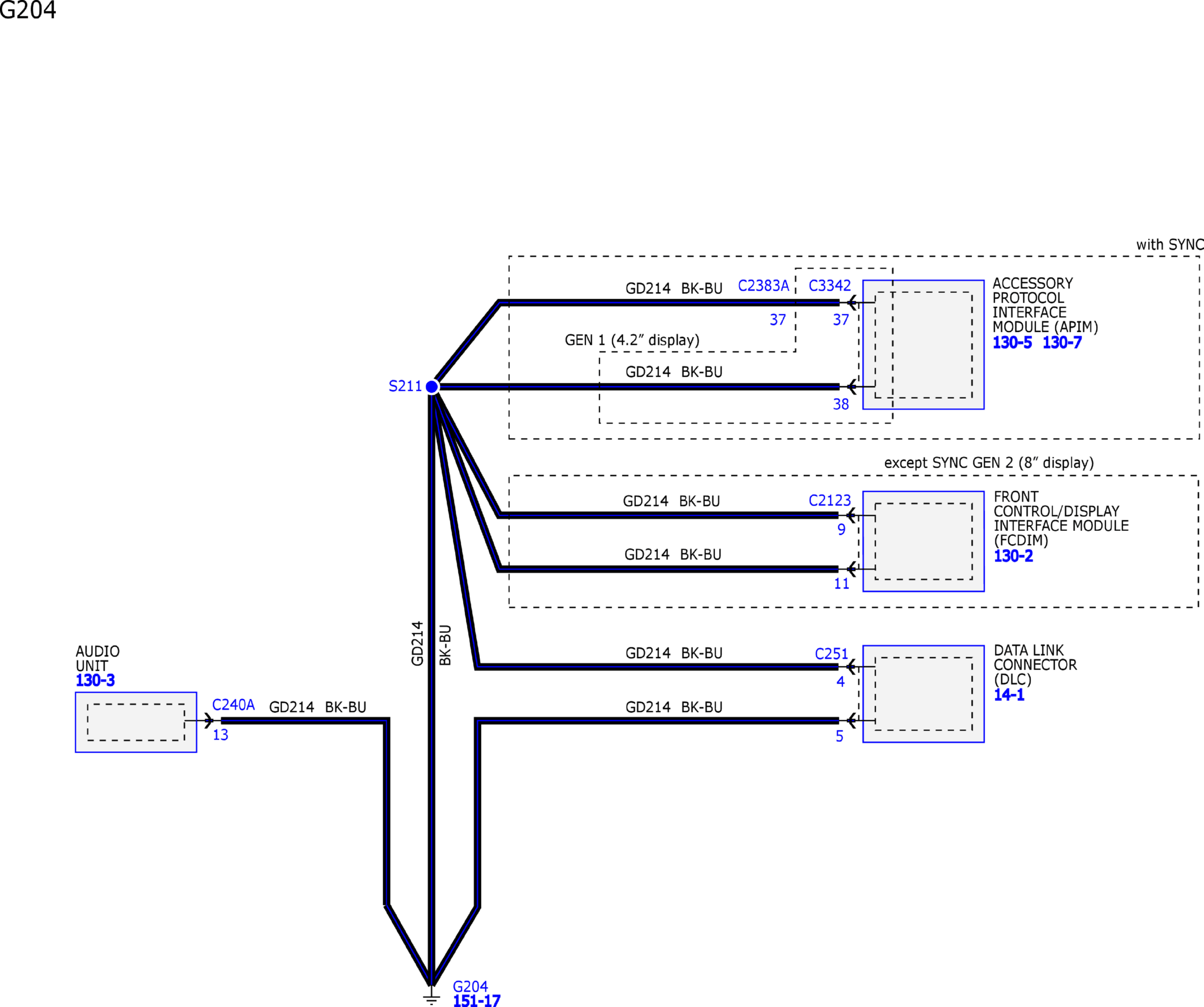

GFDW76394Courtesy of FORD MOTOR COMPANY

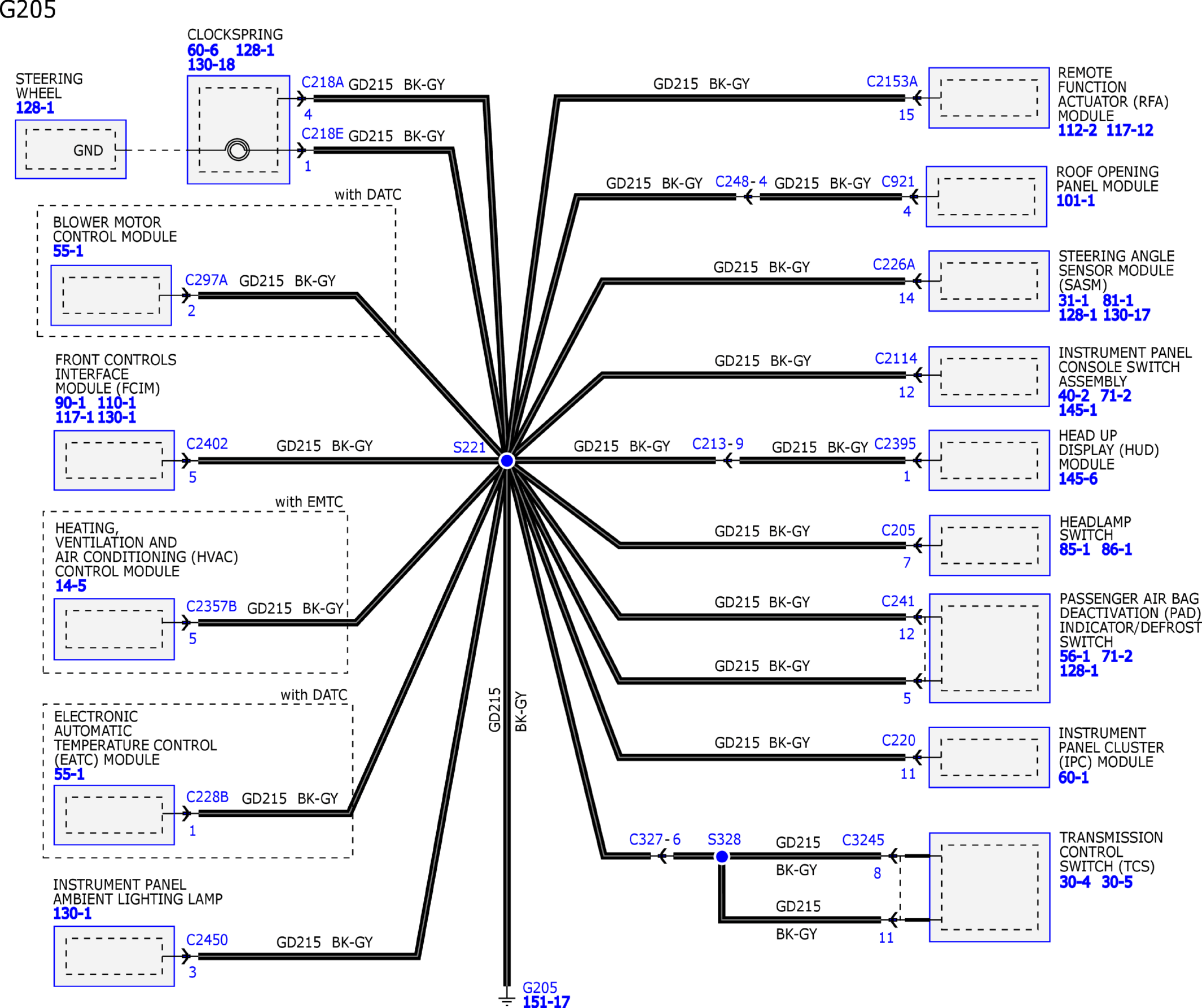

GFDW76395Courtesy of FORD MOTOR COMPANY

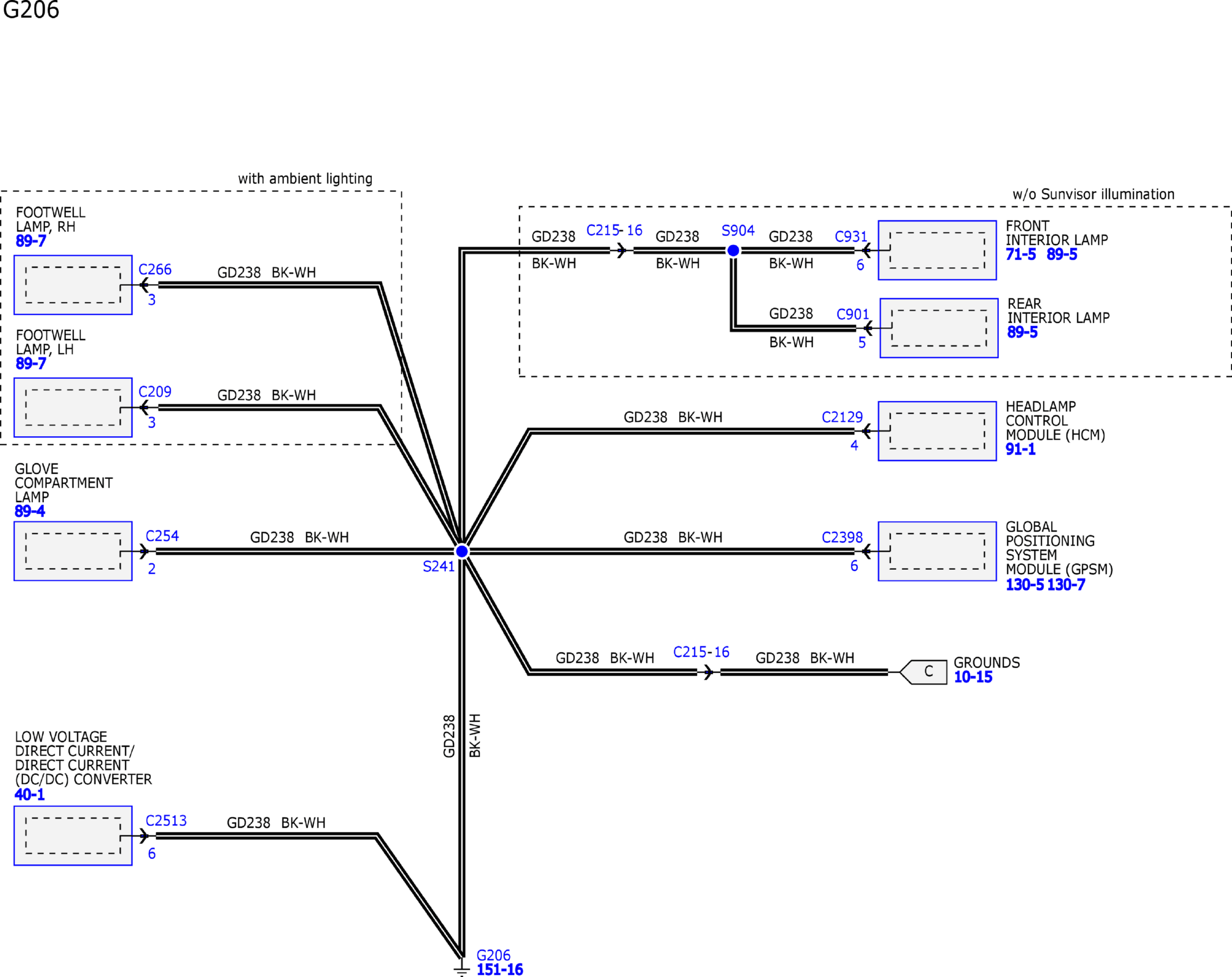

GFDW76396Courtesy of FORD MOTOR COMPANY

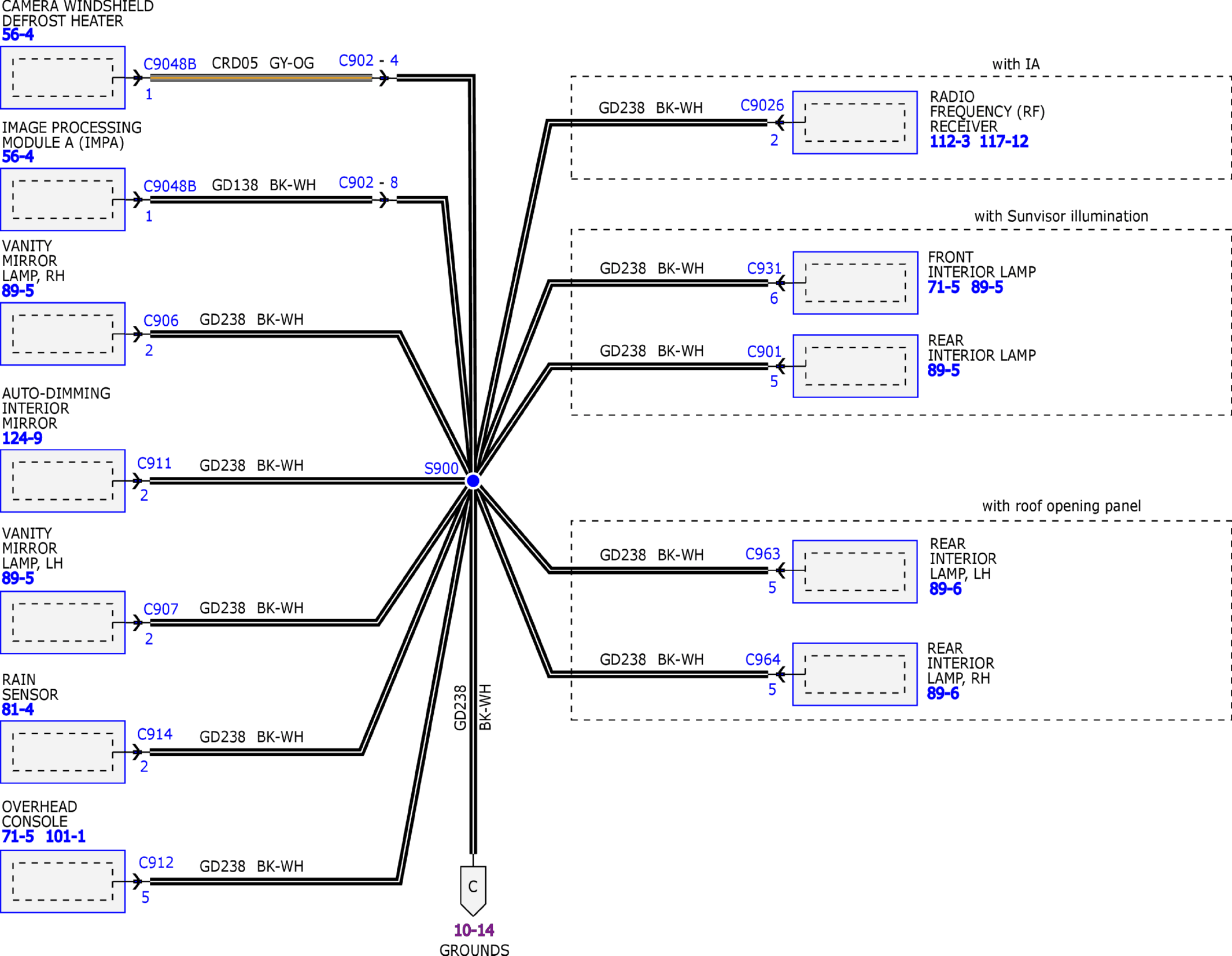

GFDW76397Courtesy of FORD MOTOR COMPANY

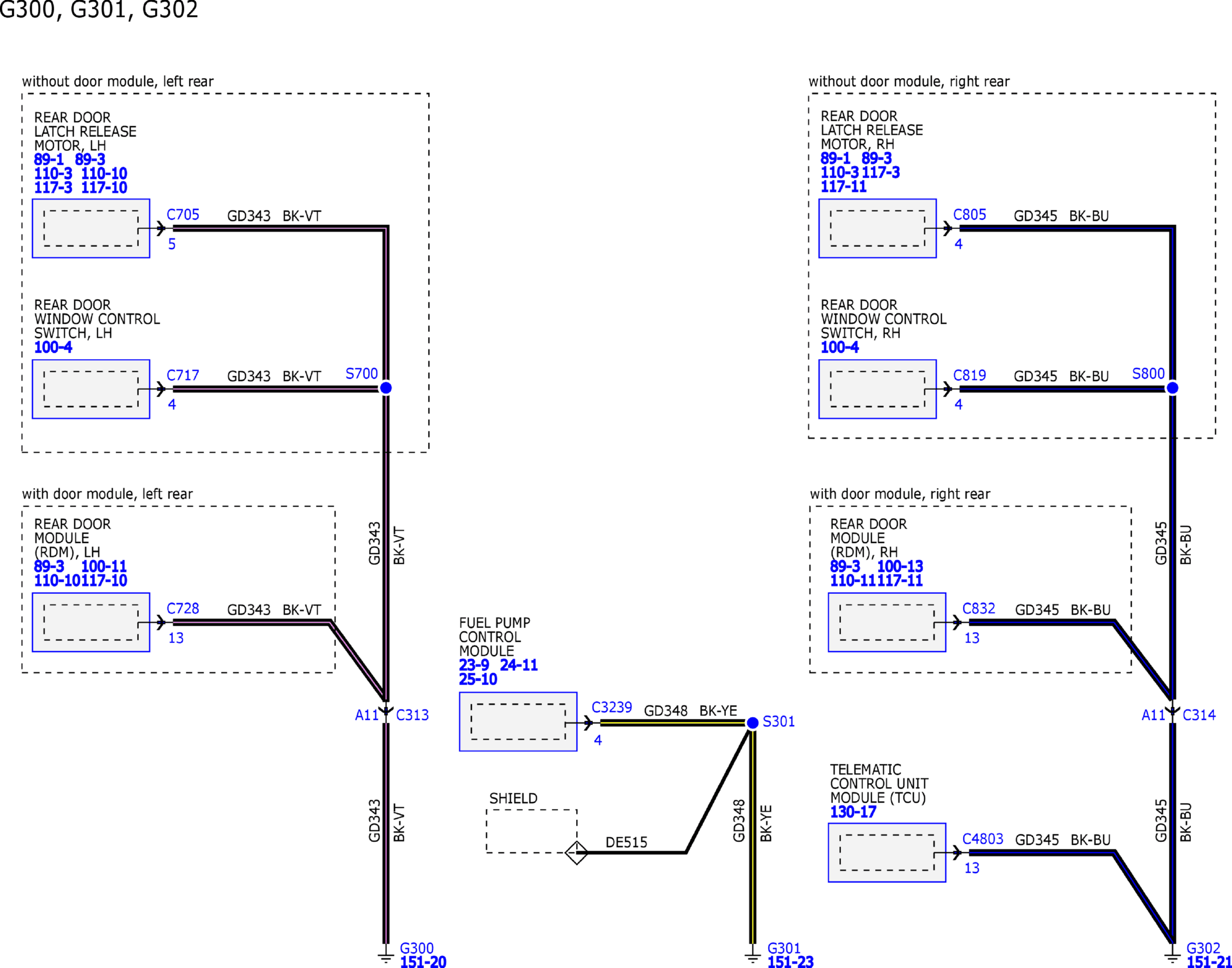

GFDW76398Courtesy of FORD MOTOR COMPANY

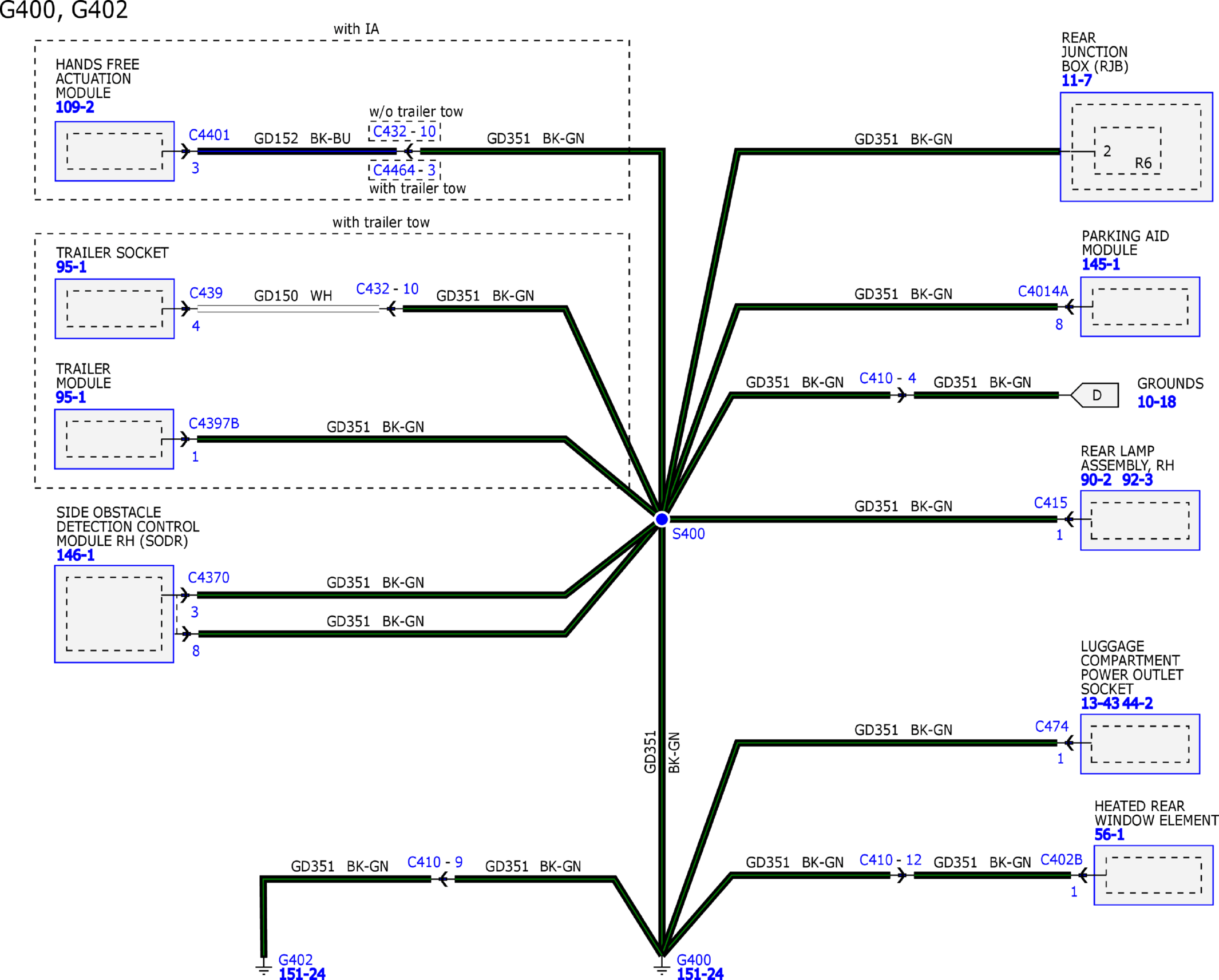

GFDW76399Courtesy of FORD MOTOR COMPANY

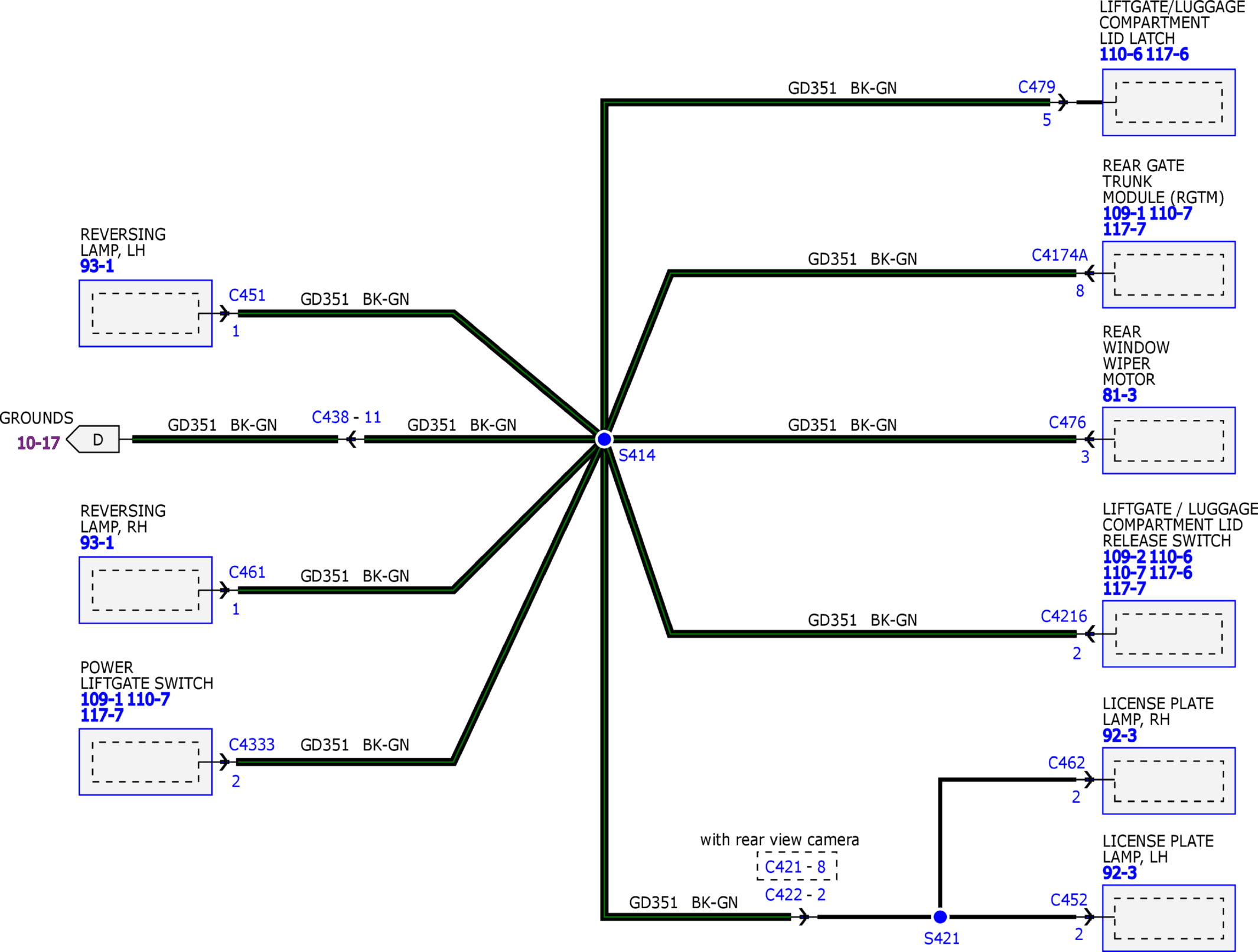

GFDW76400Courtesy of FORD MOTOR COMPANY

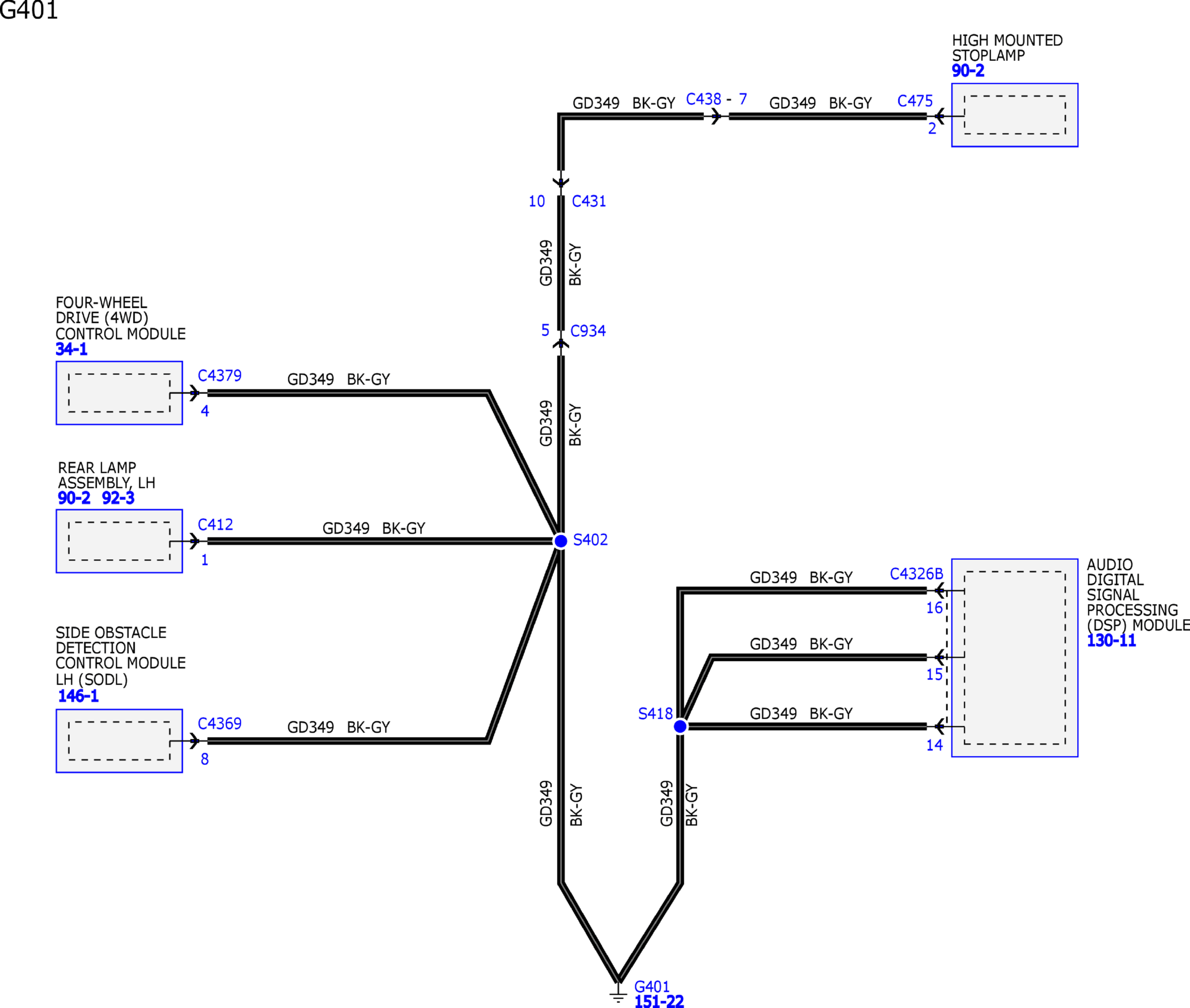

GFDW76401Courtesy of FORD MOTOR COMPANY

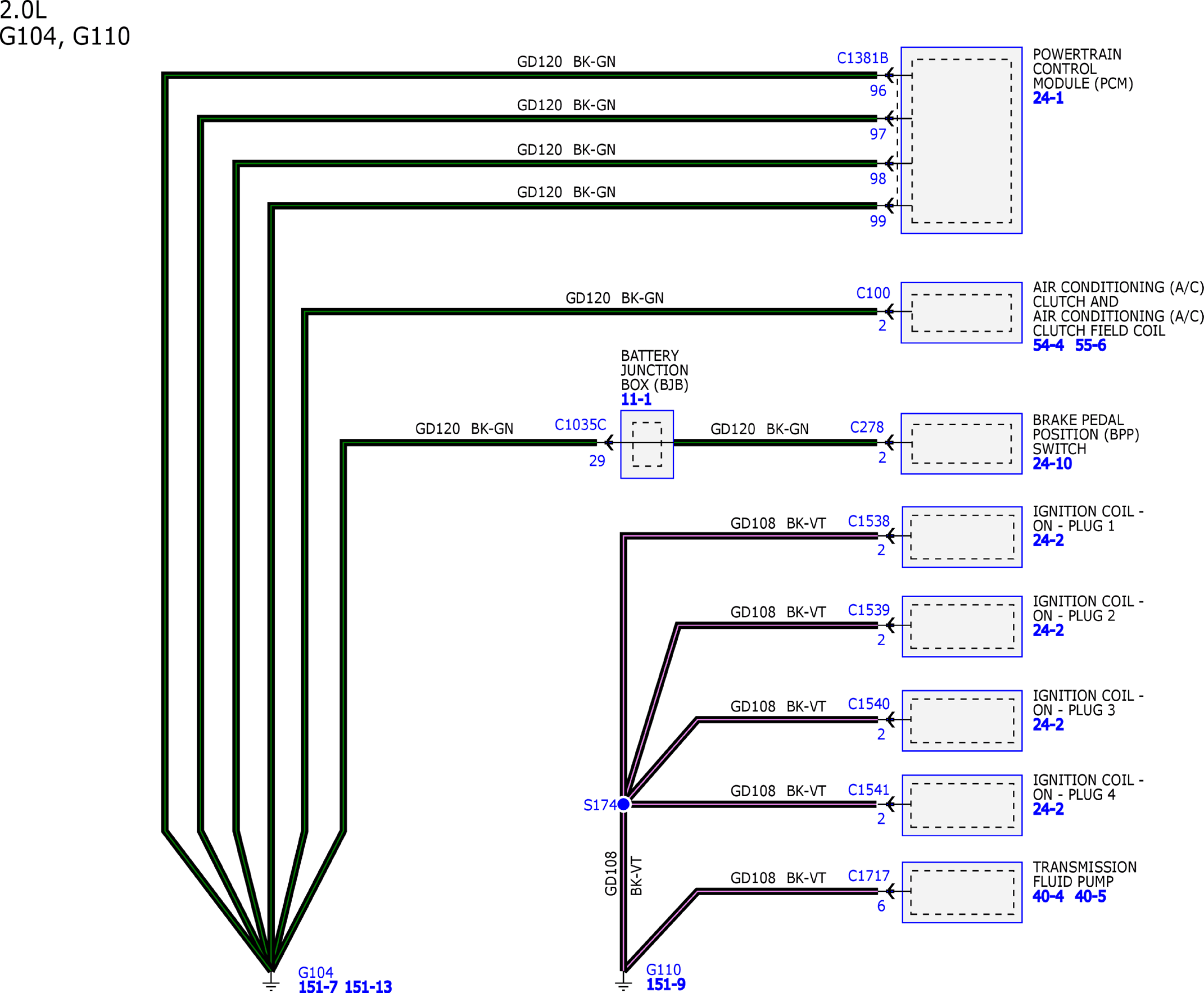

GFDW76402Courtesy of FORD MOTOR COMPANY

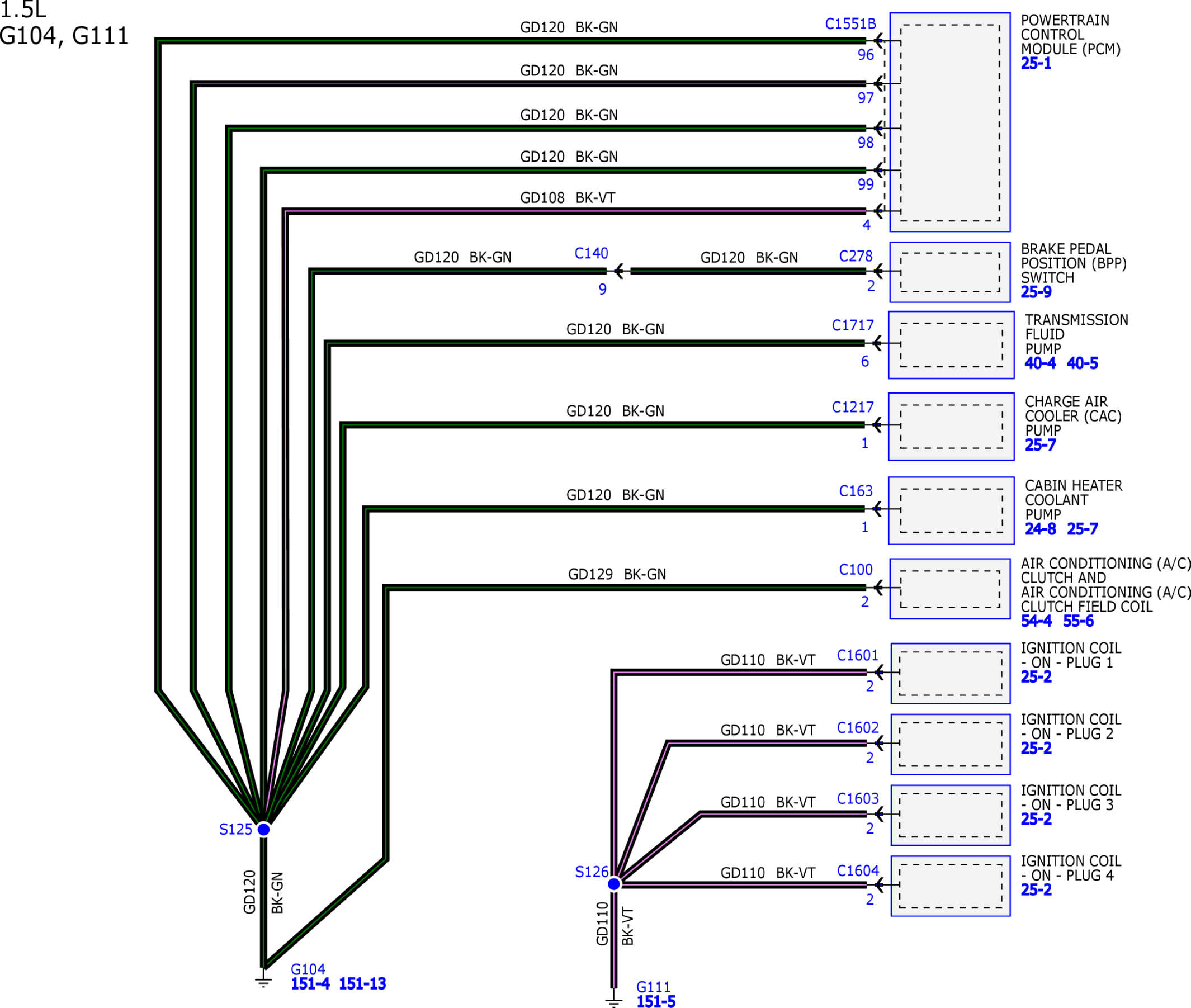

GFDW76403Courtesy of FORD MOTOR COMPANY

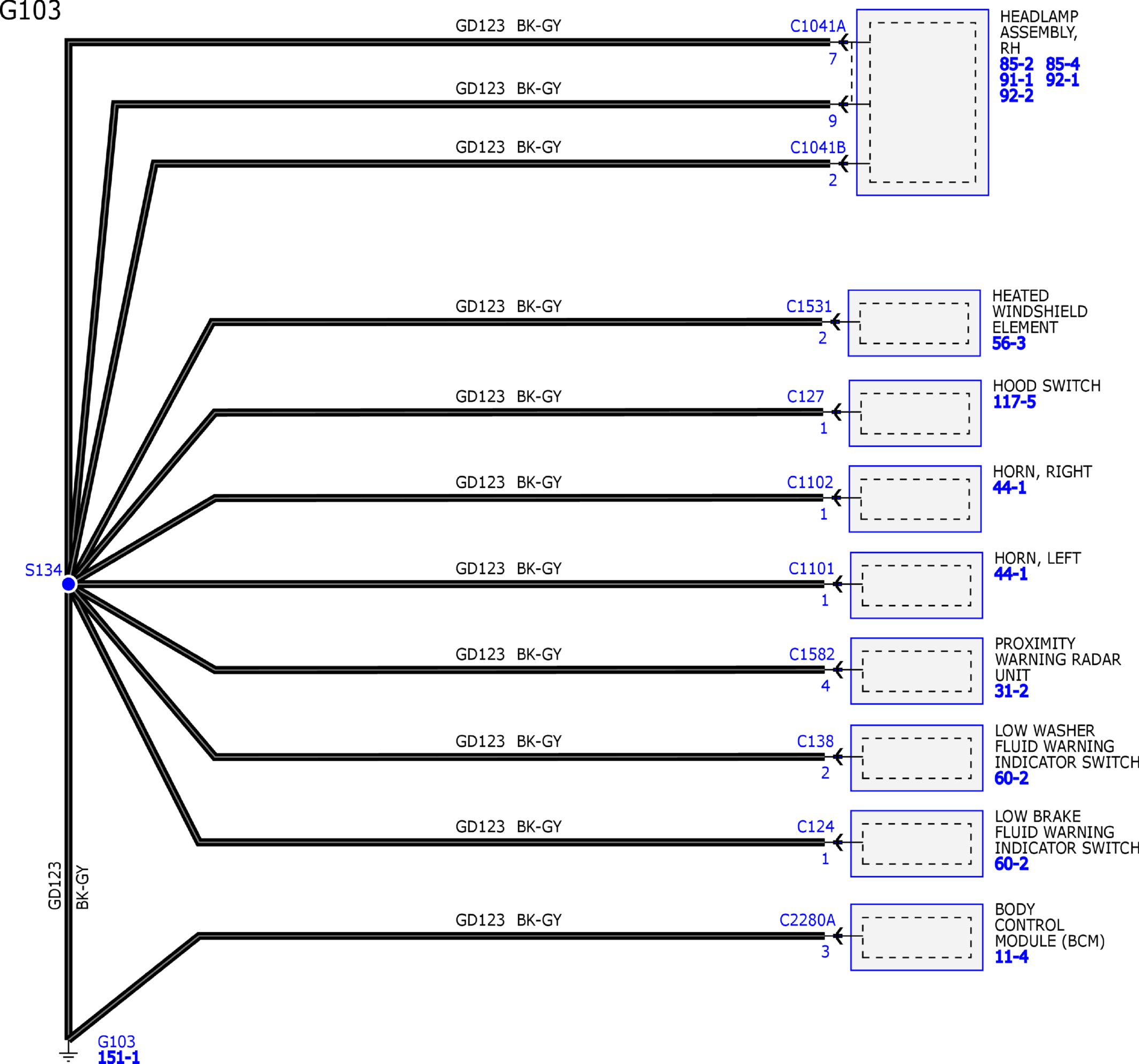

GFDW76404Courtesy of FORD MOTOR COMPANY

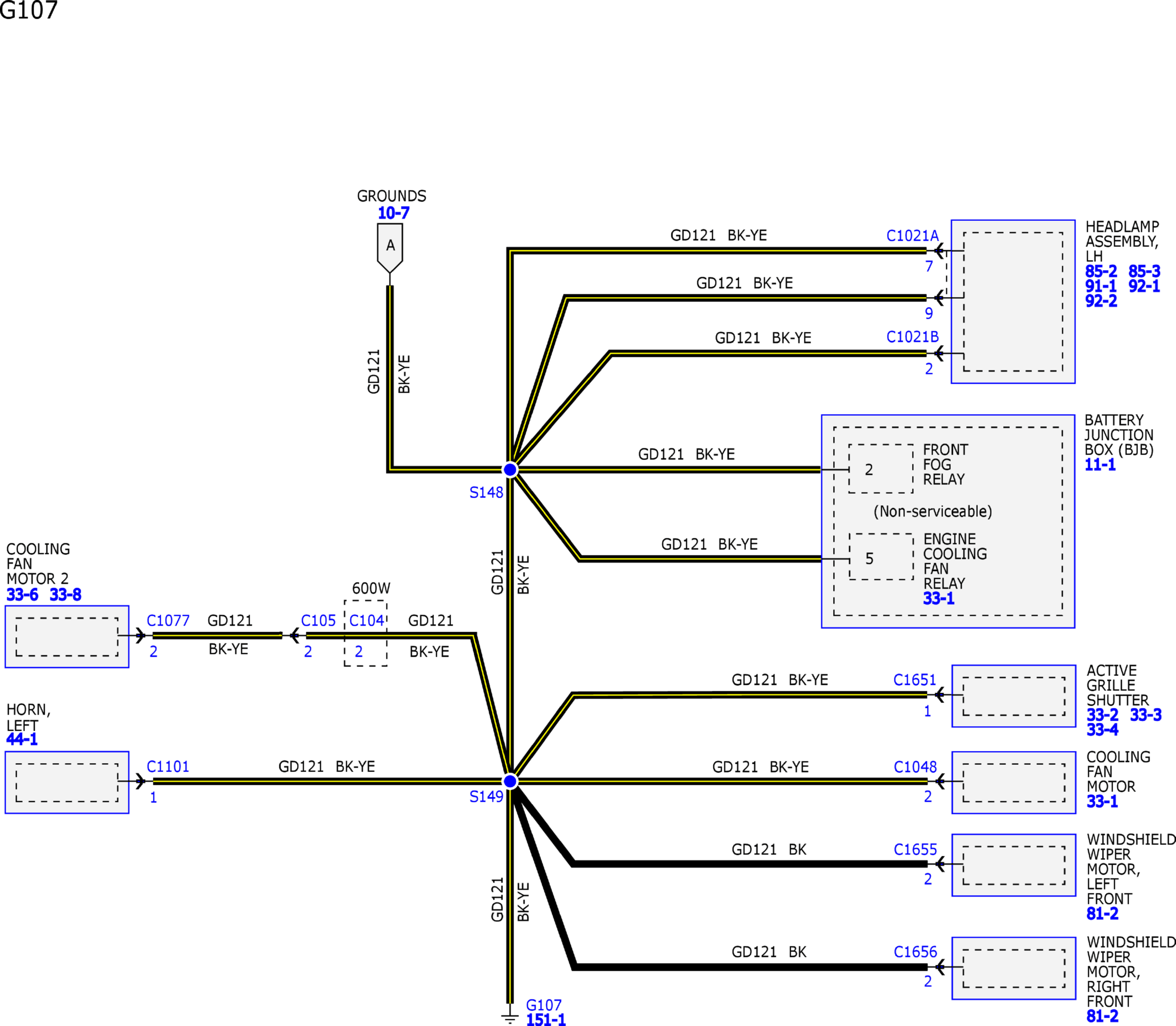

GFDW76405Courtesy of FORD MOTOR COMPANY

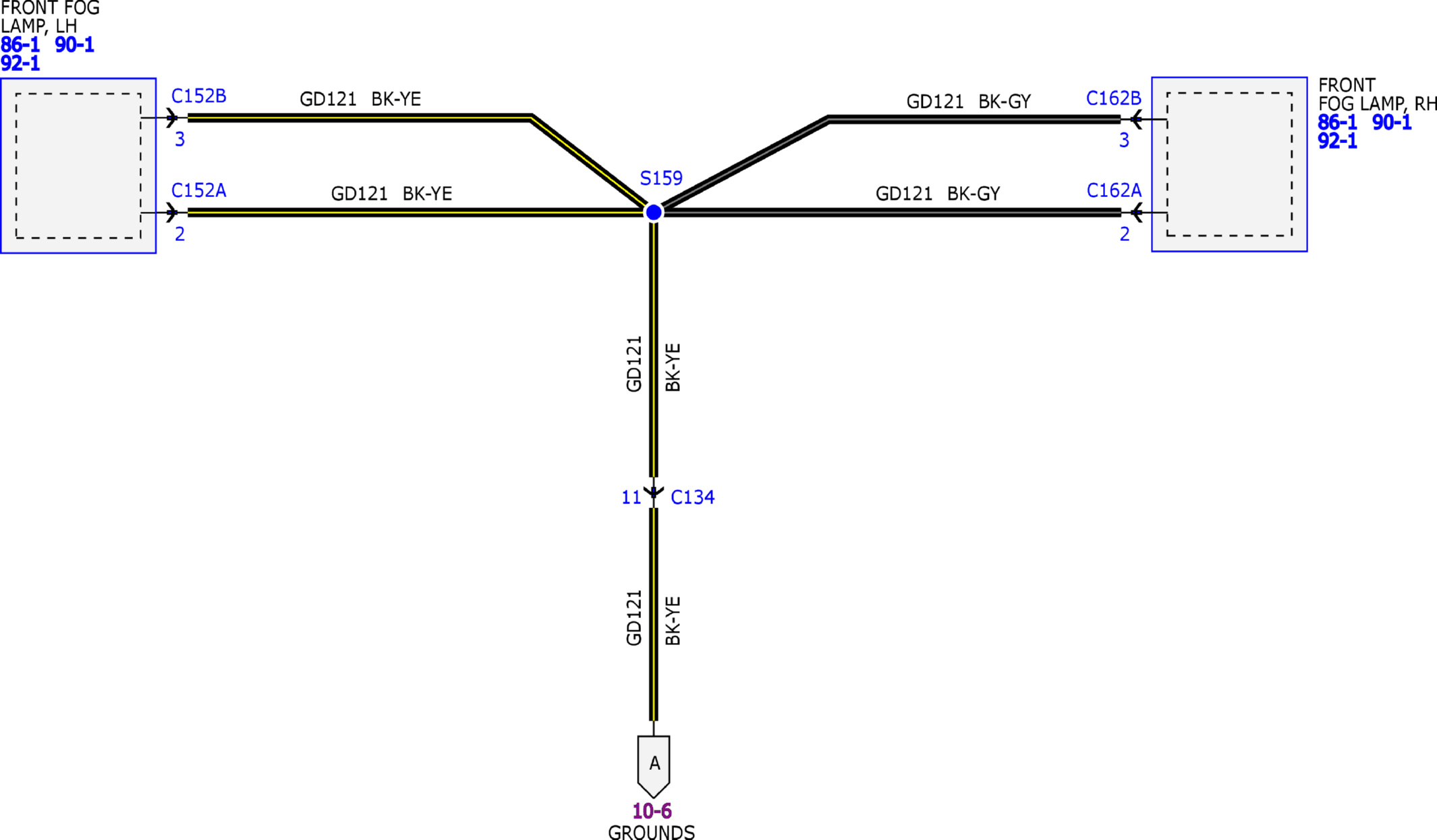

GFDW76406Courtesy of FORD MOTOR COMPANY

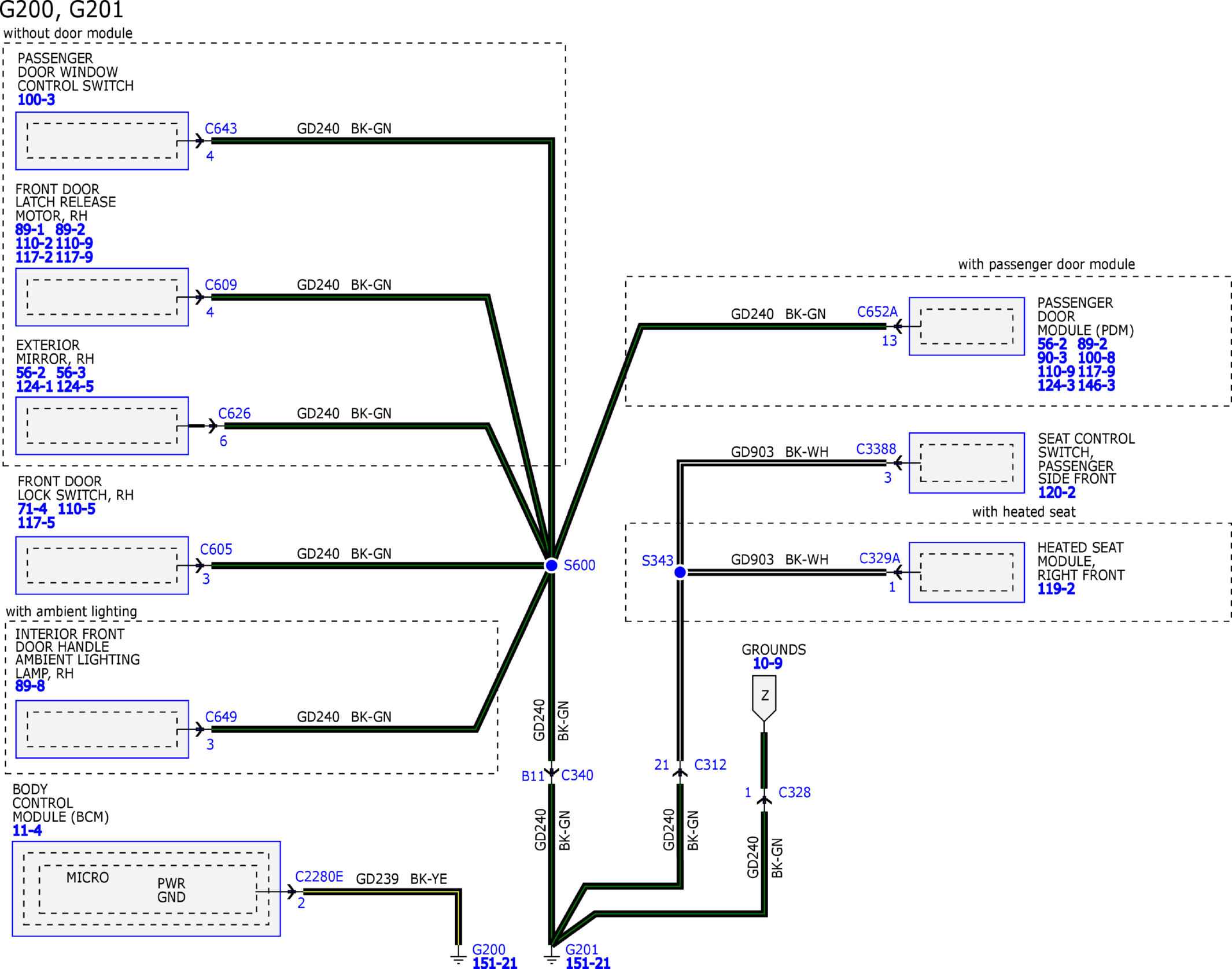

GFDW76407Courtesy of FORD MOTOR COMPANY

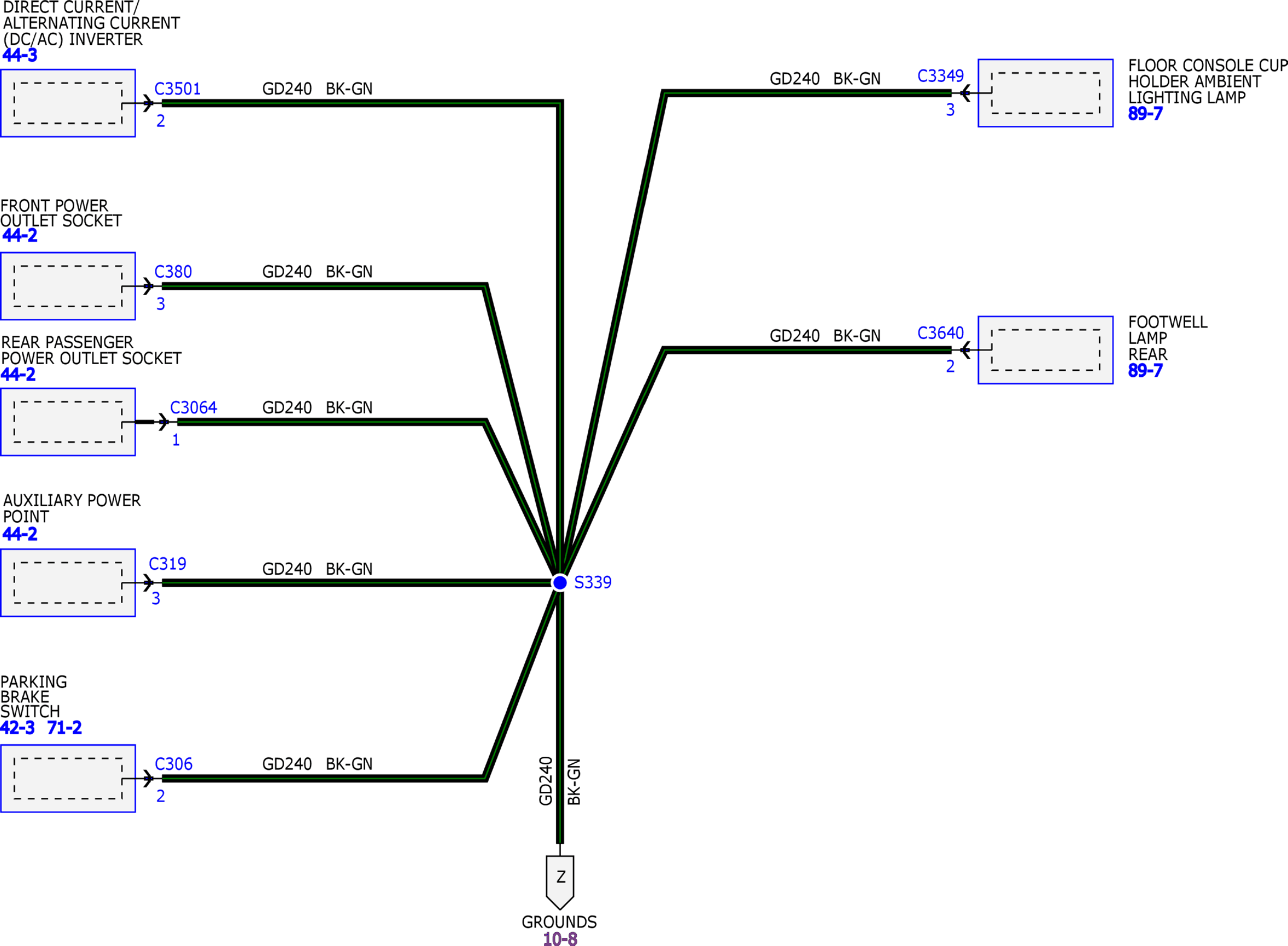

GFDW76408Courtesy of FORD MOTOR COMPANY

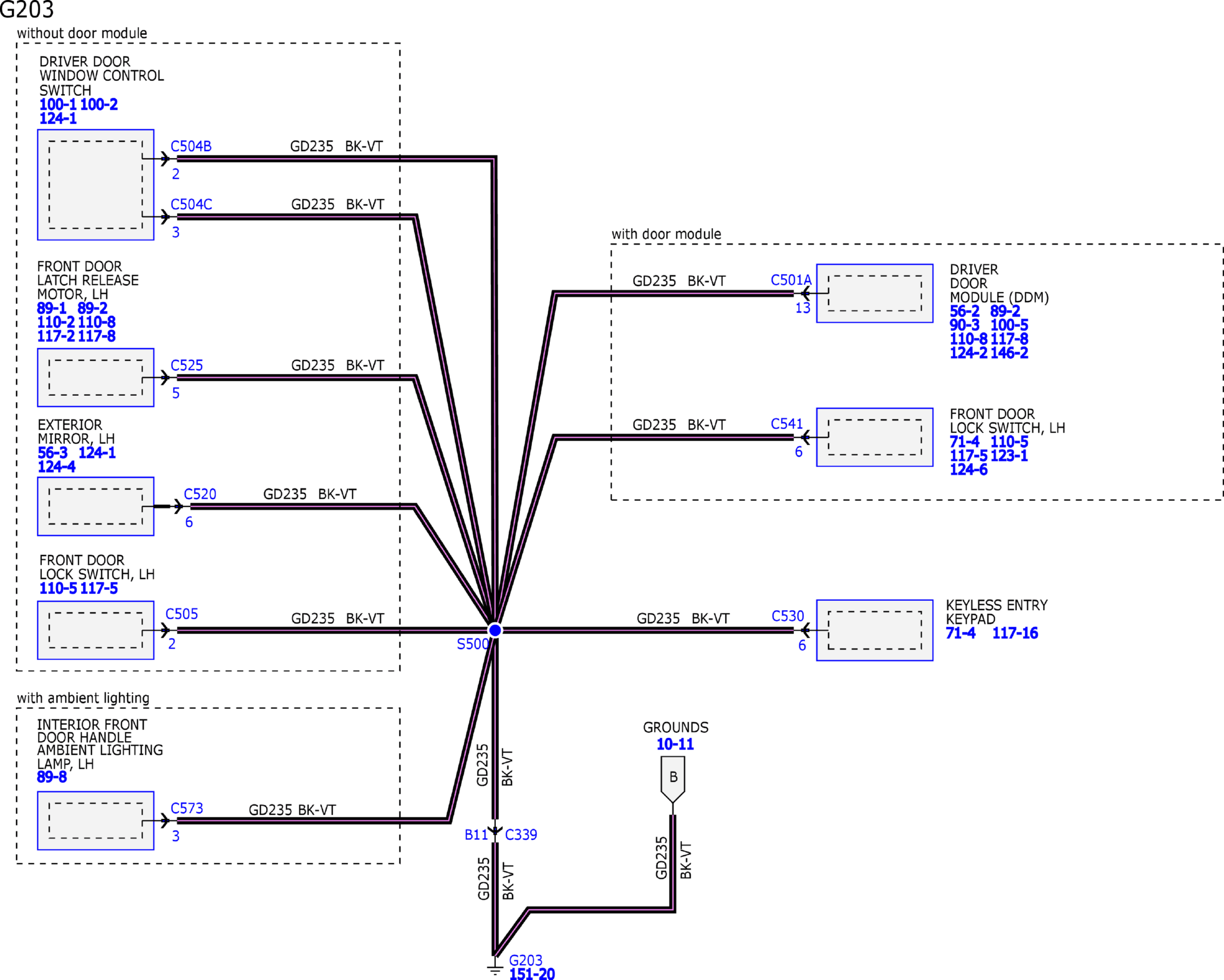

GFDW76409Courtesy of FORD MOTOR COMPANY
