OEM Electrical Wiring Diagram Introduction: Introduction

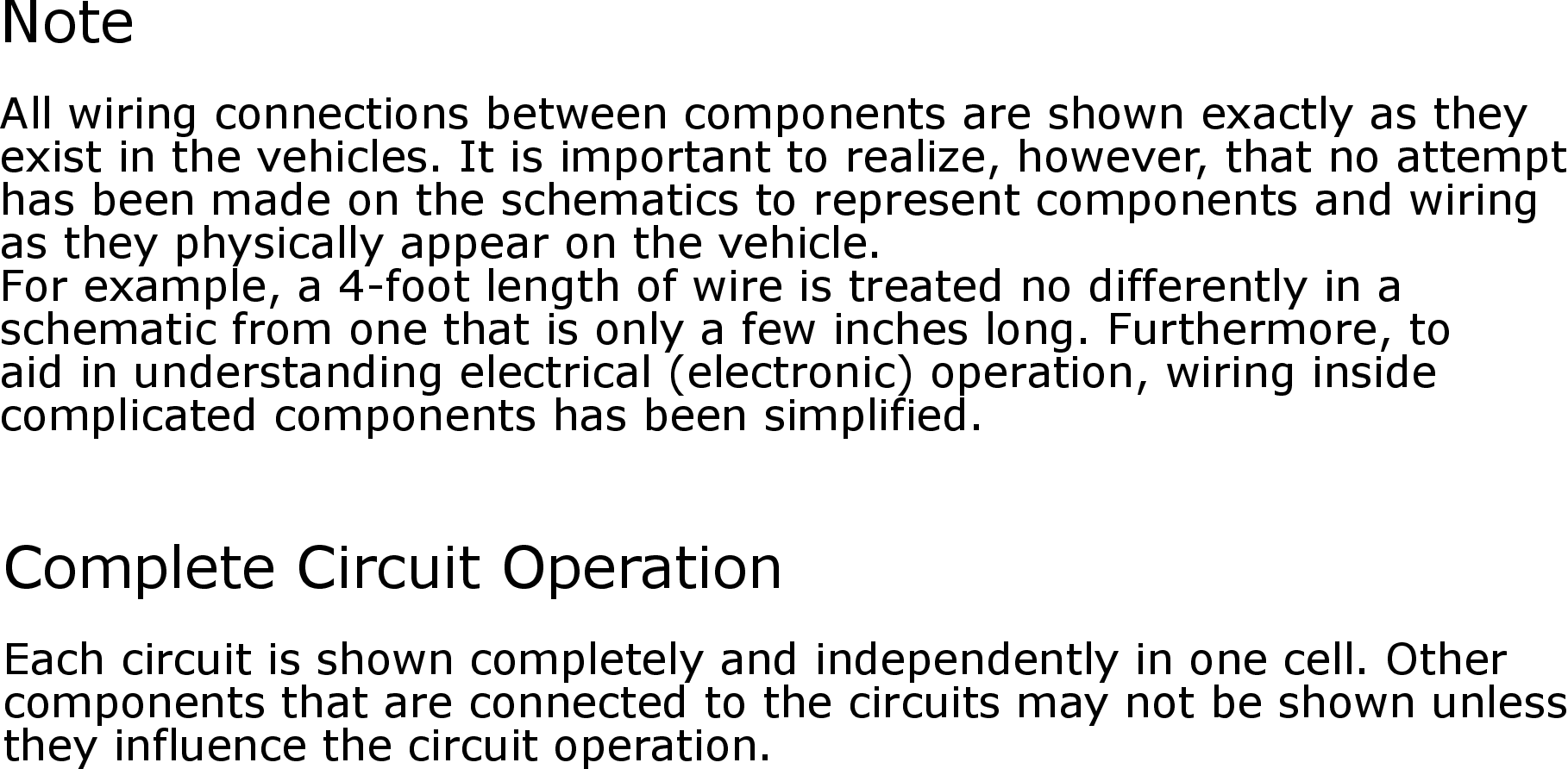

GFDW76377Courtesy of FORD MOTOR COMPANY

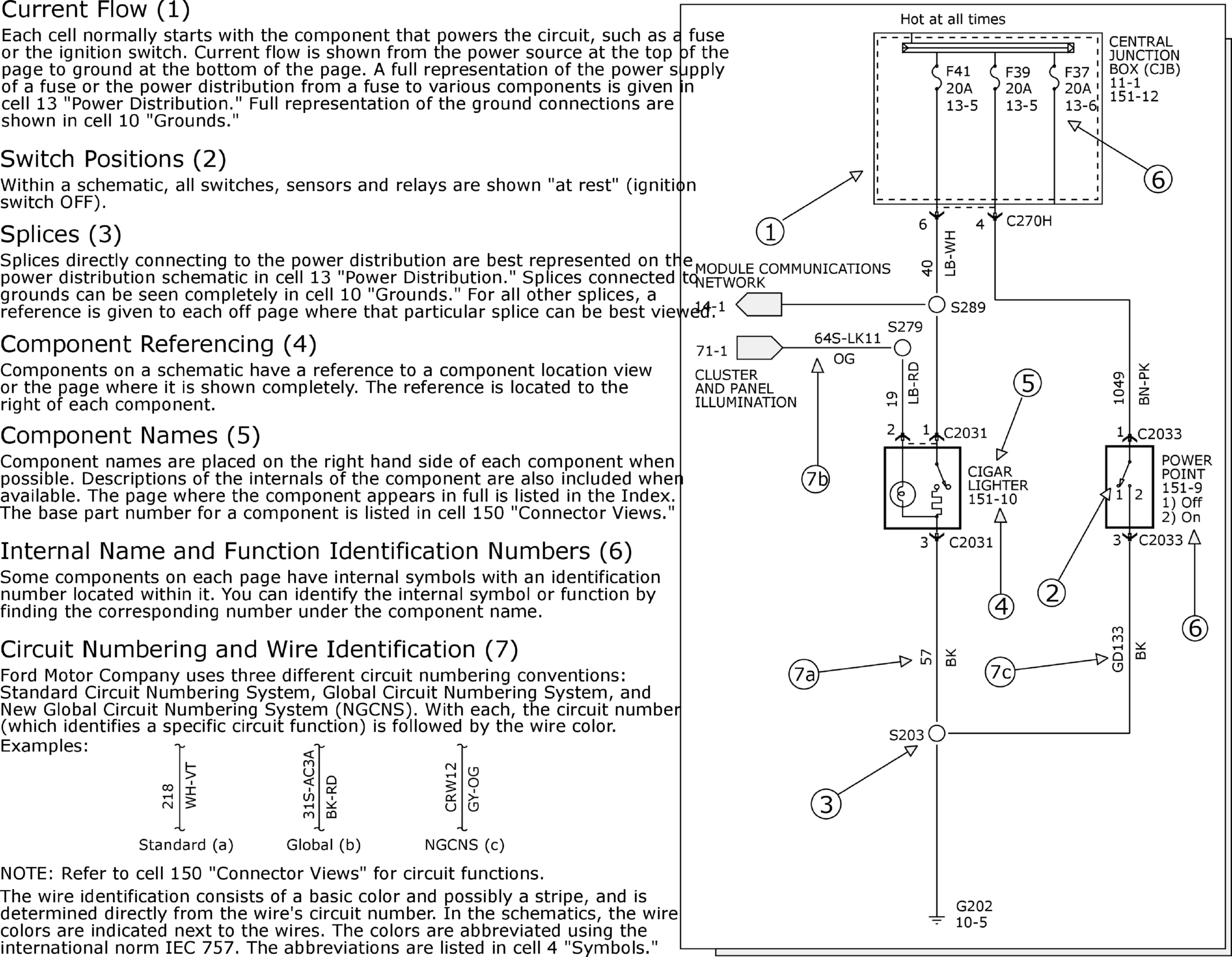

GFDW76378Courtesy of FORD MOTOR COMPANY

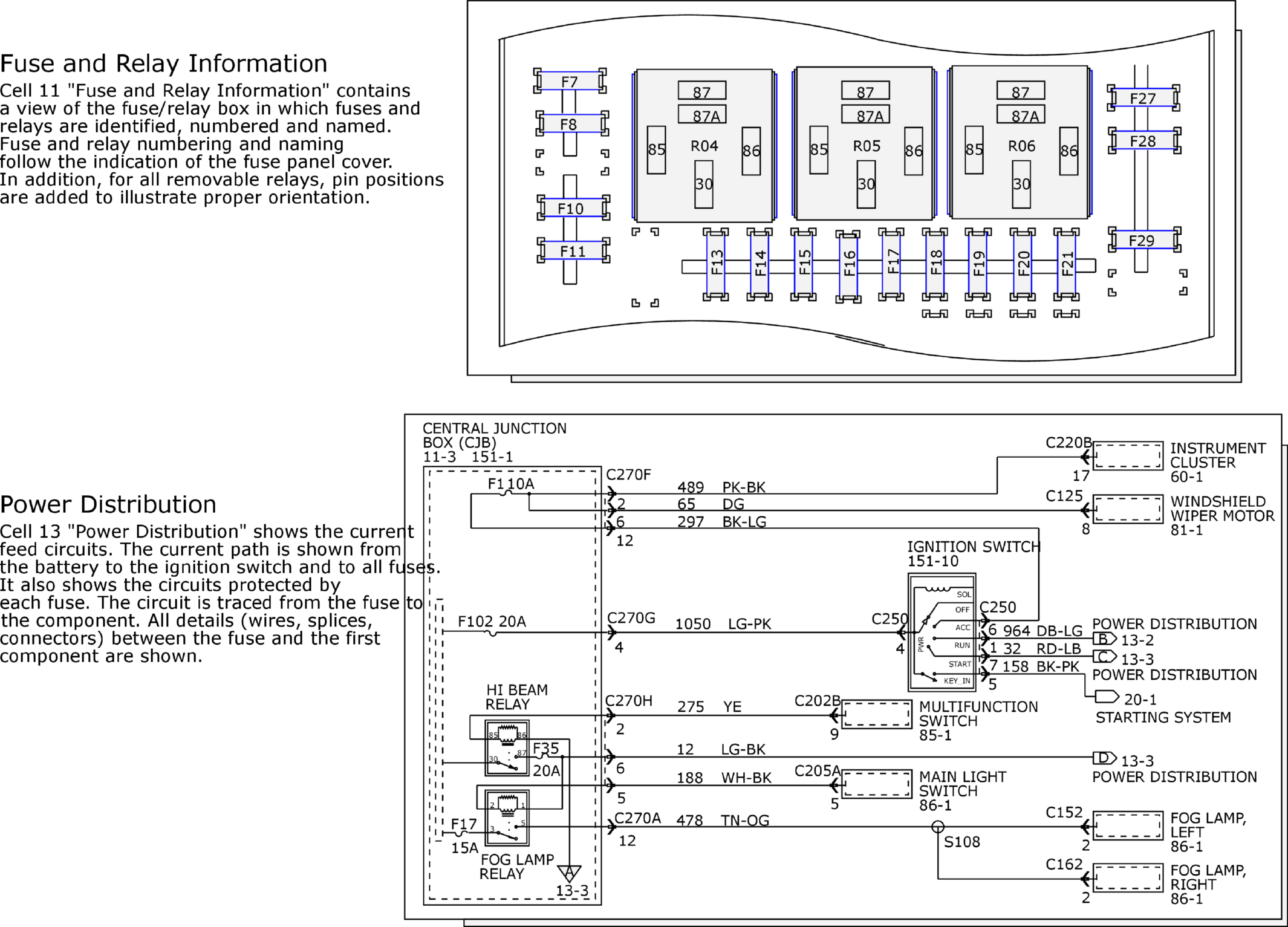

GFDW76379Courtesy of FORD MOTOR COMPANY

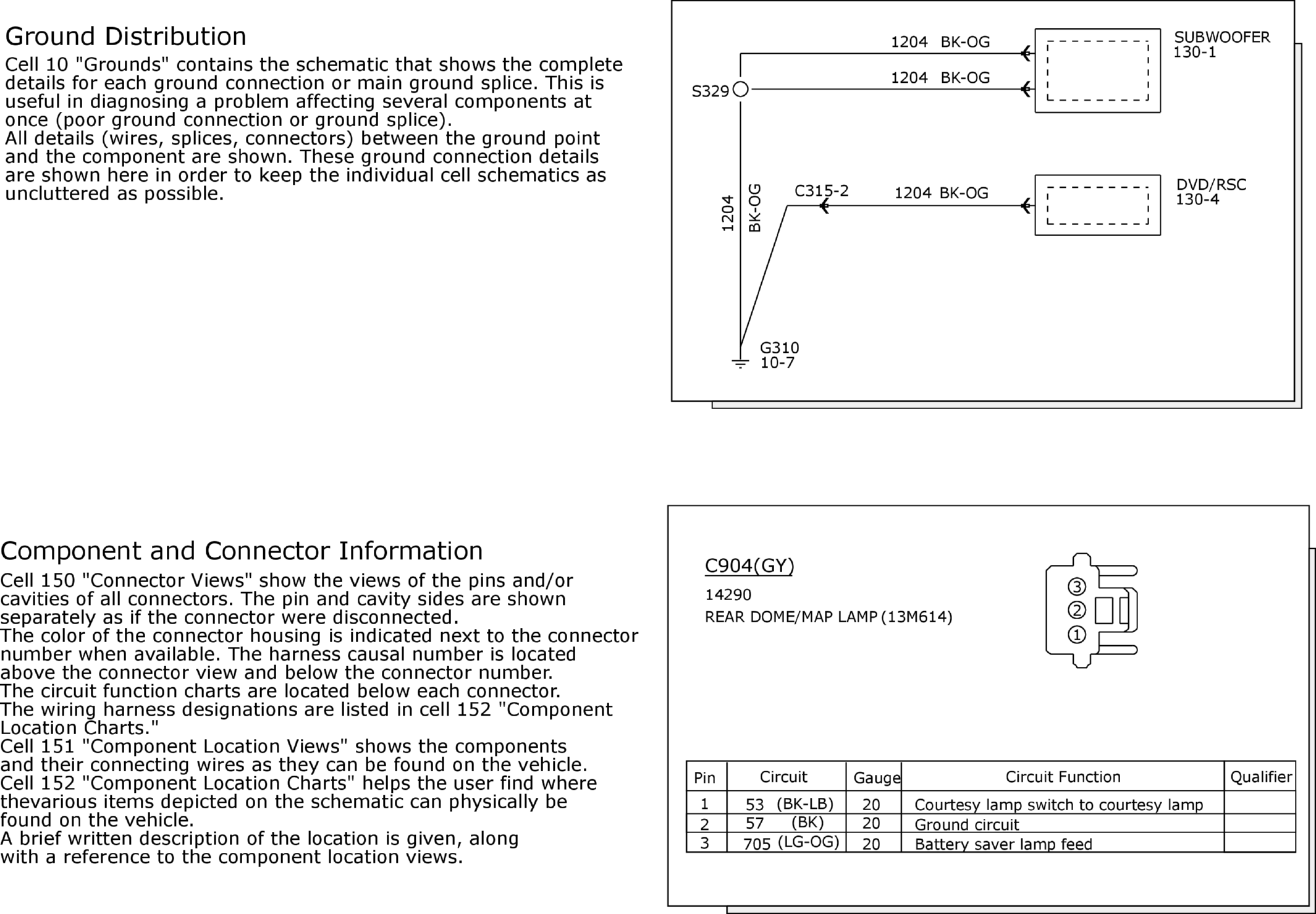

GFDW76380Courtesy of FORD MOTOR COMPANY

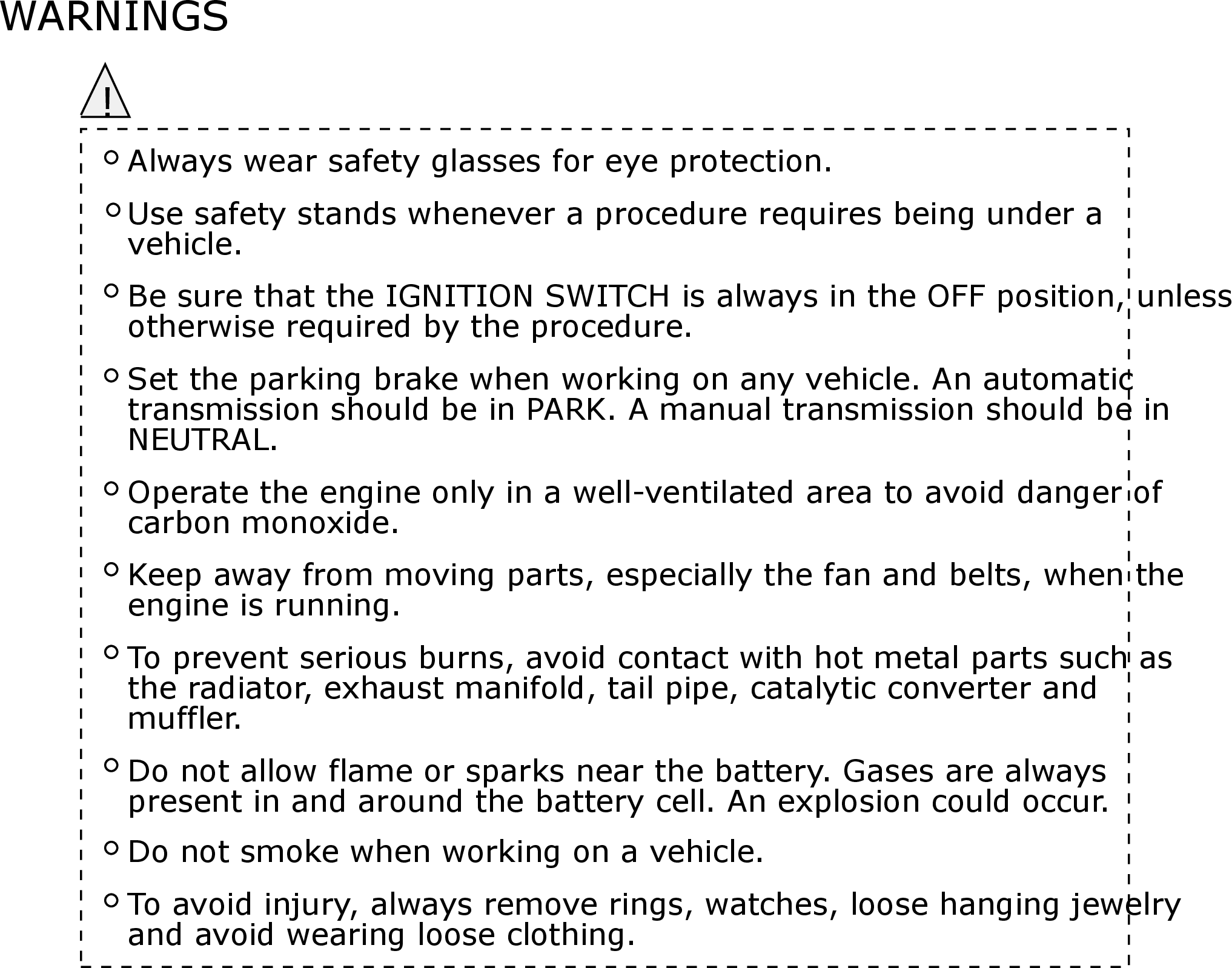

GFDW76381Courtesy of FORD MOTOR COMPANY
