Throttle Body: Installation

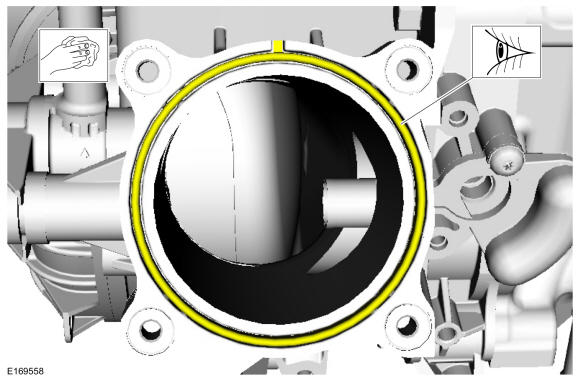

Inspect the Throttle Body (TB) gasket and replace the Throttle Body (TB) gasket as needed.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) bolts in the sequence shown.

Torque: 89 lb.in (10 Nm)

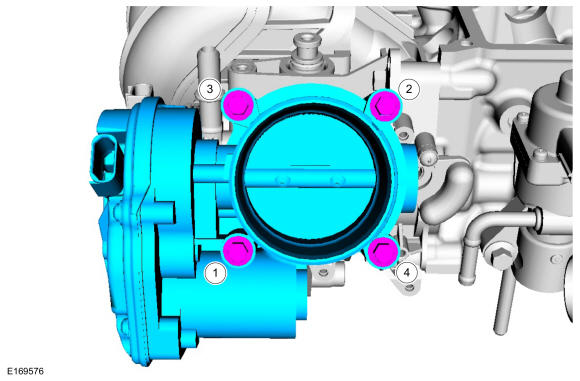

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

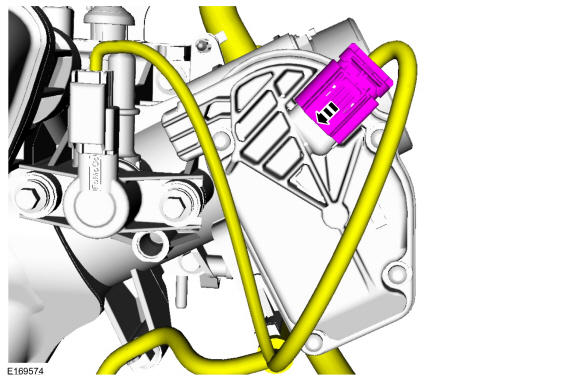

Connect the Throttle Body (TB) electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
