Master Window Control Switch - Without Door Modules

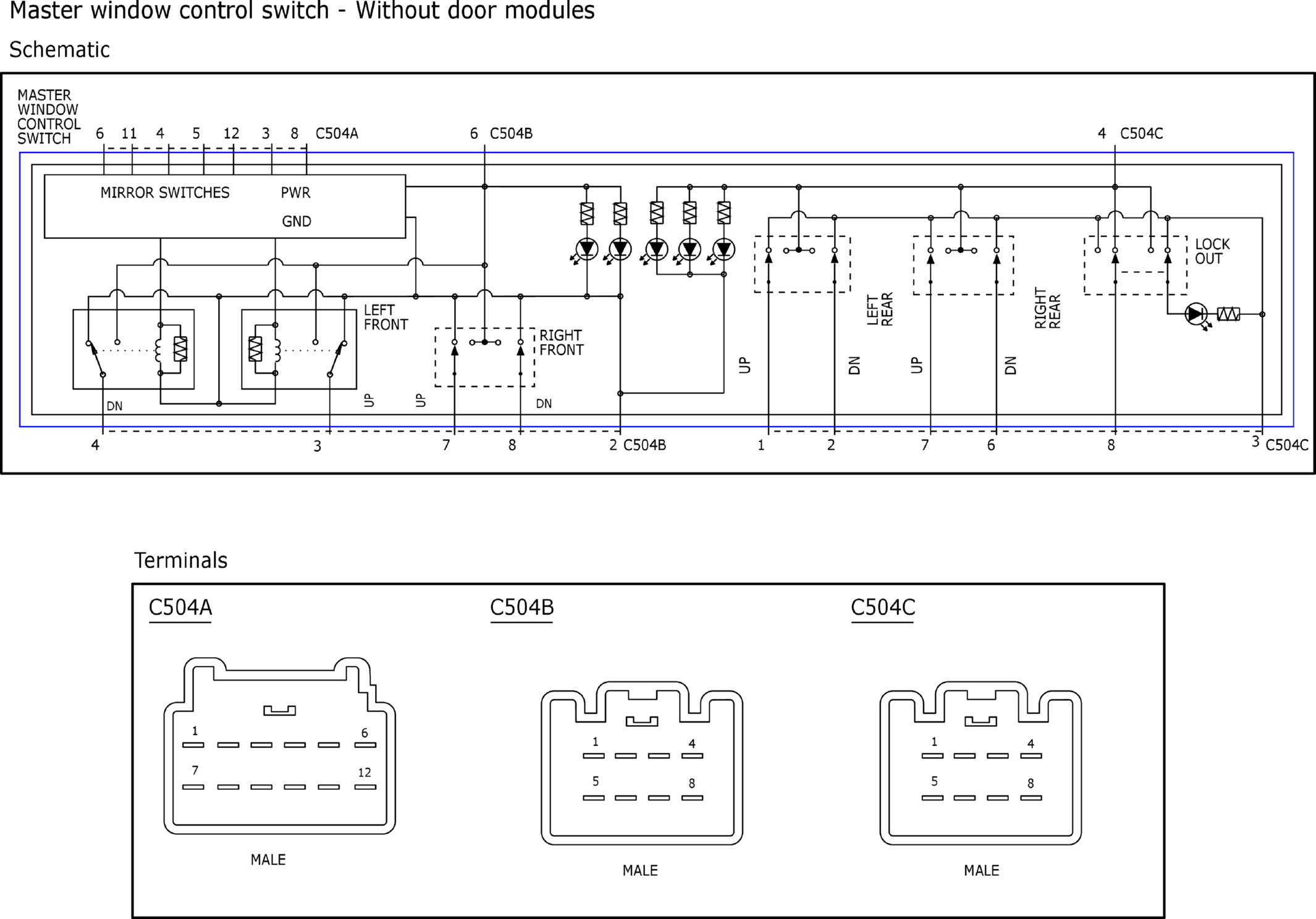

Fig 1: Master Window Control Switch - Without Door Modules (1 of 4)
GFDW76641Courtesy of FORD MOTOR COMPANY

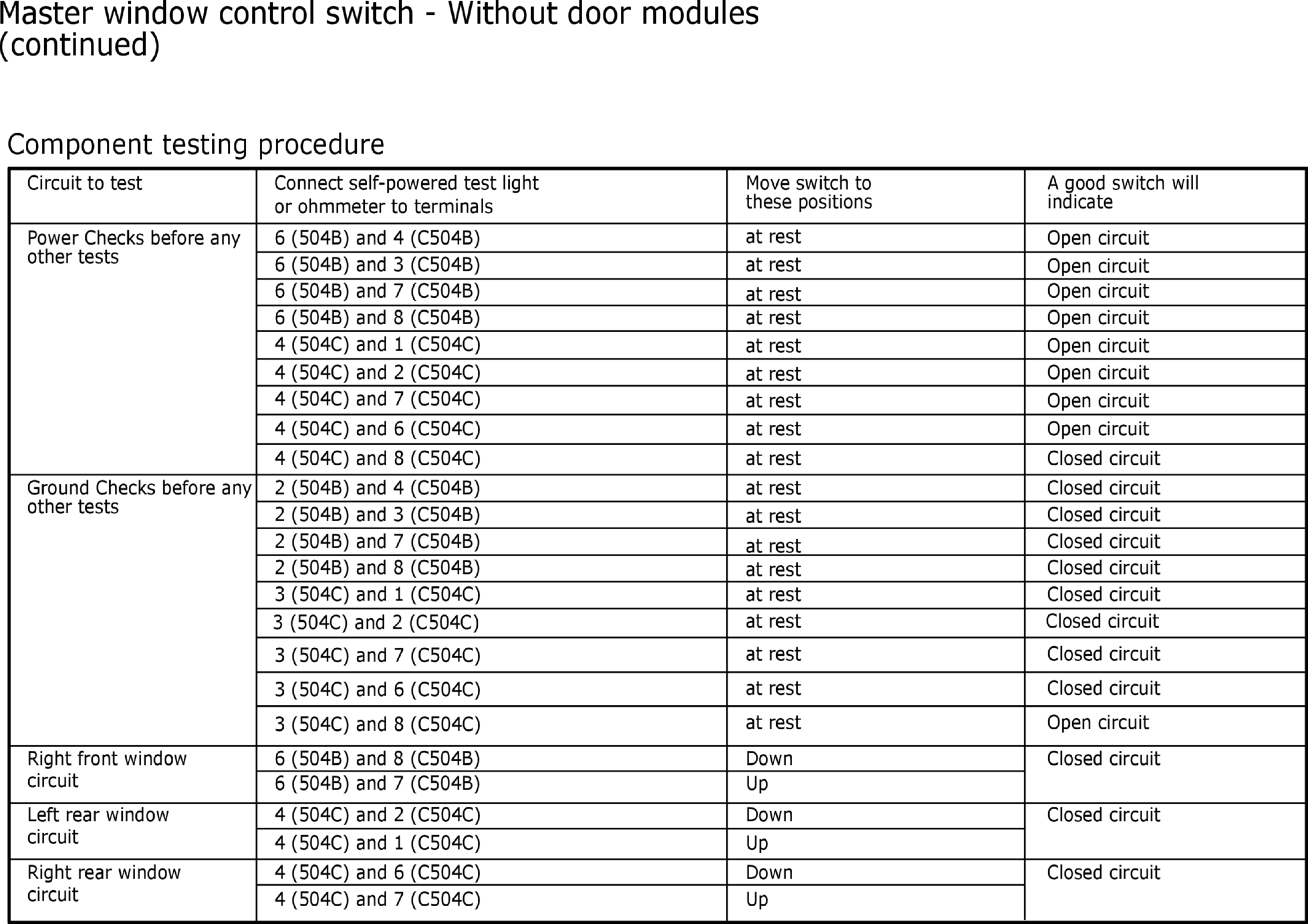

Fig 2: Master Window Control Switch - Without Door Modules (2 of 4)
GFDW76642Courtesy of FORD MOTOR COMPANY

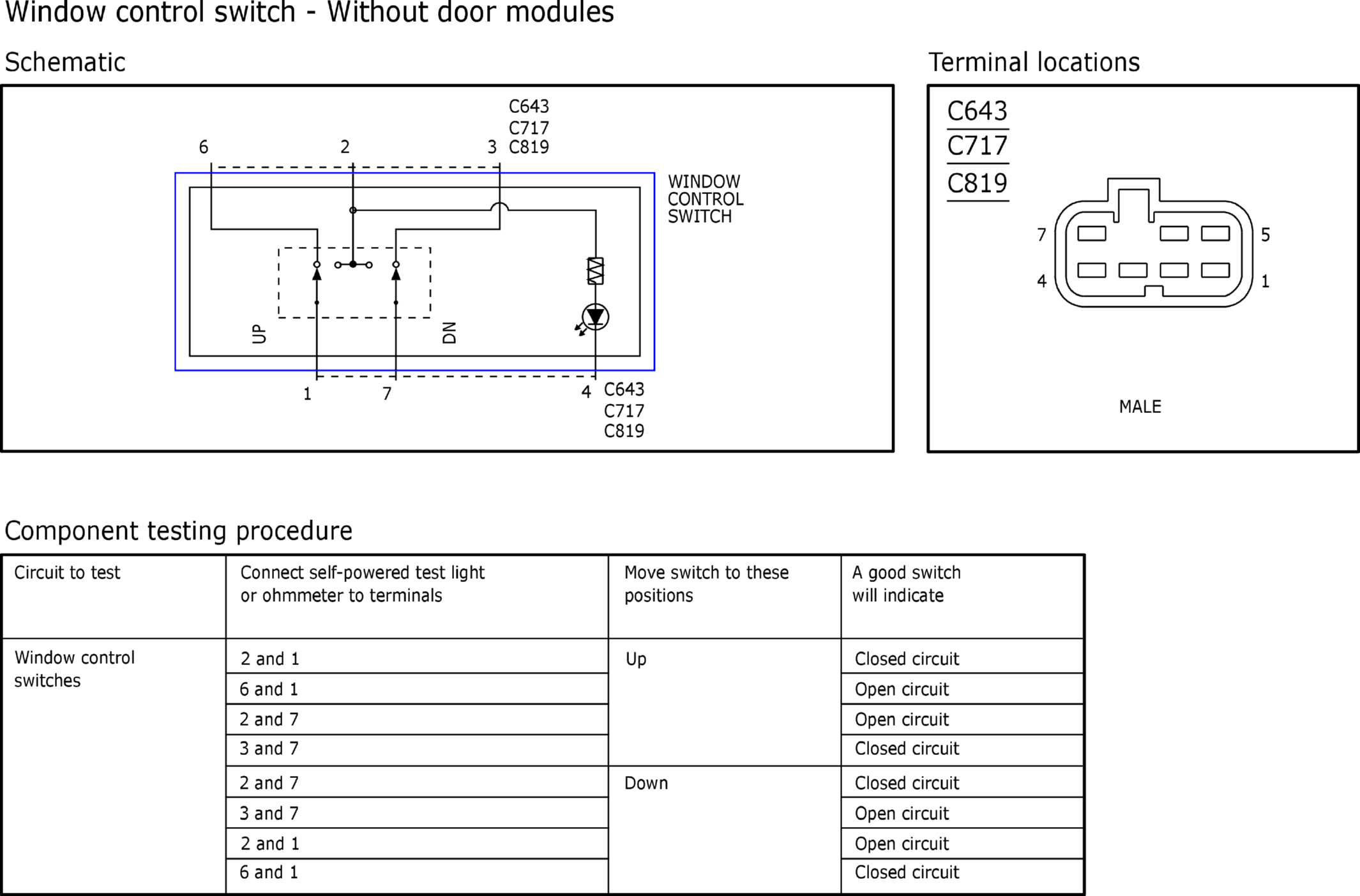

Fig 3: Master Window Control Switch - Without Door Modules (3 of 4)
GFDW76643Courtesy of FORD MOTOR COMPANY

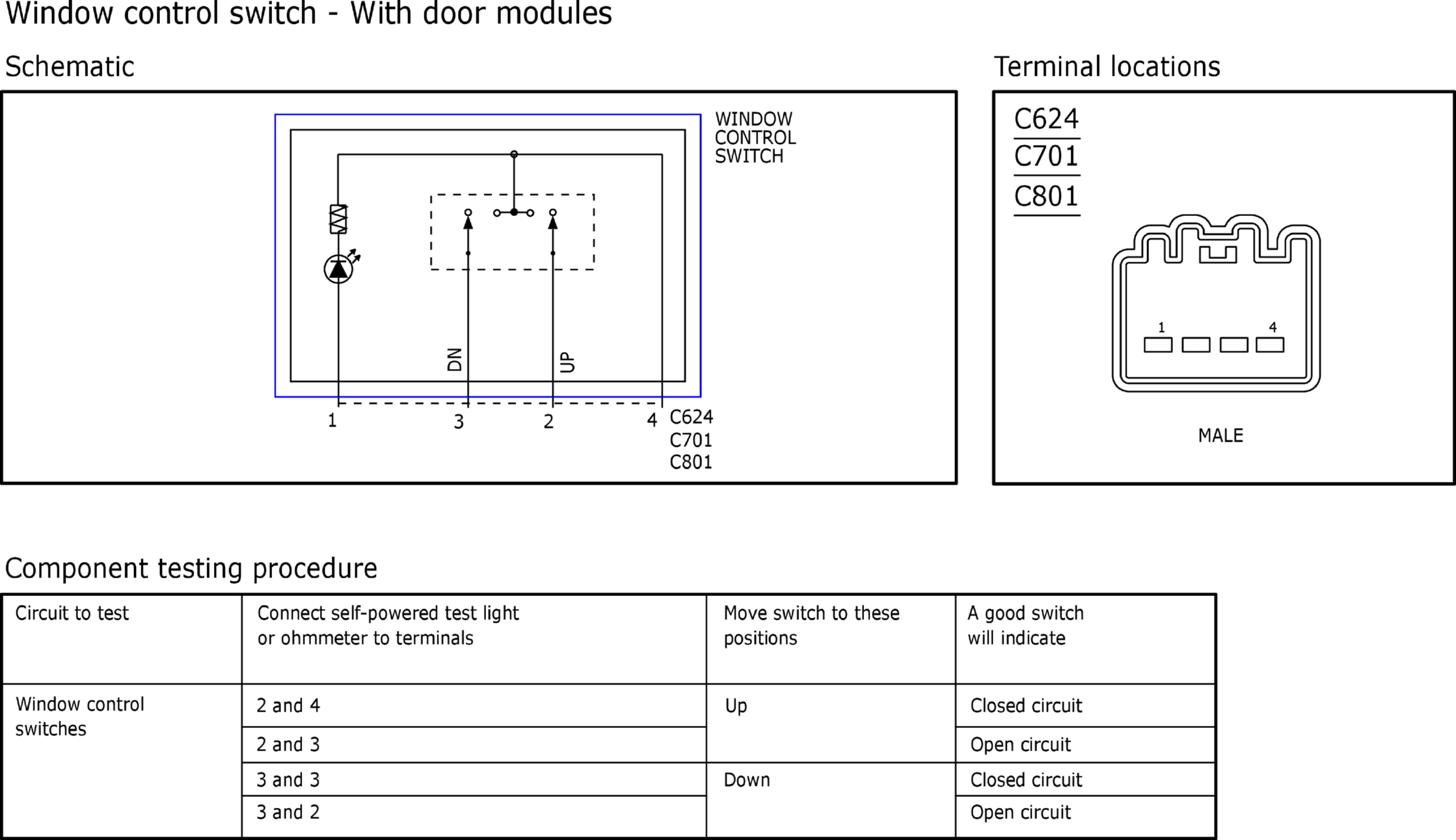

Fig 4: Master Window Control Switch - Without Door Modules (4 of 4)
GFDW76644Courtesy of FORD MOTOR COMPANY
