Backup Starting
NOTE:
There are certain areas within the vehicle where the passive key may not be detected and the message center displays Key not detected. If the passive key is in the far outside edges of the interior (such as in a door map pocket or above a sun visor), it may not be detected. Move the passive key to a different location and try to start the vehicle again.
When the vehicle experiences a PATS no start, the Key not detected message displays in the message center when the START/STOP button is pressed.

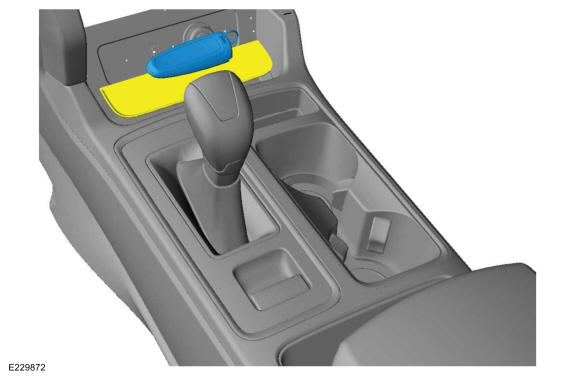

In the event of one of these failures, place a programmed passive key in the PATS backup location to allow the vehicle to start. When the START/STOP button is pressed, the PATS front antenna activates the passive key and the identification code is sent to the RFA module. The passive key must be oriented correctly in the backup starting location.
