Transfer Shaft: Assembly

  1. 1.

    Install the park pawl wheel.
GFD20870Courtesy of FORD MOTOR COMPANY

  1. 2.

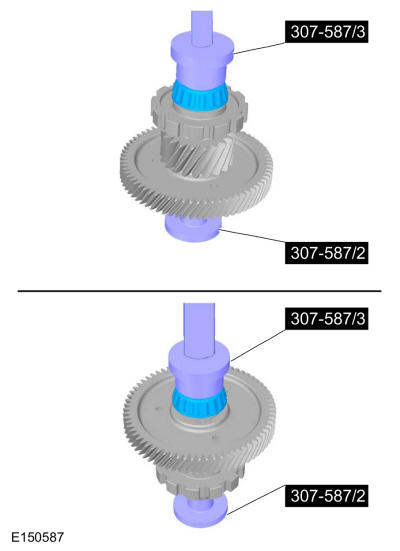

    Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide. Use the General Equipment: Hydraulic Press
GFD20871Courtesy of FORD MOTOR COMPANY

  1. 3.

    Select a new transfer shaft shim. Refer to: Torque Converter Housing .
