Bearing Inspection

Inspection

1. 1.

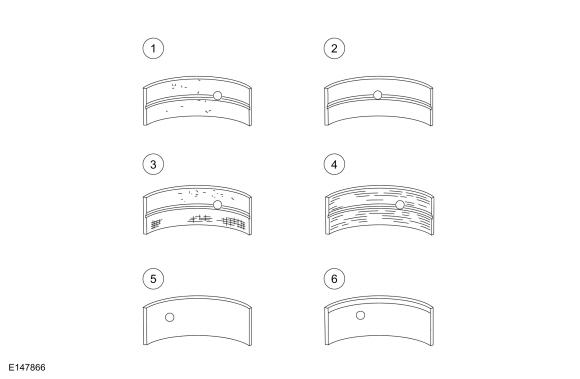

   • Cratering - fatigue failure
   • Spot glazing - incorrect seating
   • Scratching - dirty engine oil
   • Base exposed - poor lubrication
   • Both edges worn - journal damaged
   • One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
