Axle Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps may contain installation instructions.
- 1.
Remove the rear halfshafts. Refer to: Rear Halfshaft .
- 2.

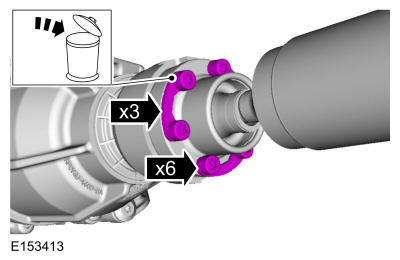

Remove and discard the driveshaft to rear differential flange bolts and washer assemblies.Torque: 26 lb.ft (35 Nm)
- 3.NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.
- 1.

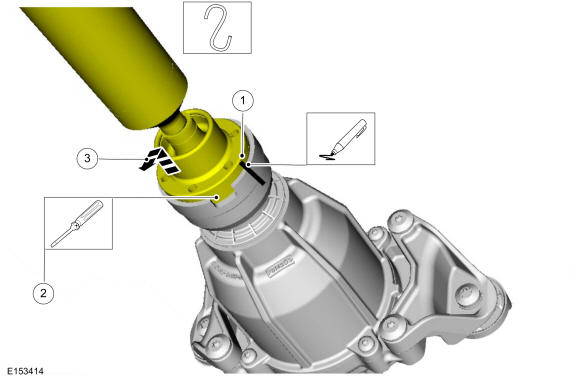

Mark the driveshaft CV joint coupling and RDU (Rear Drive Unit) flange.
- 2.
Separate the driveshaft CV joint coupling from the RDU flange.
- 3.
Position and support the driveshaft aside.

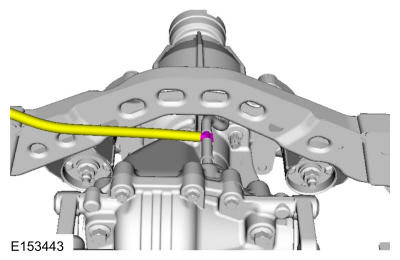

- 1.

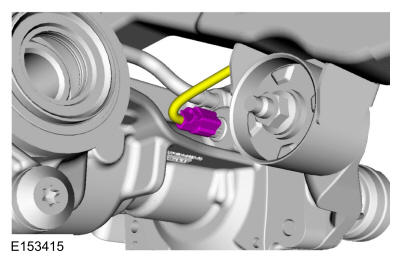

- 6.

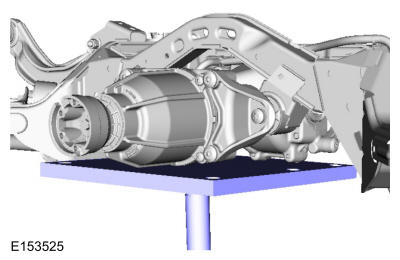

Position and secure a transmission jack under the RDU.Use the General Equipment: Transmission Jack
- 8.

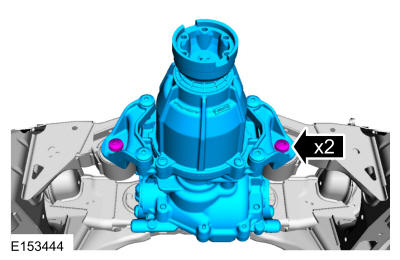

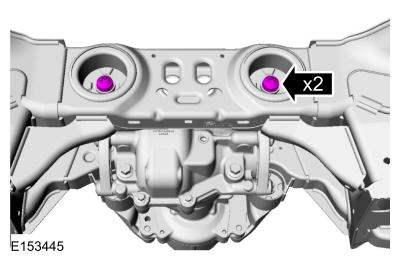

Remove the front RDU mounting bolts and using the transmission jack, remove the RDU.Use the General Equipment: Transmission Jack
Torque: 66 lb.ft (90 Nm)
- 9.

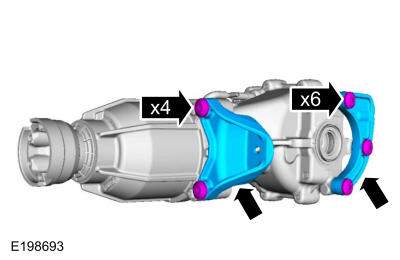

If installing a new RDU, remove the RDU mounting bracket bolts and mounting brackets.Torque: 66 lb.ft (90 Nm)
