Selector Lever Bezel: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Apply the parking brake.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Open the floor console stowage bin lid.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
On both sides. Detach the clips and remove the floor console upper finish panels.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Detach the clips and remove the lower center stack finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Detach the clips, disconnect the electrical connectors and remove the floor console upper trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Release the clips, lift the selector lever bezel up and disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

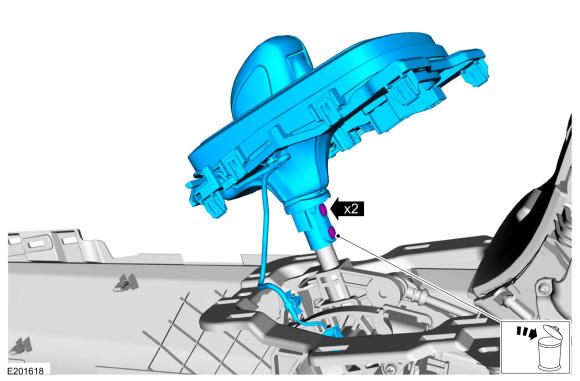

- 7.
Remove and discard the retainers and remove the selector lever knob.
 Courtesy of FORD MOTOR COMPANY
|

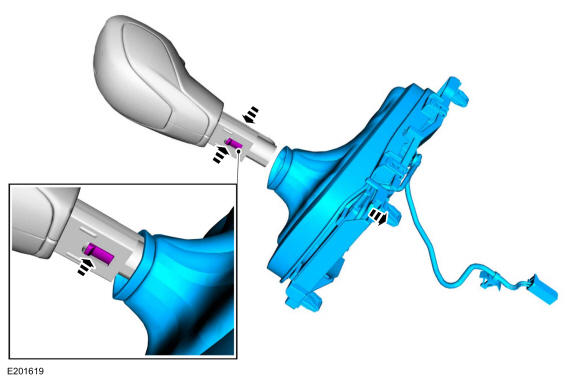

- 8.
NOTE:
This step is only necessary when installing a new component.
Remove the boot and bezel from the shifter knob.
 Courtesy of FORD MOTOR COMPANY
|
