Main Control Valve Body: Removal

1.

Remove the main control cover. Refer to: Main Control Cover .

2.

Disconnect the TR sensor electrical connector.

GFD20032

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the OSS sensor electrical connector.

GFD20033

Courtesy of FORD MOTOR COMPANY

4.

Remove the main control-to-cover seal.

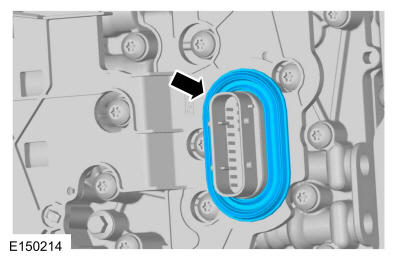

GFD20034

Courtesy of FORD MOTOR COMPANY

5.

NOTE: The main control should be handled with care or damage to the main control may occur.

NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

Remove the main control nut, the main control-to-transmission case bolts and the main control.

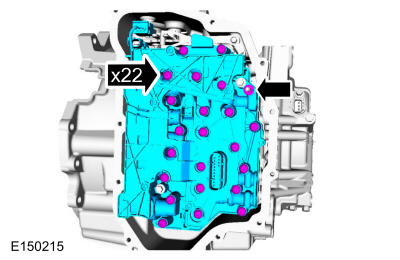

GFD20035

Courtesy of FORD MOTOR COMPANY

6.

Remove and discard the main control-to-transmission case separator plate.

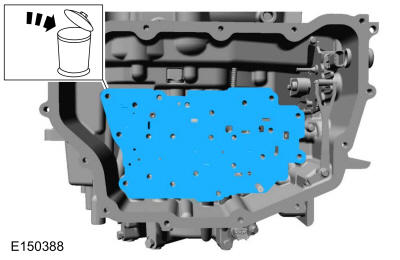

GFD20036

Courtesy of FORD MOTOR COMPANY

7.

Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.

GFD20037

Courtesy of FORD MOTOR COMPANY

8.

Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.

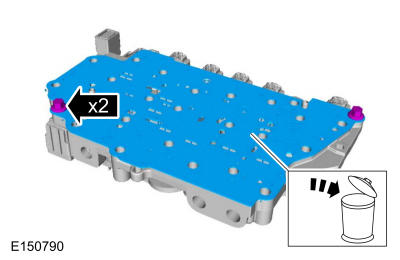

GFD20038

Courtesy of FORD MOTOR COMPANY
