Main Control Valve Body: Installation
- 1.

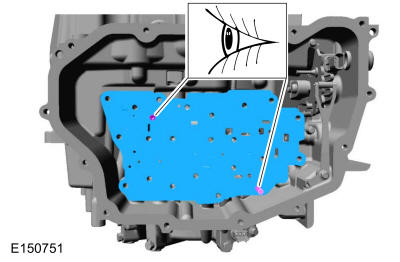

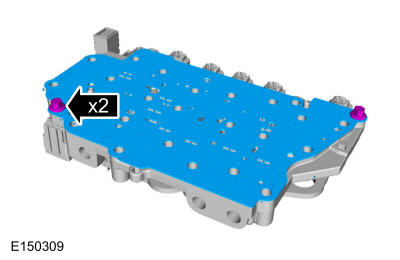

Install the new separator plate and the separator plate-to-solenoid body bolts.Torque: 89 lb.in (10 Nm)
- 2.

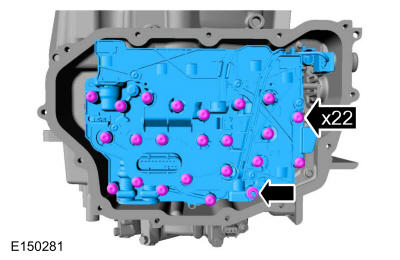

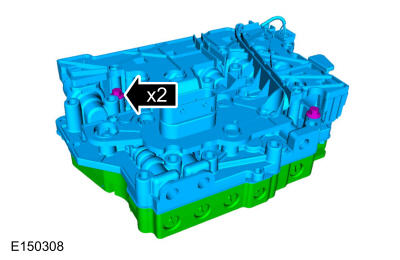

Install the solenoid body onto the main control valve body. Install the solenoid body-to-valve body bolts.Torque: 89 lb.in (10 Nm)

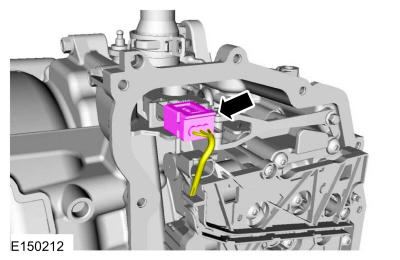

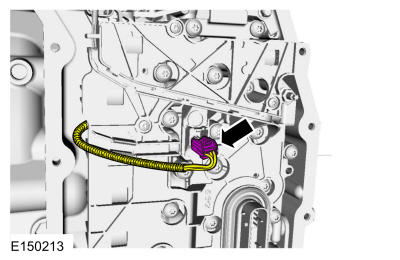

- 3.NOTE: Position the OSS and TR sensor wiring harnesses aside.
Install the new main control-to-transmission case separator plate.

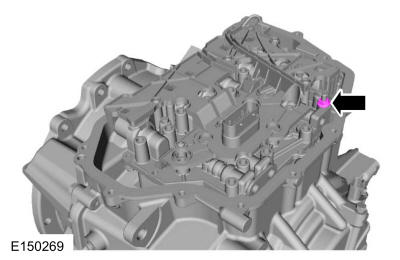

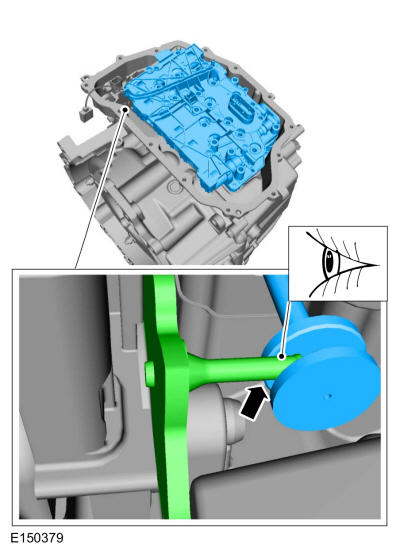

- 4.NOTE: Be sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.
Install the main control assembly.
- 8.

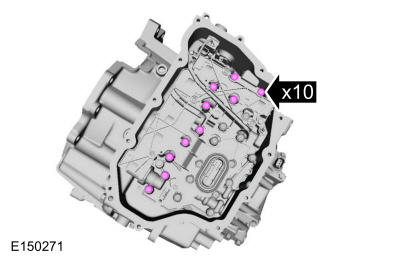

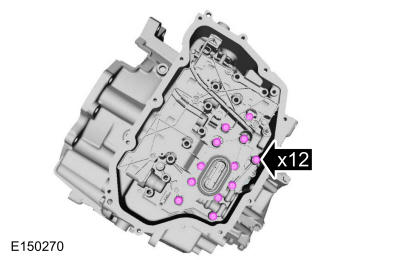

Tighten the main control-to-transmission case bolts and nut in a crisscross pattern.Torque: 89 lb.in (10 Nm)

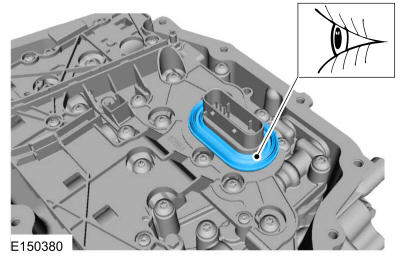

- 9.NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
Install the main control-to-cover seal.
- 12.
Install the main control cover. Refer to: Main Control Cover .
- 13.NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.
If a new solenoid body is installed, the solenoid body strategy will need to be updated. Refer to: Transmission Strategy Download .
