Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the steering column shrouds. Refer to: Steering Column Shrouds .

  1. 2.

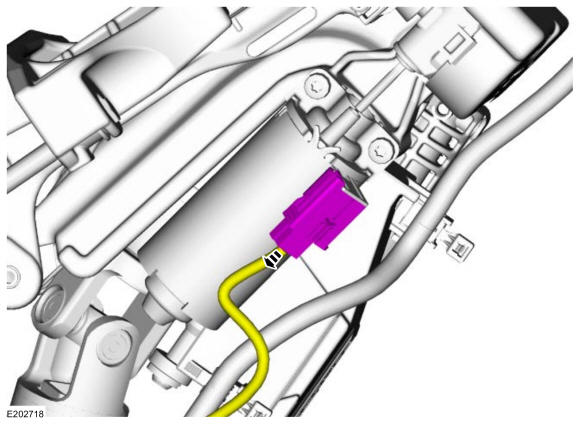

    Detach the tilt motor electrical connector.
GFD19026Courtesy of FORD MOTOR COMPANY

  1. 3.

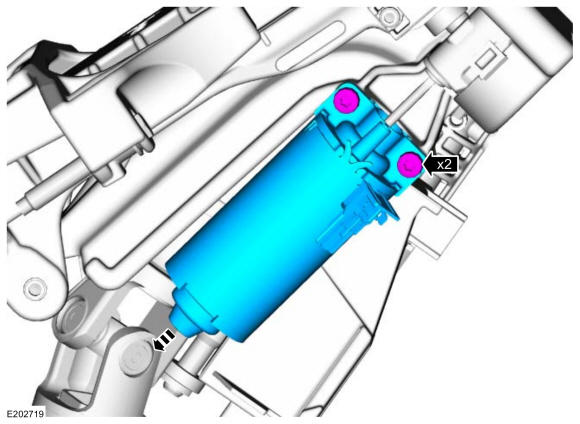

    Remove the screws and the tilt motor.

    Torque: 62 lb.in (7 Nm)

GFD19027Courtesy of FORD MOTOR COMPANY
