Component Testing: Relays

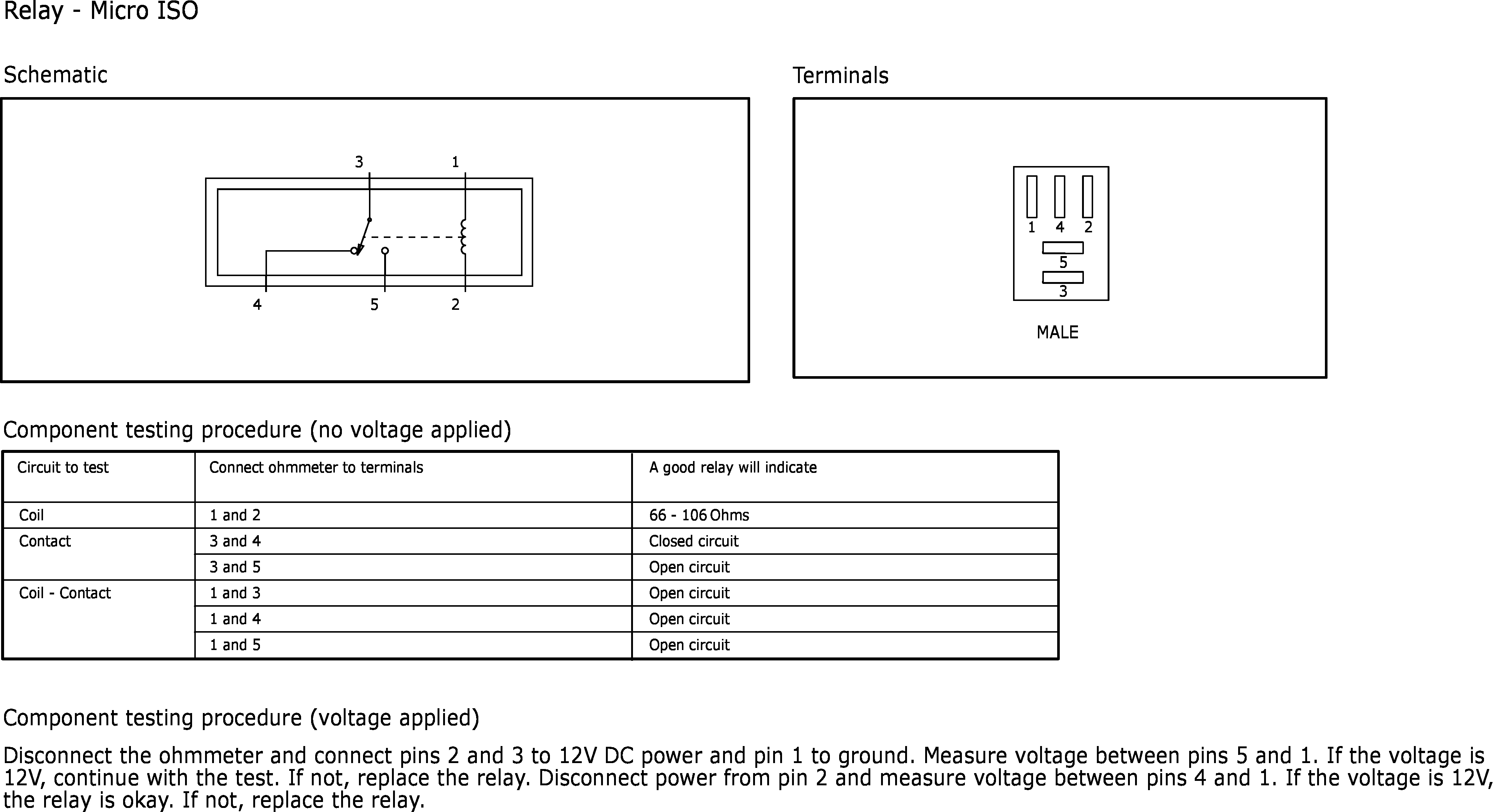

Fig 1: Relay Micro ISO
GFDW5581Courtesy of FORD MOTOR COMPANY

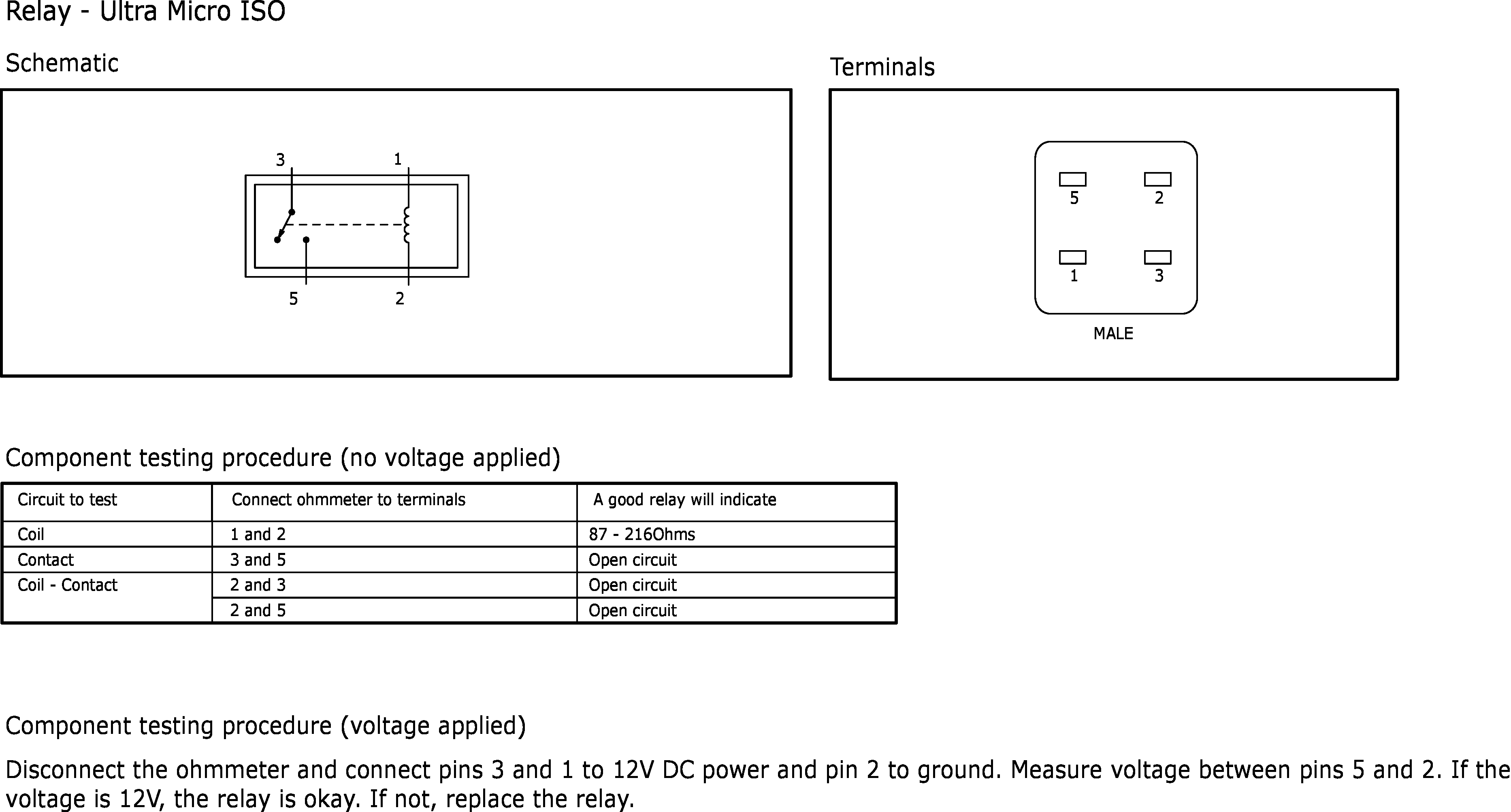

Fig 2: Relay Ultra Micro ISO
GFDW5572Courtesy of FORD MOTOR COMPANY

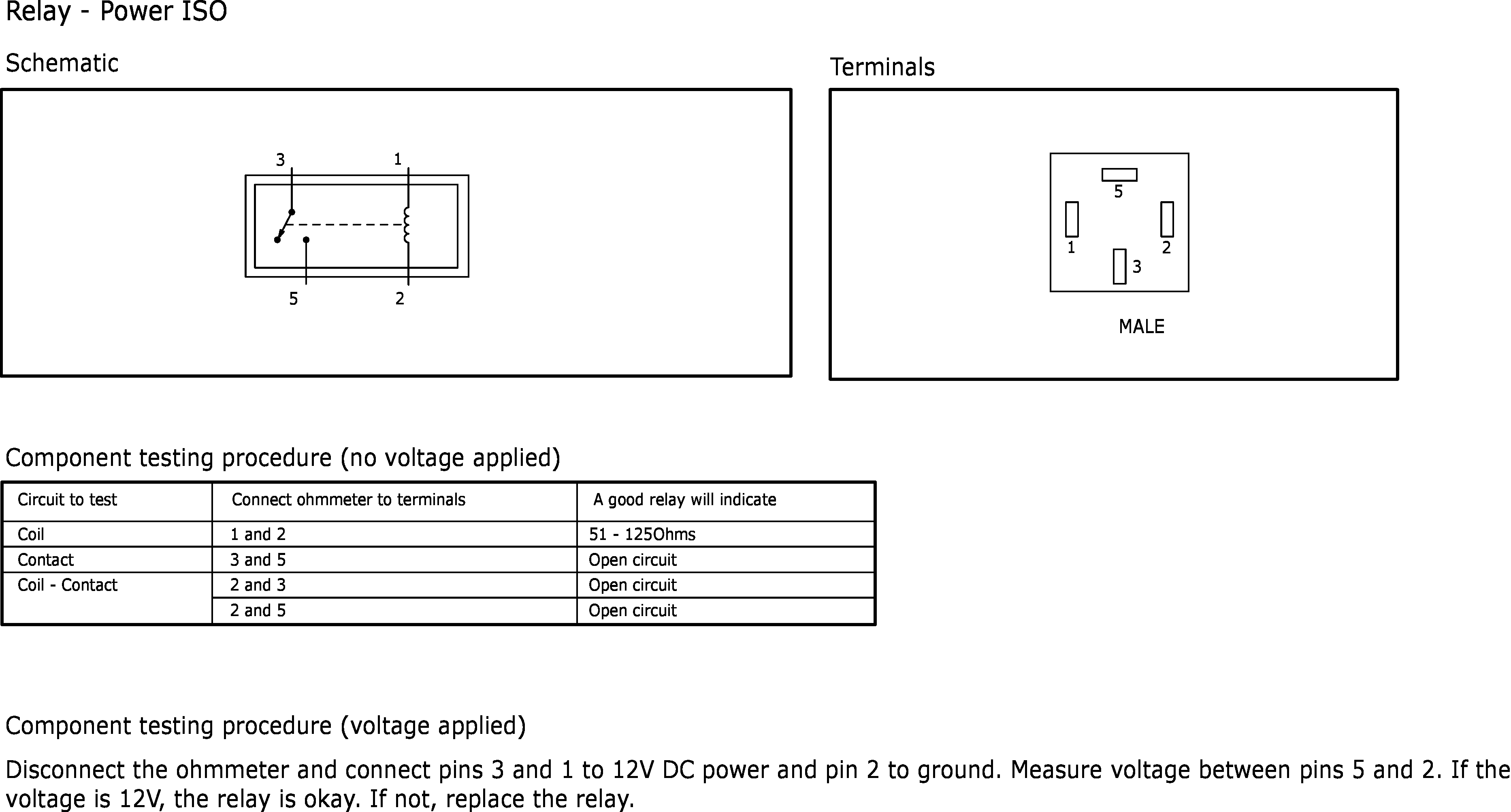

Fig 3: Relay Power ISO
GFDW5573Courtesy of FORD MOTOR COMPANY
