Passenger Door Window Control Switch

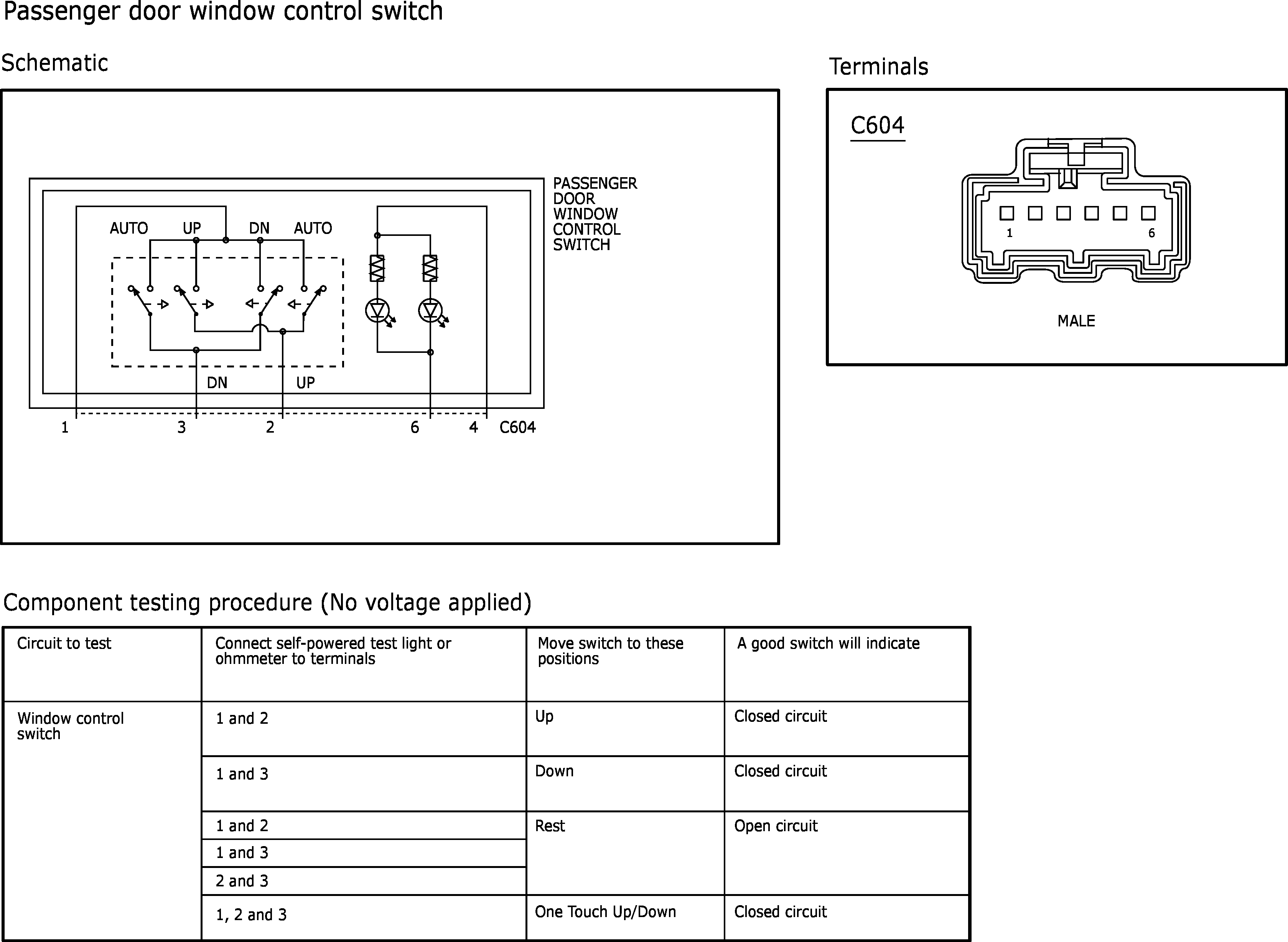

Fig 1: Passenger Door Window Control Switch

GFDW5576

Courtesy of FORD MOTOR COMPANY
