Front Seat Control Switch RH (8 - Way)

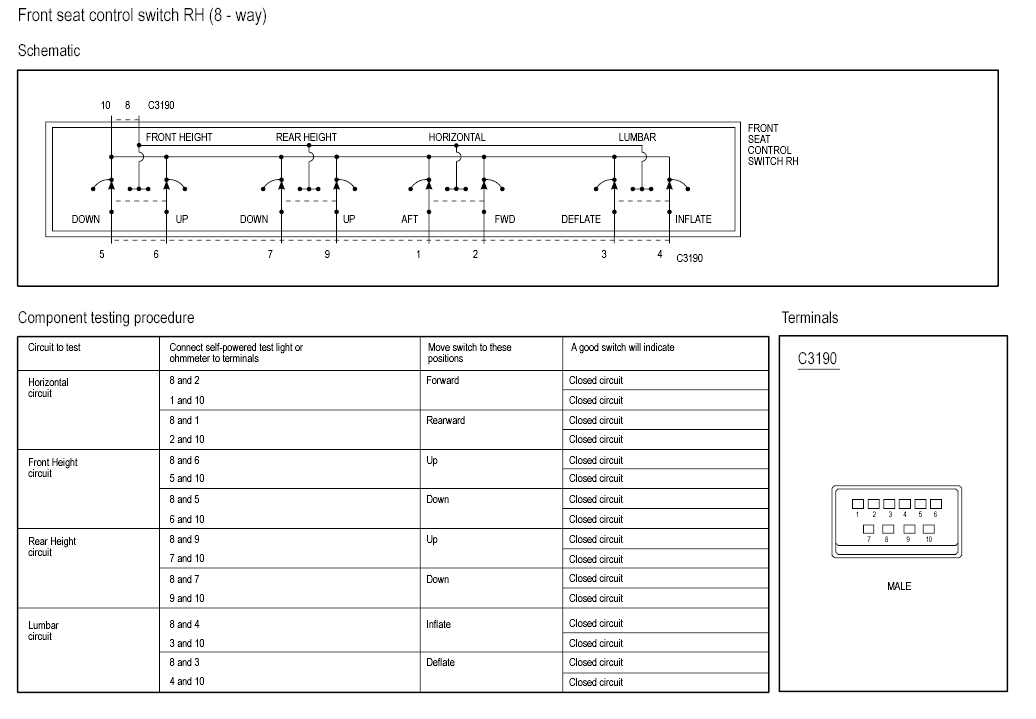

Fig 1: Front Seat Control Switch RH (8 - Way)

G00555408

Courtesy of FORD MOTOR COMPANY
