Front Door Lock Switch LH - With Memory

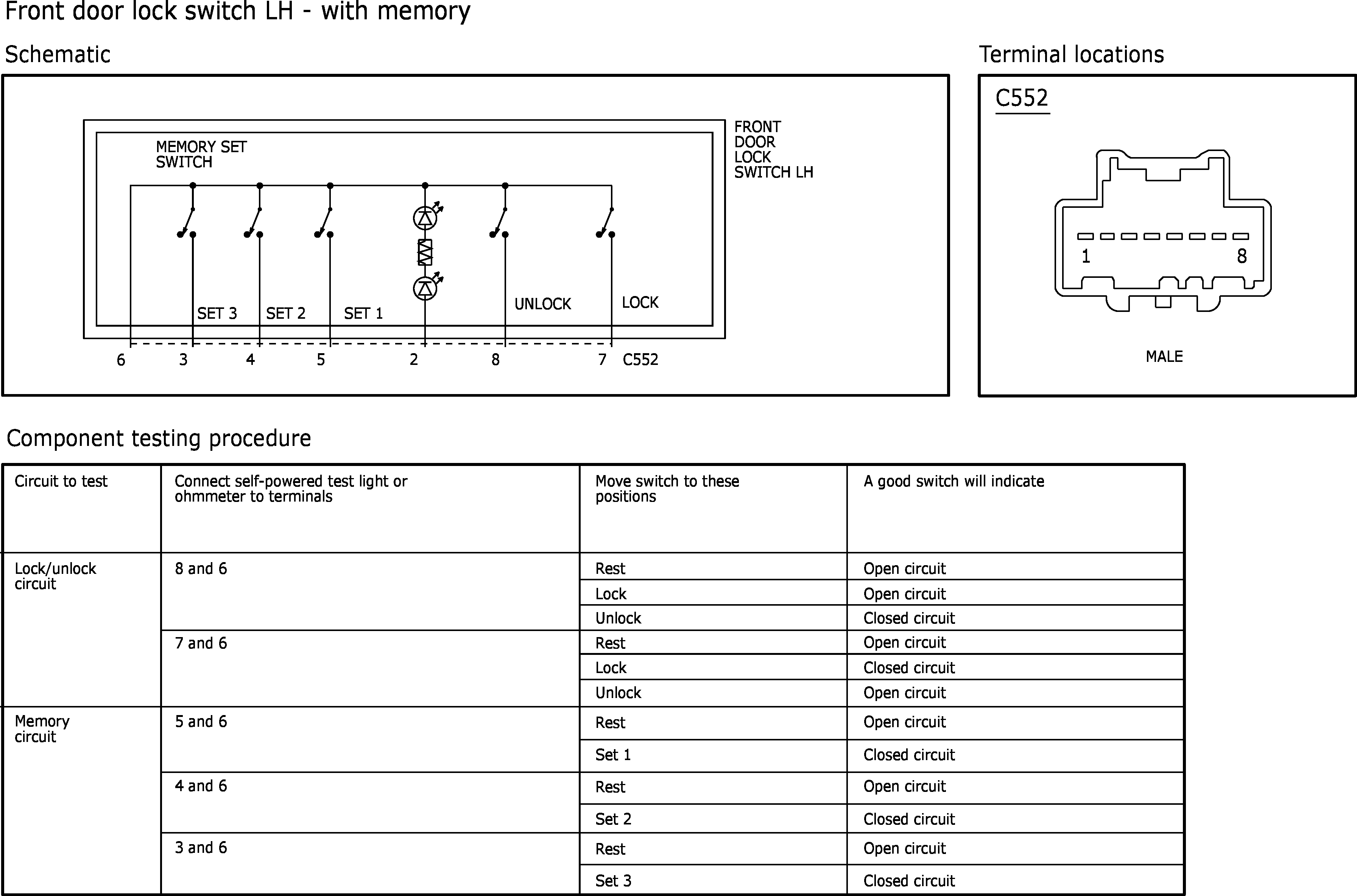

Fig 1: Front Door Lock Switch LH - With Memory

GFDW5579

Courtesy of FORD MOTOR COMPANY
