Automatic Transmission - Hf35: Disassembly: Transmission

Base Part Number: 7000

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-163 (T86P-70043-A)Remover, Stator Case Bearing TKIT-1986-LM TKIT-1986-F
Courtesy of FORD MOTOR COMPANY	307-586 Differential bearing cup remover TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	308-001 (T58L-101-B) Remover, Pilot Bearing
Hydraulic Press
Puller
Punch

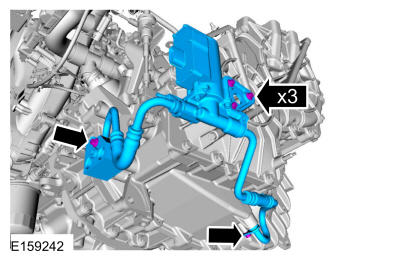

1. Remove the bolts and the transmission fluid auxiliary pump and transmission fluid tubes.

   Courtesy of FORD MOTOR COMPANY

2. Remove the vent assembly.

   Courtesy of FORD MOTOR COMPANY

3. Remove the bolts and the damper housing.

   Courtesy of FORD MOTOR COMPANY

NOTE: Release the clip behind the TFT sensor.
4. Disconnect the TFT sensor.

   Courtesy of FORD MOTOR COMPANY

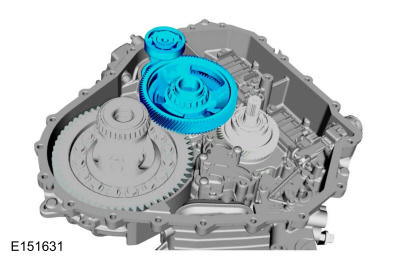

5. Remove the transfer shaft gear assembly and the traction motor drive gear assembly.

   Courtesy of FORD MOTOR COMPANY

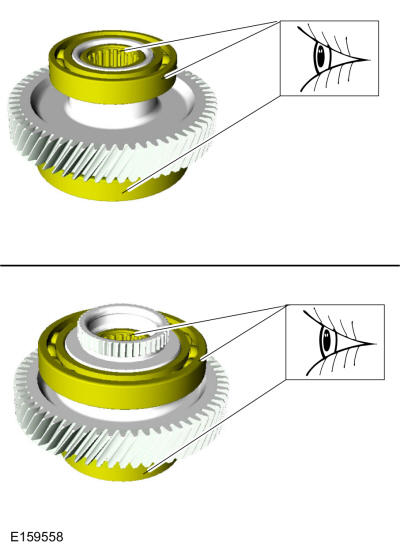

6. Replace the transfer shaft and gear assembly and install new bearing races if the bearings are damaged.

   Courtesy of FORD MOTOR COMPANY

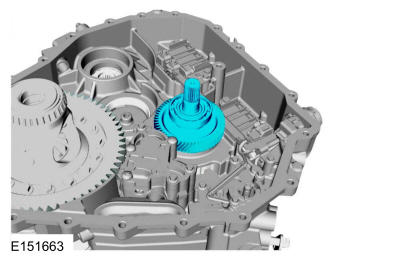

7. Remove the final drive input gear assembly.

   Courtesy of FORD MOTOR COMPANY

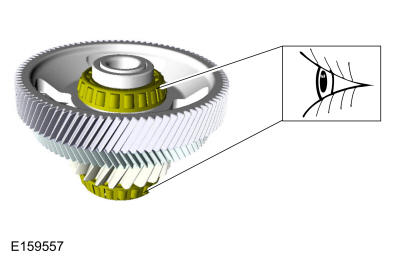

8. Replace the final drive input gear assembly if the bearings are damaged.

   Courtesy of FORD MOTOR COMPANY

9. Remove the differential carrier gear assembly.

   Courtesy of FORD MOTOR COMPANY

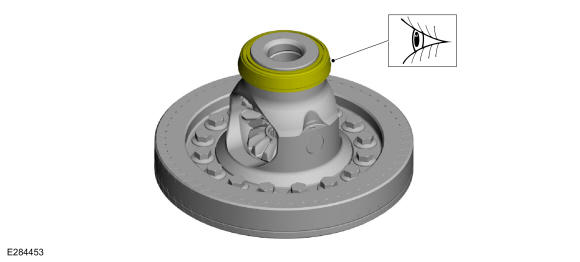

10. Inspect the differential bearing for damage, replace if necessary.

    Courtesy of FORD MOTOR COMPANY

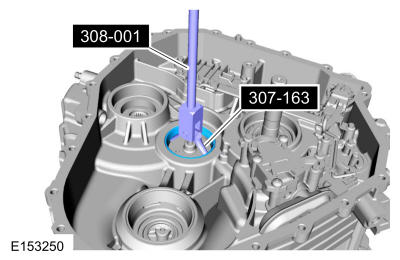

11. Using the special tools, remove the transmission case side transfer gear bearing cup.

    Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing., 307-163 (T86P-70043-A) Remover, Stator Case Bearing.

    Courtesy of FORD MOTOR COMPANY

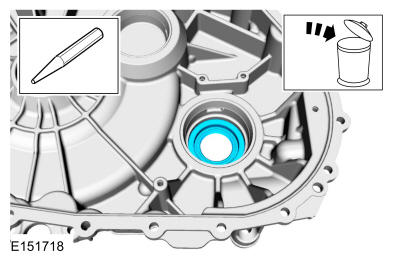

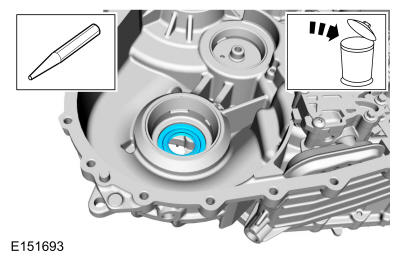

12. Remove and discard the LH halfshaft seal.

    Use the General Equipment: Punch

    Courtesy of FORD MOTOR COMPANY

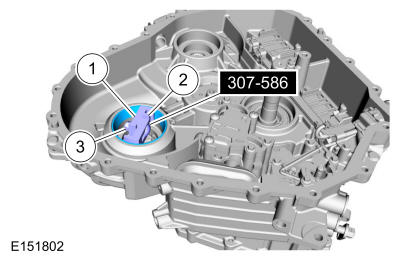

13. 1. Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case.

       Use Special Service Tool: 307-586 Differential bearing cup remover.

    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.

    Courtesy of FORD MOTOR COMPANY

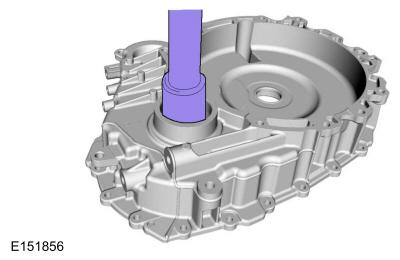

14. Remove the differential bearing cup.

    Use Special Service Tool: 307-586 Differential bearing cup remover.

    Use the General Equipment: Hydraulic Press

    Courtesy of FORD MOTOR COMPANY

15. Remove the retainers and the transmission fluid oil sump baffle.

    Courtesy of FORD MOTOR COMPANY

16. Remove the retainers and the oil collector plate.

    Courtesy of FORD MOTOR COMPANY

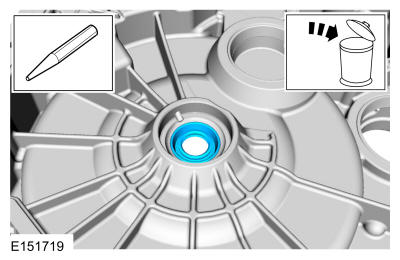

17. Remove and discard the RH halfshaft seal.

    Use the General Equipment: Punch

    Courtesy of FORD MOTOR COMPANY

18. Remove and discard the input shaft oil seal.

    Use the General Equipment: Punch

    Courtesy of FORD MOTOR COMPANY

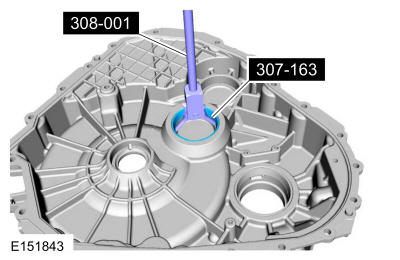

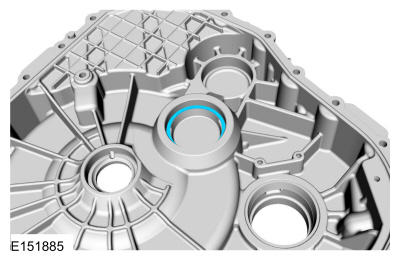

19. Remove the damper housing side transfer gear bearing cup.

    Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing., 307-163 (T86P-70043-A) Remover, Stator Case Bearing.

    Courtesy of FORD MOTOR COMPANY

20. Remove the transfer shaft preload shim.

    Courtesy of FORD MOTOR COMPANY

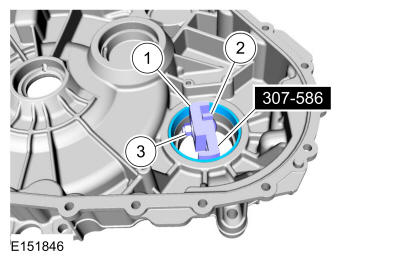

21. 1. Position the Differential Bearing Cup Remover 307-586 in the damper housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the damper housing.

       Use Special Service Tool: 307-586 Differential bearing cup remover.

    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the damper housing, tighten the nut.

    Courtesy of FORD MOTOR COMPANY

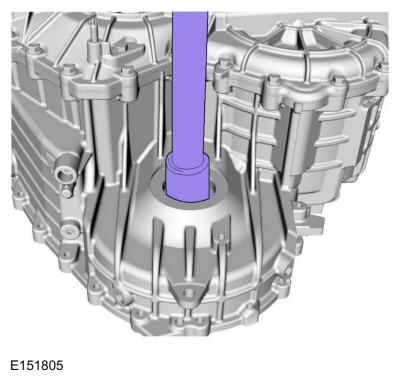

22. Remove the damper housing side differential bearing cup.

    Use Special Service Tool: 307-586 Differential bearing cup remover.

    Use the General Equipment: Hydraulic Press

    Courtesy of FORD MOTOR COMPANY

23. Remove the differential preload shim.

    Courtesy of FORD MOTOR COMPANY

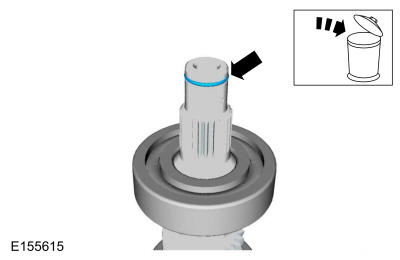

24. Remove and discard the traction motor drive gear oil seal.

    Courtesy of FORD MOTOR COMPANY

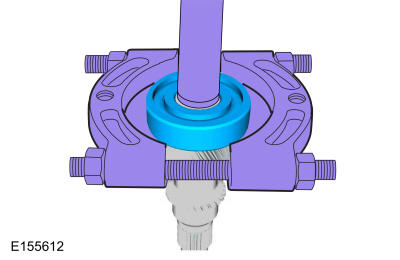

25. Remove the traction motor drive gear rear bearing from the traction motor drive gear.

    Use the General Equipment: Puller

    Use the General Equipment: Hydraulic Press

    Courtesy of FORD MOTOR COMPANY

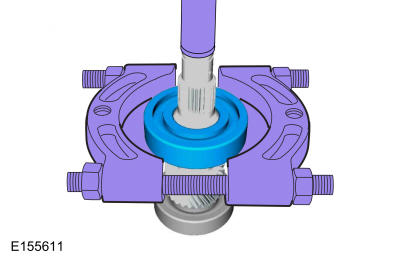

26. Remove the traction motor drive gear front bearing from the traction motor drive gear.

Use the General Equipment: Puller

Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
