Wheel Hub: Installation

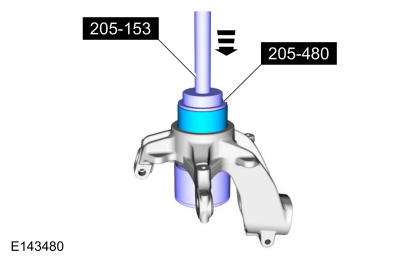

- Install the bearing into the wheel knuckle.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-480 Installer, Drive Pinion Inner Bearing Cup.
Use the General Equipment: Hydraulic Press

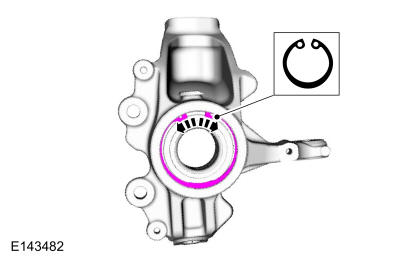

- Install the snap ring properly in the groove.

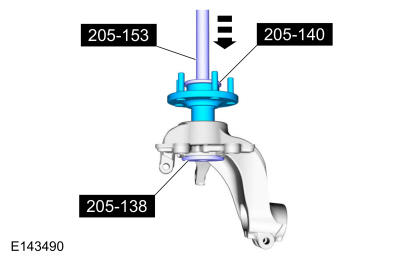

- Install the wheel hub into the front wheel bearing.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-140 (T80T-4000-F) Installer, Drive Pinion Bearing Cup., 205-138 (T80T-4000-D) Installer, Drive Pinion Bearing Cup.
Use the General Equipment: Hydraulic Press
- Install the wheel knuckle.
Refer to: Wheel Knuckle (Front Suspension, Removal and Installation).
NOTE:
Make sure the wheel bearing is installed into the wheel knuckle with the wheel speed sensor ring (black in color) toward the inner face of the wheel knuckle.
NOTE:
Once the wheel bearing is installed, make sure the wheel speed sensor ring on the bearing and the sensor hole on the wheel knuckle are clean or damage to the wheel speed sensor or sensor ring may occur.
