Front Seat Control Switch: Removal

  1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    Turn the ignition OFF and wait at least one minute.

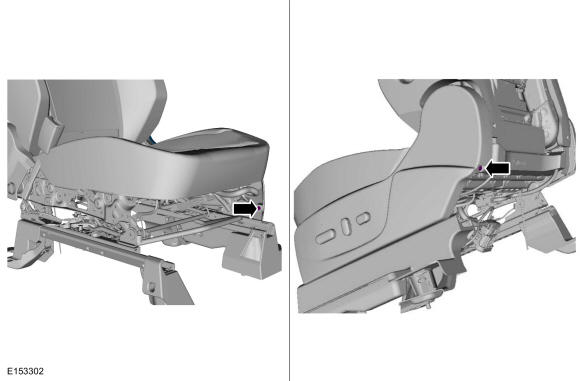

  2. Remove the side shield screws.
    GFD224737Courtesy of FORD MOTOR COMPANY

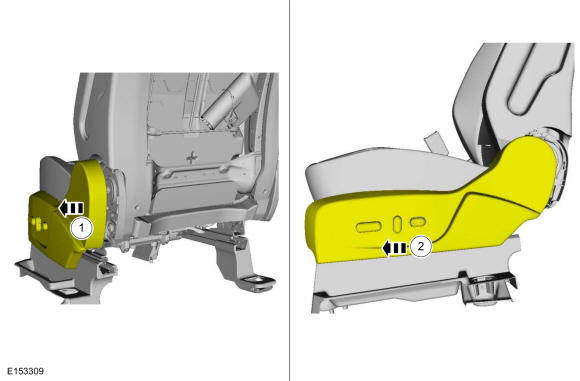

  3. Position aside the side shield.

    1. Pull outward the side shield.
    2. Push the side shield forward.

    GFD224738Courtesy of FORD MOTOR COMPANY

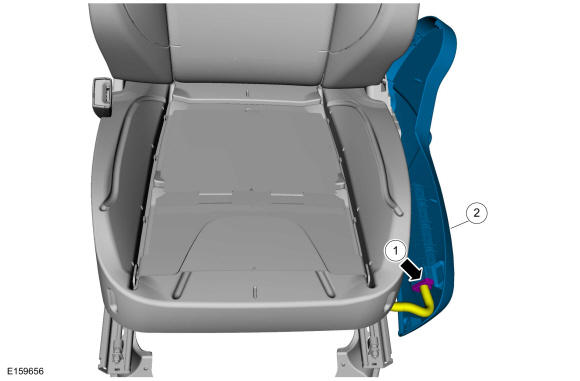

    1. Disconnect the electrical connector.
    2. Remove the side shield.
    GFD224739Courtesy of FORD MOTOR COMPANY

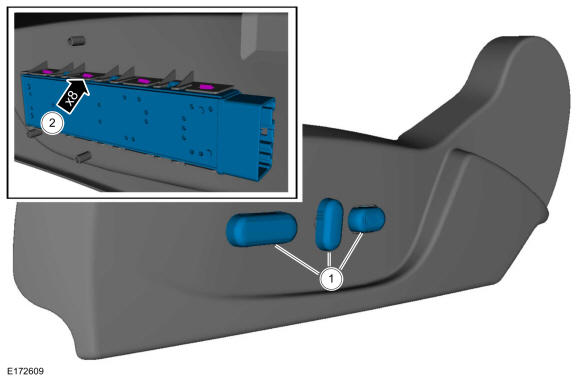

    1. Remove the seat control switch knobs.
    2. Release the tabs and remove the seat control switch.
GFD224751Courtesy of FORD MOTOR COMPANY
