Removal And Installation: Radiator: Installation

To install, reverse the removal procedure.

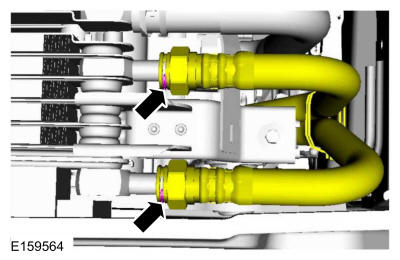

NOTE: To ensure the transmission fluid cooler tubes are secure, push, pull then push the transmission cooler tubes on the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Check and top off the transmission fluid.
Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
