Throttle Body: Installation
NOTE:

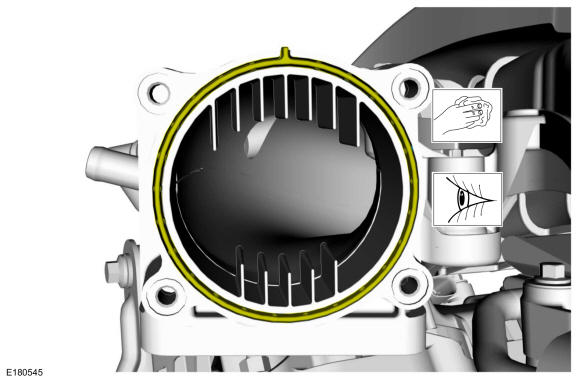

Make sure that the mating faces are clean and free of foreign material.
- 2.

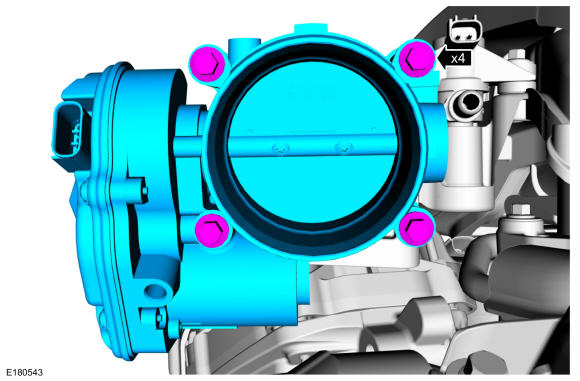

Install the throttle body and the throttle body retaining bolts.Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 90 °
- 4.
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
