Fuel Rail: Installation
- 1.NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.NOTE: The upper and lower fuel injector O-ring seals are similar in appearance, but are not interchangeable.NOTE: Make sure that new fuel injector O-ring seals are installed.

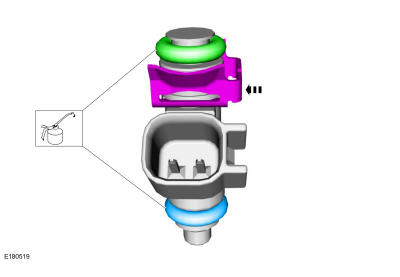

Install the new fuel injector O-ring seals and the fuel injector retaining clips onto the fuel injectors. Lubricate the new fuel injector O-ring seals with clean engine oil.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 3.
- 1.

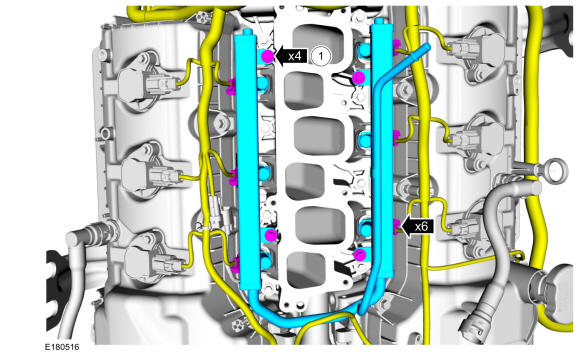

Install the fuel rail and the fuel rail retaining bolts.Torque: 89 lb.in (10 Nm)
- 2.
Connect the fuel injector electrical connectors.
- 1.
- 4.
- 1.

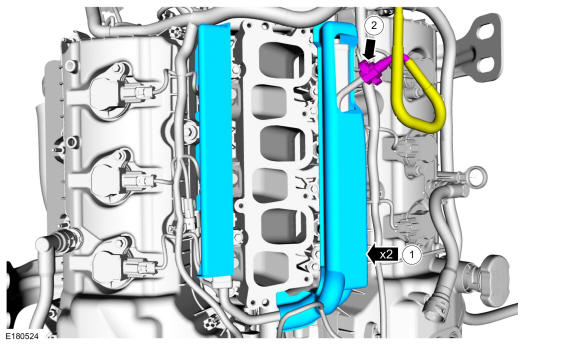

Install the RH and LH fuel rail insulators.
- 2.
Connect the fuel rail fuel feed tube. Refer to: Quick Release Coupling .
- 1.
- 5.
Install the upper intake manifold. Refer to: Upper Intake Manifold .
- 6.
Reconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- 7.
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
