VC Codes

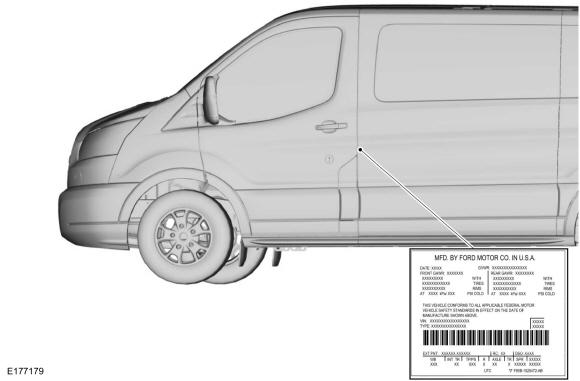

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

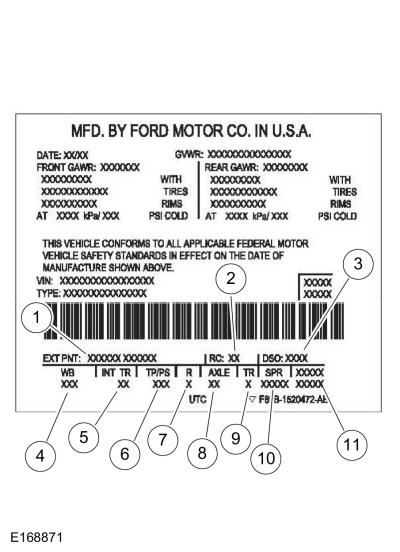

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- BY - School Bus Yellow
- G1 - Absolute Black
- H5 - Caribou
- J7 - Magnetic
- KT - Lunar Sky Metallic
- N1 - Blue Jeans Metallic
- PQ - Race Red
- TY - Moondust Silver - Mexico only
- UV - Blazer Blue - Mexico only
- UX - Ingot Silver Metallic
- W6 - Green Gem #2
- YZ - Oxford White
- Z2 - Frozen White - Mexico only
Wheelbase
The following identifies the vehicle wheelbase:
- W30 - 3277 mm (129 in) wheelbase
- W38 - 3505 mm (138 in) wheelbase
- W48 - 3759 mm (148 in) wheelbase
- W56 - 3962 mm (156 in) wheelbase)
- W78 - 4521 mm (178 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- C - Lane/Mac cloth
- L - Torino leather
- T - Traxon cloth - Mexico only
- V - Prima vinyl
Interior Trim Color Codes
- B - Charcoal Black
- K - Pewter
- L - Charcoal Black - Mexico only
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 4 - AM/ FM stereo, CD player, SYNC®, MYFORD Touch, navigation, SDARS (satellite digital audio receiver system), HD (high-definition)
- S - Radio delete
- T - Radio prep package
- U - AM/ FM stereo, clock and audio input jack
- V - AM/ FM stereo, CD player with 4-inch multi-color function display
- W - AM/ FM stereo, CD player, HD (high-definition) and SDARS (satellite digital audio receiver system)
- X - AM/ FM stereo, CD player with SYNC®
- Y - AM/ FM stereo, CD player, SYNC®, HD (high-definition) and SDARS (satellite digital audio receiver system)
Axle Type
The following lists the available axle ratios and associated codes:
- 31 - 3.31 ratio, non-limited slip
- 3L - 3.31 ratio, limited slip
- 35 - 3.55 ratio - Mexico only
- 41 - 4.10 ratio, non-limited slip
- 4L - 4.10 ratio, limited slip
- 73 - 3.73 ratio, non-limited slip
- 7L - 3.73 ratio, limited slip
Transmission Codes
Available transmissions are as follows:
- 6 - 6-speed automatic (6R80)
- X - 6-speed manual (MT82) - Mexico only
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310 (coil)
Rear Springs
- Base part number - 5560 (leaf)
