Pinpoint Tests RK: Reductant Injector: Introduction

Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

• reductant injector
• reductant pump
• harness circuits: RDINJPWR and RDINJGND
• reductant dosage control module (5H298)
• PCM (12A650)

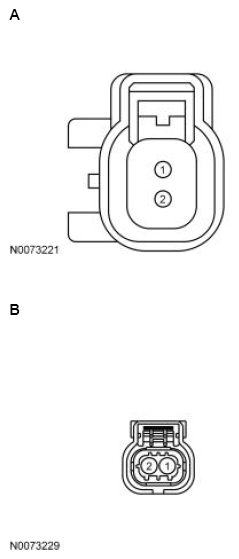

  Fig 1: Identifying Reductant Injector Solenoid Connector

  Courtesy of FORD MOTOR CO.

  Vehicle	Connector	Pin	Circuit
  F-650/F-750	A	2	RDINJGND
  		1	RDINJPWR
  All other vehicles	B	2	RDINJGND
  		1	RDINJPWR

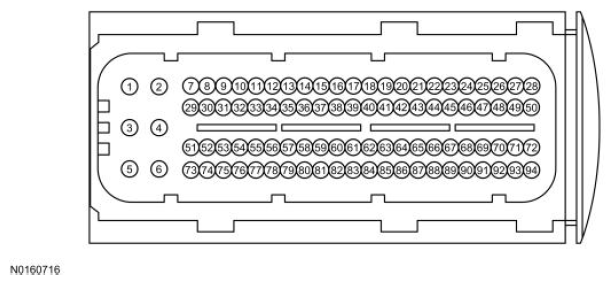

  Fig 2: Identifying Reductant Dosage Control Module Connector

  Courtesy of FORD MOTOR CO.

  Pin	Circuit
  91	RDINJGND (Reductant Injector Ground)
  74	RDINJPWR (Reductant Injector Power)

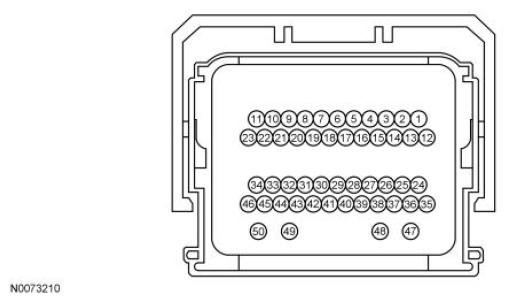

  Fig 3: Identifying Powertrain Control Module-T (PCM-T) Connector

  Courtesy of FORD MOTOR CO.

  Pin	Circuit
  14	RDINJGND (Reductant Injector Ground)
  21	RDINJPWR (Reductant Injector Power)
