Pinpoint Tests RG: Reductant Pump: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant pump
reductant pump control module
harness circuits: RDPAP, RDPBP, RDPC, RDPCP, RDPGND, RDPM and VPWR
reductant dosage control module (5H298)
PCM (12A650)

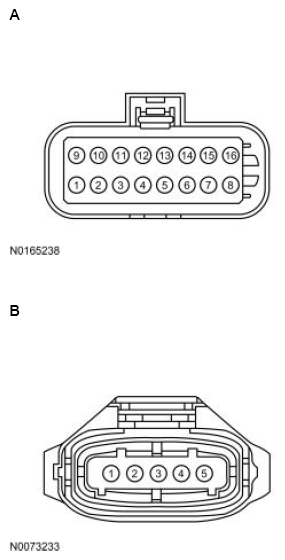

Fig 1: Identifying Reductant Pump Assembly Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-650/F-750	A	16 8 7 15	RDPCP RDPBP RDPAP GND
All other vehicles	B	4 3 5	GND VPWR RDPC

Fig 2: Identifying Reductant Pump Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
3	RDPCP (Reductant Pump C Phase)
2	RDPBP (Reductant Pump B Phase)
1	RDPAP (Reductant Pump A Phase)
8	RDPM (Reductant Pump Monitor)
6	RDPC (Reductant Pump Control)
4	GND (Ground)
5	VPWR (Vehicle Power)

Fig 3: Identifying Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
69	RDPGND (Reductant Pump Ground)
67	RDPC (Reductant Pump Control)

Fig 4: Identifying Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-Series Super Duty	A	23	RDPC
F-650/F-750	A	29 23	RDPM RDPC
