Powertrain Control Module (PCM): Installation

• 1.

  To install, reverse the removal procedure.

Vehicles with PCM security shield

• 2.

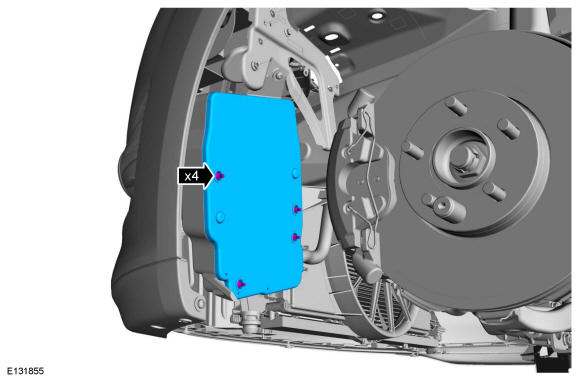

  Install the PCM housing cover and tighten the shear bolt until the head is sheared off.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 3.


  NOTE: This step is only necessary when installing a new component.

  Upload the module information from the diagnostic tool to the module using the programmable modules installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment

• 4.

  Reprogram the PATS. Carry out the parameter reset procedure. Refer to: Passive Anti-Theft System (PATS) Parameter Reset .

• 5.

  After completing the repairs, perform the misfire monitor neutral profile correction procedure.
