Transmission Fluid Cooler: Installation

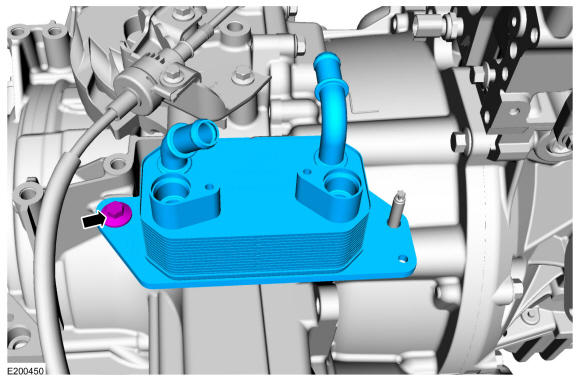

1.

Install the transmission fluid cooler and the bolt.
Torque: 18 lb.ft (25 Nm)

GFD150317

Courtesy of FORD MOTOR COMPANY

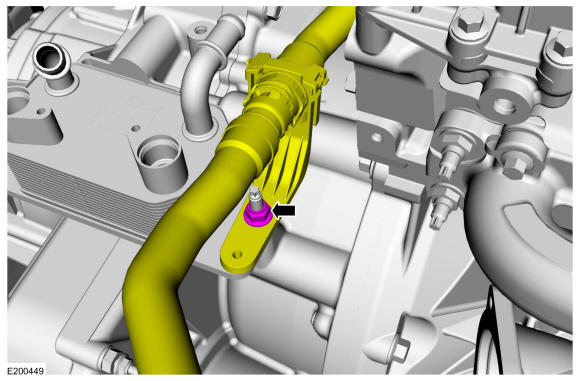

2.

Position back the coolant hose and the bracket and install the nut.
Torque: 18 lb.ft (25 Nm)

GFD150316

Courtesy of FORD MOTOR COMPANY

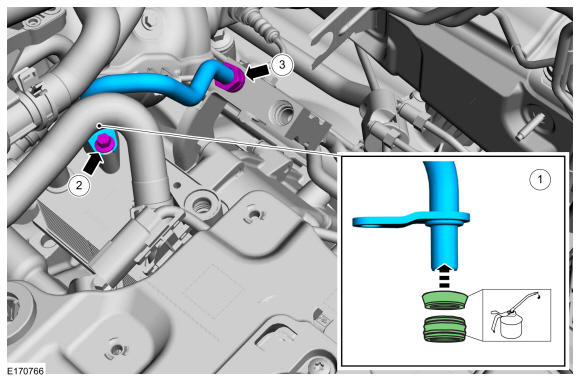

3.
1. 1.

  Lubricate the band seals and backing rings.
  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
1. 2.

  Install the transmission fluid cooler oil outlet tube and the bolt.
  Torque: 80 lb.in (9 Nm)
1. 3.

  Tighten the tube nut.
  Torque: 22 lb.ft (30 Nm)

GFD150319

Courtesy of FORD MOTOR COMPANY

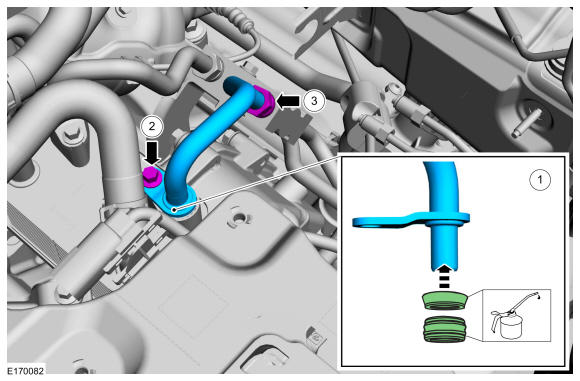

4.
1. 1.

  Lubricate the band seals and backing rings.
  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
1. 2.

  Install the transmission fluid cooler oil inlet tube and the bolt.
  Torque: 80 lb.in (9 Nm)
1. 3.

  Tighten the tube nut.
  Torque: 22 lb.ft (30 Nm)

GFD150313

Courtesy of FORD MOTOR COMPANY

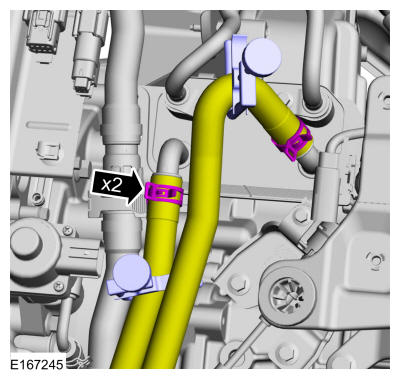

5.

Attach the coolant hoses and position the clamps. Remove the General Equipment: Hose Clamp(s)

GFD150315

Courtesy of FORD MOTOR COMPANY

6.

Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .

7.

Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

8.

Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
