Heated Window

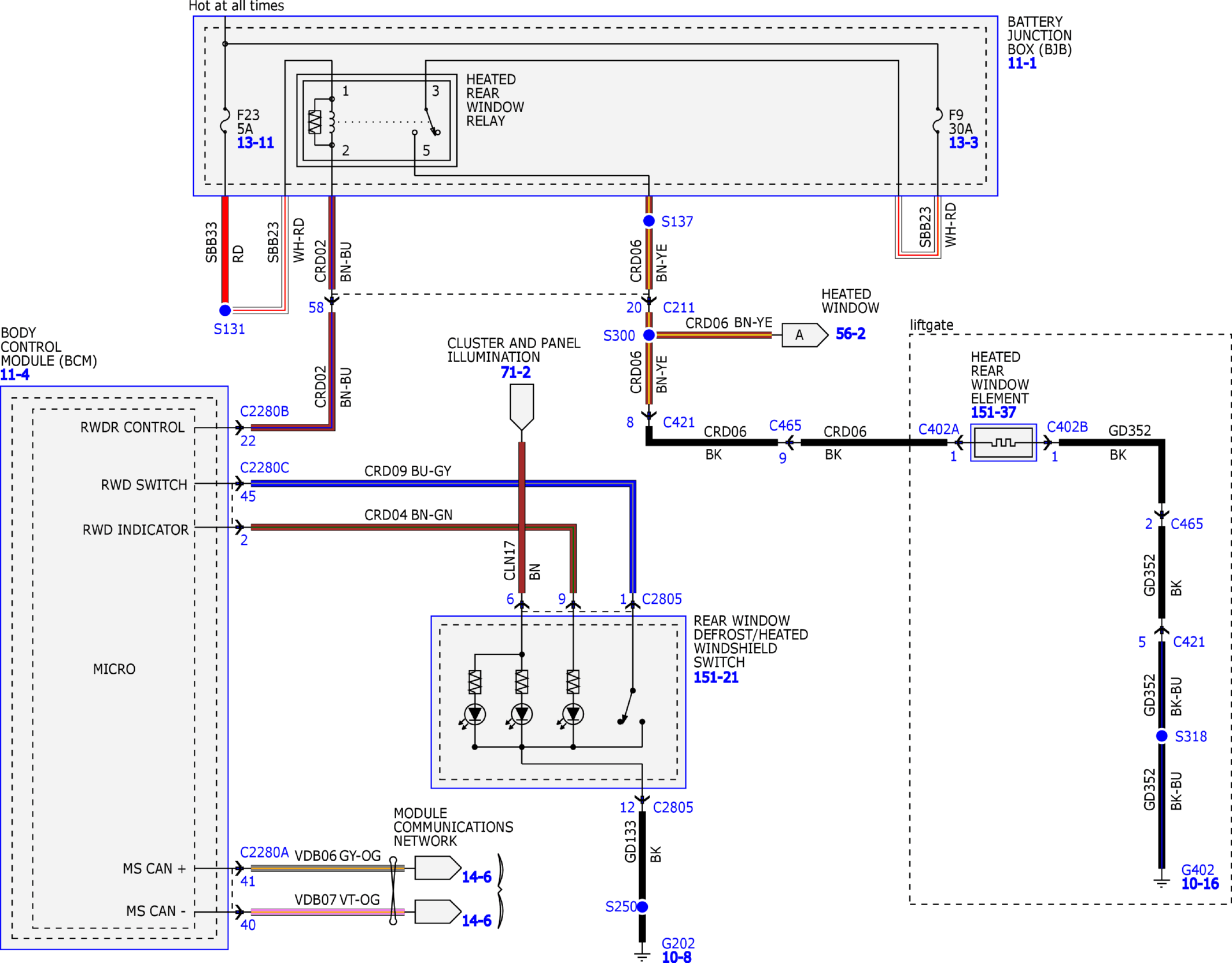

Fig 1: Heated Window Wiring Diagram (1 of 4)
GFDW63566Courtesy of FORD MOTOR COMPANY

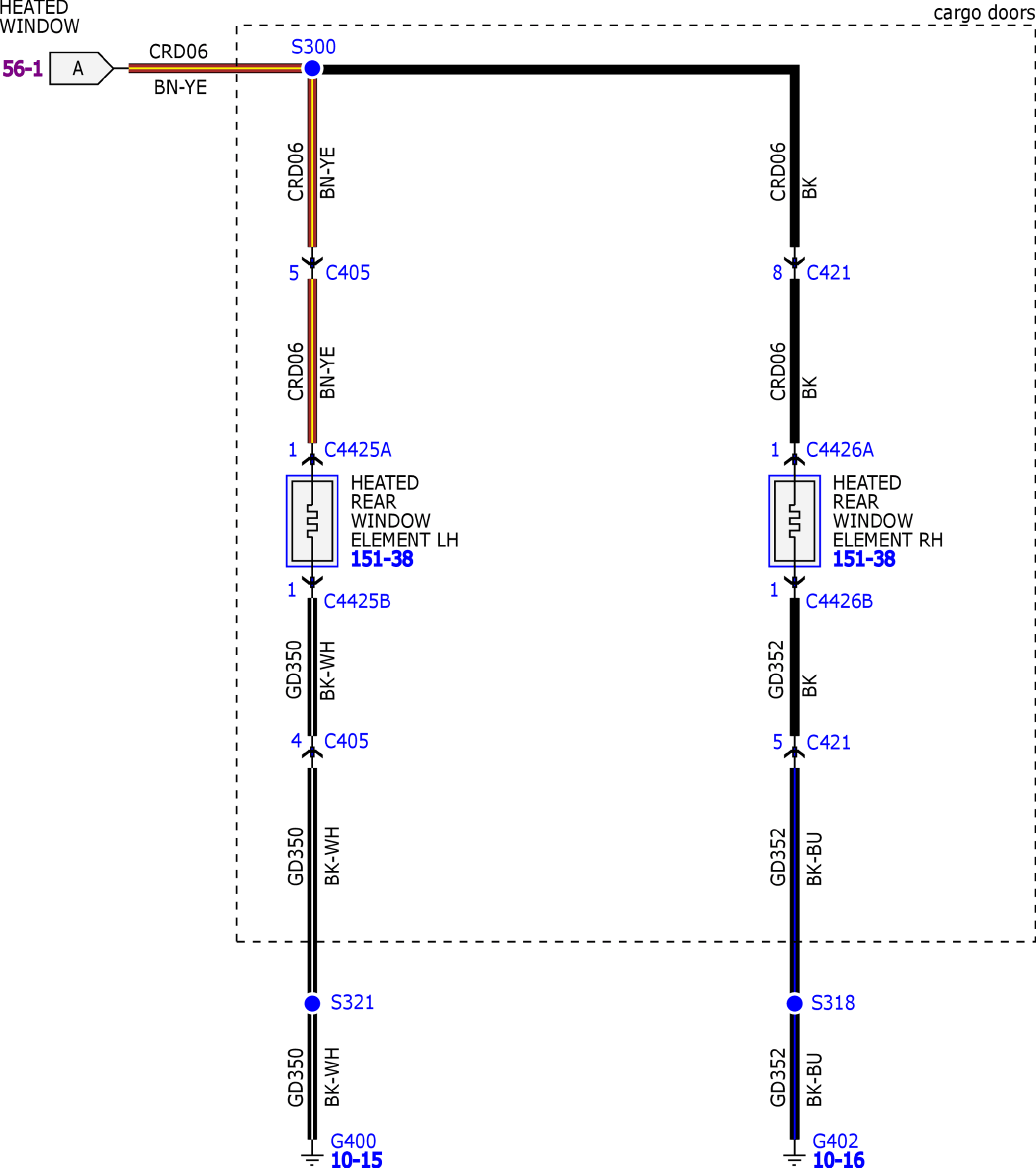

Fig 2: Heated Window Wiring Diagram (2 of 4)
GFDW63567Courtesy of FORD MOTOR COMPANY

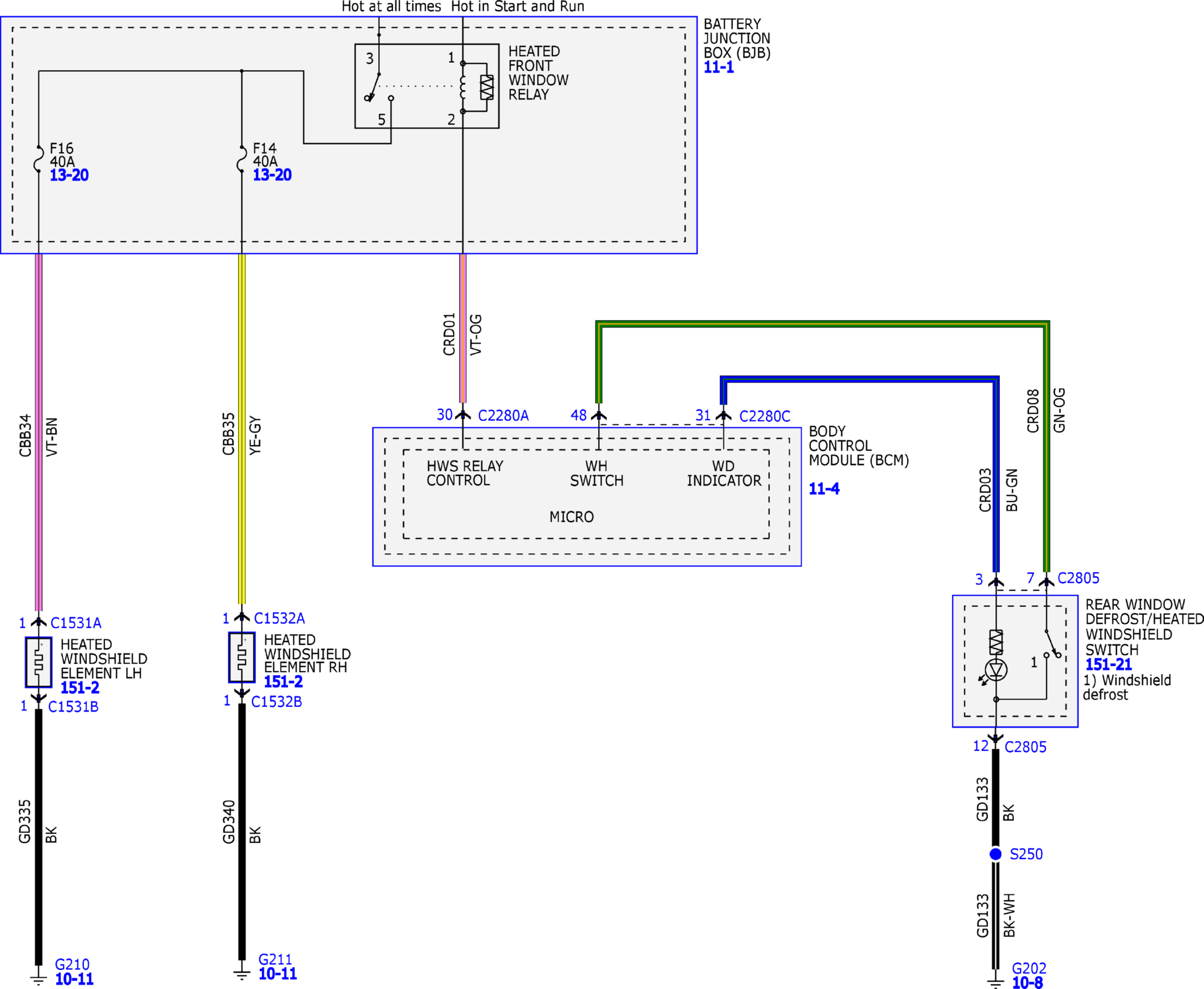

Fig 3: Heated Window Wiring Diagram (3 of 4)
GFDW63568Courtesy of FORD MOTOR COMPANY

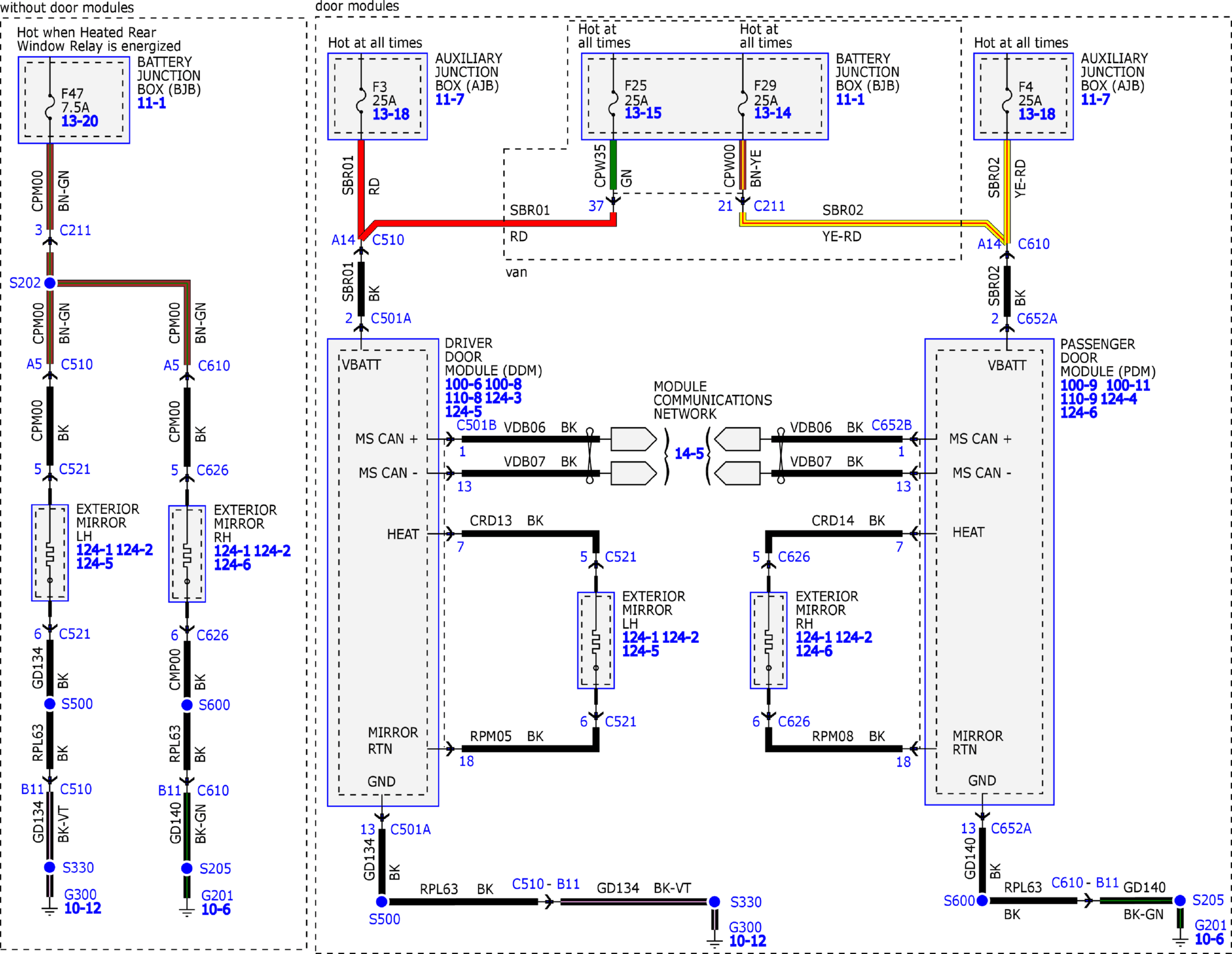

Fig 4: Heated Window Wiring Diagram (4 of 4)
GFDW63569Courtesy of FORD MOTOR COMPANY
