Fuel Rail: Removal

NOTE: Removal steps in this procedure may contain installation details.

3.
- 1.

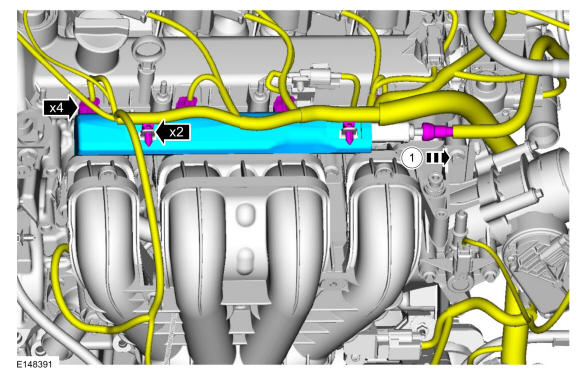

  Disconnect the spring lock coupling. Refer to: Spring Lock Couplings .
- Disconnect the wiring harness retainers from the fuel rail, disconnect the fuel injector electrical connectors and remove the fuel rail insulator.

Courtesy of FORD MOTOR COMPANY

4.

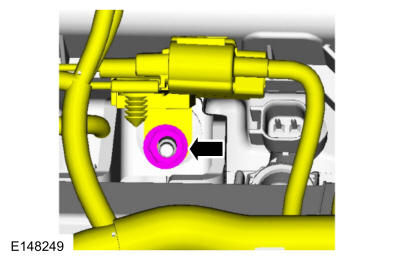

Remove the nut and position the electrical connector aside.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

5.

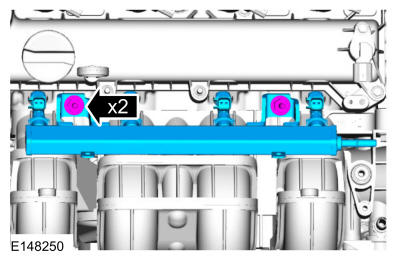

Remove the fuel rail retaining bolts and remove the fuel rail.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

7.

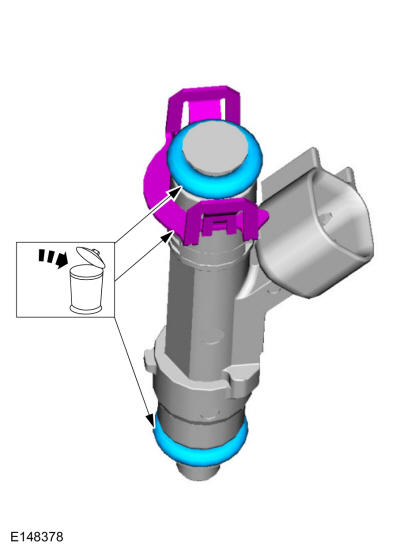

Remove and discard the fuel injector O-ring seals and the fuel injector clips.

Courtesy of FORD MOTOR COMPANY
