Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the floor console. Refer to: Floor Console - Vehicles With: Single Passenger Seat .

2.

Remove the selector lever boot.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

Remove the screws and push pins, release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

4.

Position aside the weather strip and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

5.
- 1.

  Remove the bolt.
  Torque: 22 lb.in (2.5 Nm)

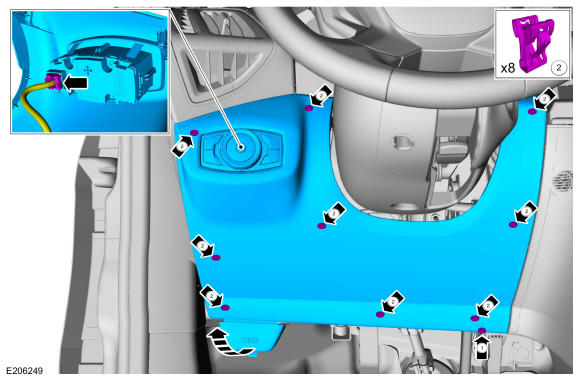

- 2.

  Release the clips disconnect the electrical connector and remove the lower steering column trim panel.

Courtesy of FORD MOTOR COMPANY

6.

Remove the screws and push pins, release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

7.

Release the harness retainer and position aside the harness.

Courtesy of FORD MOTOR COMPANY

8.

Remove the push pins and bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Remove the selector lever nuts.
  Torque: 89 lb.in (10 Nm)
- 2.

  Remove the selector lever bolts.
  Torque: 80 lb.in (9 Nm)
- 3.

  Remove the selector lever cable retainer bolt.
  Torque: 62 lb.in (7 Nm)
- 4.

  Disconnect the electrical connector and remove the selector lever assembly.

Courtesy of FORD MOTOR COMPANY

10.

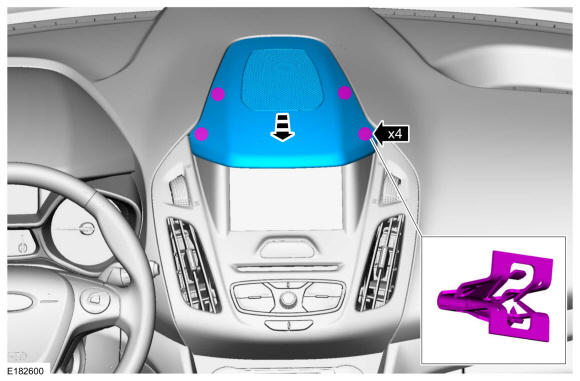

Release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

11.

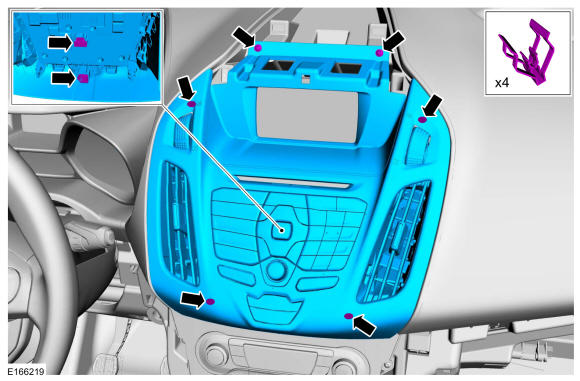

Release the clips and remove the FCIM.
- Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

12.

NOTE: If equipped.

NOTE: Non-touch screen display shown.

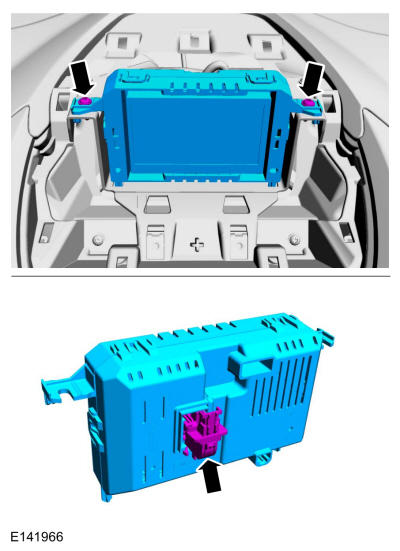

Remove the bolts and the FCDIM.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

13.

NOTE: If equipped.

NOTE: Touch screen display shown.
- 1.

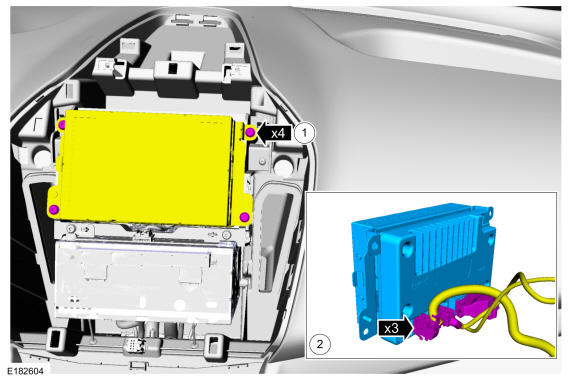

  Remove the bolts and the FDIM.
  Torque: 22 lb.in (2.5 Nm)
- 2.

  Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

14.

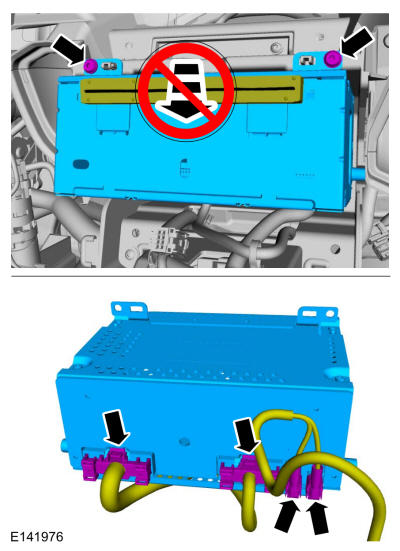

Remove the bolts and the ACM.
- Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

15.

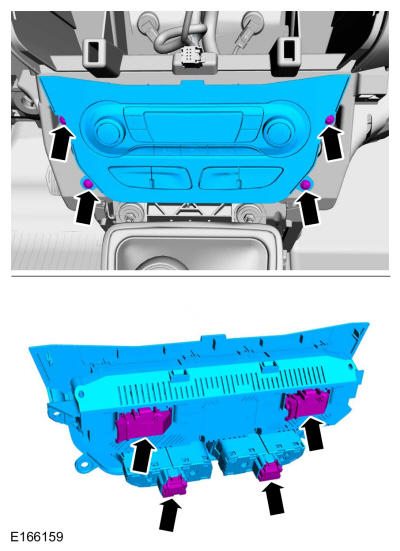

Remove the screws and the climate control assembly.
- Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

16.

NOTE: If equipped.

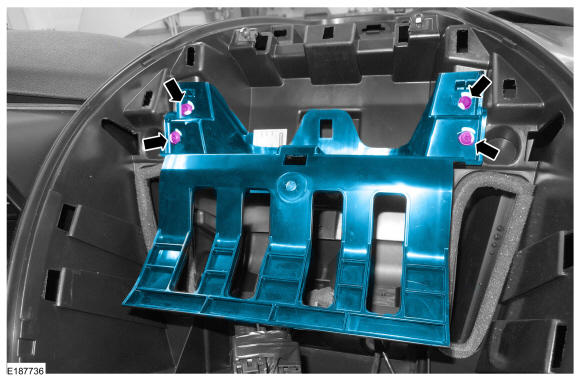

Remove the screws and the bracket.

Courtesy of FORD MOTOR COMPANY

17.

Remove the bolt, release the harness retainers and position aside the harness.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

18.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

19.

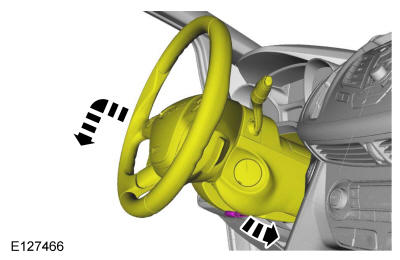

Move the steering wheel to the lowest position.

Courtesy of FORD MOTOR COMPANY

20.

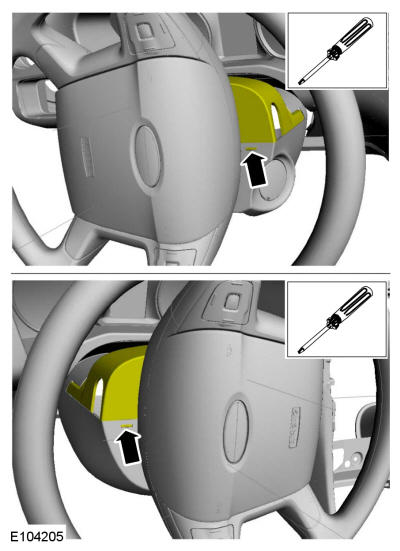

Release the upper steering column shroud tabs.

Courtesy of FORD MOTOR COMPANY

21.

Center the steering wheel.

Courtesy of FORD MOTOR COMPANY

22.

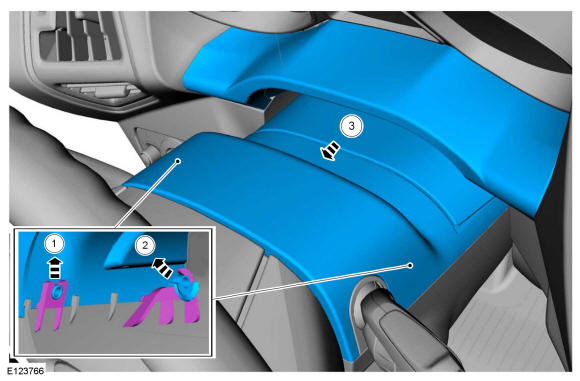

Remove the upper steering column shroud and lower IPC trim panel.

Courtesy of FORD MOTOR COMPANY

23.

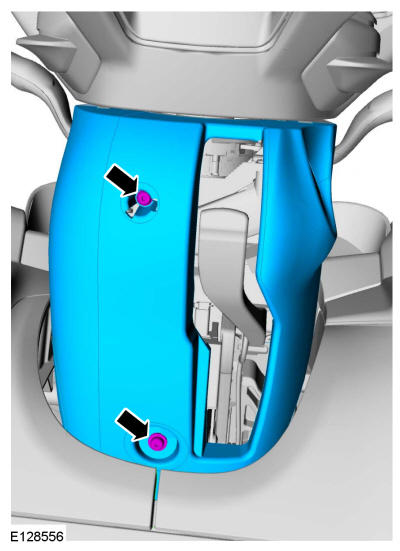

Remove the bolts and the lower steering column shroud.

Courtesy of FORD MOTOR COMPANY

24.

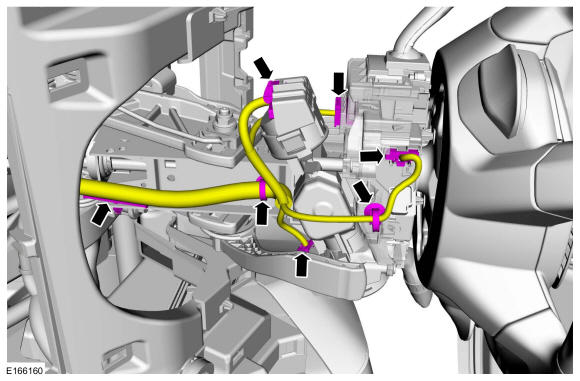

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

25.

Remove the upper trim panel.

Courtesy of FORD MOTOR COMPANY

26.

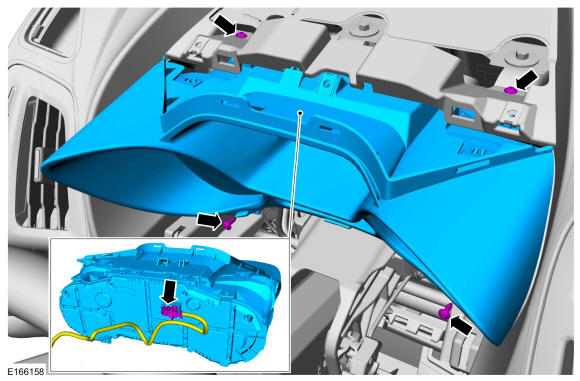

Remove the screws and the IPC.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

27.

On both sides. Refer to: A-Pillar Trim Panel .

28.

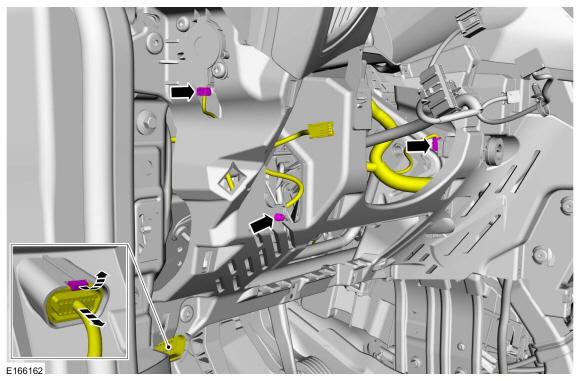

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

29.

Remove the retainers and the insulation panel.

Courtesy of FORD MOTOR COMPANY

30.

Remove the glove compartment hinge pins and the glove compartment.

Courtesy of FORD MOTOR COMPANY

31.

Position aside the weather strip and remove the trim panel.
- If equipped, disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

32.
- 1.

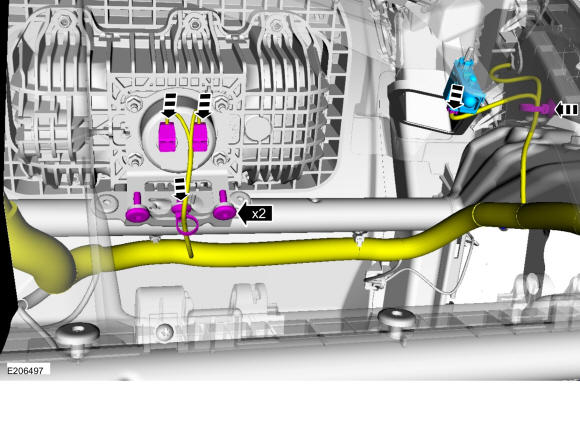

  Remove the passenger side air bag to in-vehicle cross beam bolts.
  Torque: 80 lb.in (9 Nm)
- 2.

  Disconnect the electrical connectors release the harness retainers and position aside harness.

Courtesy of FORD MOTOR COMPANY

33.

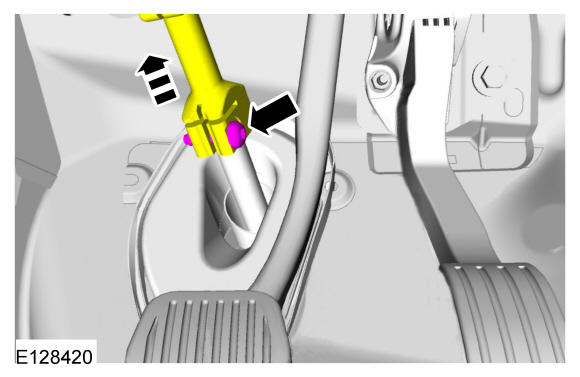

NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnected or damage to the clockspring may result.

Remove the bolt.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

34.

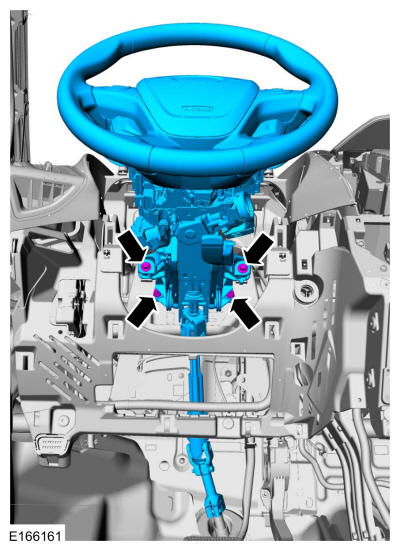

Remove the bolts and the steering column.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

35.

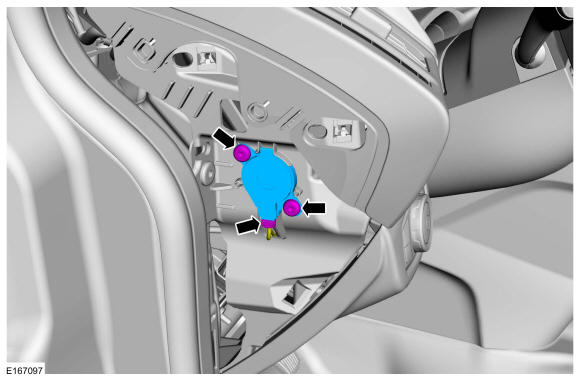

Remove the retainers and the parking aid speaker.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

36.

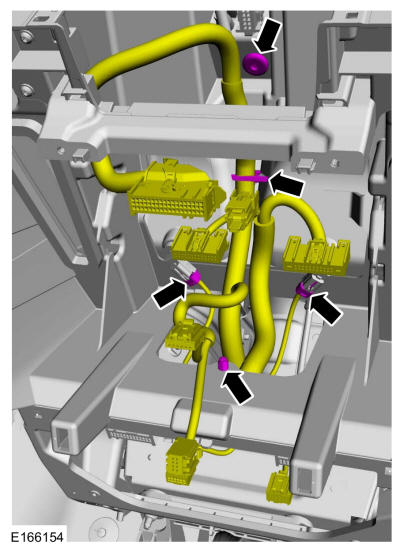

Disconnect the electrical connectors and position the harness aside.

Courtesy of FORD MOTOR COMPANY

37.

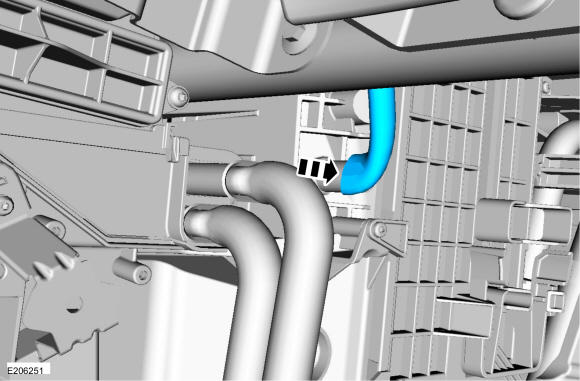

Remove the hose.

Courtesy of FORD MOTOR COMPANY

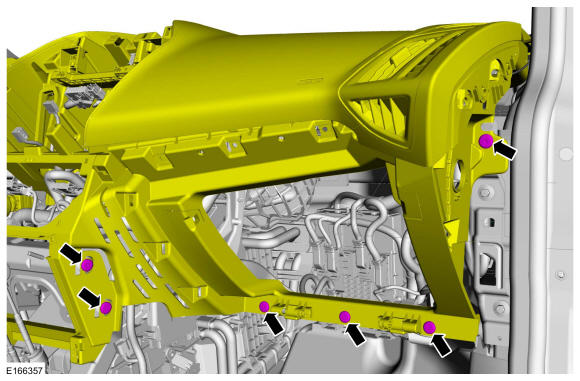

38.

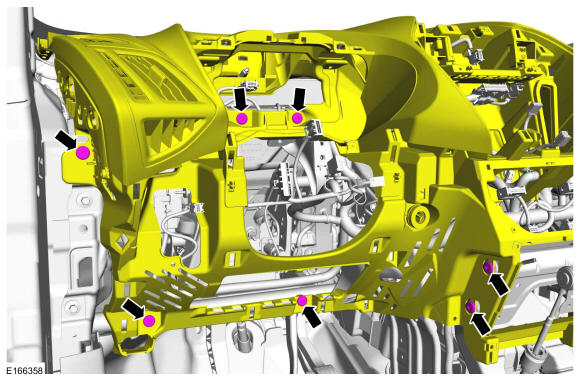

Remove the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

39.

Remove the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

40.

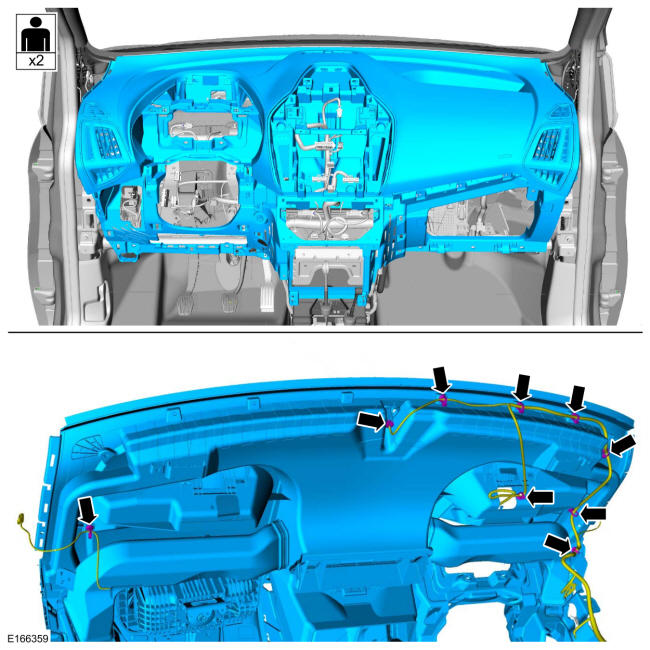

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

Remove the instrument panel upper section.

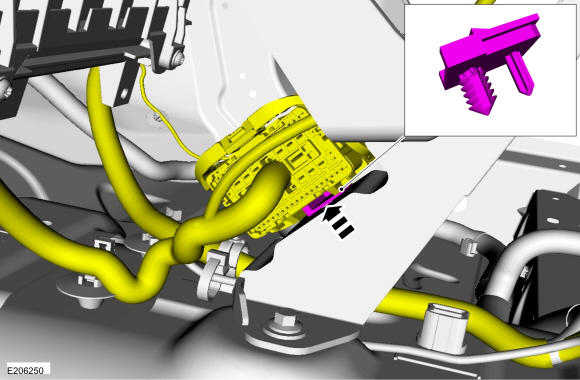

- Disconnect the electrical connector, release the harness retainers and position aside the harness.

Courtesy of FORD MOTOR COMPANY
