Hydraulic Control Unit (HCU): Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The HCU and ABS module are serviced as an assembly.
- 1.NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
If installing a new HCU/ ABS module, using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
- 2.
Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .
- 3.NOTE: Make sure that all openings are sealed.NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

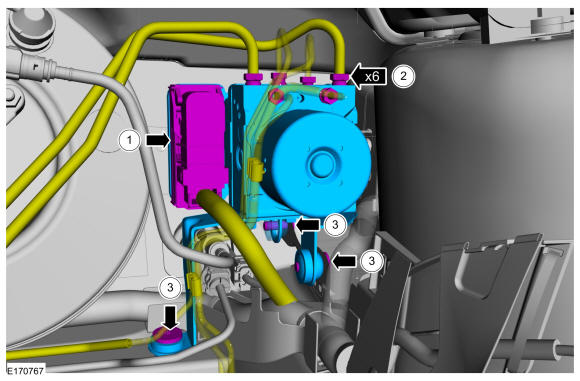

- 1.
Disconnect the ABS module electrical connector.
- 2.
Disconnect the 6 brake tube fittings.Torque: 159 lb.in (18 Nm)
- 3.
Remove the bolts and separate the HCU from the vehicle.Torque: 89 lb.in (10 Nm)
