Removal And Installation

Power seats with manual lumbar and recline

1. 1.

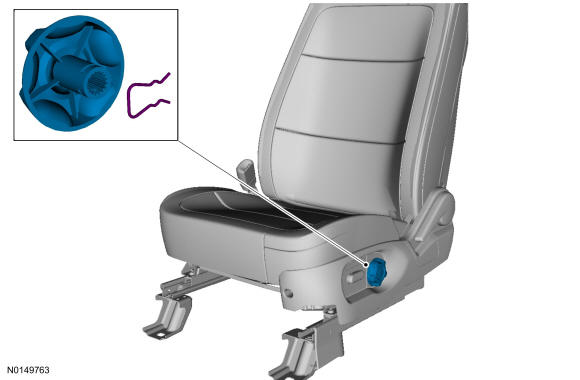

   Release the clip and remove the lumbar knob.

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Pulling out at the front of the bezel may break bezel retainers.

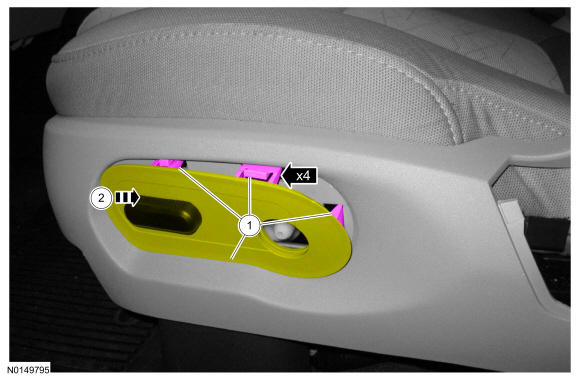

   Release the seat switch bezel from the cushion side shield.

   1. 1.

      Release the retainers.

   1. 2.

      Slide the seat switch bezel rearward and release it from the side shield.

Courtesy of FORD MOTOR COMPANY

1. 3.

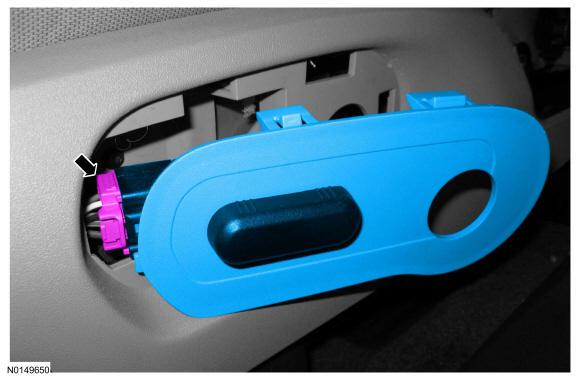

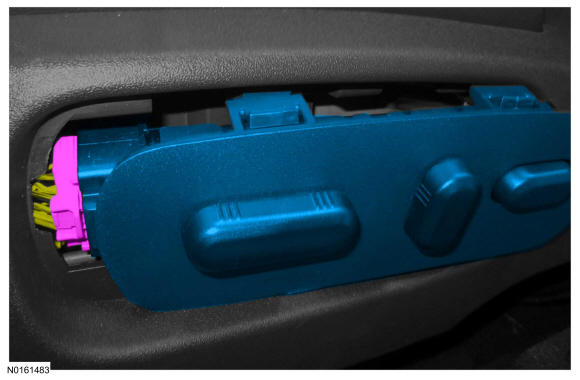

   Disconnect the electrical connector and remove the seat switch bezel assembly.

Courtesy of FORD MOTOR COMPANY

1. 4.

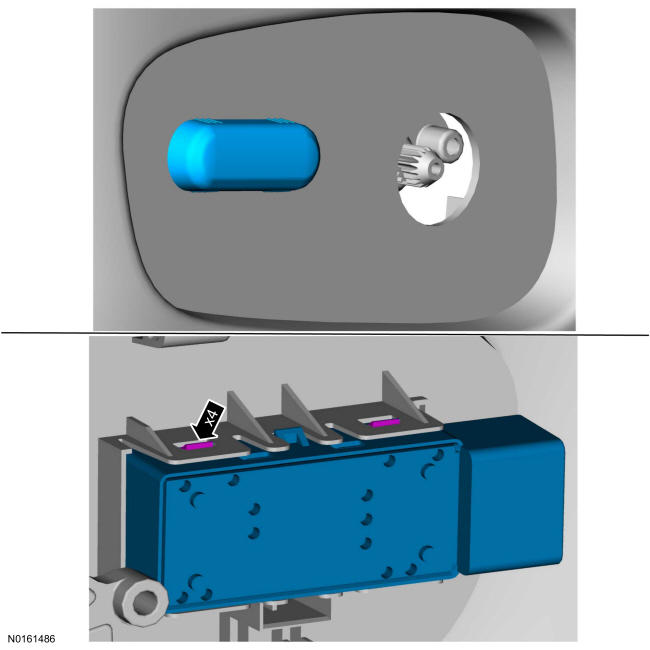

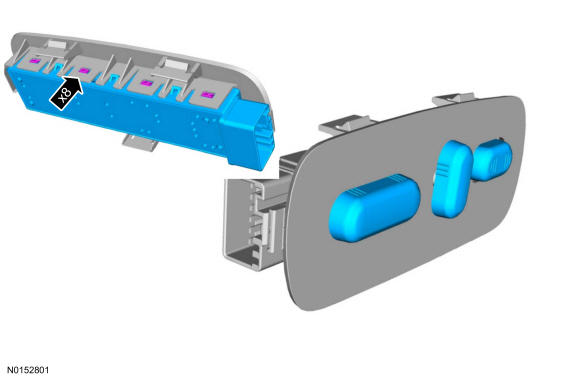

   Remove the seat switch knob. Release the tabs and remove the seat control switch.

Courtesy of FORD MOTOR COMPANY

Power seats

1. 5.


   NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Pulling out at the front of the bezel may break bezel retainers.

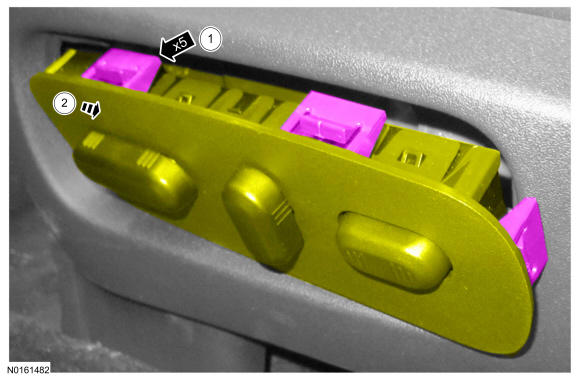

   Release the seat switch bezel from the cushion side shield.

   1. 1.

      Release the retainers.

   1. 2.

      Slide the seat switch bezel rearward and release it from the side shield.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Disconnect the electrical connector. Remove the seat switch bezel assembly.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove the seat switch knobs. Release the tabs and remove seat control switch.

Courtesy of FORD MOTOR COMPANY

Multi-contour seats

1. 8.

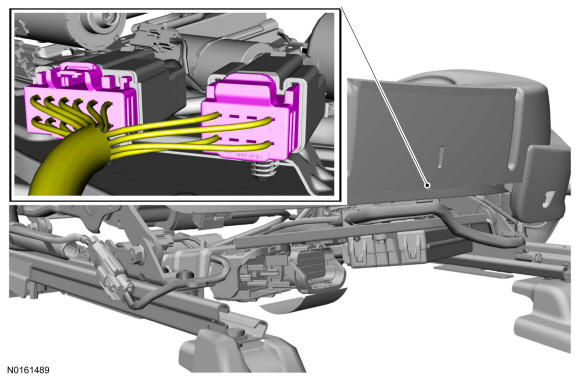

   Disconnect the seat control switch electrical connectors from under the seat.

Courtesy of FORD MOTOR COMPANY

1. 9.

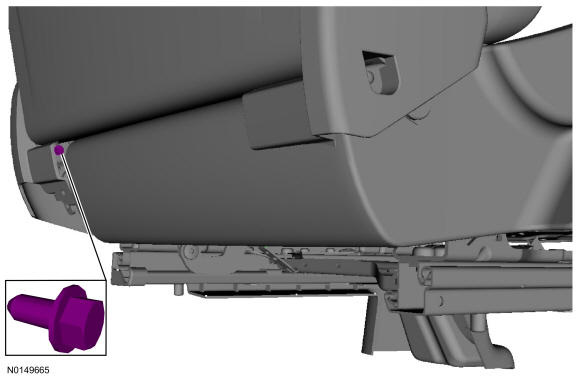

   Remove the screw from the back of the side shield.

Courtesy of FORD MOTOR COMPANY

1. 10.

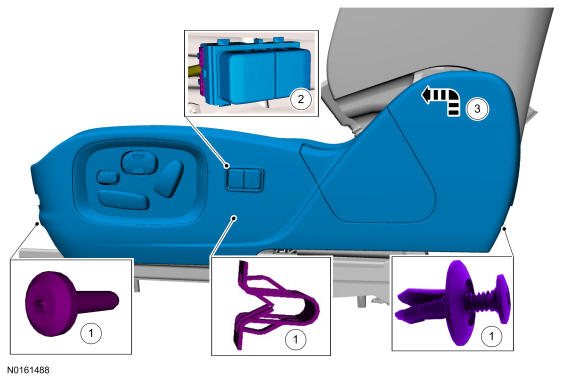

   Remove the cushion side shield.

   1. 1.

      Release the fasteners.

   1. 2.

      Disconnect the memory set switch.

   1. 3.

      Lift and slide the side shield forward to release.

Courtesy of FORD MOTOR COMPANY

1. 11.

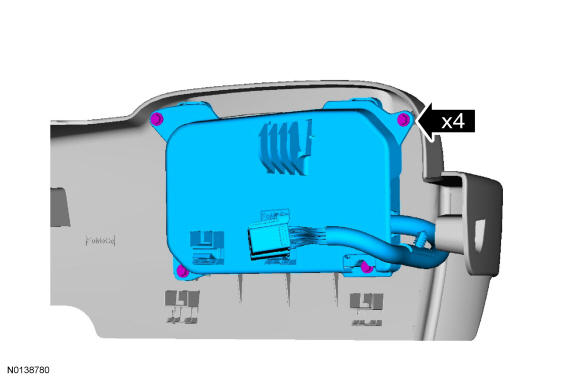

   From the back of the side shield, remove the fasteners. Remove the multi-contour seat switch.

Courtesy of FORD MOTOR COMPANY

Installation

1. 1.

   To install, reverse the removal procedure.
