Selector Lever Cable - Column Shift: Removal

1. 1.

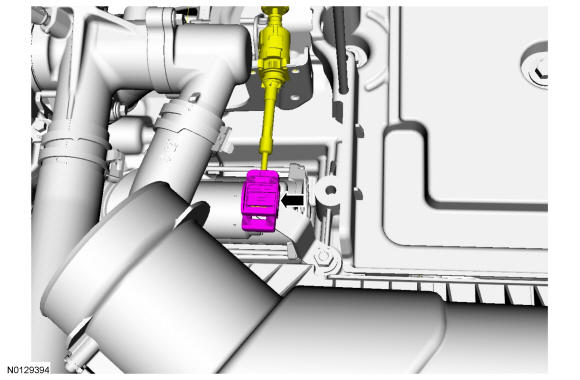

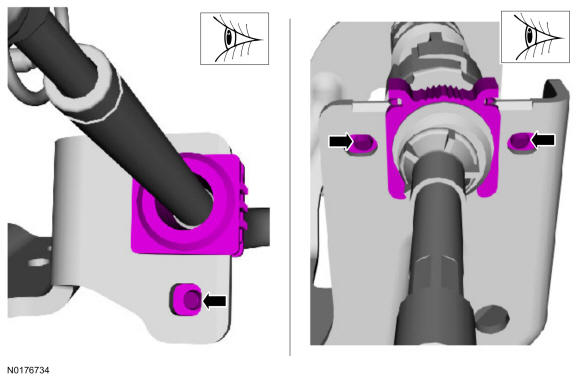

   Prior to replacing the selector lever cable for a no start or high shift effort concern, verify the selector lever cable to bracket clip is fully seated at the transmission and selector lever assembly. Unseated cables can cause selector lever cable binding and prevent the manual shaft from completely returning to the P (Park) position.

Courtesy of FORD MOTOR COMPANY

1. 2.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

1. 3.

   Remove the steering column shrouds. Refer to Steering Column .

1. 4.



Courtesy of FORD MOTOR COMPANY

1. 5.



Courtesy of FORD MOTOR COMPANY

1. 6.



Courtesy of FORD MOTOR COMPANY

1. 7.



Courtesy of FORD MOTOR COMPANY

1. 8.



Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the ACL and outlet pipe. Refer to Intake Air Distribution and Filtering .

1. 10.



Courtesy of FORD MOTOR COMPANY

1. 11.



Courtesy of FORD MOTOR COMPANY

1. 12.



Courtesy of FORD MOTOR COMPANY

1. 13.



Courtesy of FORD MOTOR COMPANY
