Main Control Valve Body: Installation

  1. 1.

    New separator plate.
    • Tighten to 10 Nm (89 lb-in).
GFD110653Courtesy of FORD MOTOR COMPANY

  1. 2.

    • Tighten to 10 Nm (89 lb-in).
GFD110654Courtesy of FORD MOTOR COMPANY

  1. 3.

    Align the new separator plate on the stud and the guide pin.
GFD110655Courtesy of FORD MOTOR COMPANY

  1. 4.

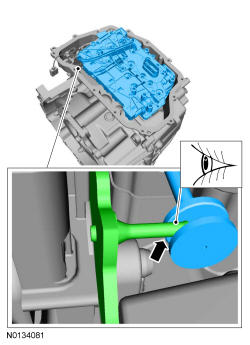

    NOTE: Be sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.
GFD110631Courtesy of FORD MOTOR COMPANY

  1. 5.

    Nut hand-tight.
GFD110656Courtesy of FORD MOTOR COMPANY

  1. 6.

    Short bolts hand-tight.
GFD110657Courtesy of FORD MOTOR COMPANY

  1. 7.

    Long bolts hand-tight.
GFD110658Courtesy of FORD MOTOR COMPANY

  1. 8.

    Tighten in a crisscross pattern.
    • Tighten to 10 Nm (89 lb-in).
GFD110659Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
GFD110660Courtesy of FORD MOTOR COMPANY

  1. 10.

GFD110635Courtesy of FORD MOTOR COMPANY

  1. 11.

GFD110626Courtesy of FORD MOTOR COMPANY

  1. 12.

    Install the main control cover. Refer to Main Control Cover .

  1. 13.

    NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

    Refer to Solenoid Body Strategy Download .
