Differential Gear Assembly: Disassembly

  1. 1.

    Pin punch. Discard the specified component. Follow local disposal regulations.
GFD111004Courtesy of FORD MOTOR COMPANY

  1. 2.

GFD111005Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

    1. 1.

      Side gear

    1. 2.

      Spider gear
GFD111006Courtesy of FORD MOTOR COMPANY

  1. 4.

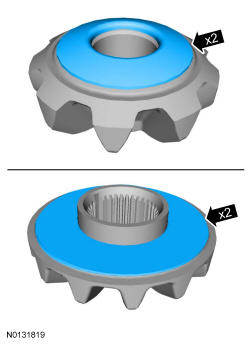

    NOTE: Do not mix up the washers from the side or spider gears that they are assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
GFD111007Courtesy of FORD MOTOR COMPANY
