Differential Gear Assembly: Assembly

  1. 1.

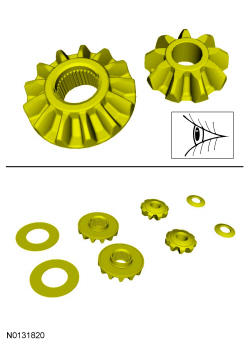

    Check for damage or excessive wear. Visual check.
GFD111008Courtesy of FORD MOTOR COMPANY

  1. 2.

    Check for damage or excessive wear. Visual check.
GFD111009Courtesy of FORD MOTOR COMPANY

  1. 3.

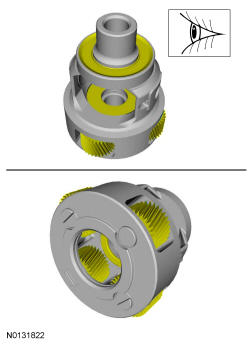

    Check that bearings spin freely and do not move back and forth or side to side excessively. Check for damage or excessive wear. Visual check.
GFD111010Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
GFD111011Courtesy of FORD MOTOR COMPANY

  1. 5.

GFD111012Courtesy of FORD MOTOR COMPANY

  1. 6.

GFD111013Courtesy of FORD MOTOR COMPANY

  1. 7.

    Align the roll pin holes. Visual check.
GFD111014Courtesy of FORD MOTOR COMPANY

  1. 8.

    New roll pin. Pin punch.
GFD111015Courtesy of FORD MOTOR COMPANY
