Connector Repair Procedures

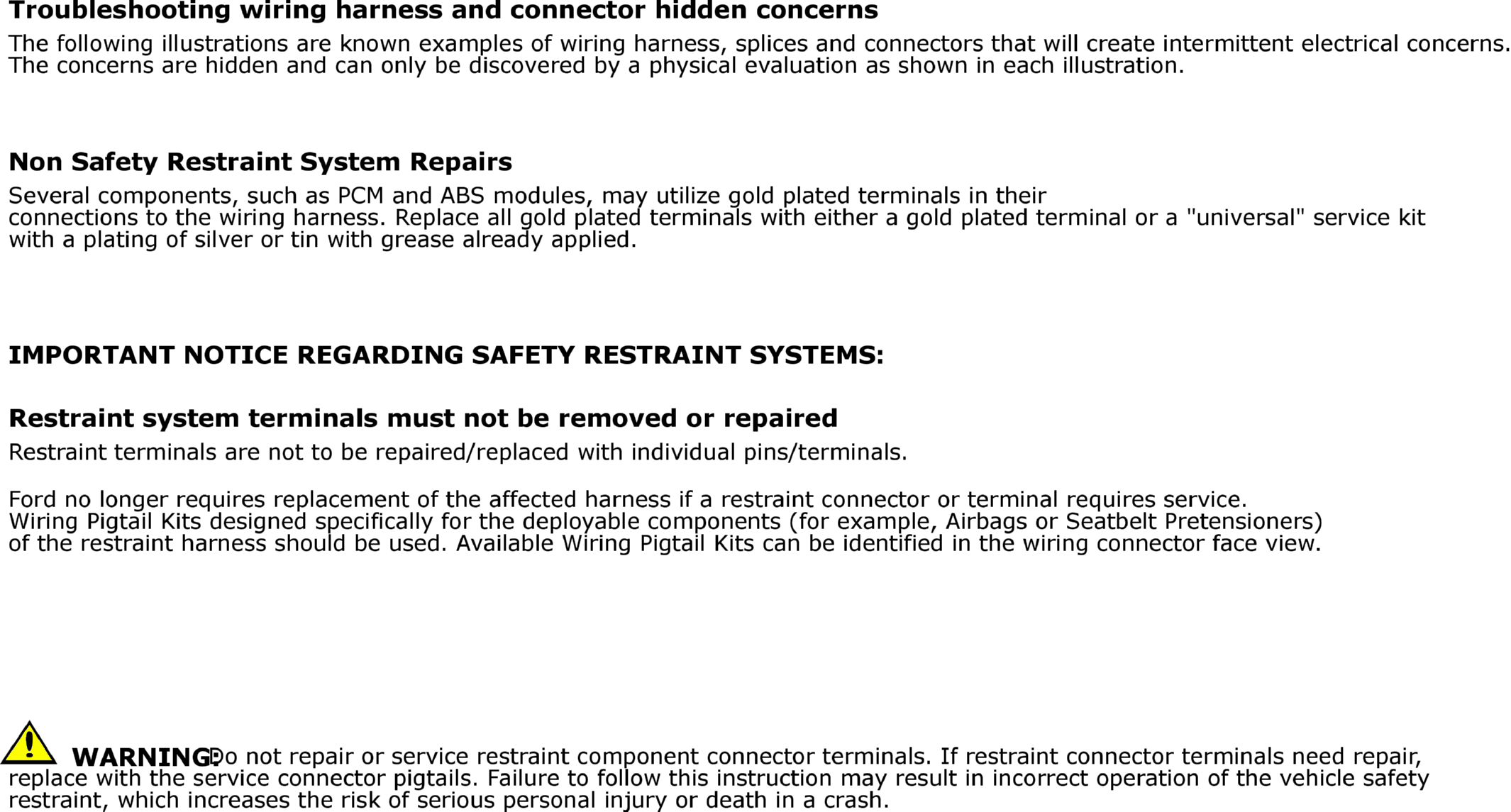

GFDW68951Courtesy of FORD MOTOR COMPANY

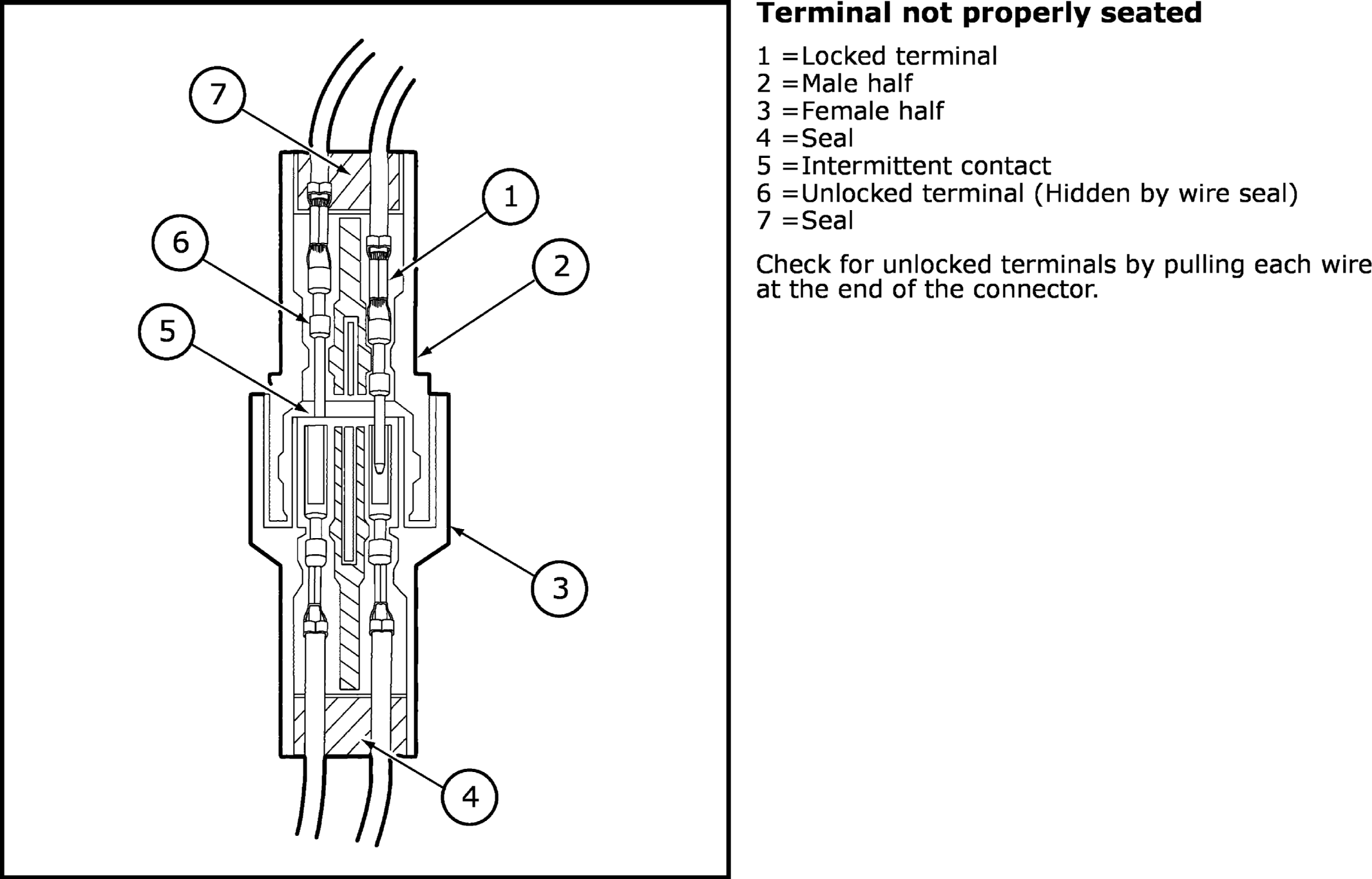

GFDW68952Courtesy of FORD MOTOR COMPANY

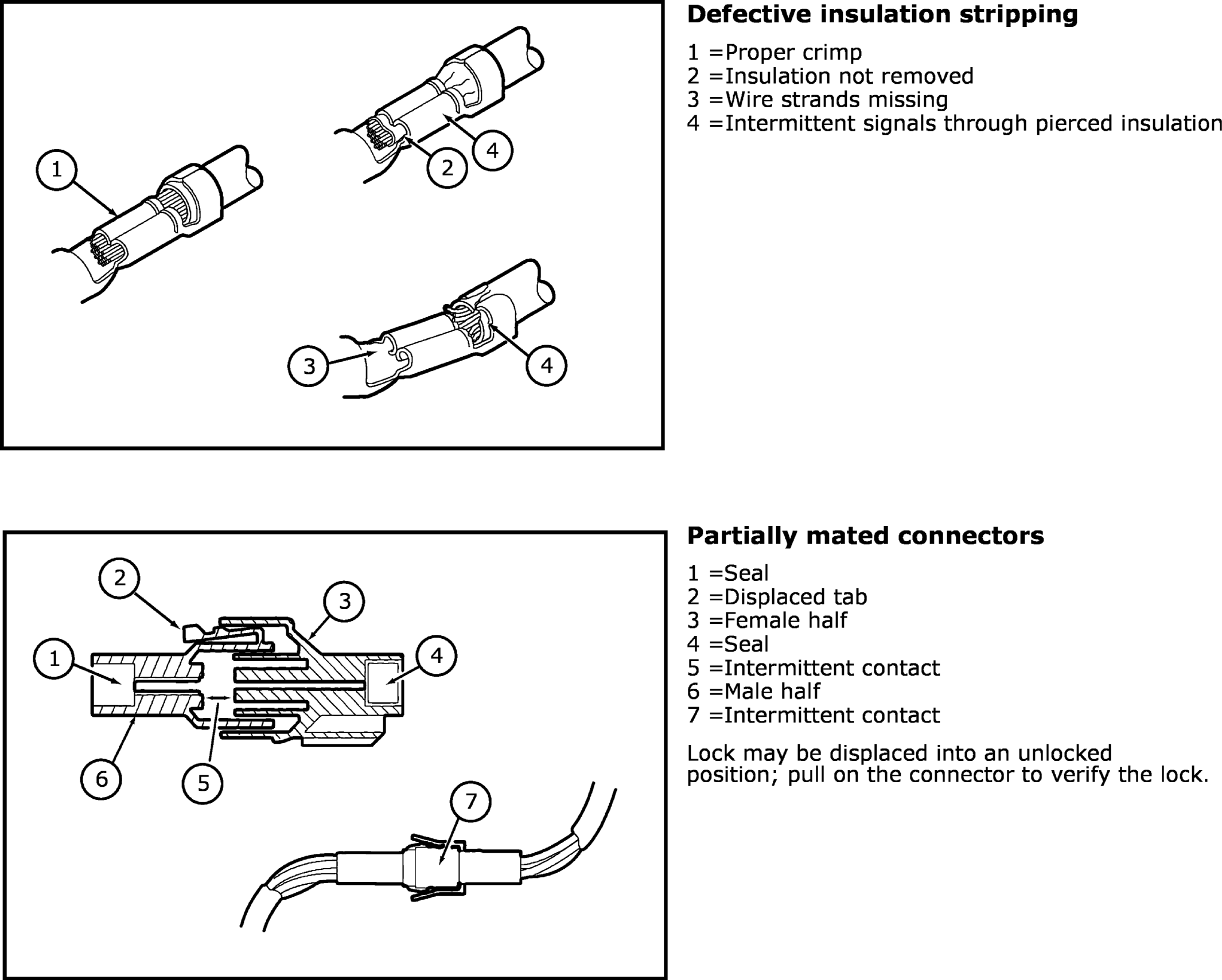

GFDW68953Courtesy of FORD MOTOR COMPANY

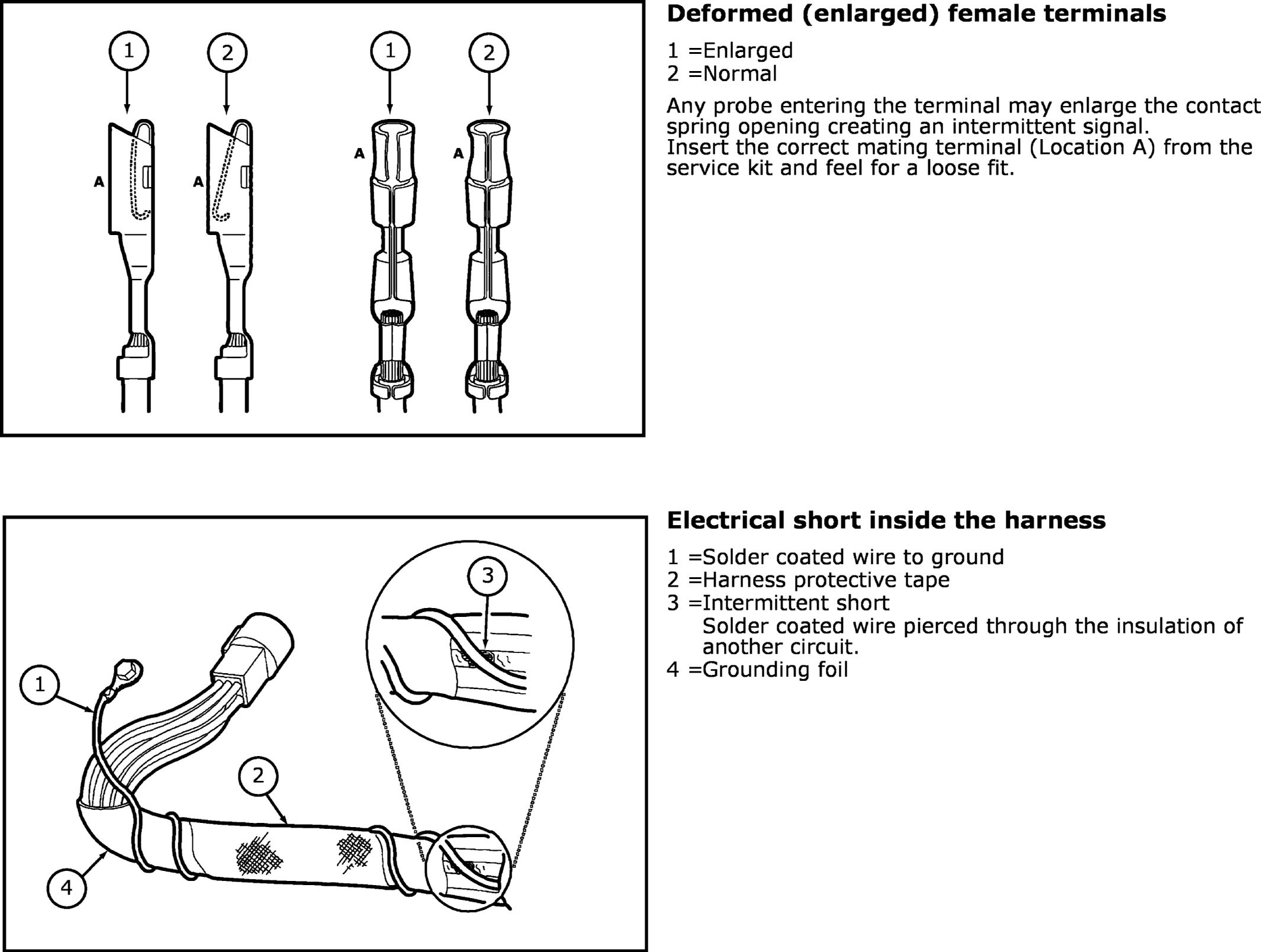

GFDW68954Courtesy of FORD MOTOR COMPANY

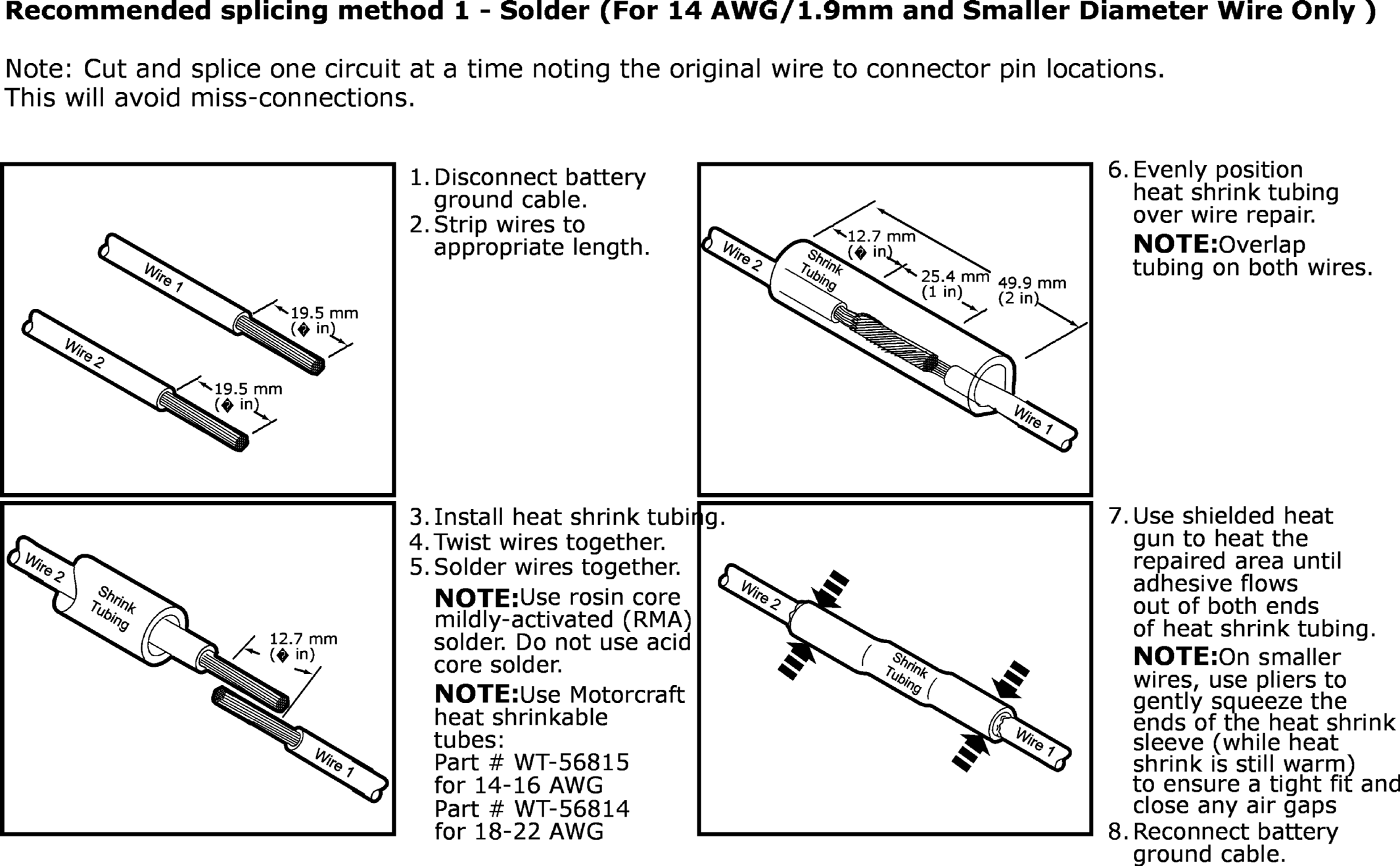

GFDW68955Courtesy of FORD MOTOR COMPANY

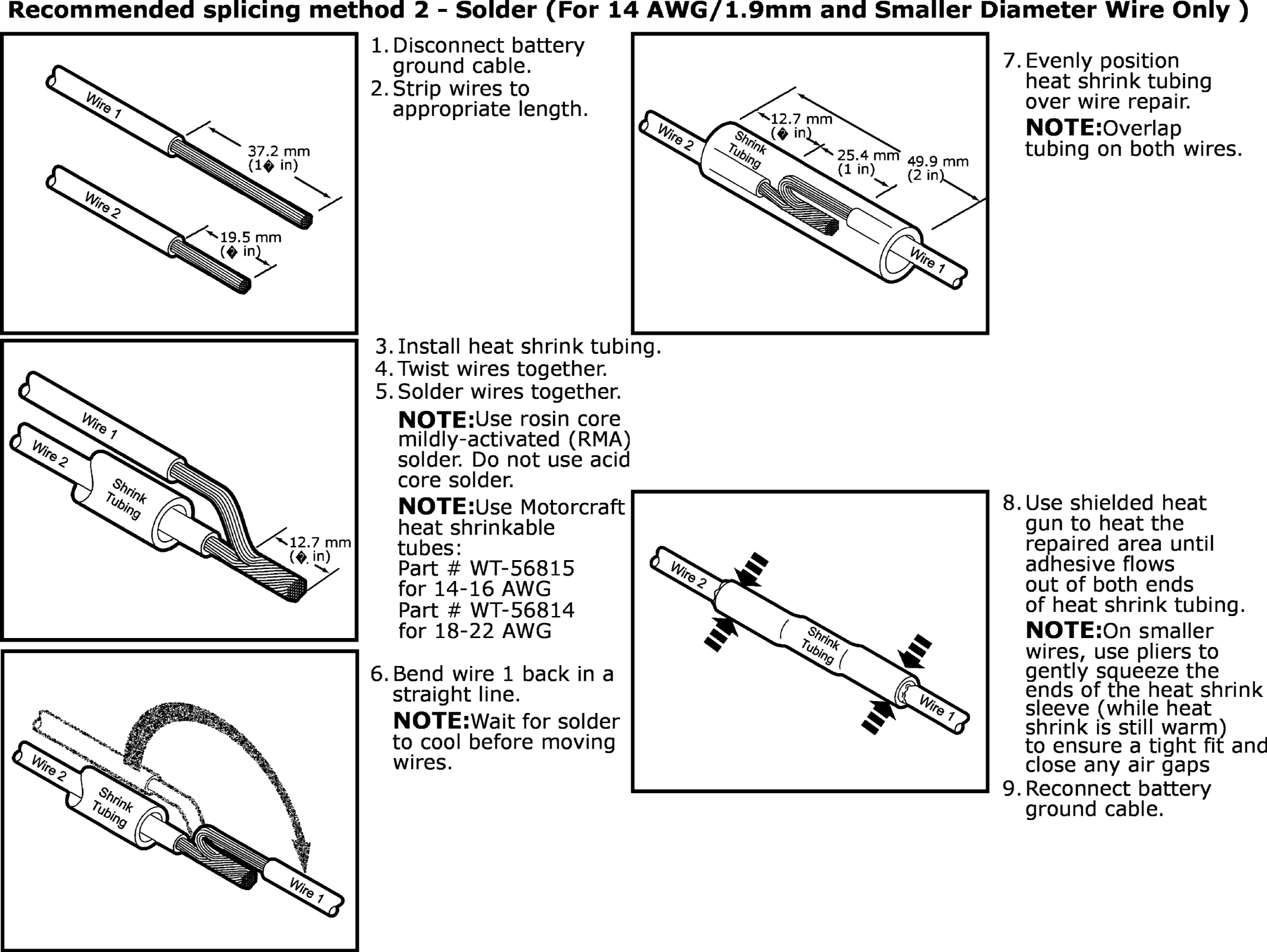

GFDW68956Courtesy of FORD MOTOR COMPANY

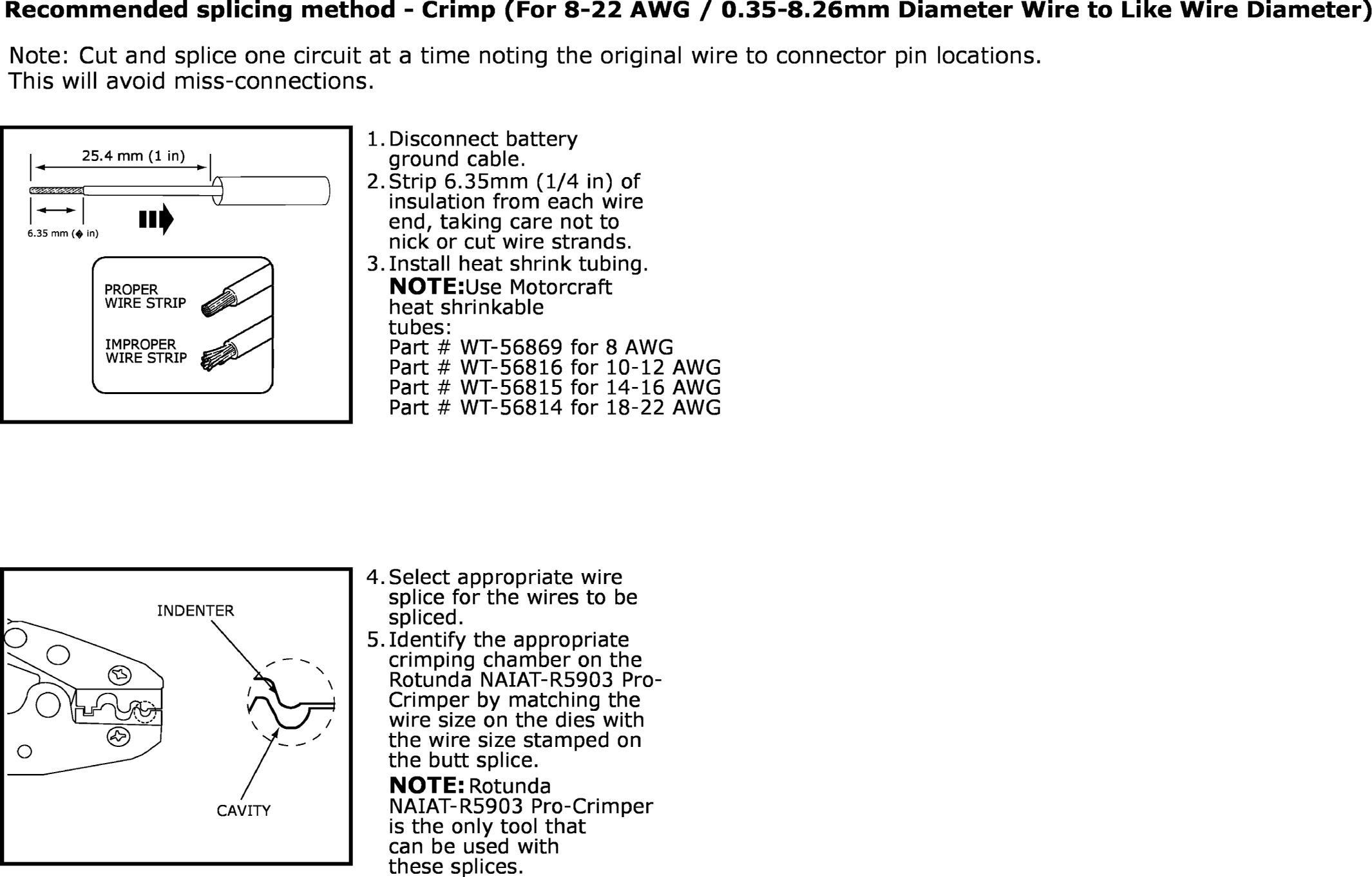

GFDW68957Courtesy of FORD MOTOR COMPANY

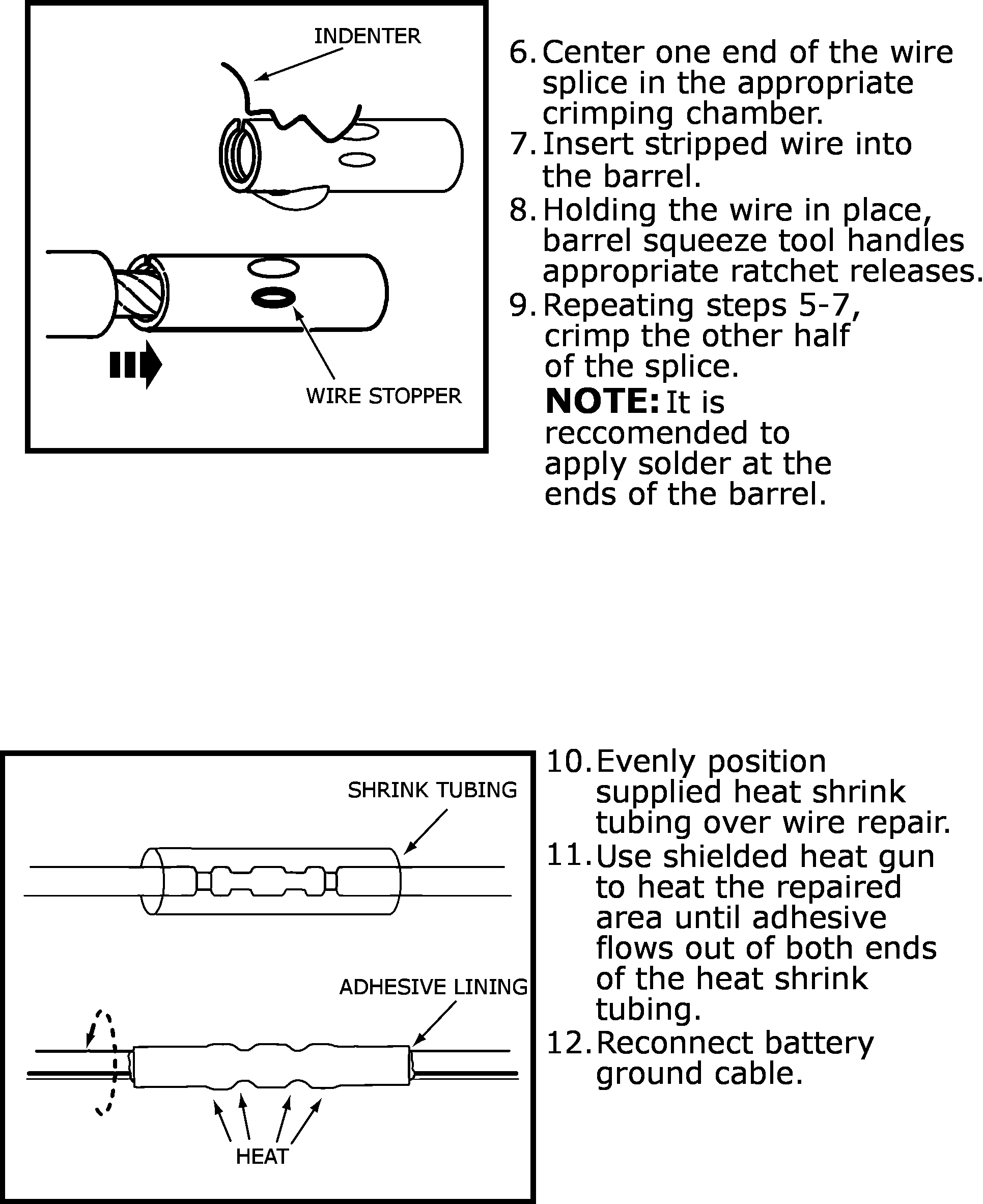

GFDW68958Courtesy of FORD MOTOR COMPANY

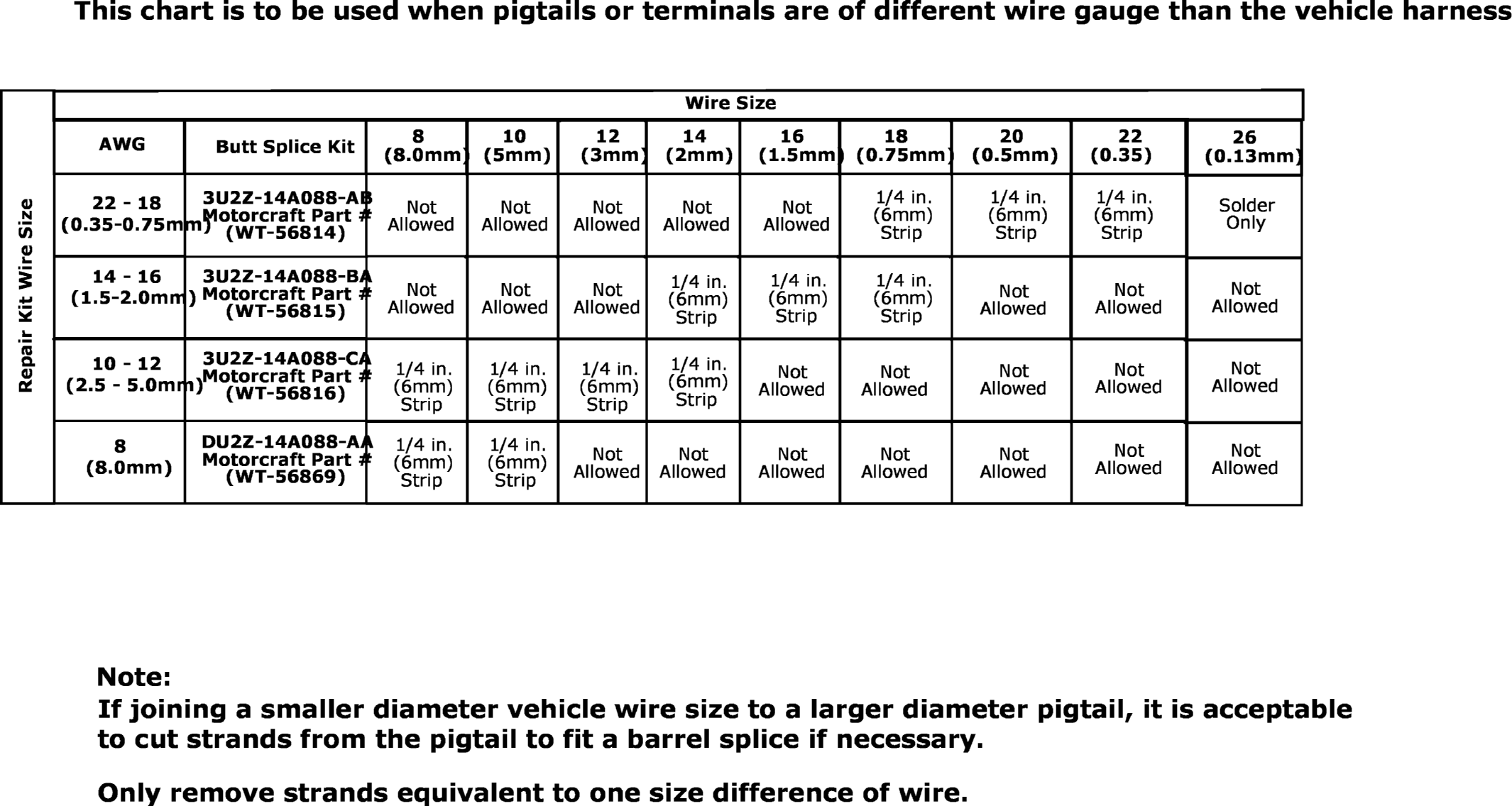

GFDW68959Courtesy of FORD MOTOR COMPANY
