Section 265 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2015 Ford Special Service Police Sedan and 2015 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.

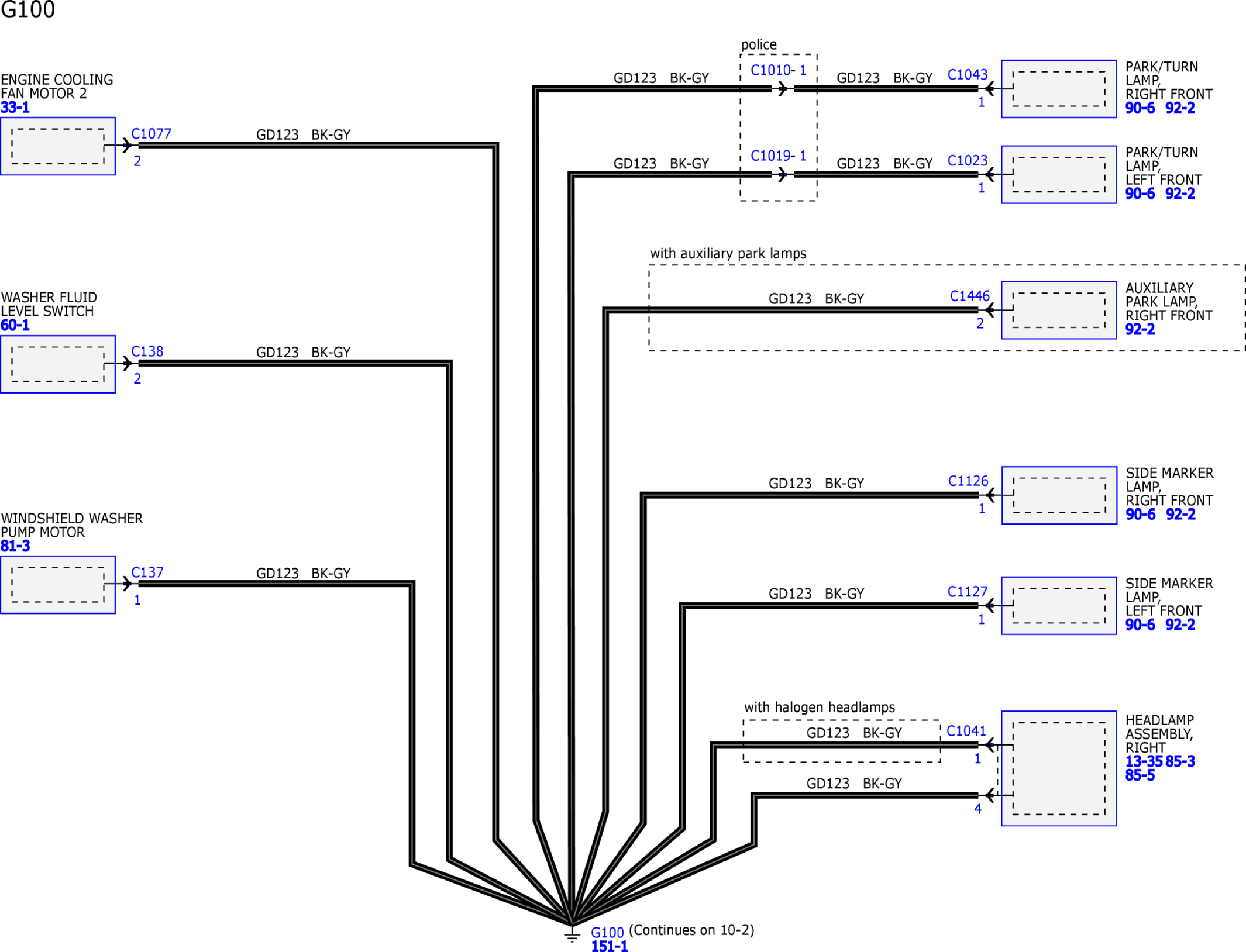

GFDW42627Courtesy of FORD MOTOR COMPANY

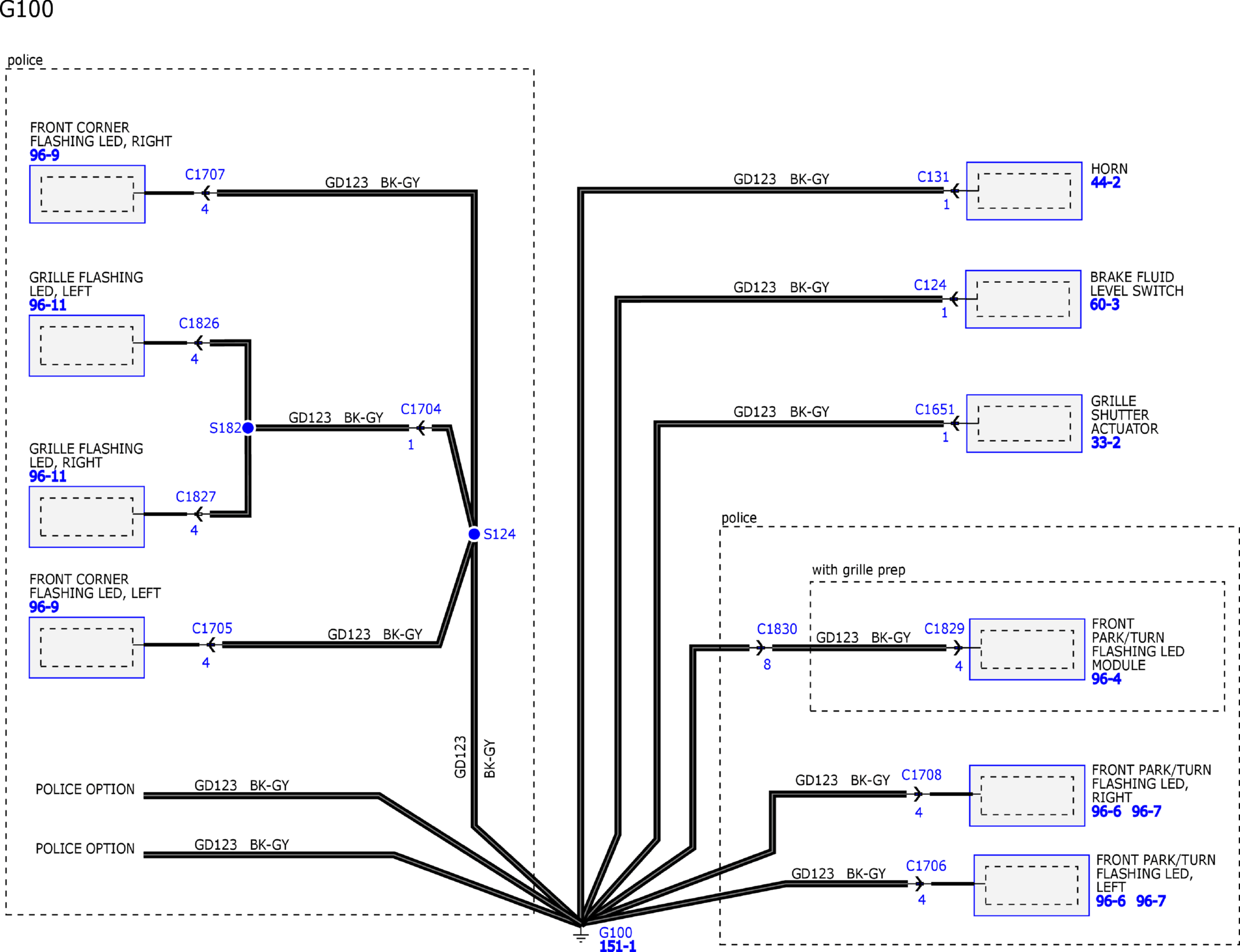

GFDW42628Courtesy of FORD MOTOR COMPANY

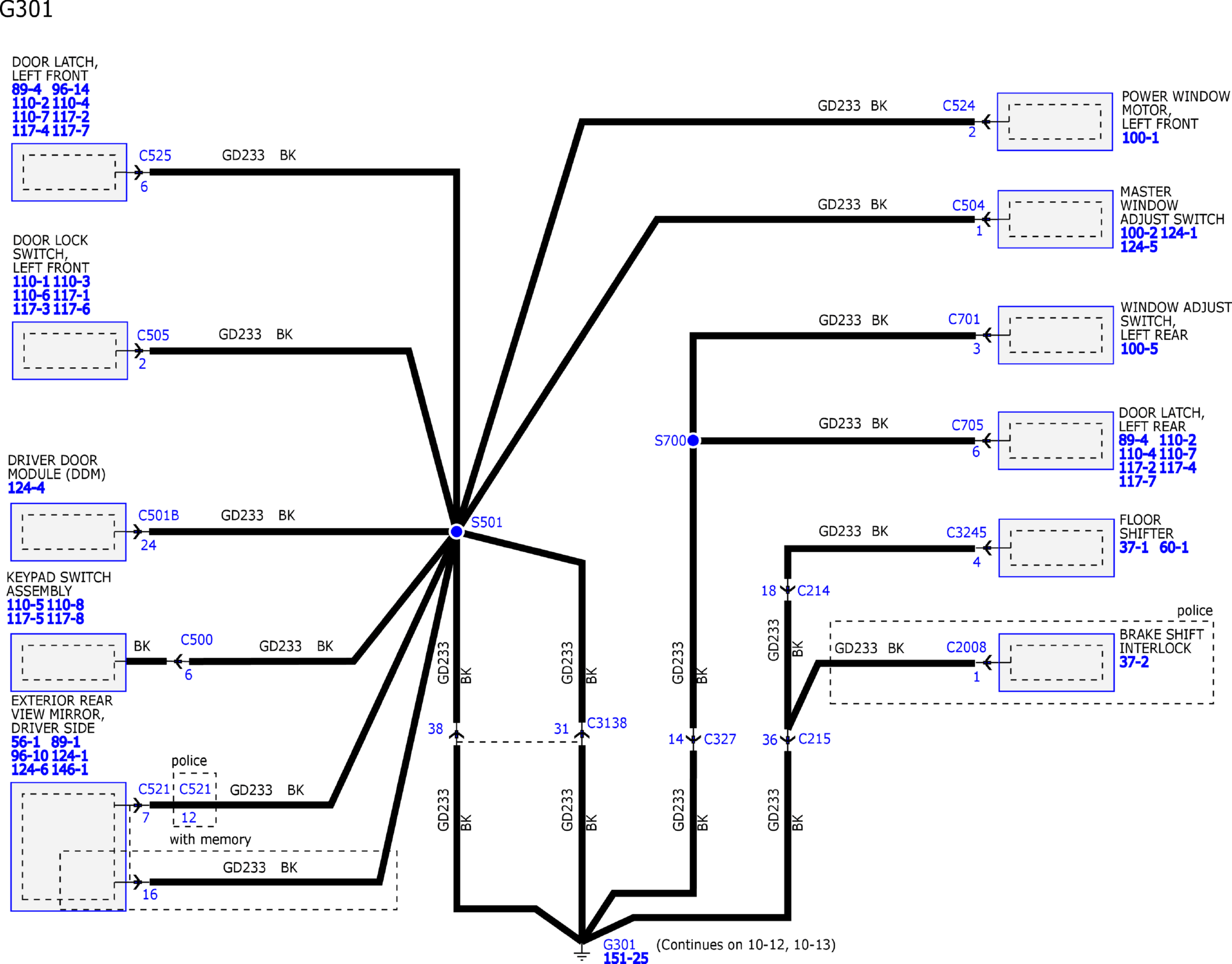

GFDW42629Courtesy of FORD MOTOR COMPANY

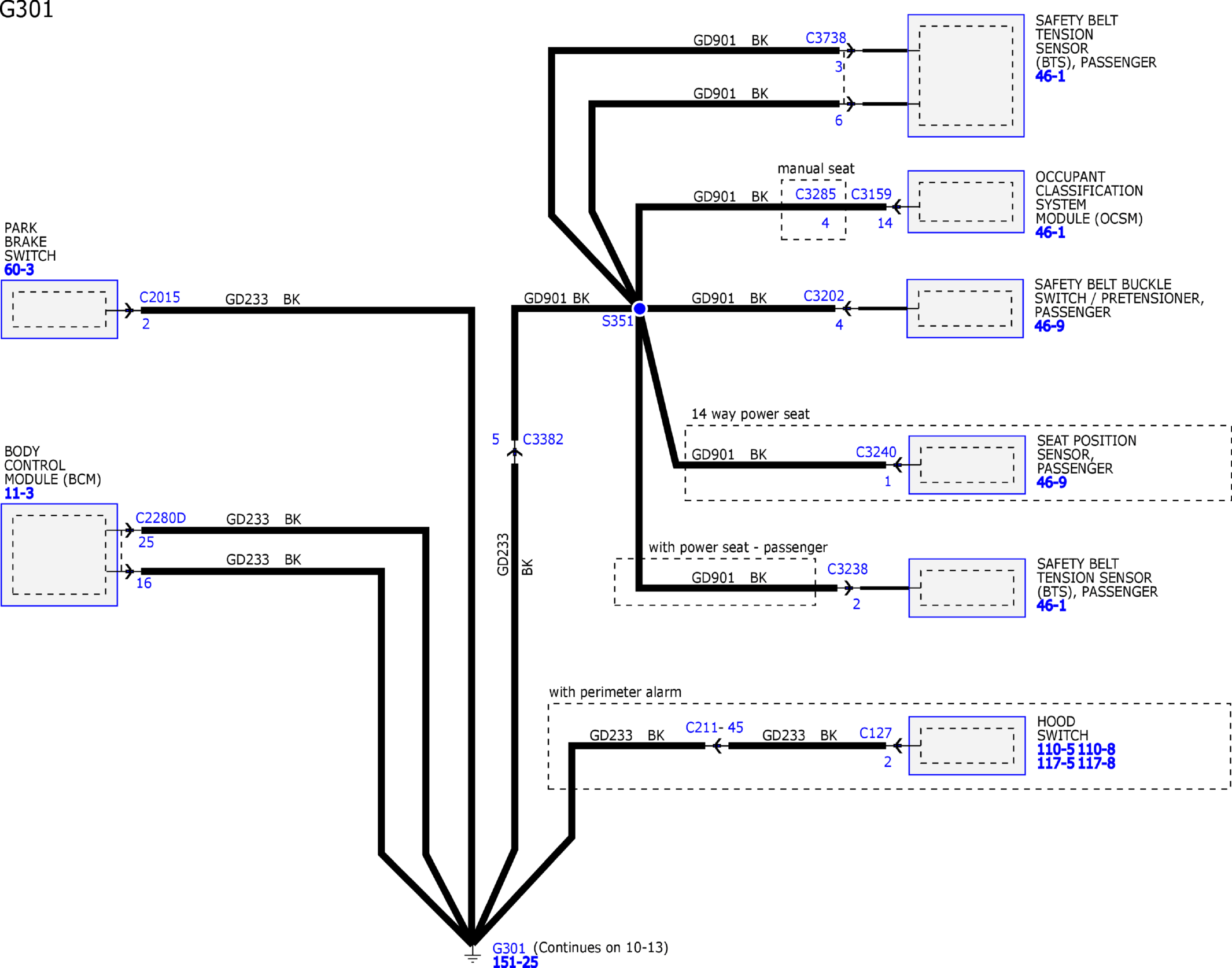

GFDW42630Courtesy of FORD MOTOR COMPANY

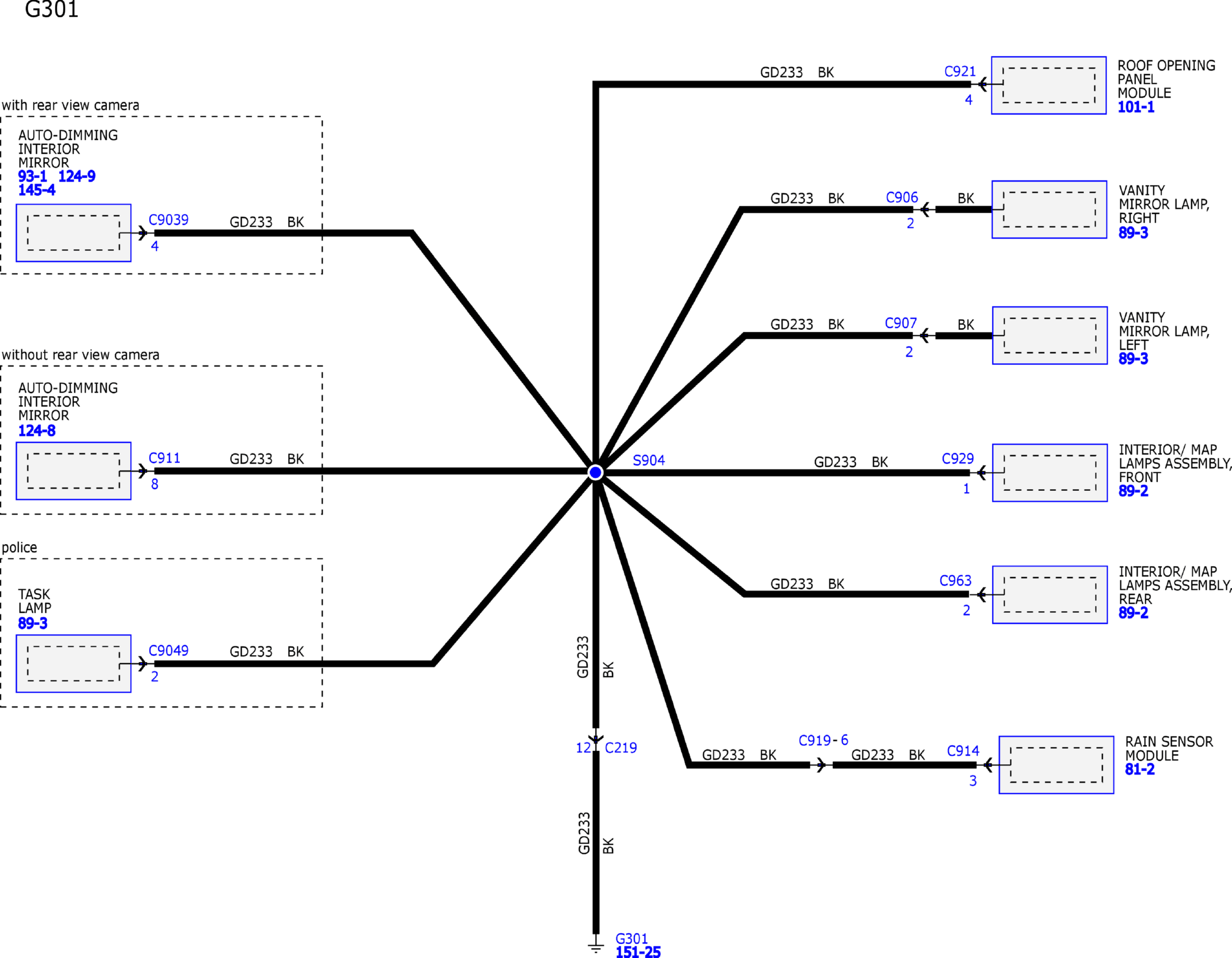

GFDW42631Courtesy of FORD MOTOR COMPANY

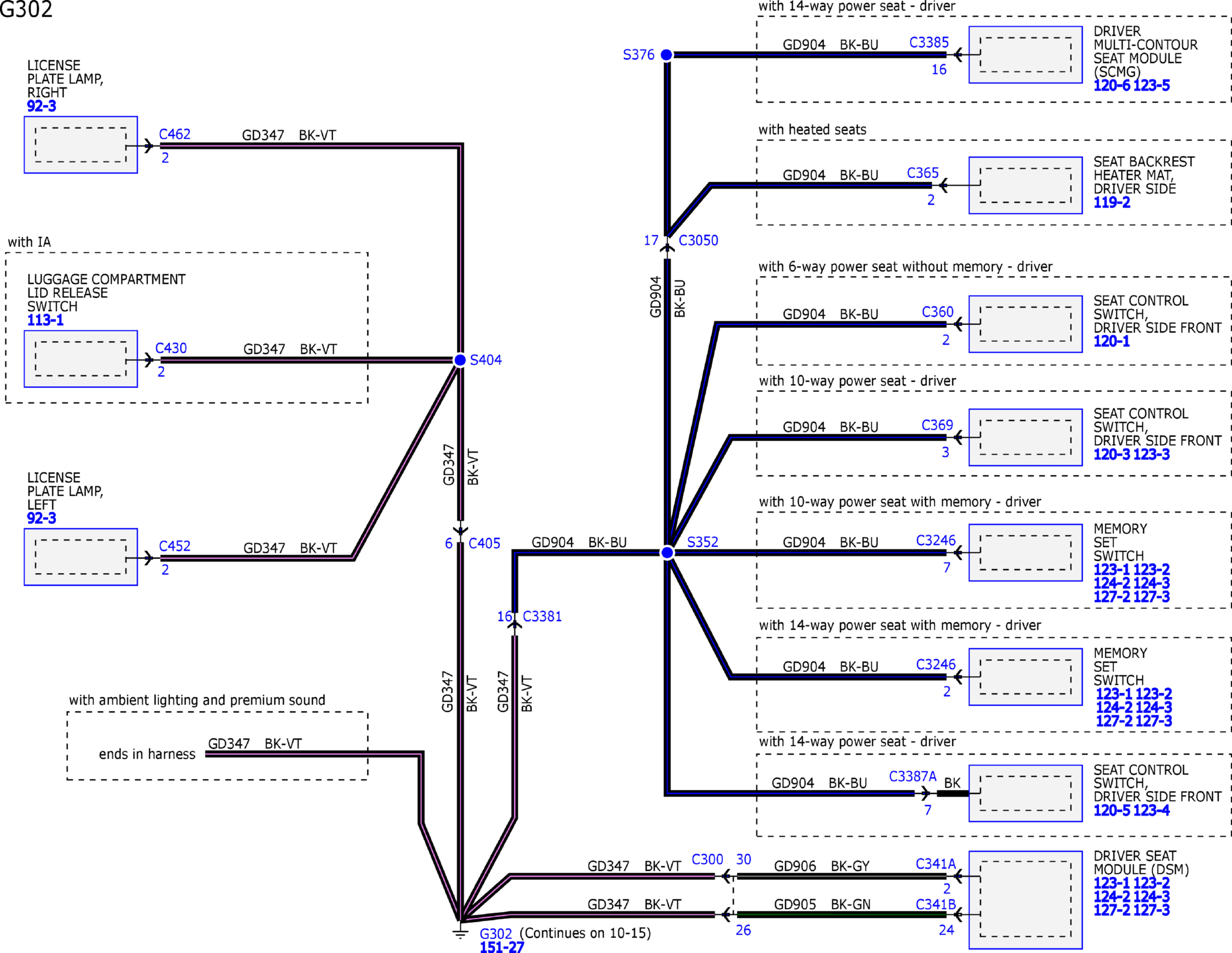

GFDW42632Courtesy of FORD MOTOR COMPANY

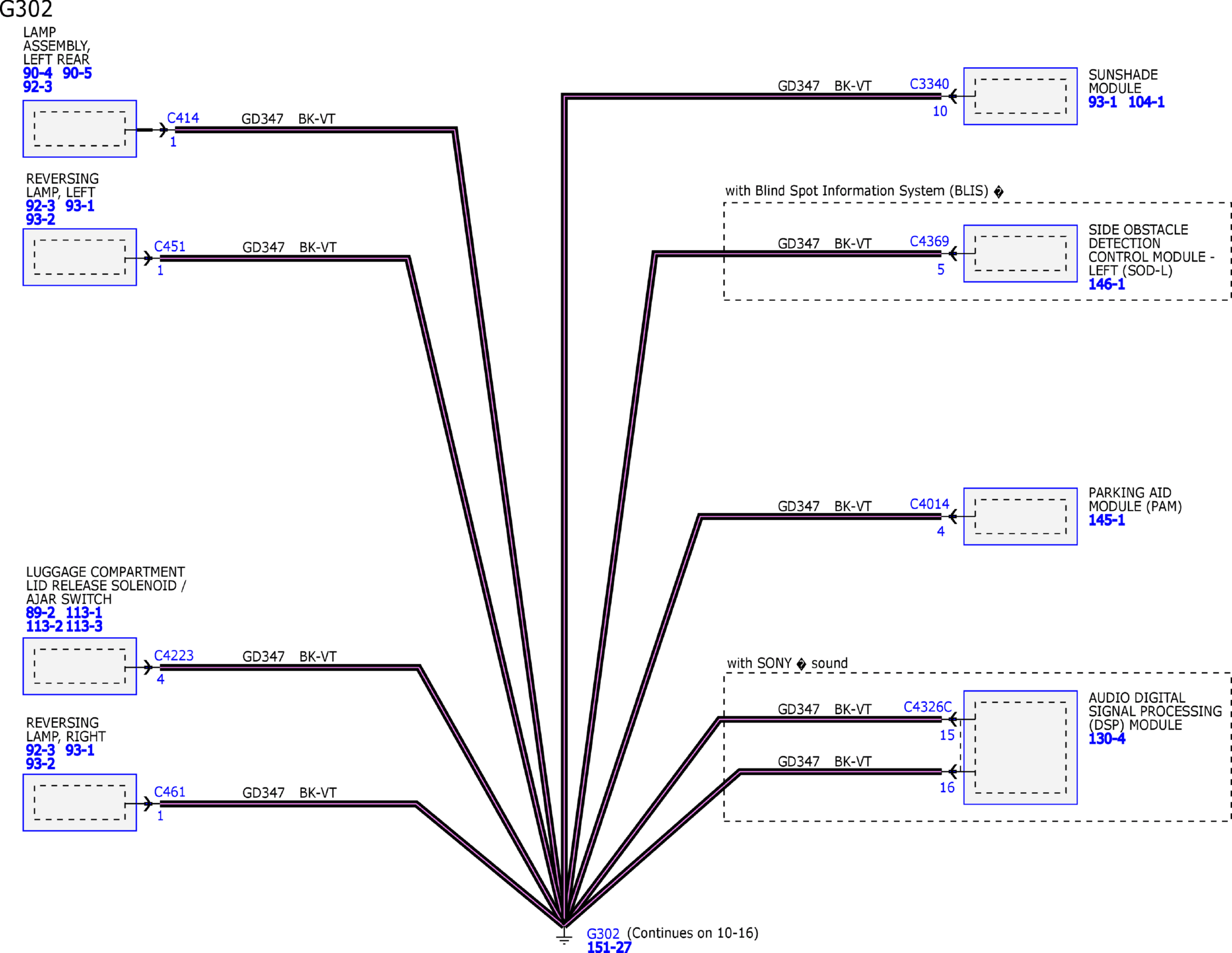

GFDW42633Courtesy of FORD MOTOR COMPANY

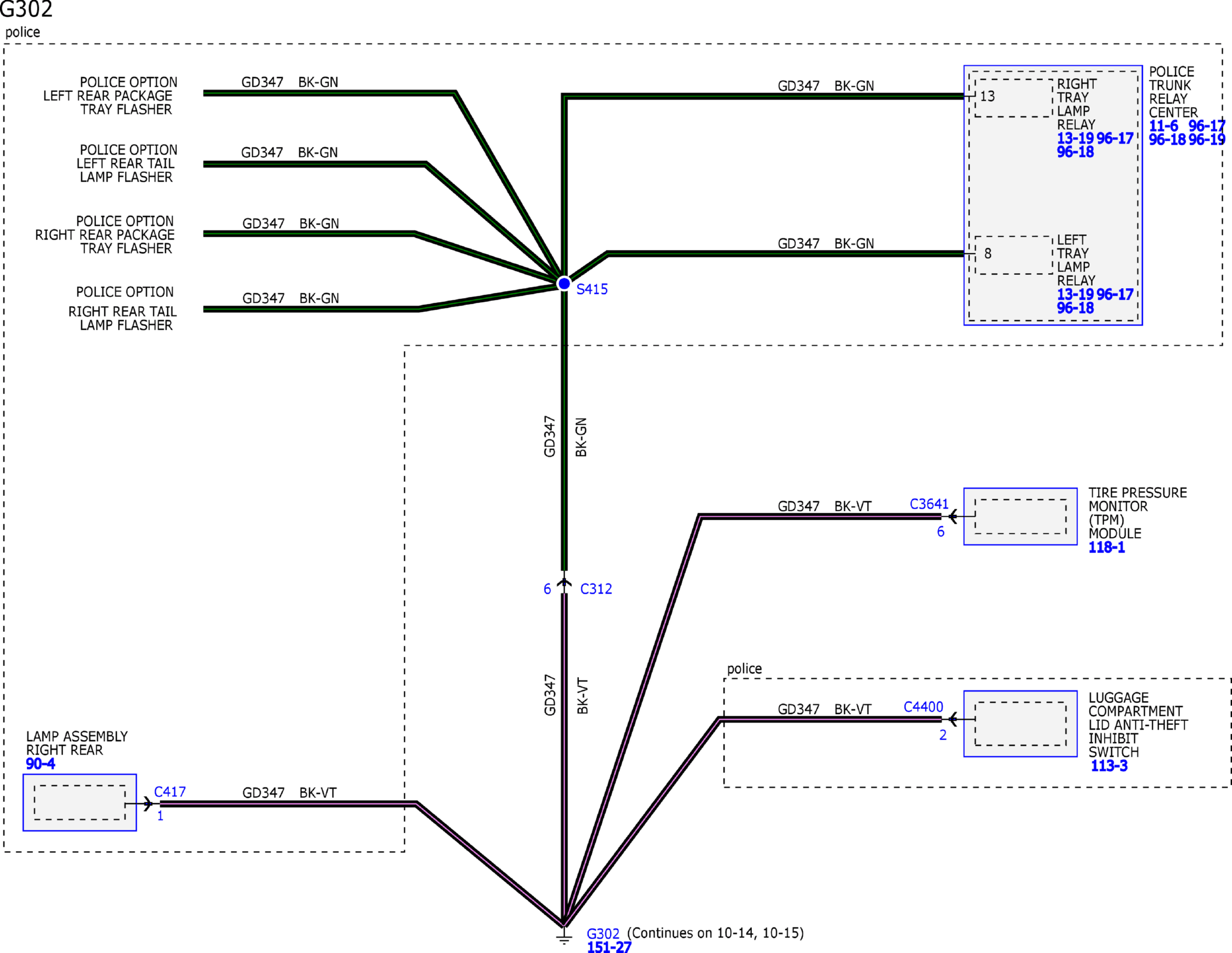

GFDW42634Courtesy of FORD MOTOR COMPANY

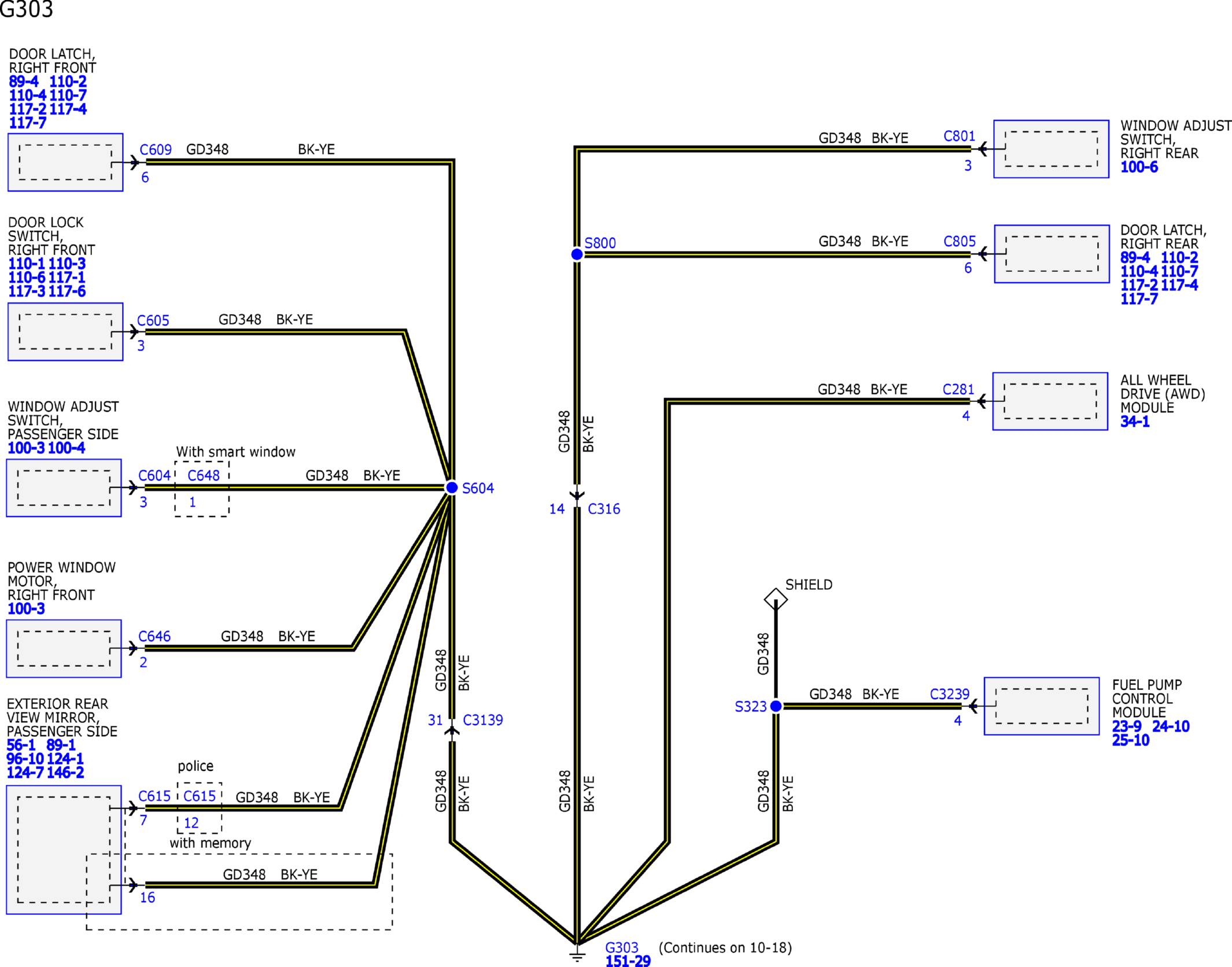

GFDW42635Courtesy of FORD MOTOR COMPANY

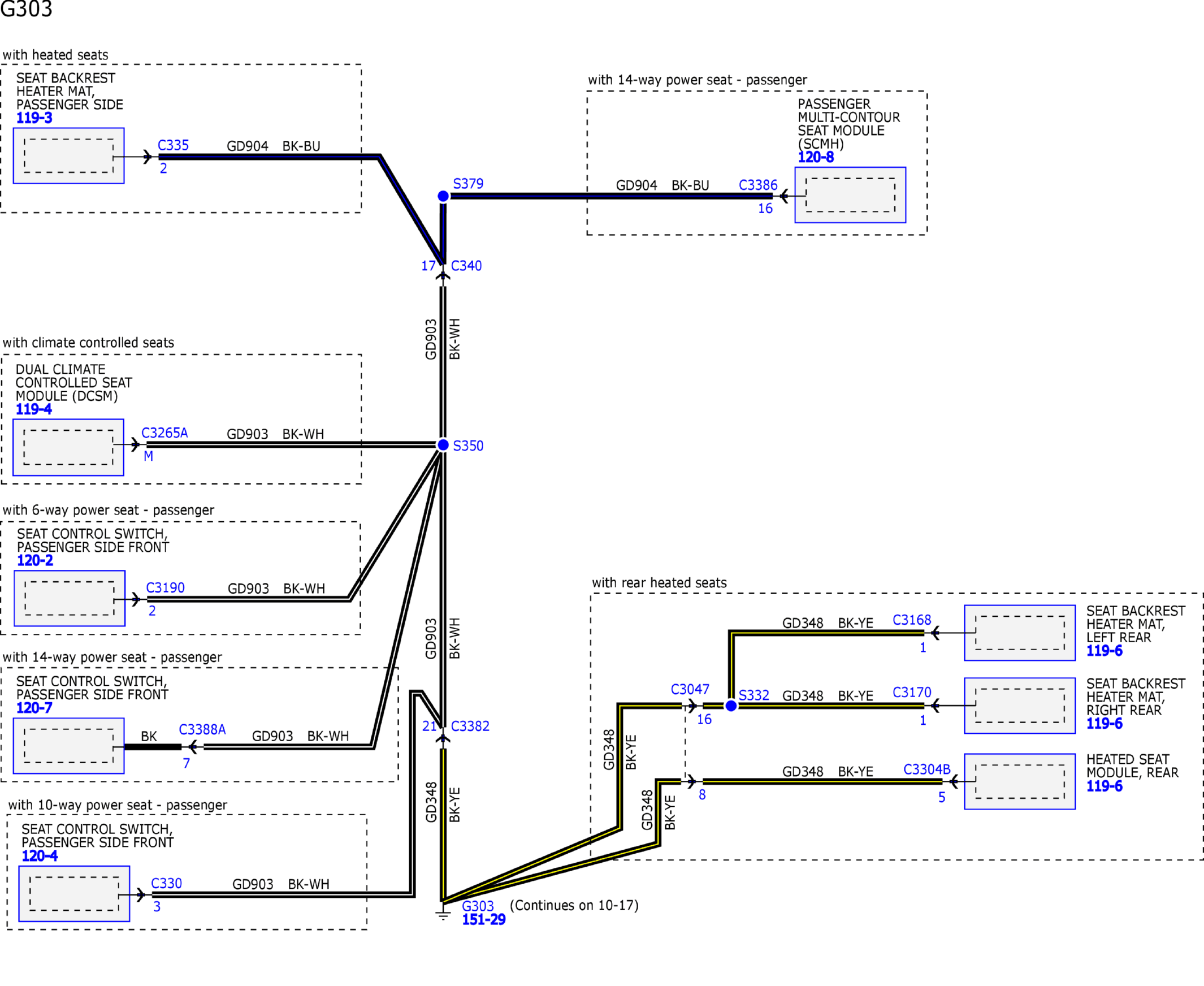

GFDW42636Courtesy of FORD MOTOR COMPANY

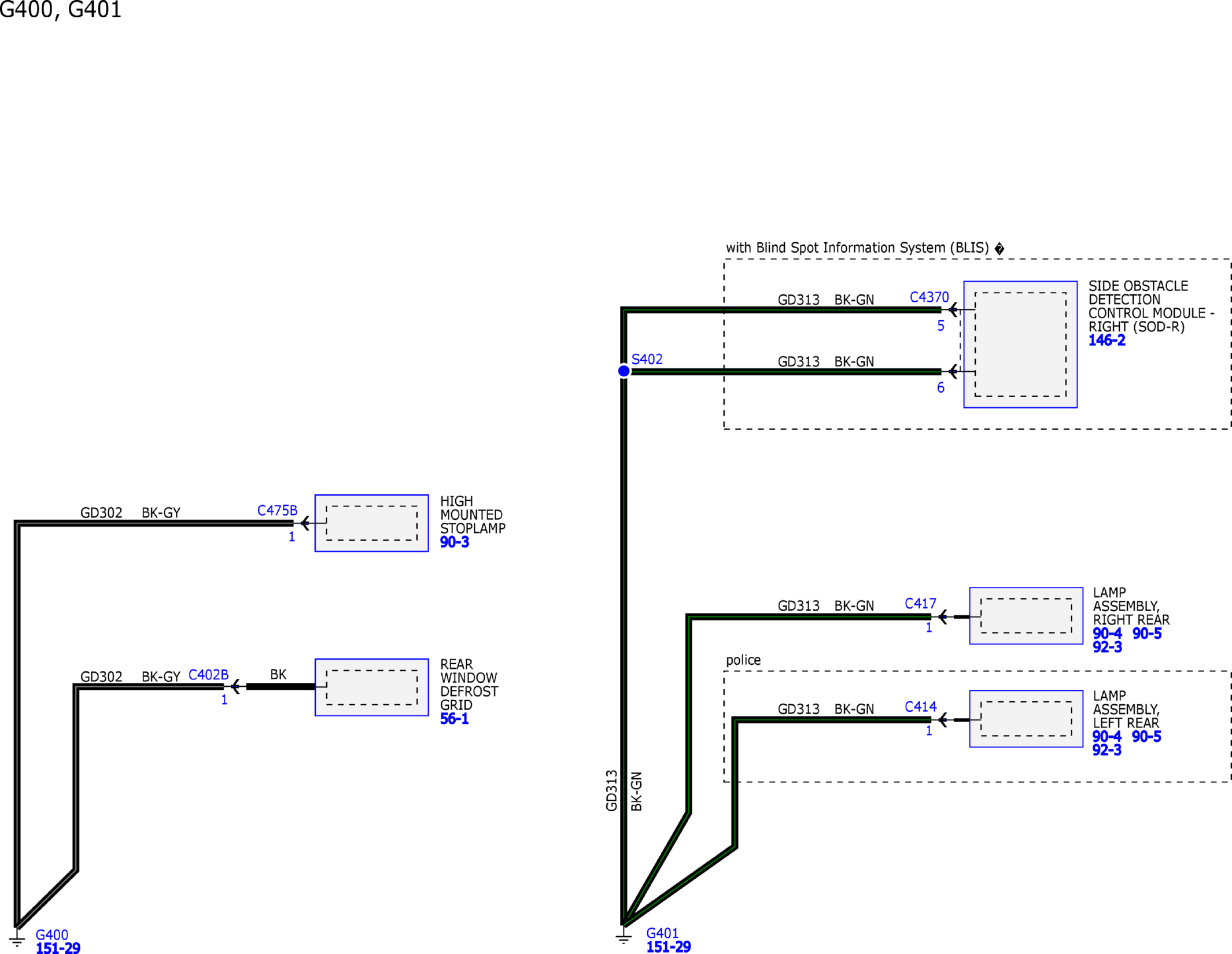

GFDW42637Courtesy of FORD MOTOR COMPANY

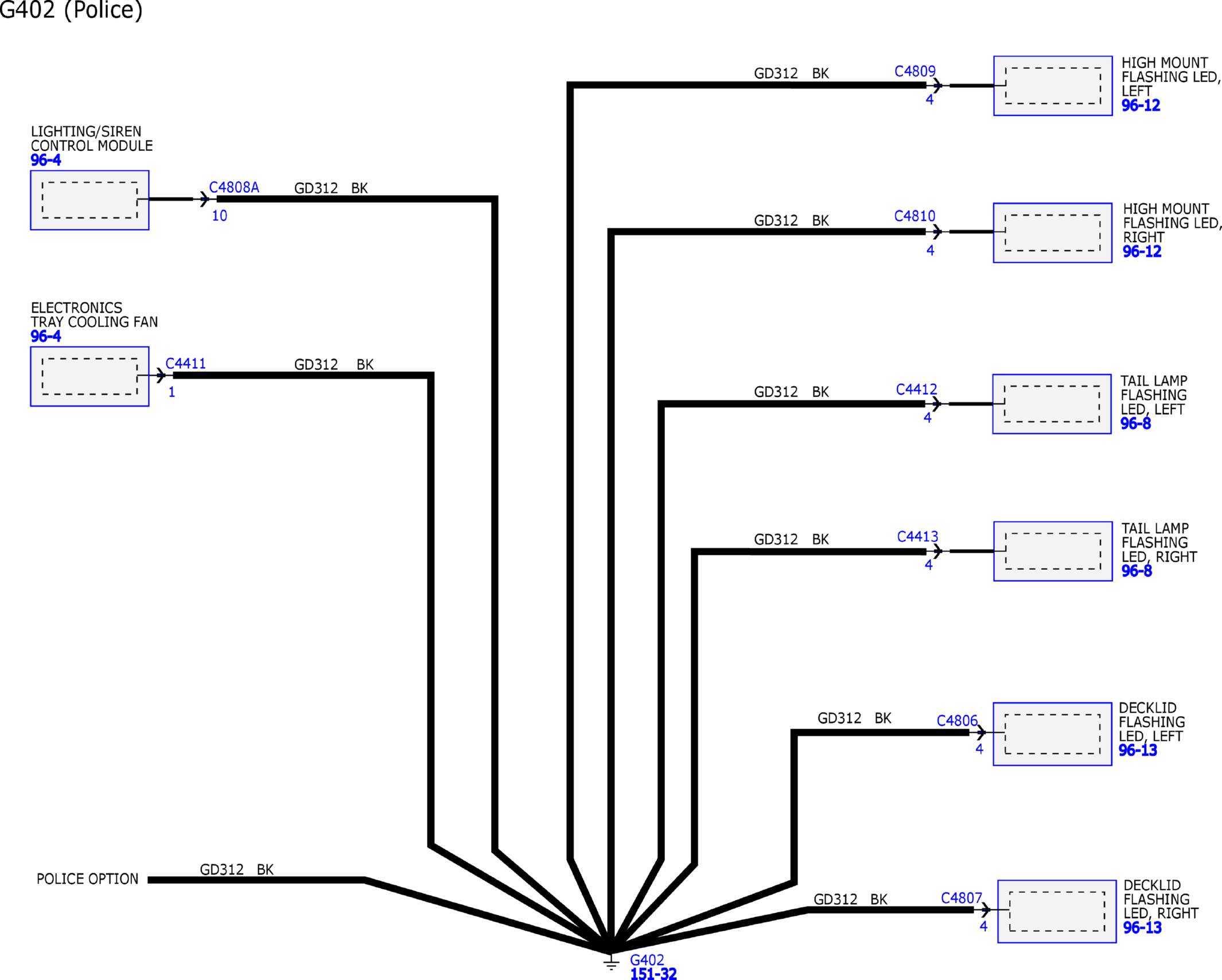

GFDW42638Courtesy of FORD MOTOR COMPANY

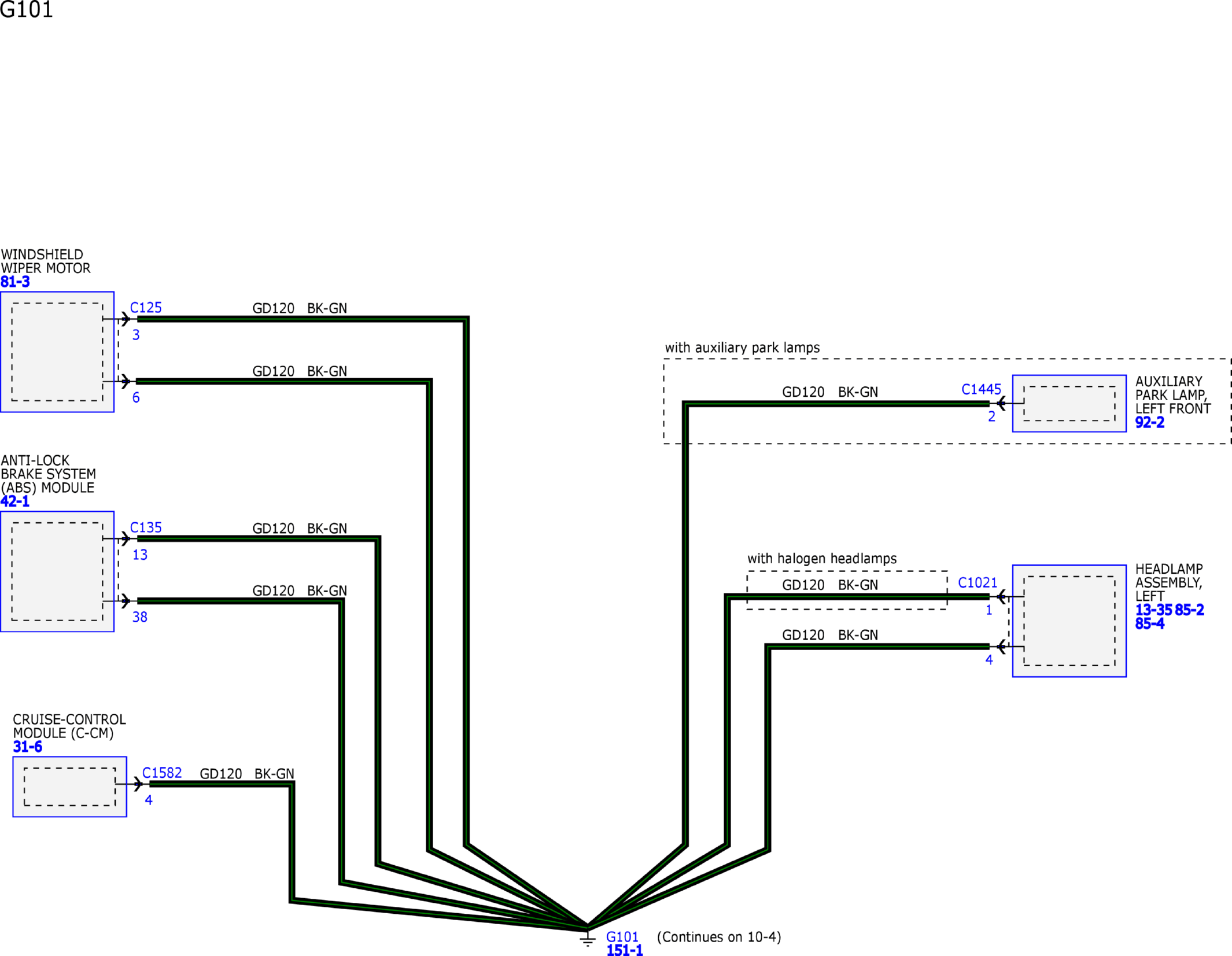

GFDW42639Courtesy of FORD MOTOR COMPANY

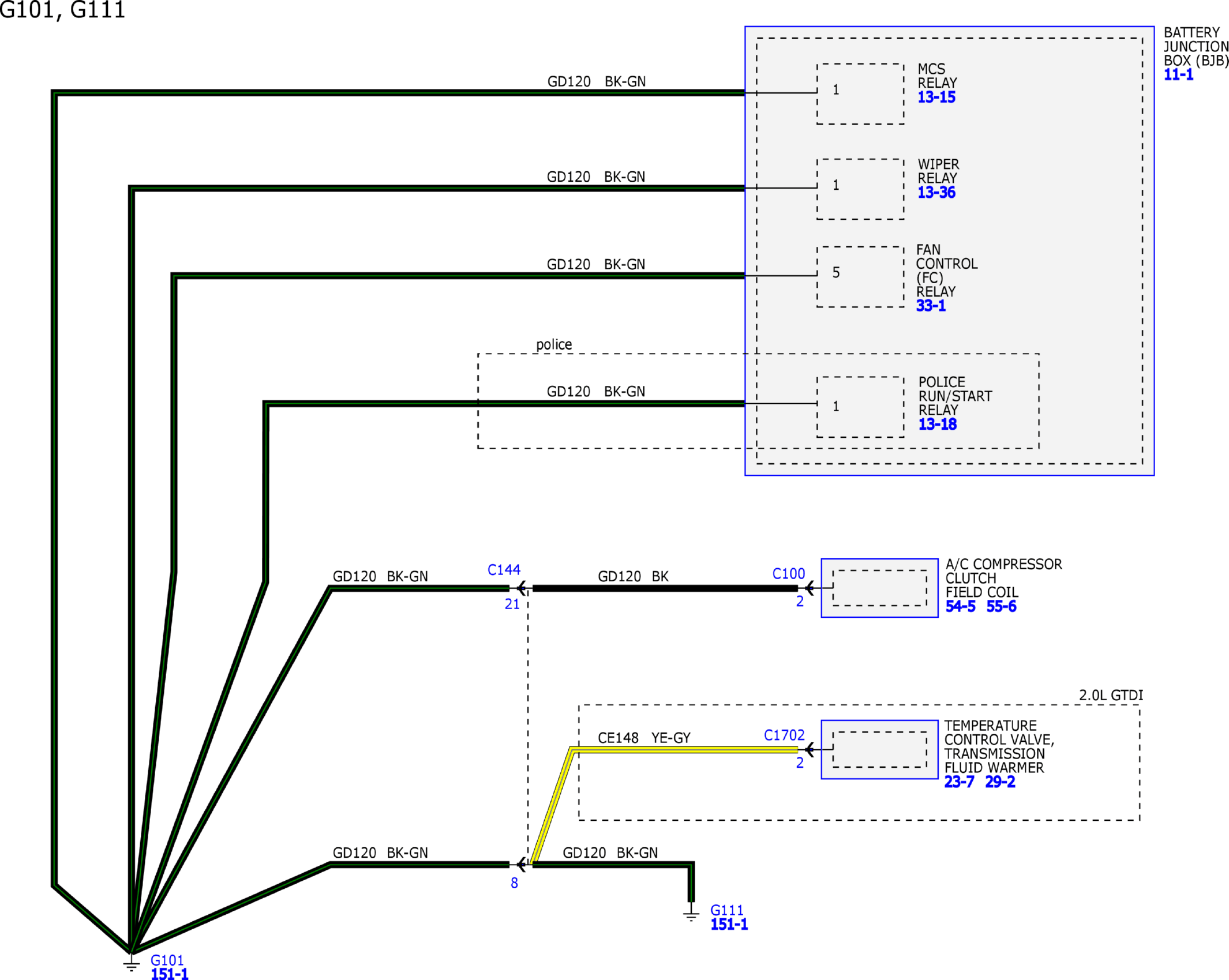

GFDW42640Courtesy of FORD MOTOR COMPANY

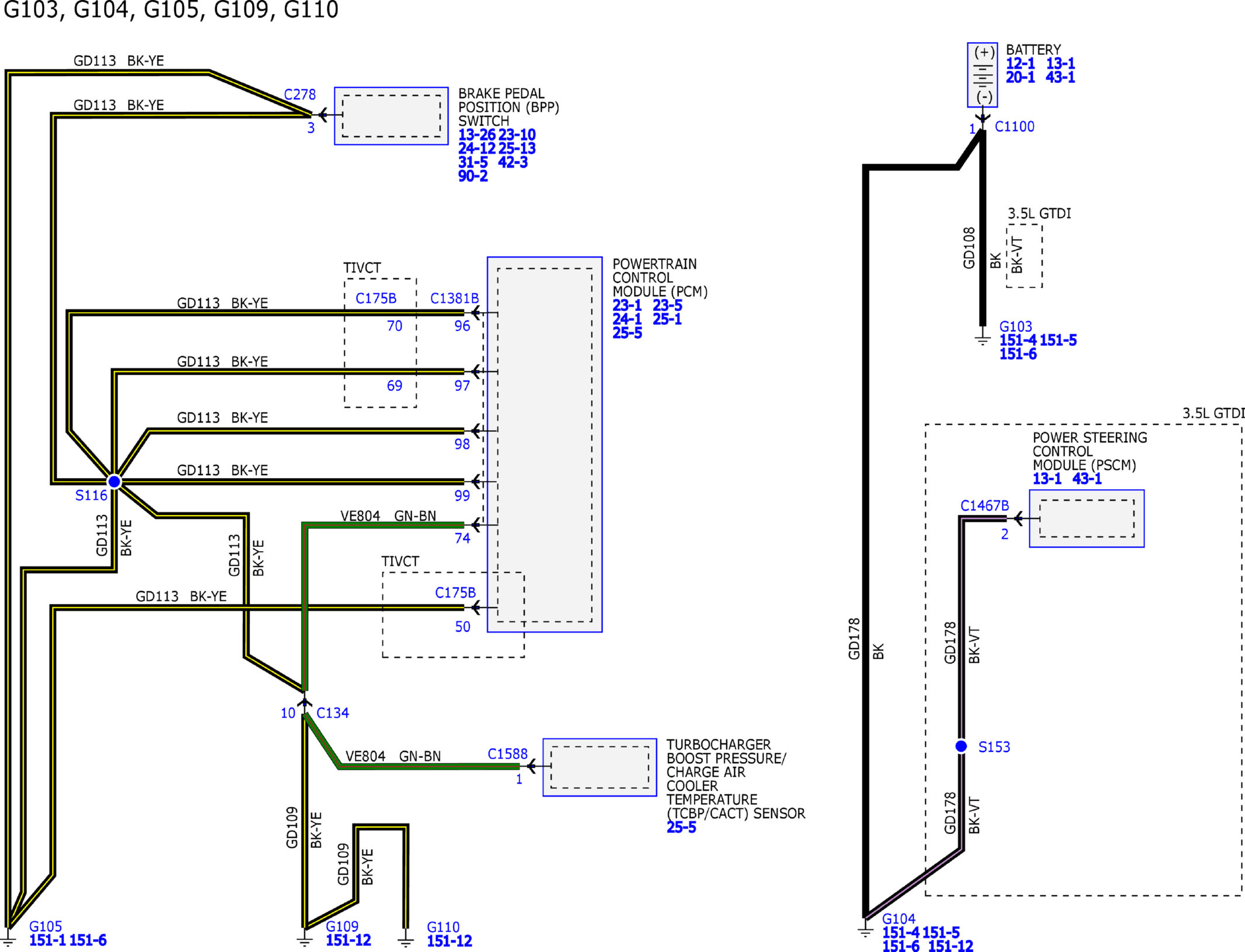

GFDW42641Courtesy of FORD MOTOR COMPANY

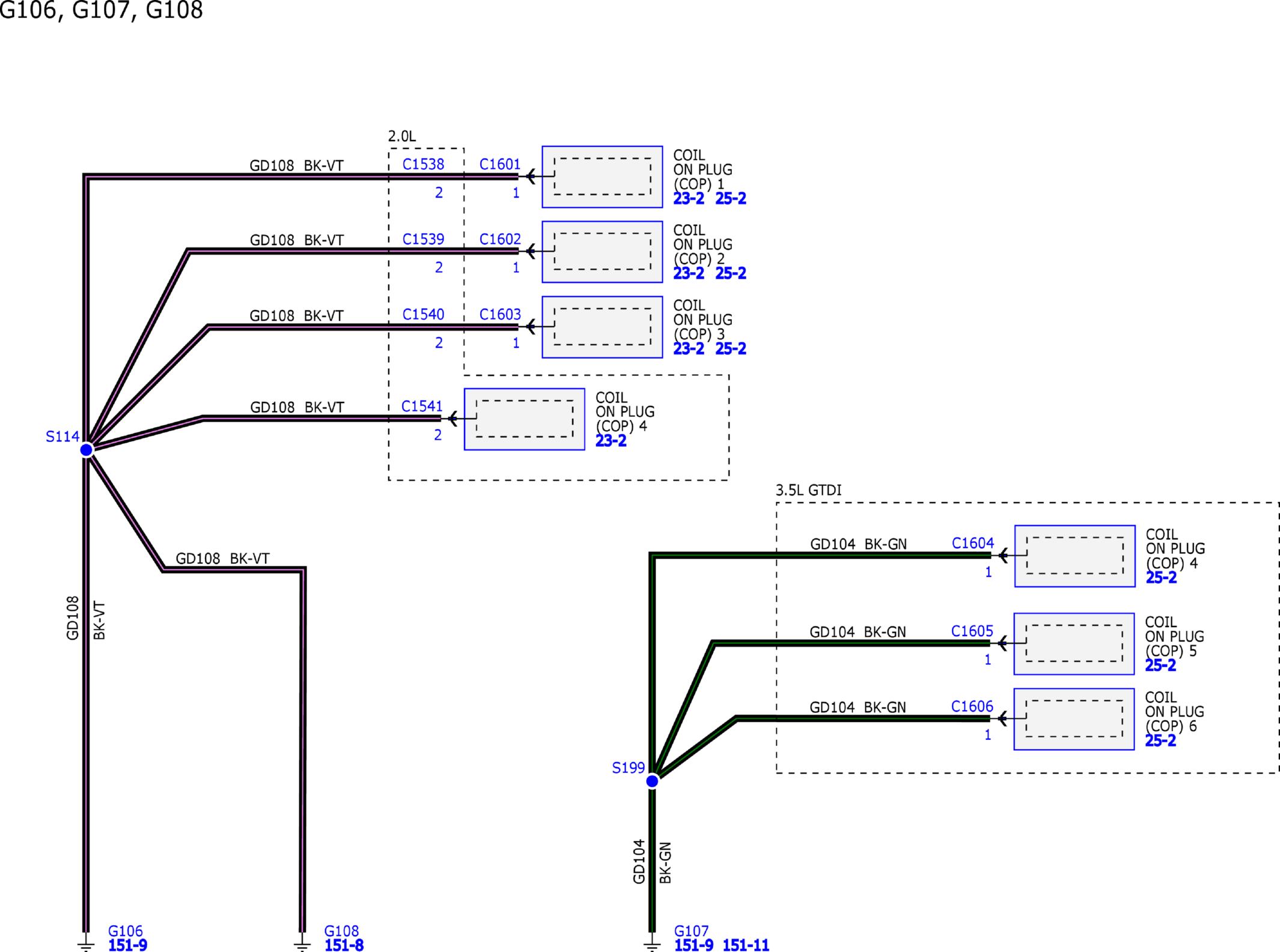

GFDW42642Courtesy of FORD MOTOR COMPANY

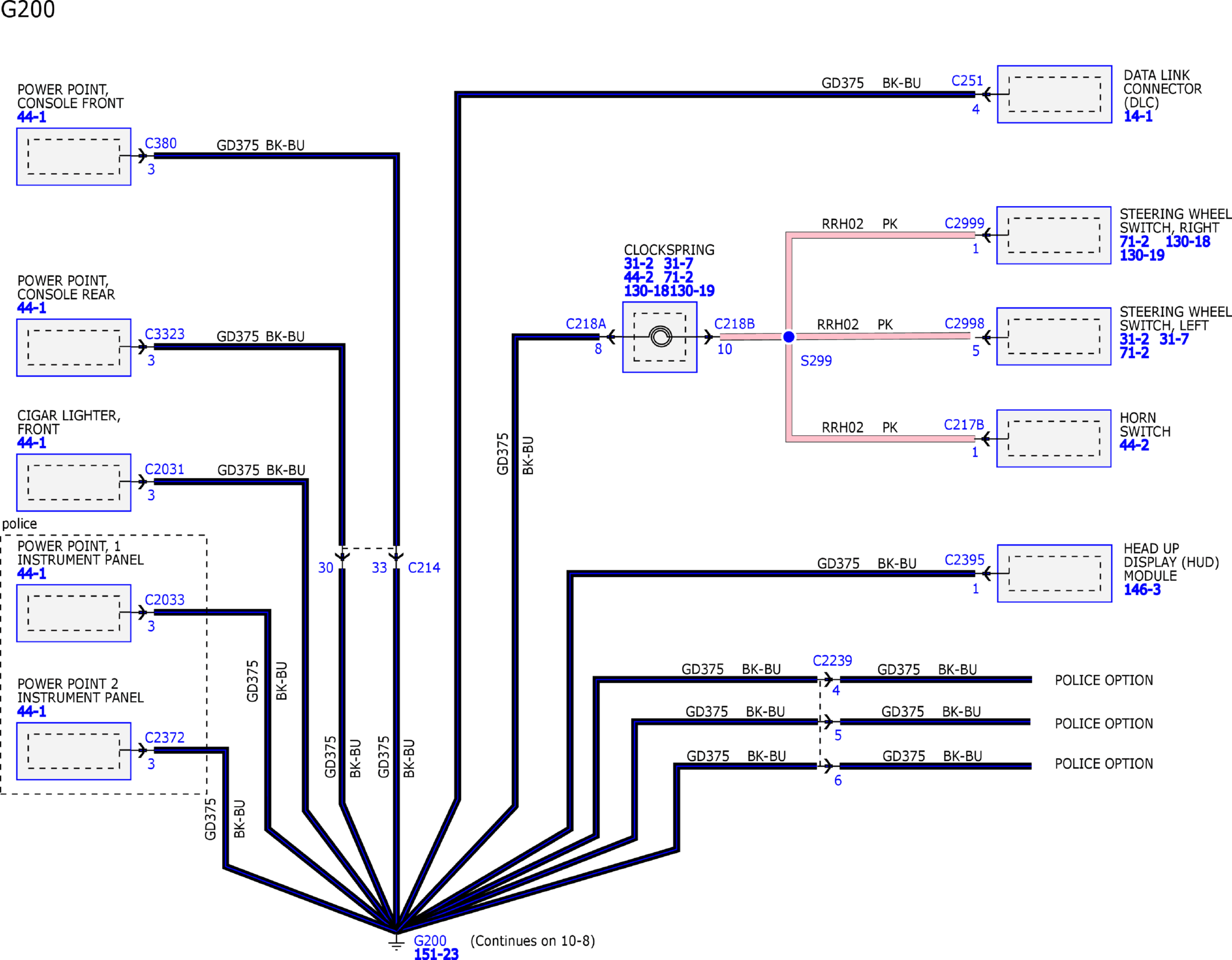

GFDW42643Courtesy of FORD MOTOR COMPANY

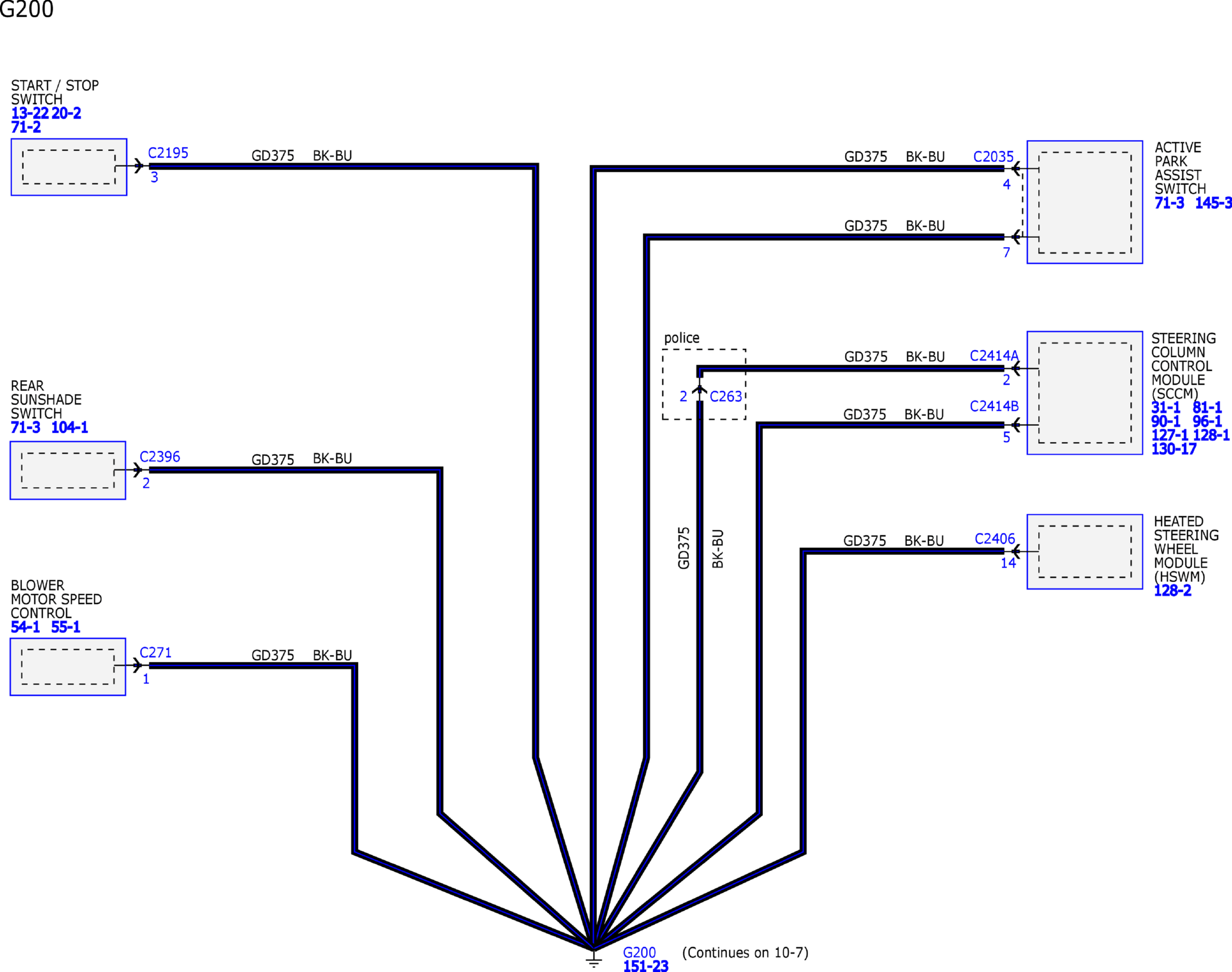

GFDW42644Courtesy of FORD MOTOR COMPANY

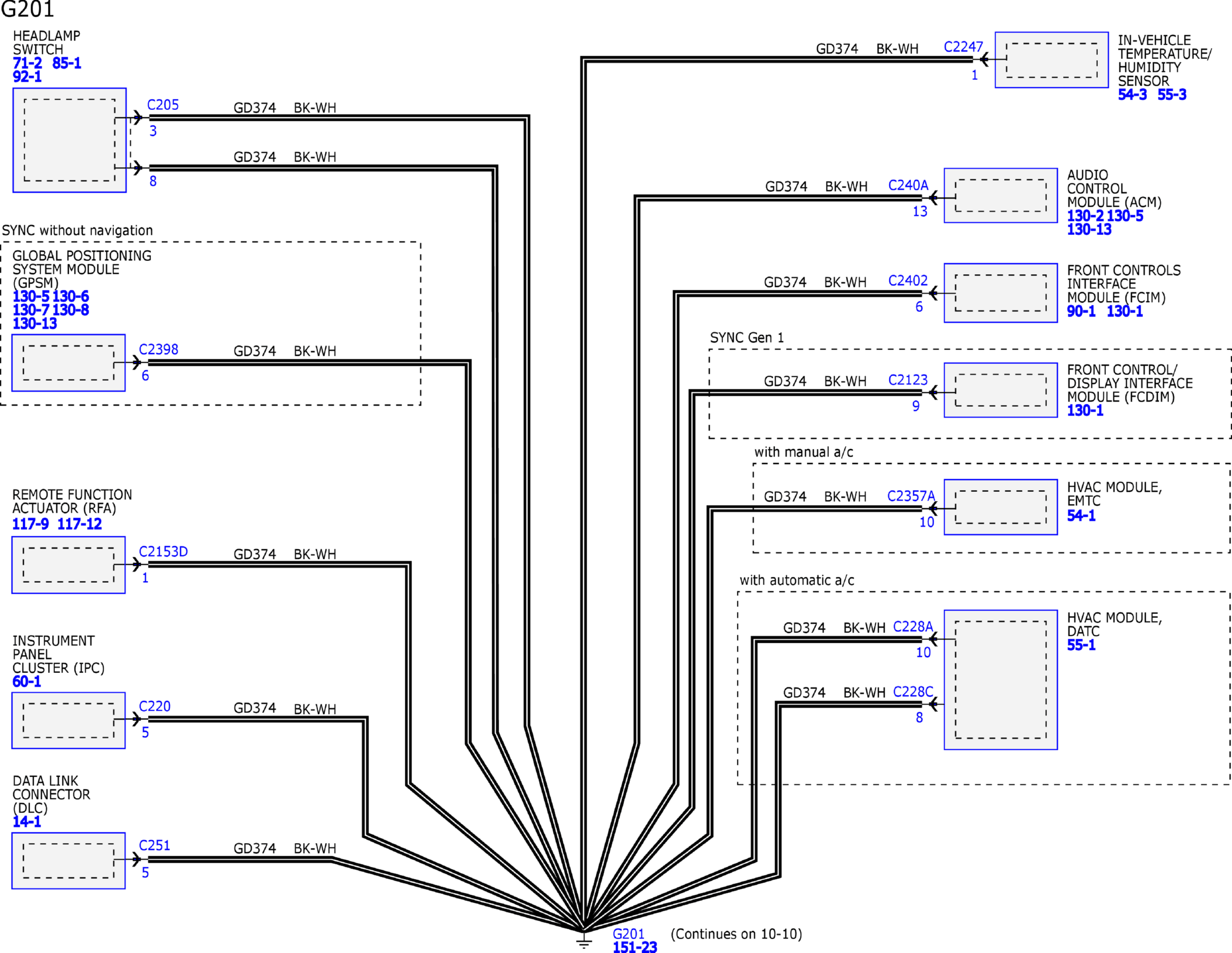

GFDW42645Courtesy of FORD MOTOR COMPANY

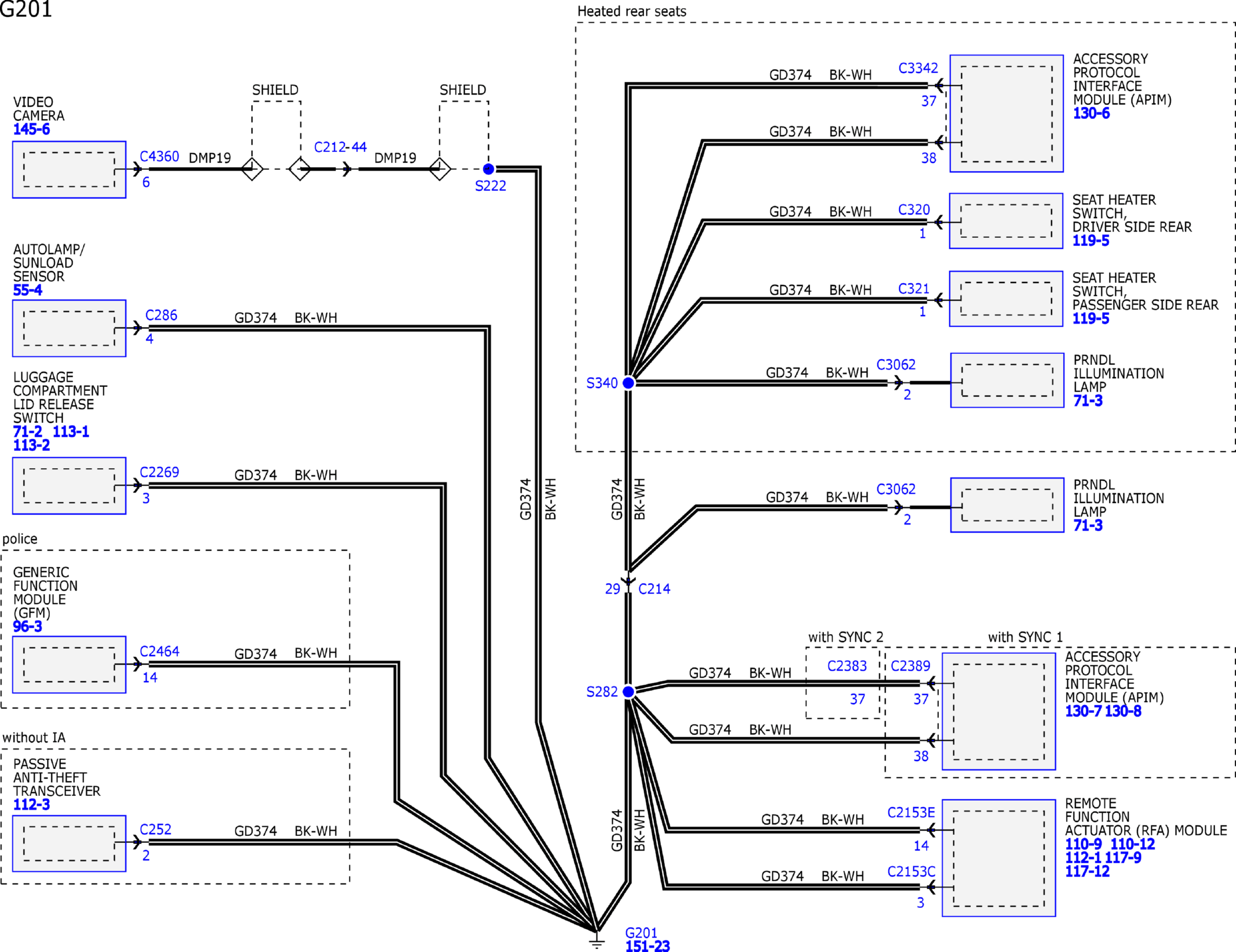

GFDW42646Courtesy of FORD MOTOR COMPANY
