OEM Ground Distribution: Grounds

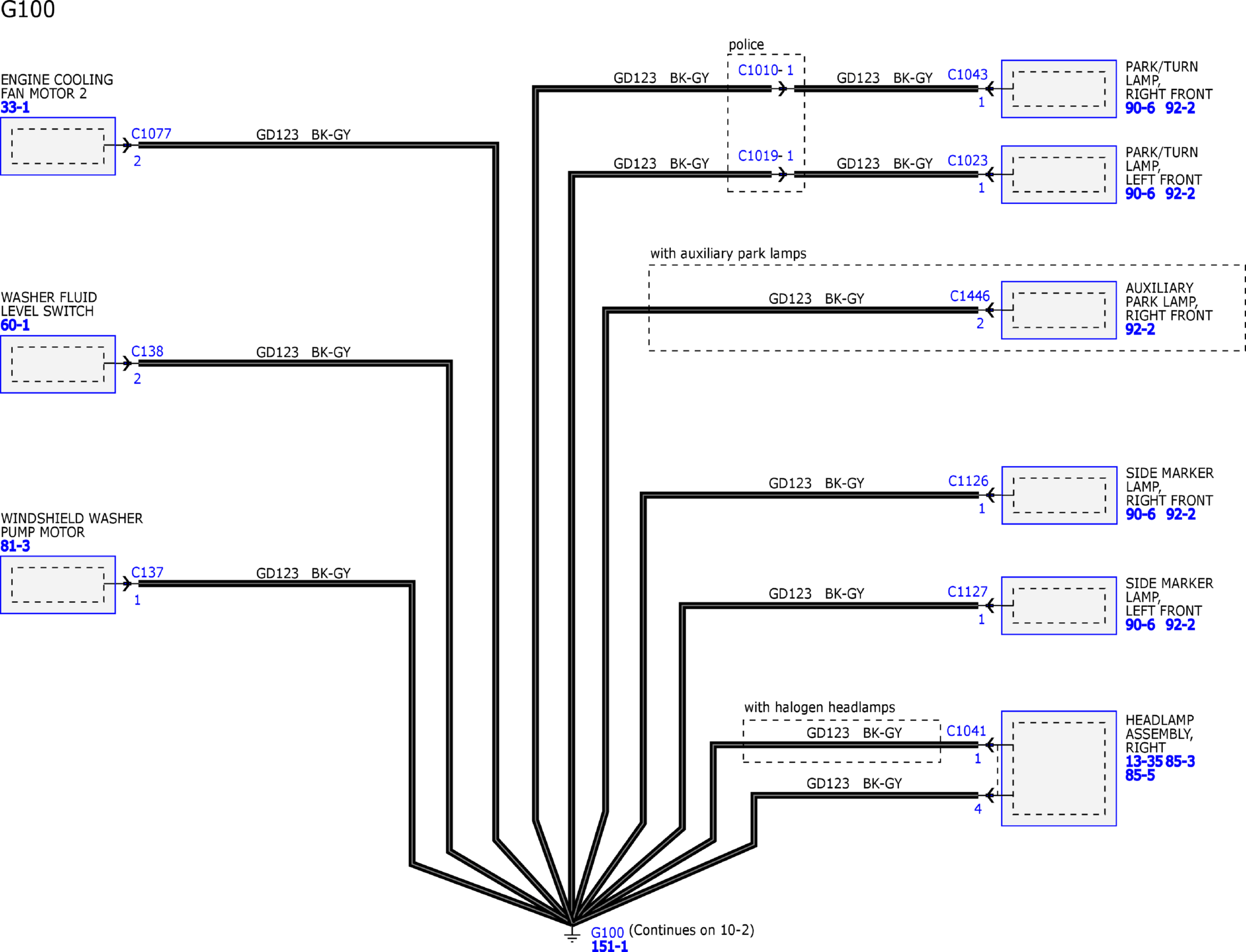

GFDW68971Courtesy of FORD MOTOR COMPANY

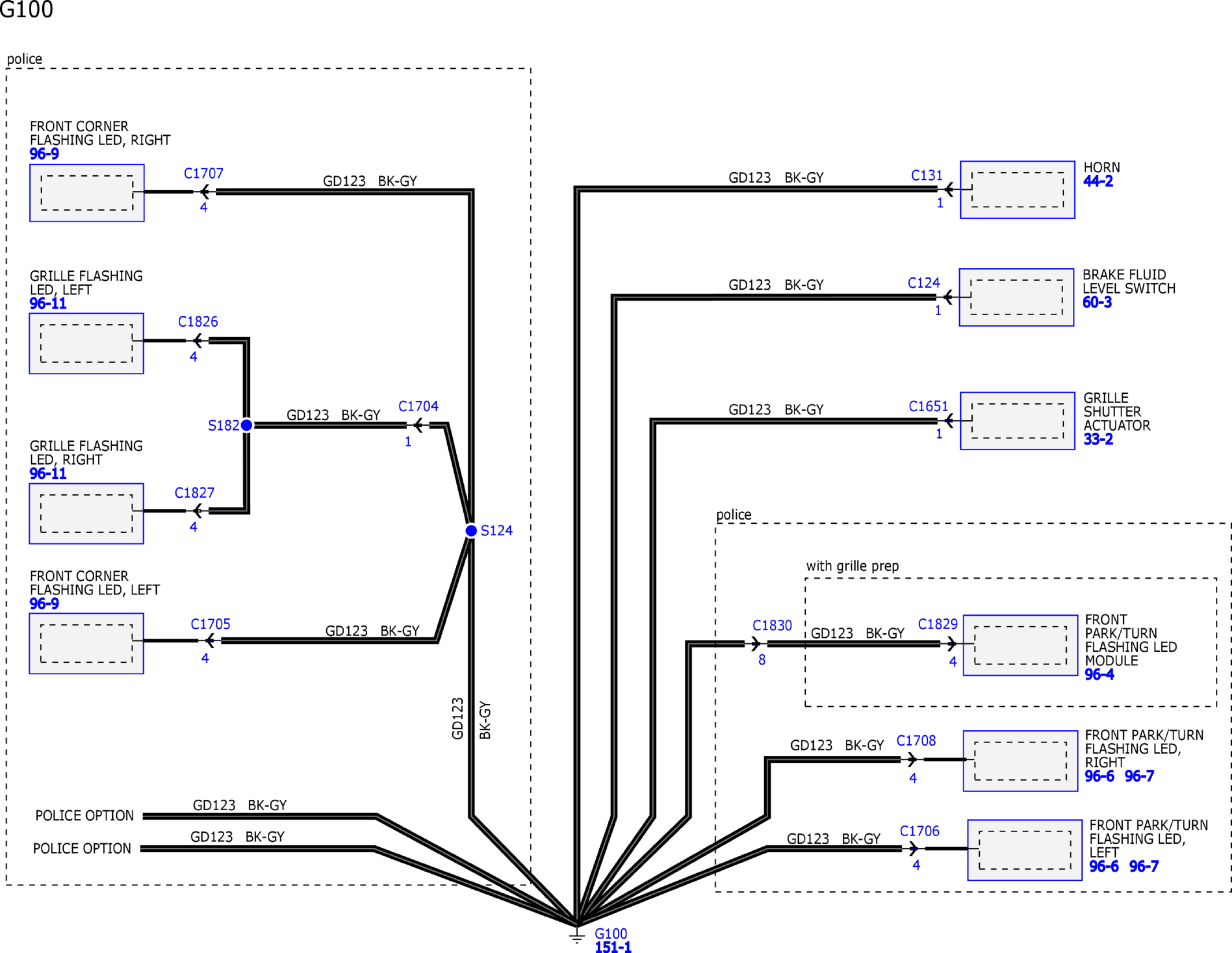

GFDW68972Courtesy of FORD MOTOR COMPANY

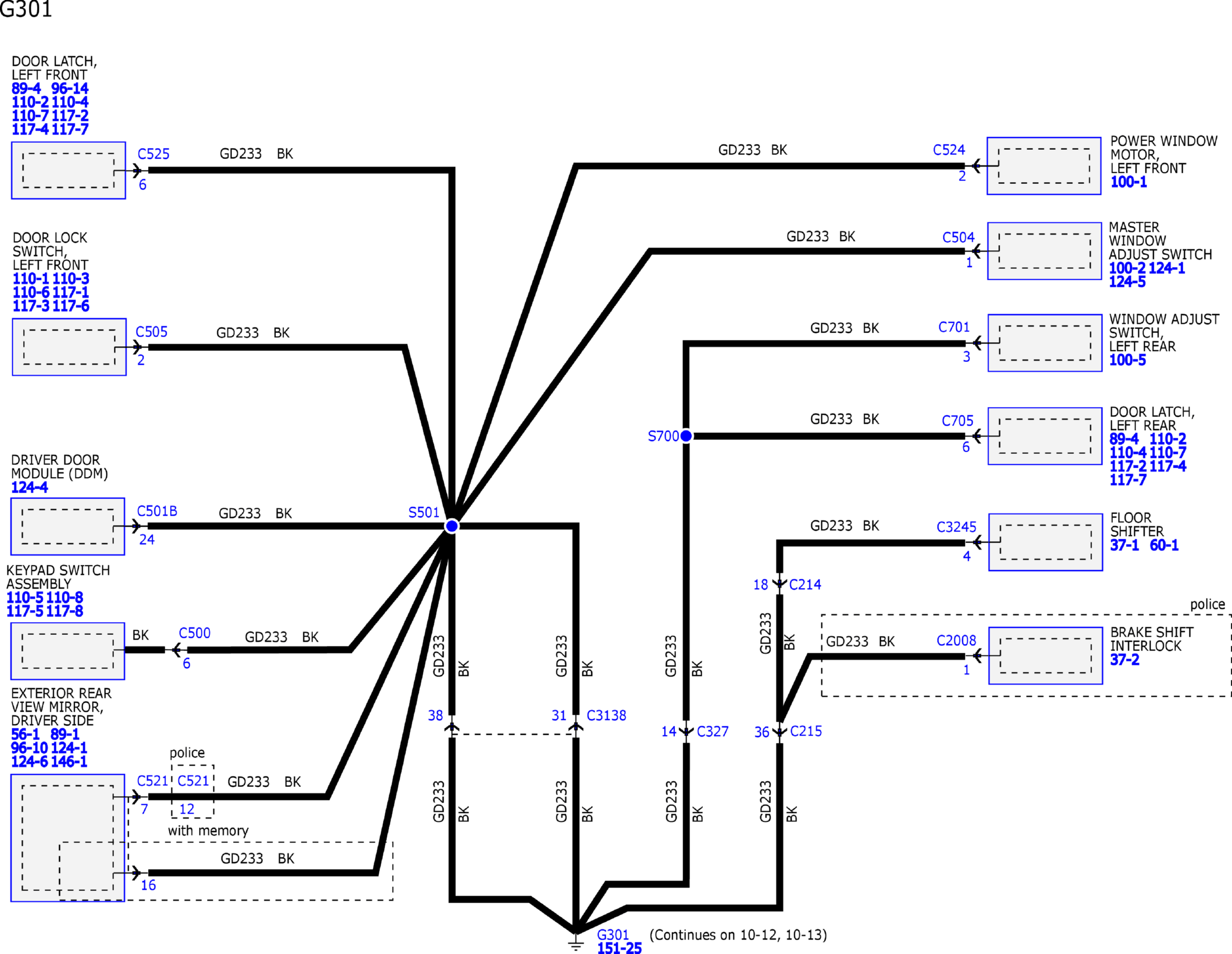

GFDW68973Courtesy of FORD MOTOR COMPANY

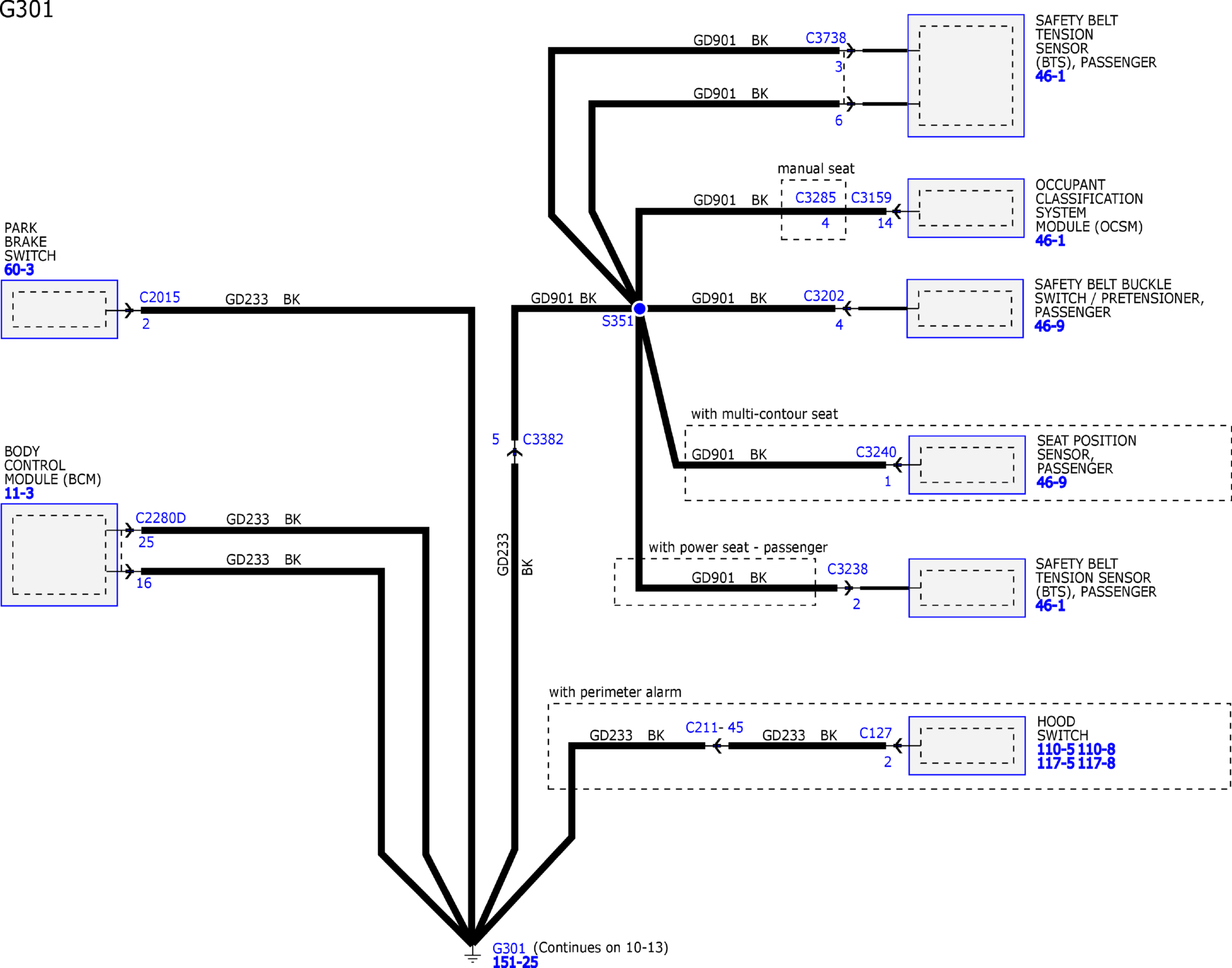

GFDW68974Courtesy of FORD MOTOR COMPANY

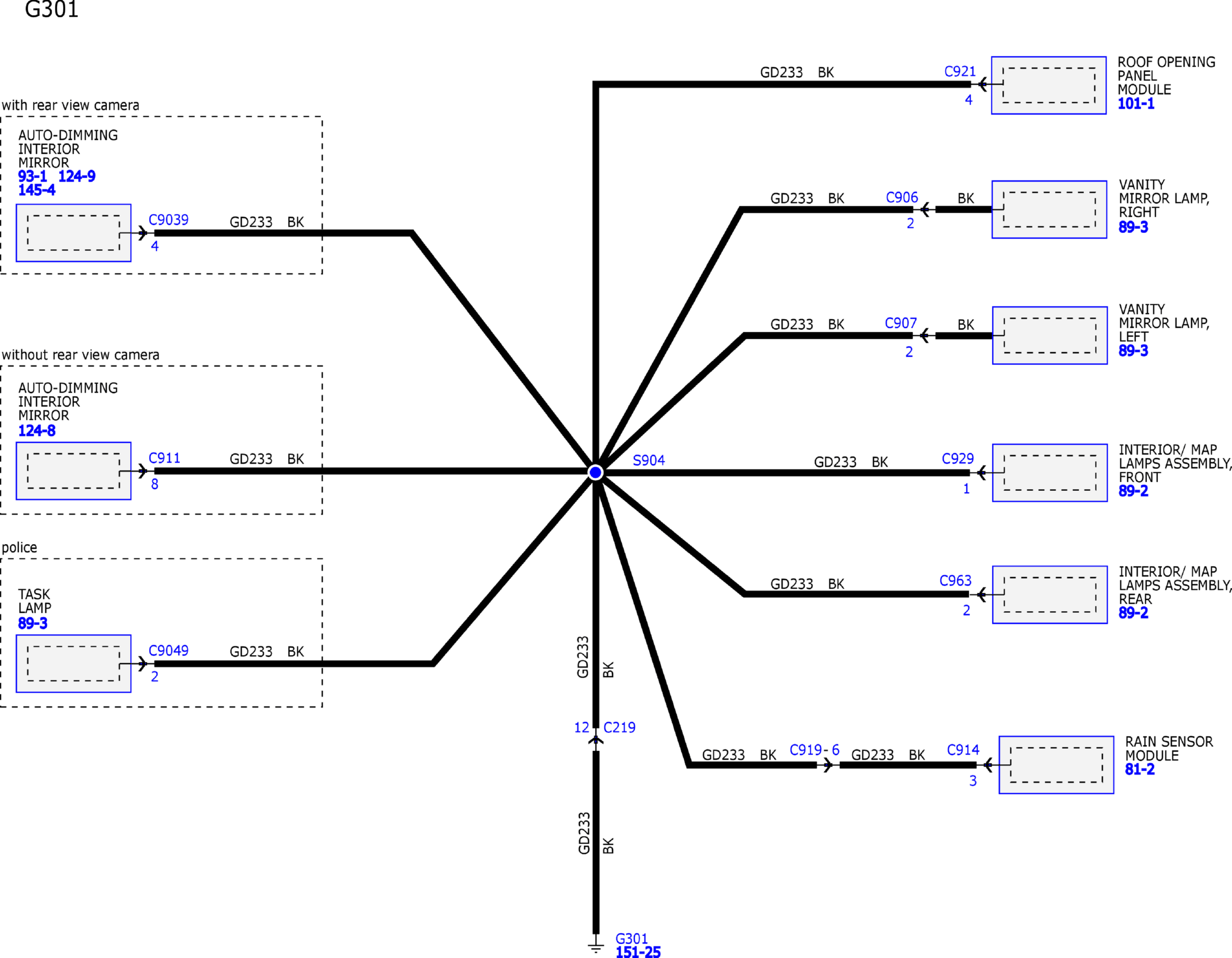

GFDW68975Courtesy of FORD MOTOR COMPANY

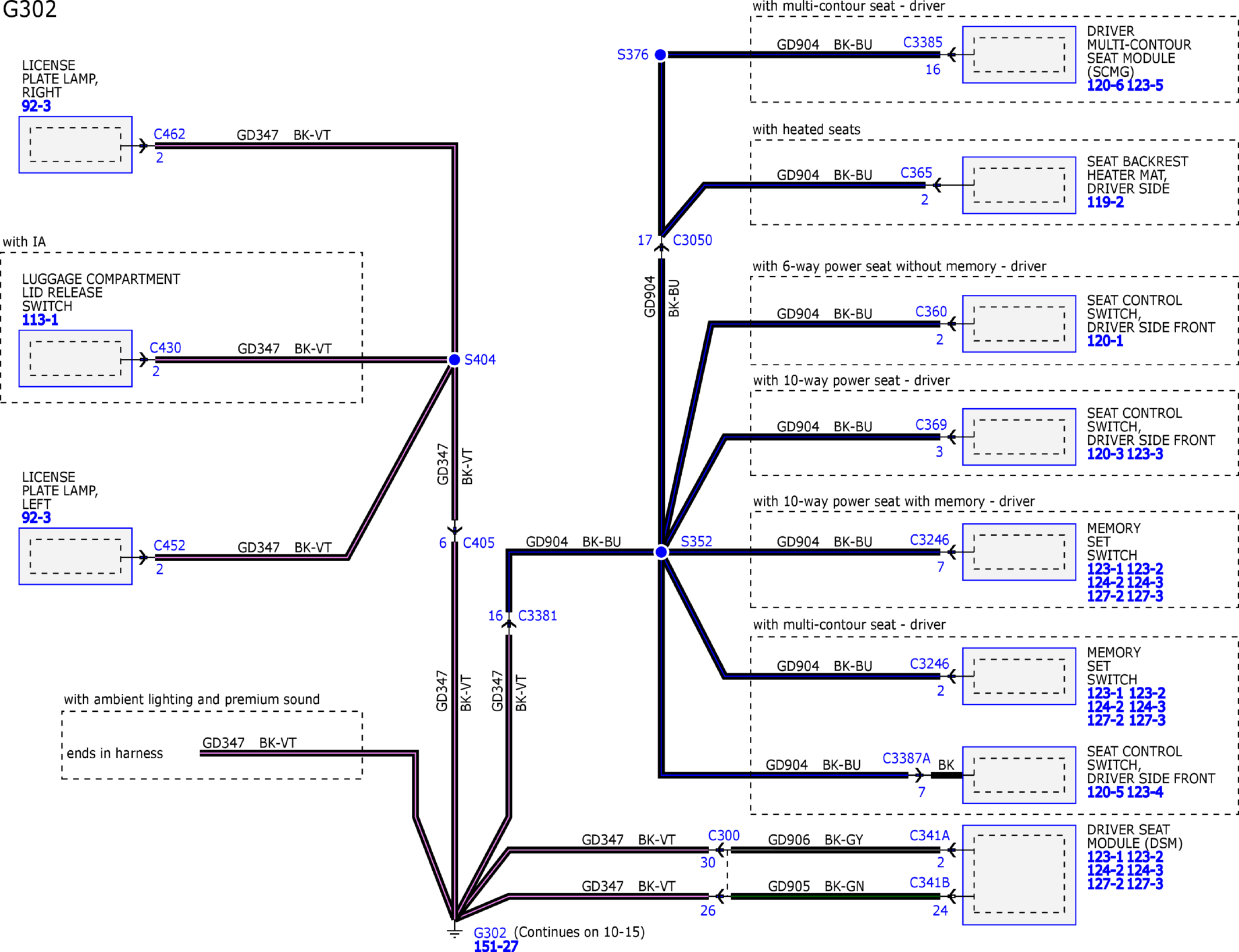

GFDW68976Courtesy of FORD MOTOR COMPANY

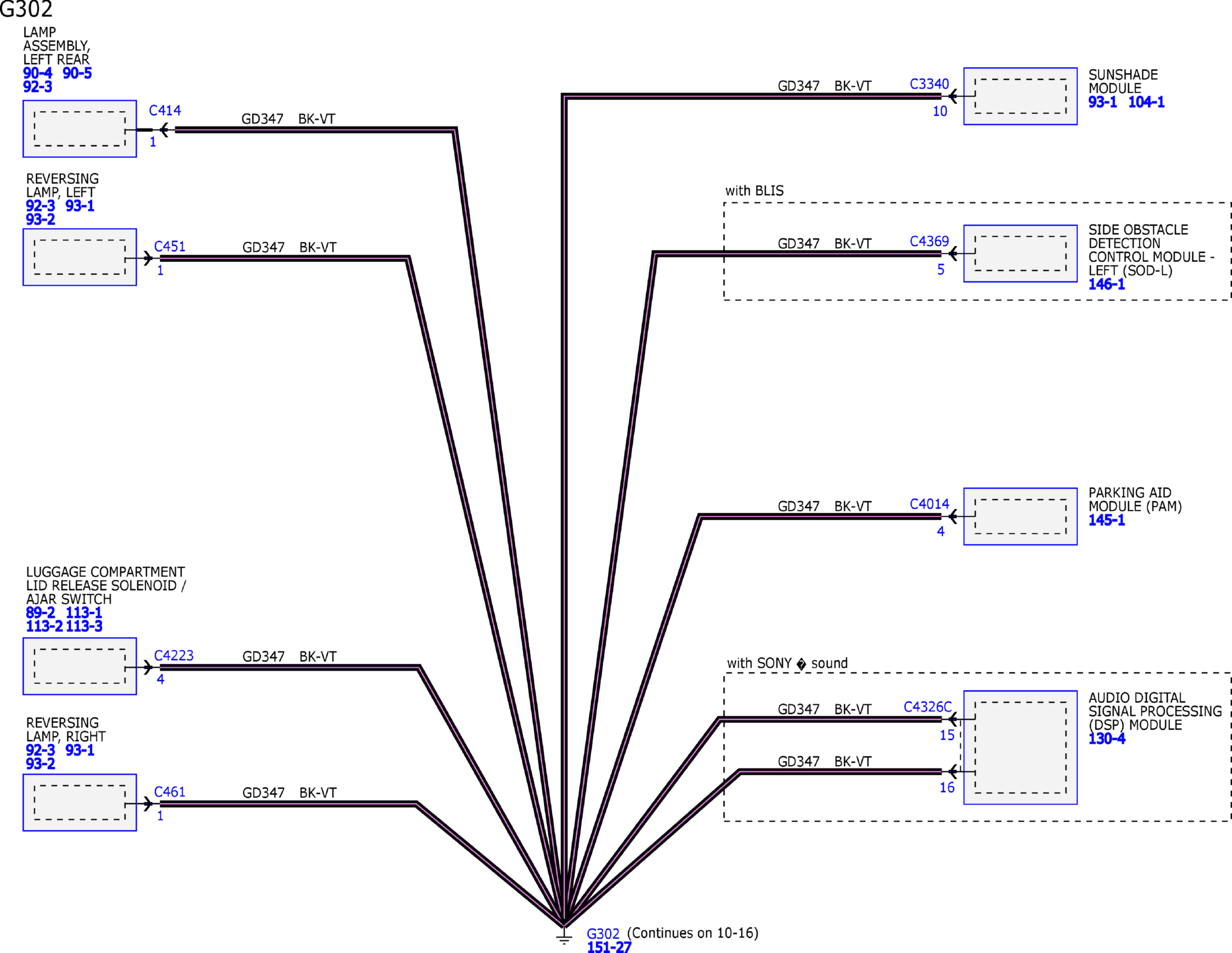

GFDW68977Courtesy of FORD MOTOR COMPANY

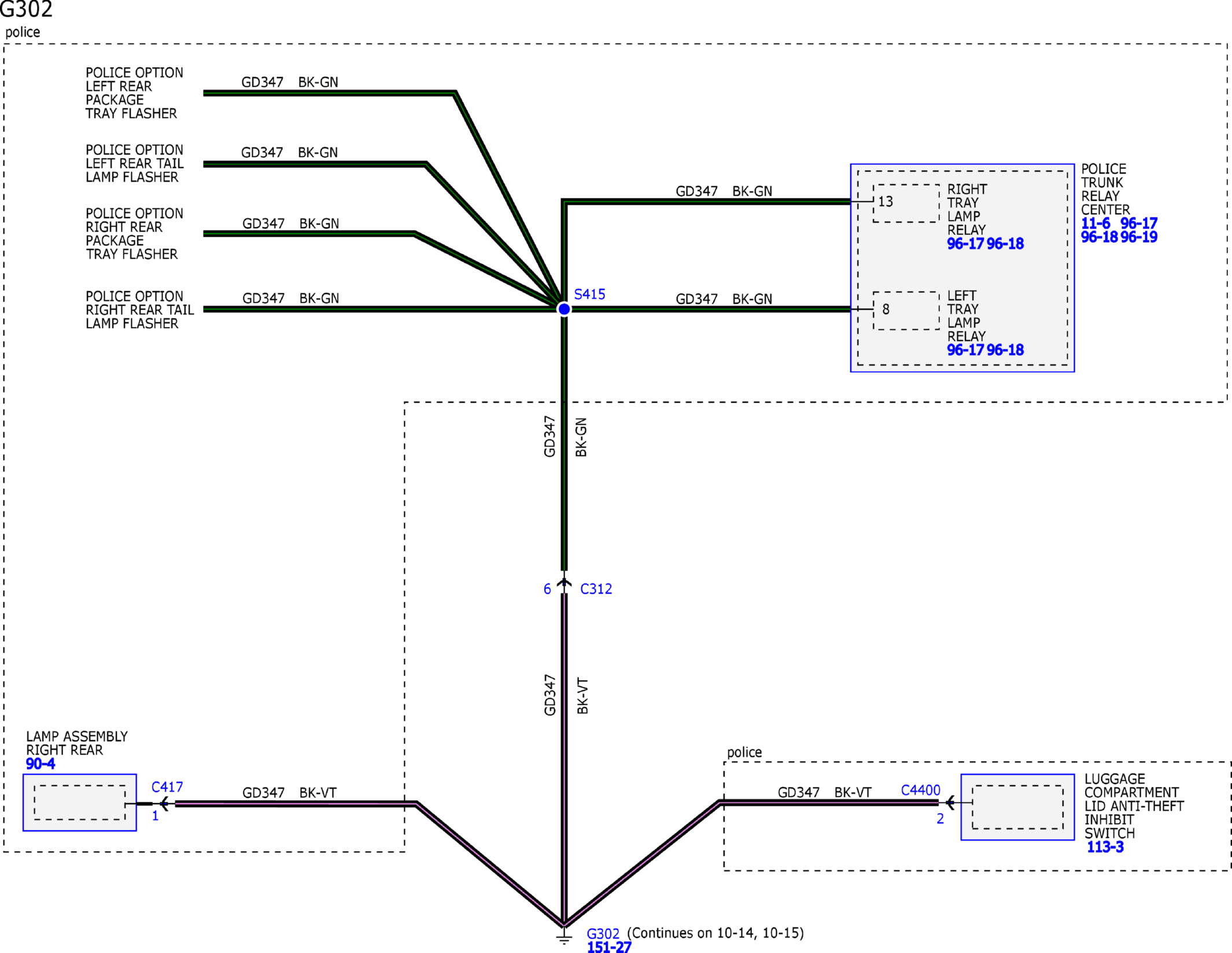

GFDW68978Courtesy of FORD MOTOR COMPANY

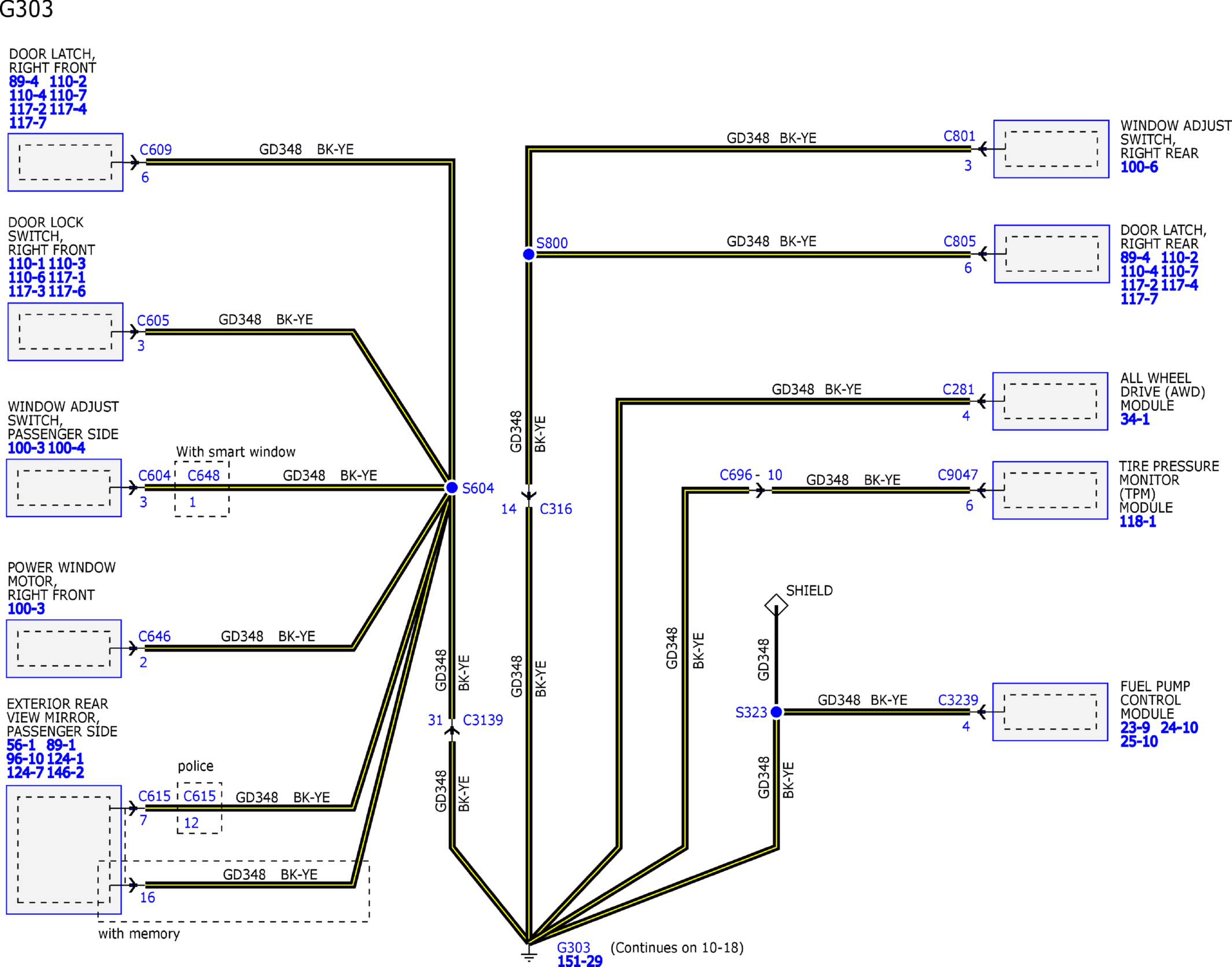

GFDW68979Courtesy of FORD MOTOR COMPANY

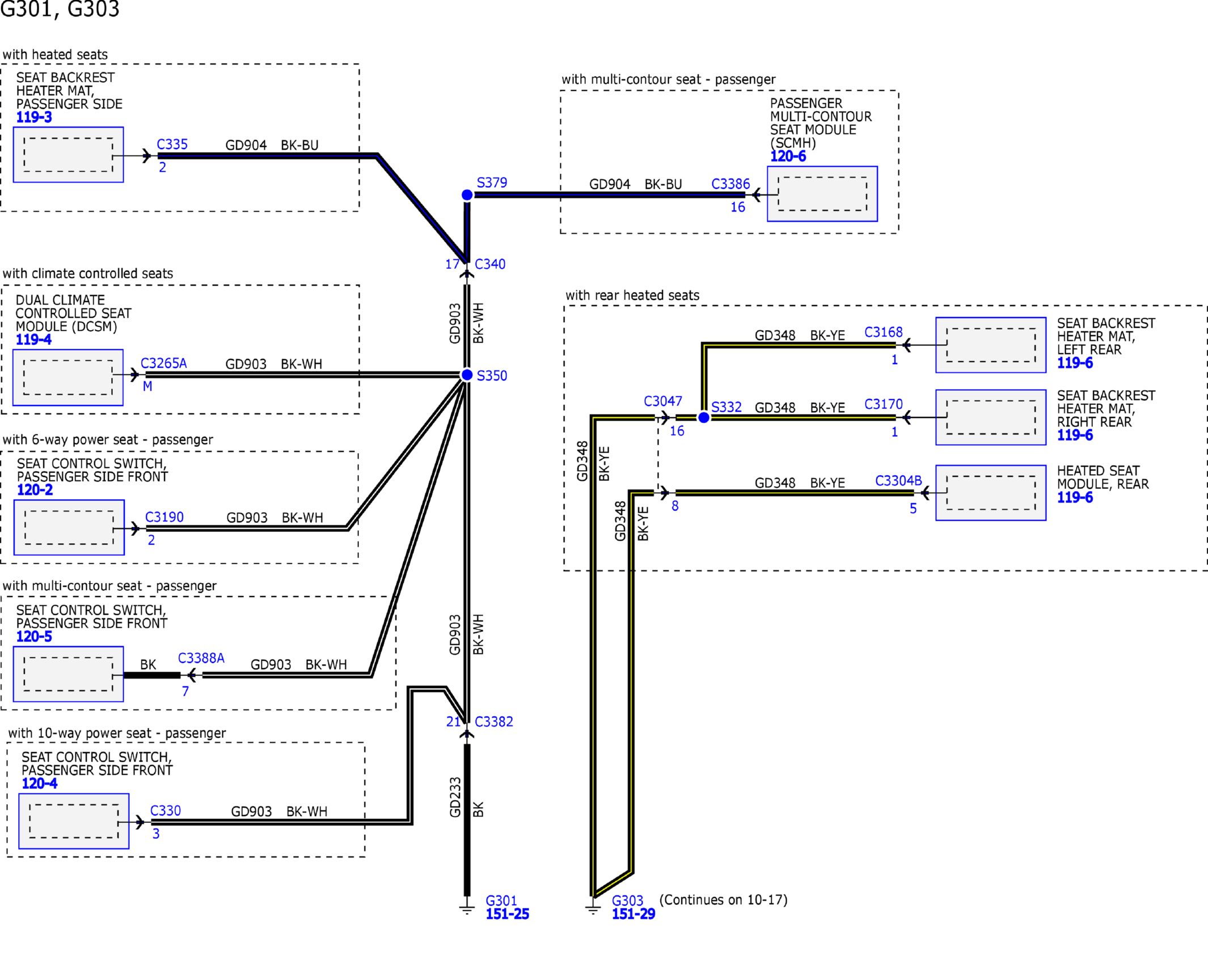

GFDW68980Courtesy of FORD MOTOR COMPANY

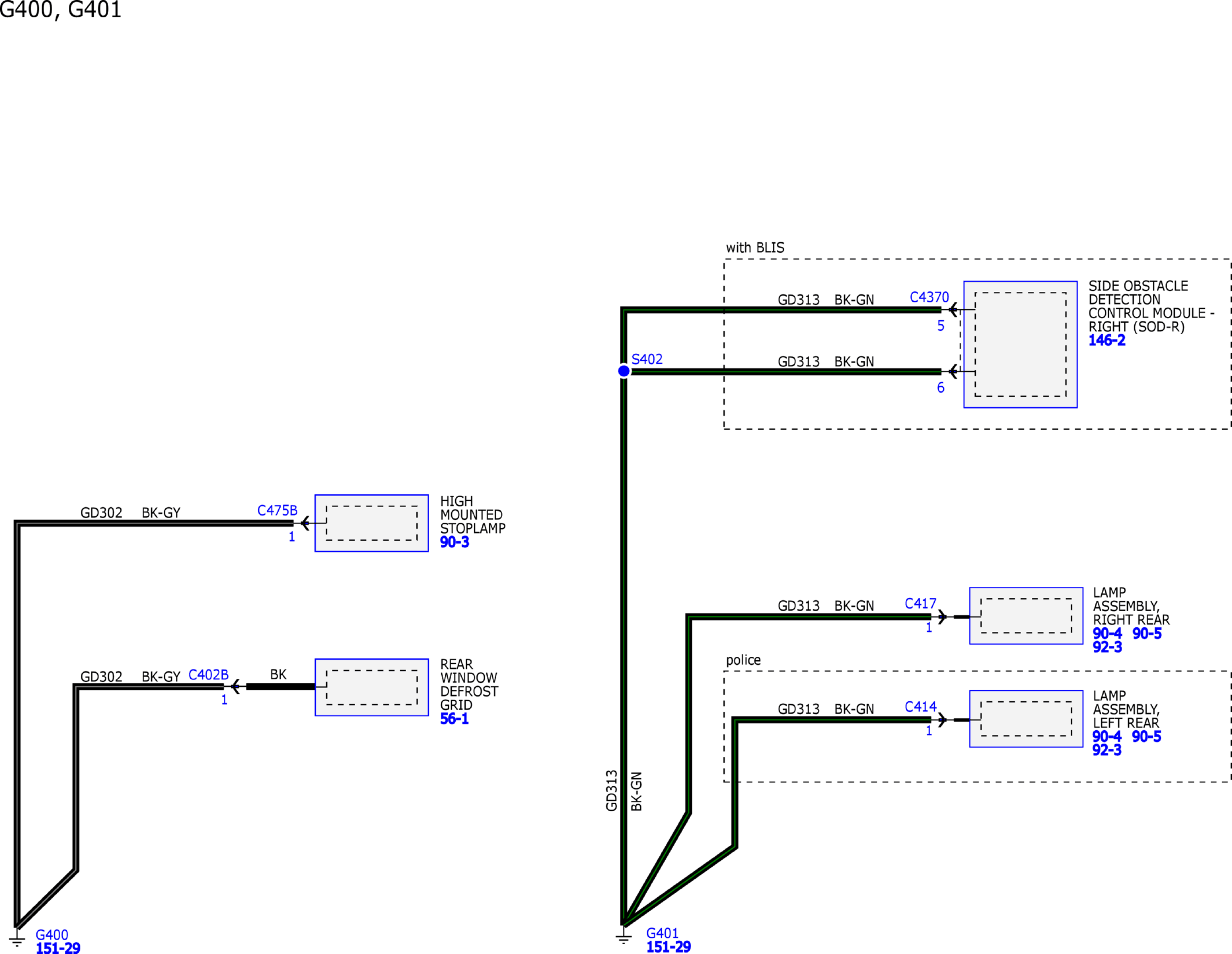

GFDW68981Courtesy of FORD MOTOR COMPANY

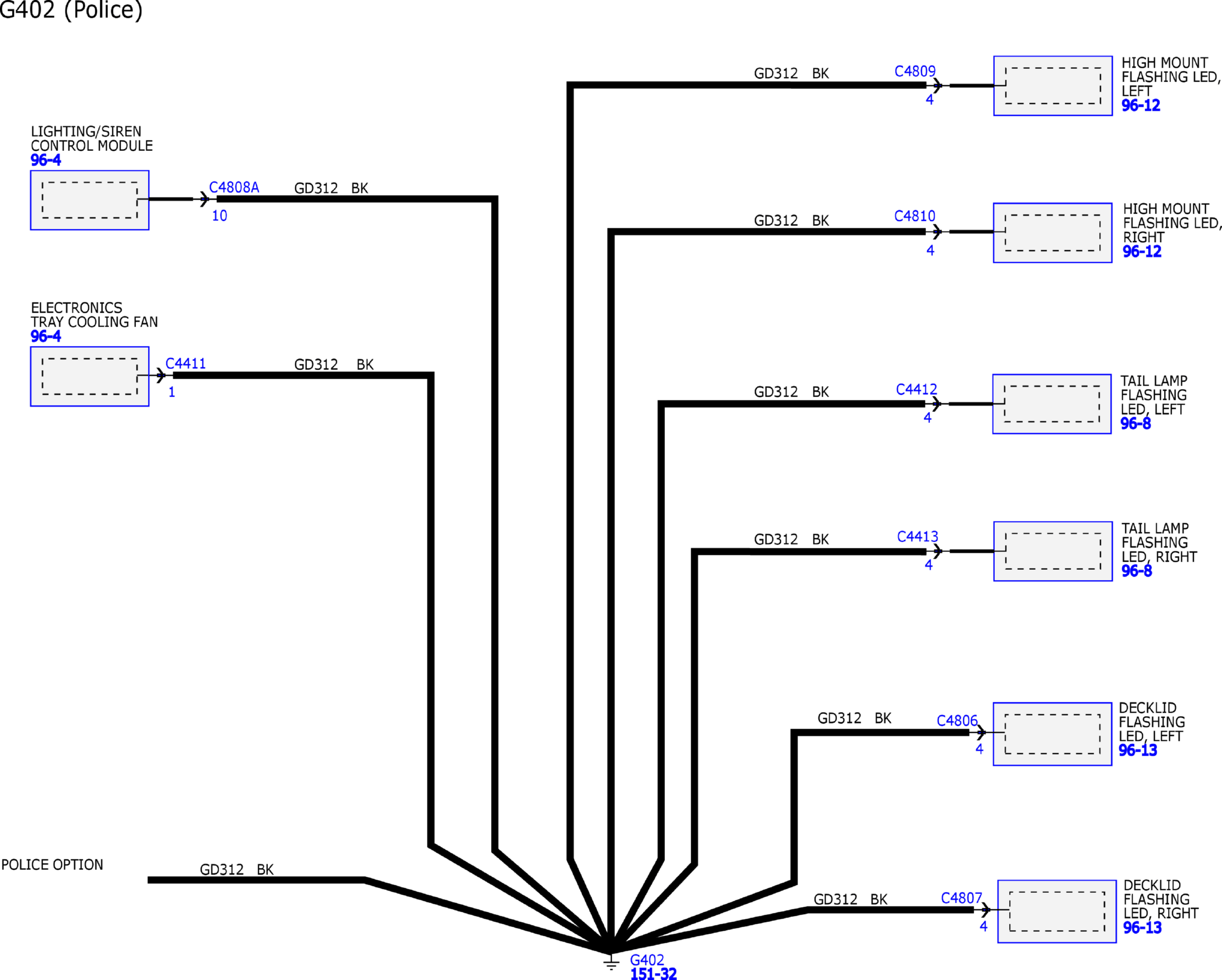

GFDW68982Courtesy of FORD MOTOR COMPANY

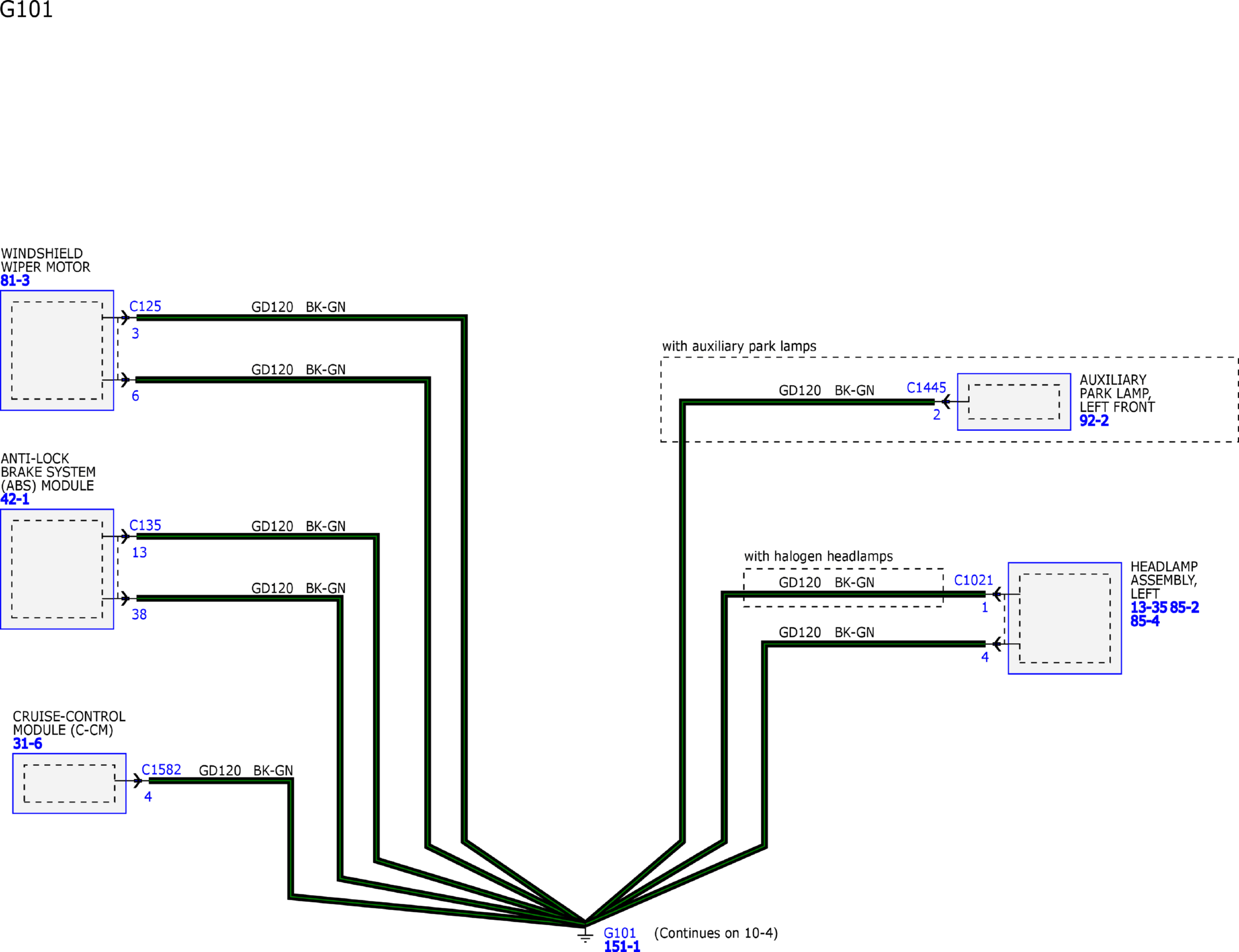

GFDW68983Courtesy of FORD MOTOR COMPANY

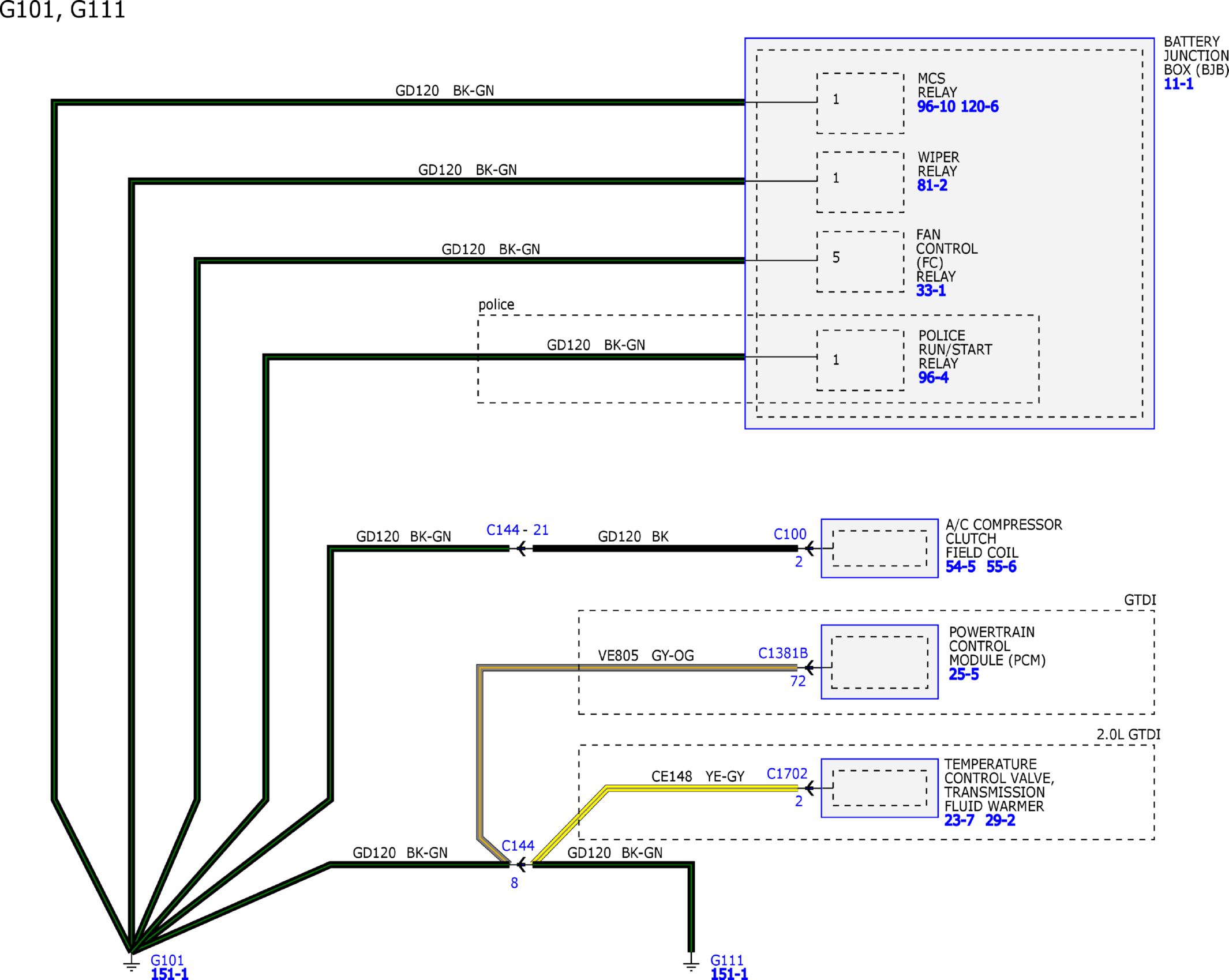

GFDW68984Courtesy of FORD MOTOR COMPANY

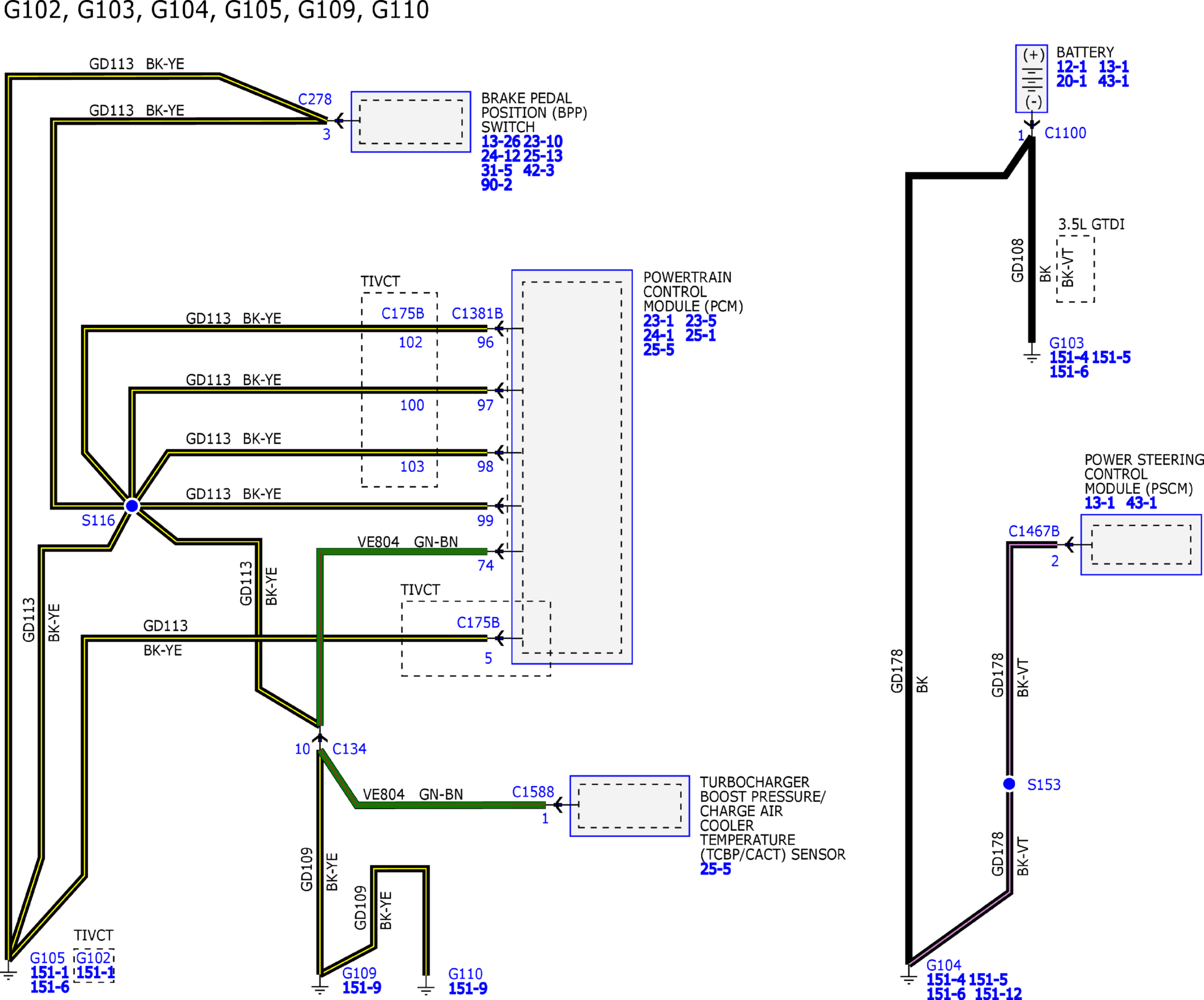

GFDW68985Courtesy of FORD MOTOR COMPANY

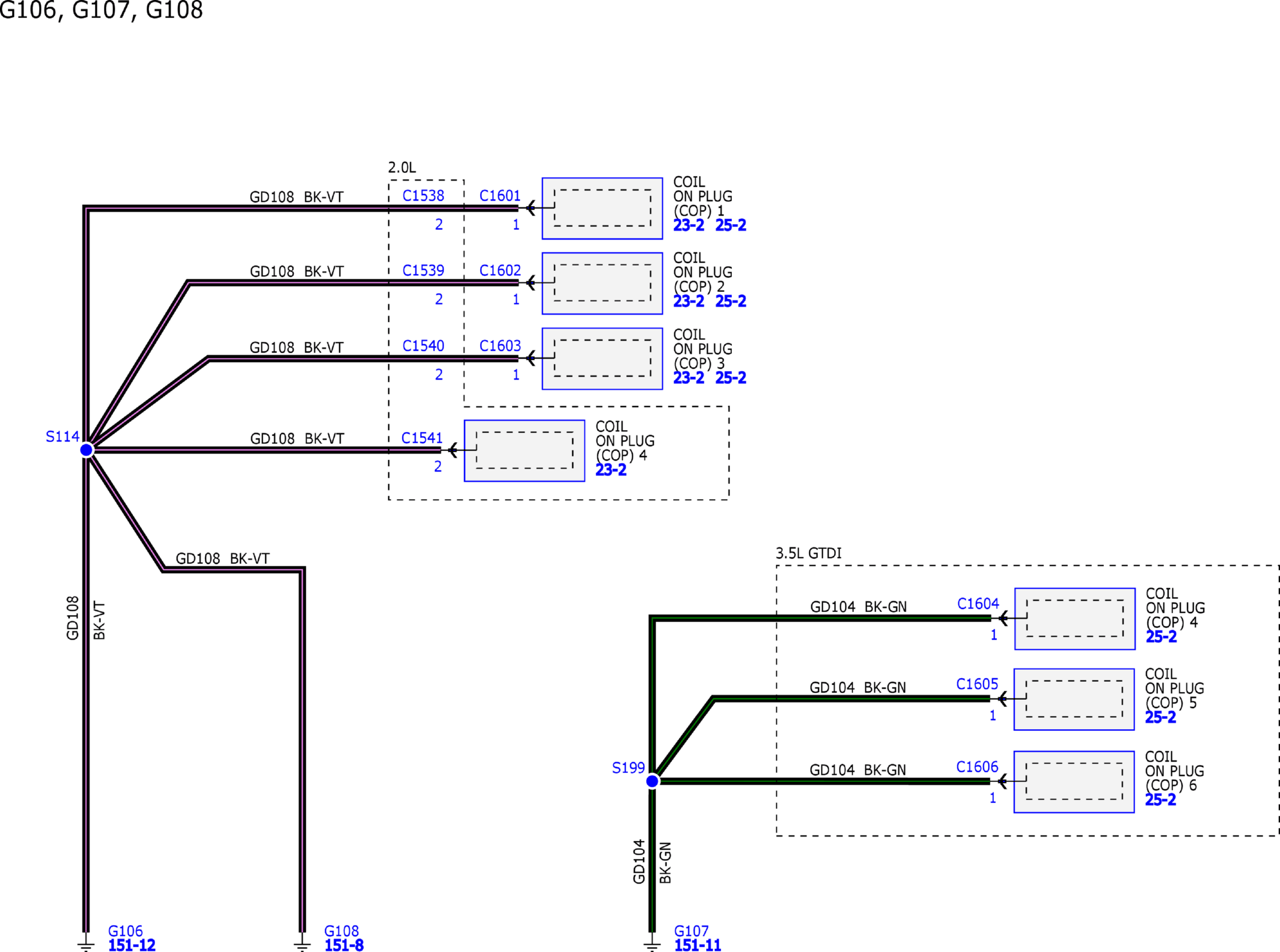

GFDW68986Courtesy of FORD MOTOR COMPANY

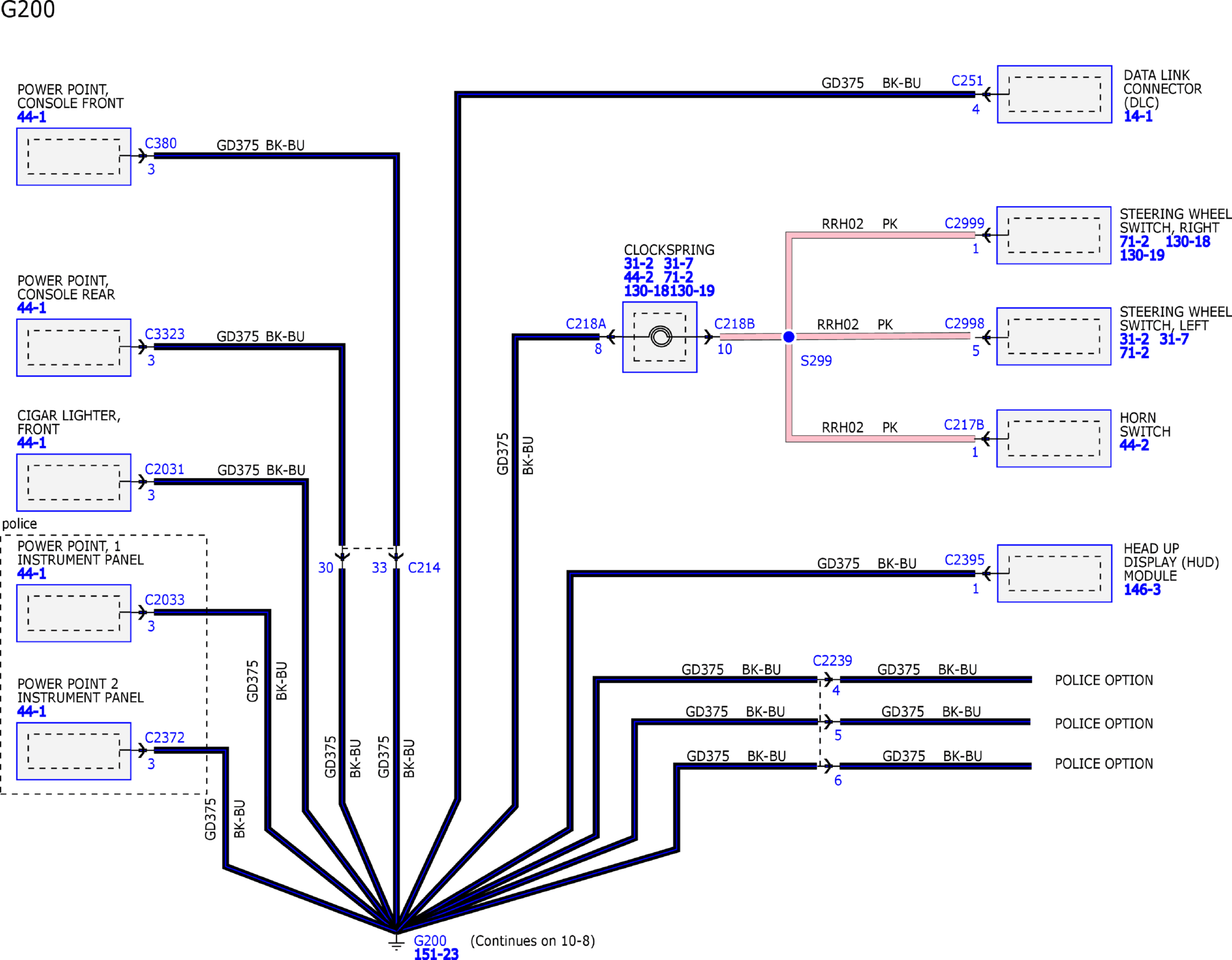

GFDW68987Courtesy of FORD MOTOR COMPANY

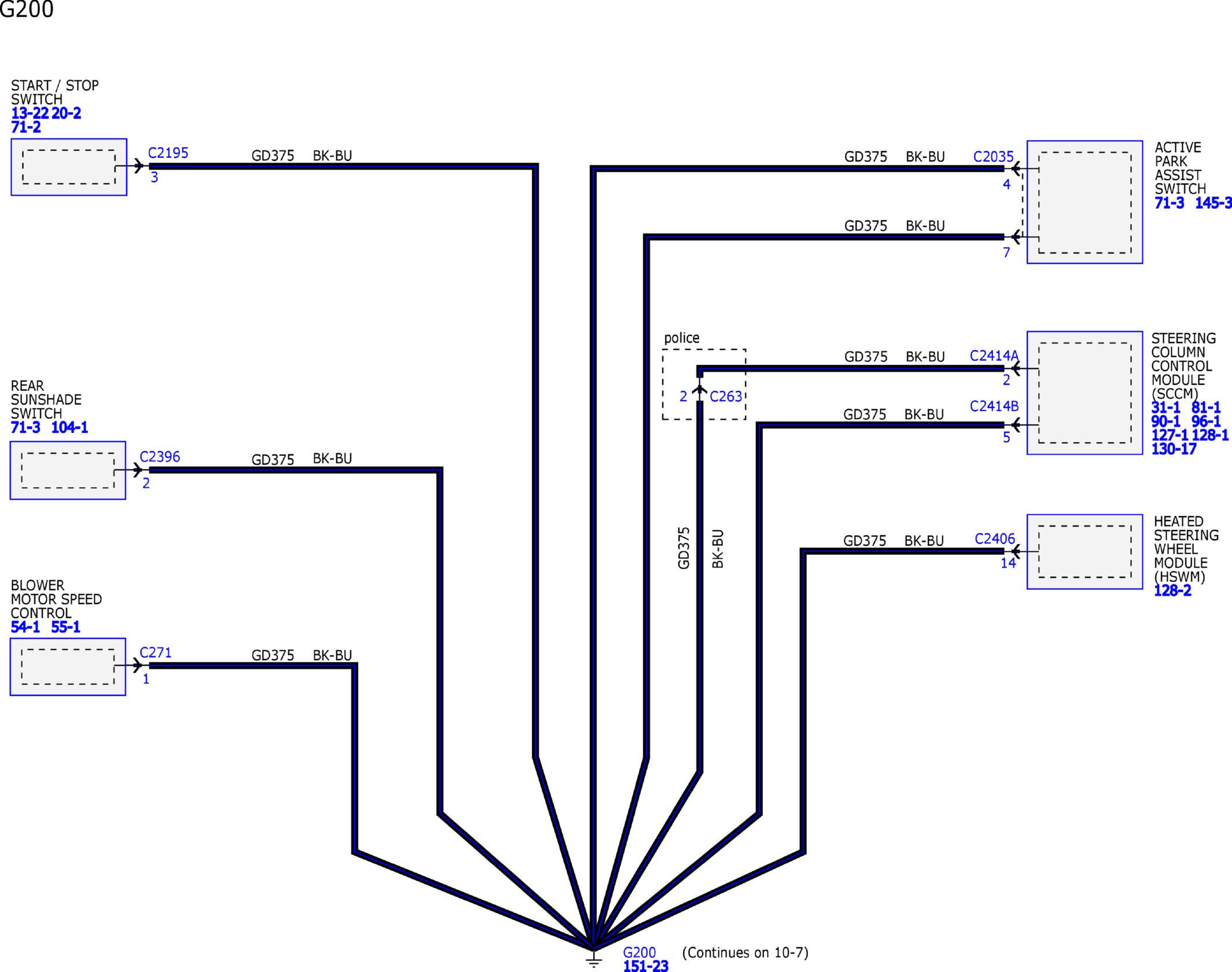

GFDW68988Courtesy of FORD MOTOR COMPANY

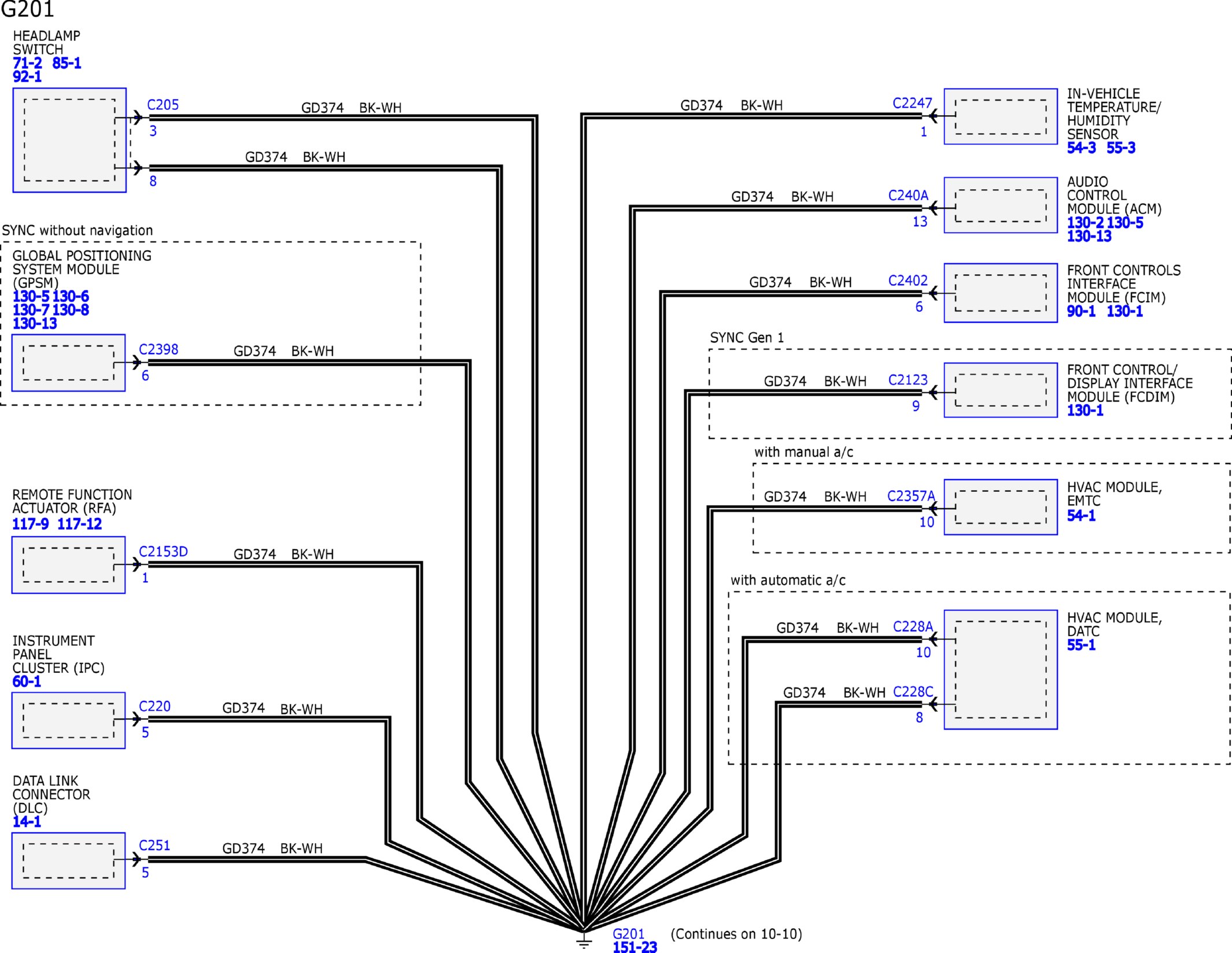

GFDW68989Courtesy of FORD MOTOR COMPANY

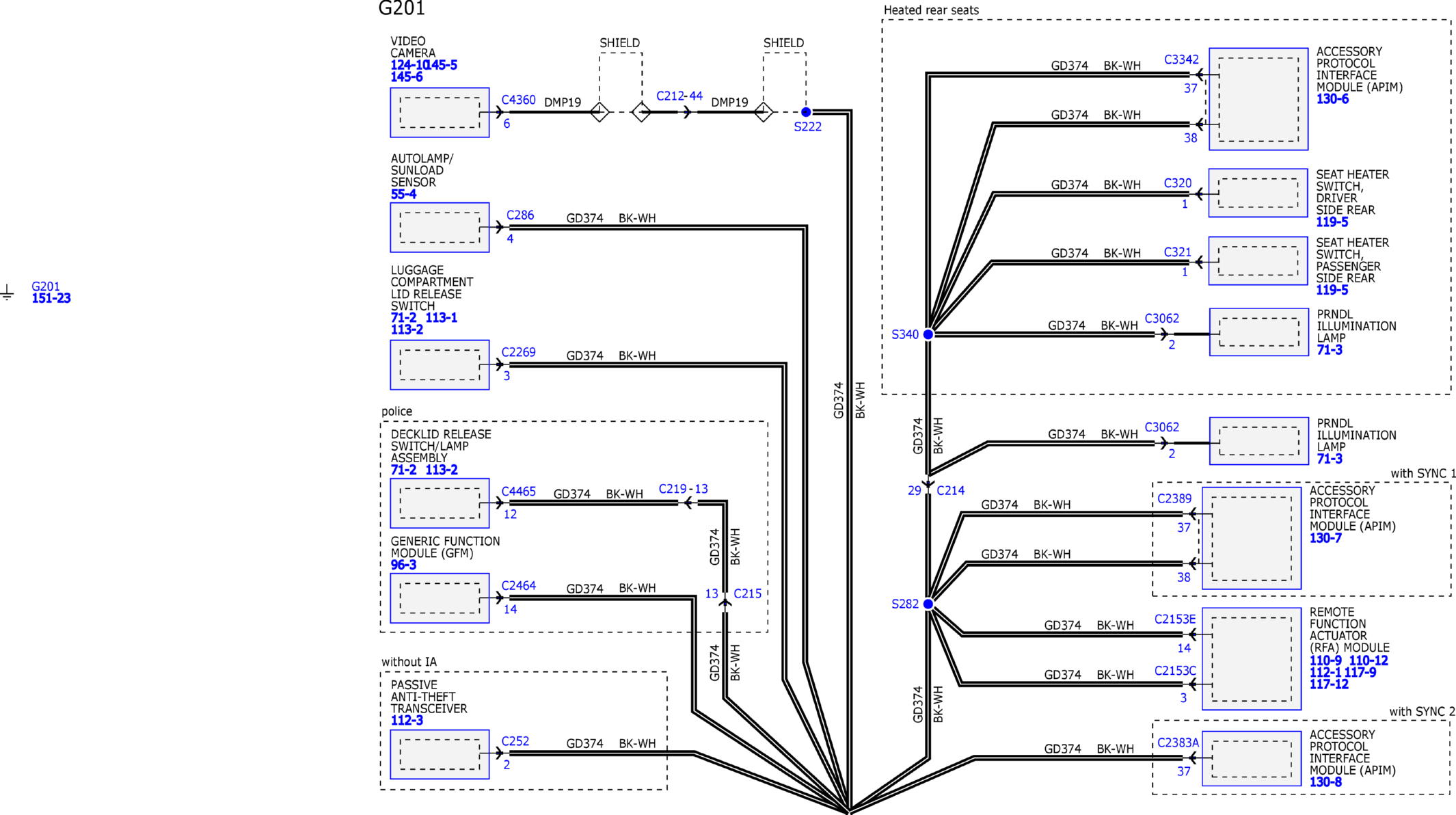

GFDW68990Courtesy of FORD MOTOR COMPANY
