Wheel Speed Sensor - Front: Removal

NOTE: Steps in the removal procedure may contain installation details.

  1. 1.

    Remove the wheel and tire. Refer to Wheels and Tires .

  1. 2.

GFD108407Courtesy of FORD MOTOR COMPANY

  1. 3.

GFD108408Courtesy of FORD MOTOR COMPANY

  1. 4.

GFD108409Courtesy of FORD MOTOR COMPANY

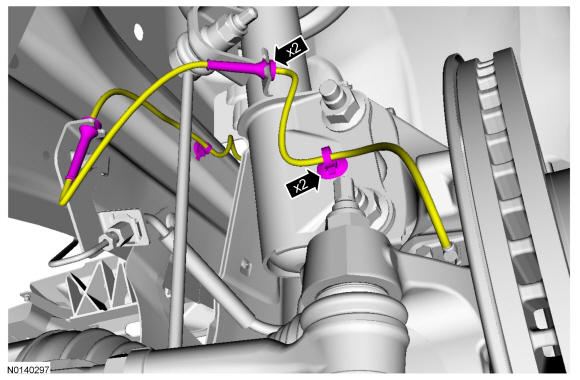

  1. 5.

GFD108410Courtesy of FORD MOTOR COMPANY

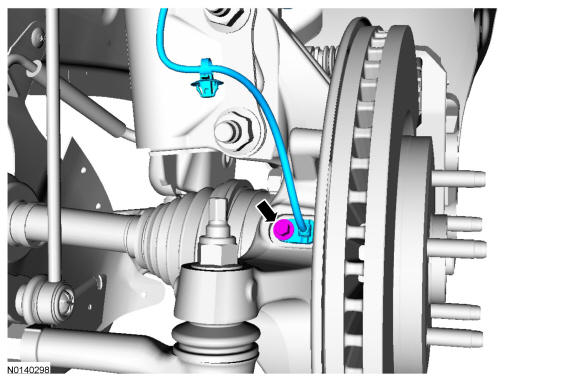

  1. 6.

    • To install, tighten to 15 Nm (133 lb-in).
GFD108411Courtesy of FORD MOTOR COMPANY
