Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is necessary when installing a new HCU or ABS module.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

2.

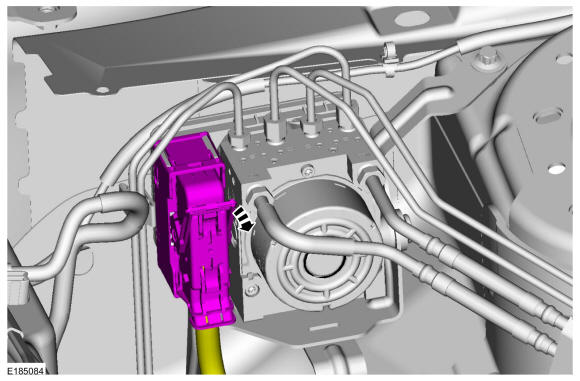

Disconnect the ABS module electrical connector.

GFD128637

Courtesy of FORD MOTOR COMPANY

3.

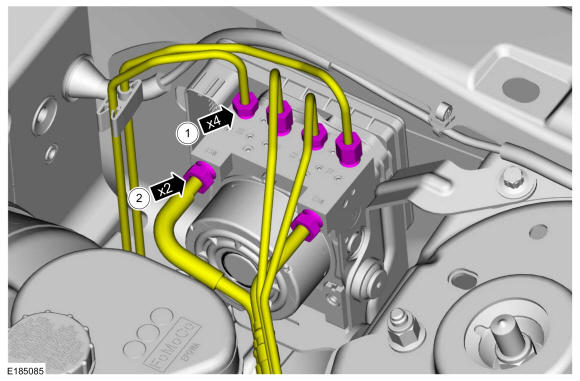

NOTE: Make sure that all openings are sealed.

Disconnect the 6 brake tube fittings.

Torque:

1.: 155 lb.in (17.5 Nm)

2.: 20 lb.ft (27.5 Nm)

GFD128638

Courtesy of FORD MOTOR COMPANY

4.

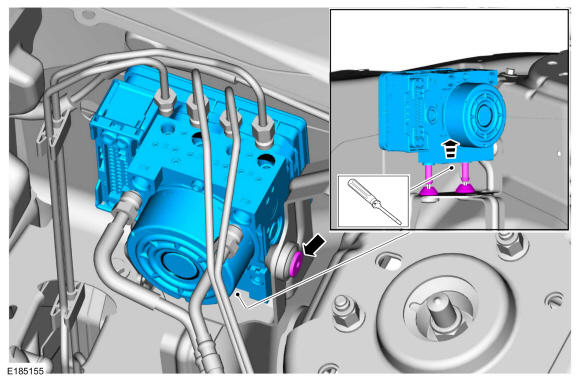

Remove the bolt and separate the HCU from the bracket.
Torque: 80 lb.in (9 Nm)

GFD128639

Courtesy of FORD MOTOR COMPANY
